2N4022
View detailed images (12)

2N4022

SKU: 2N4022

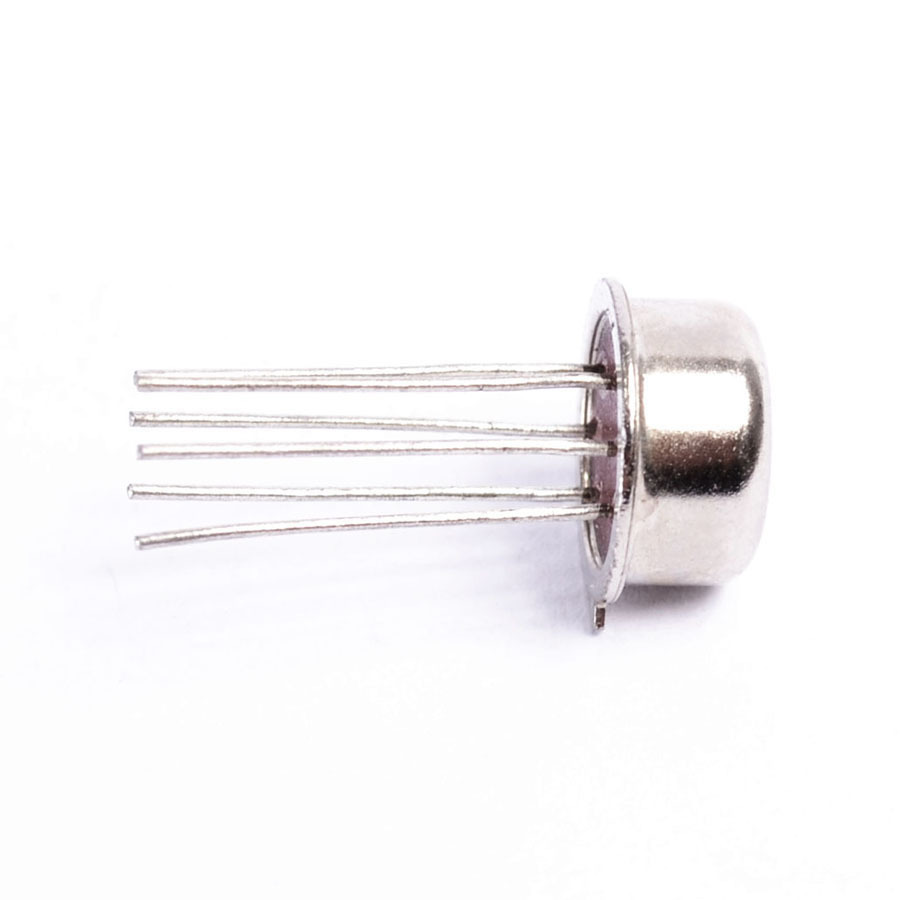

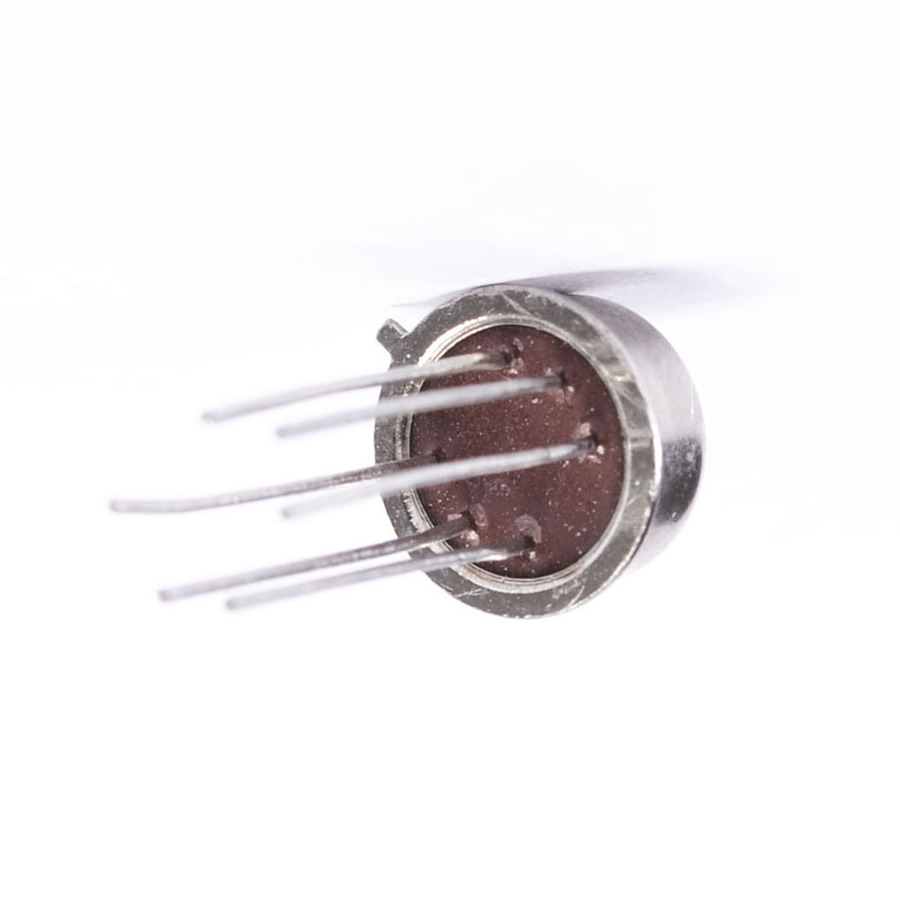

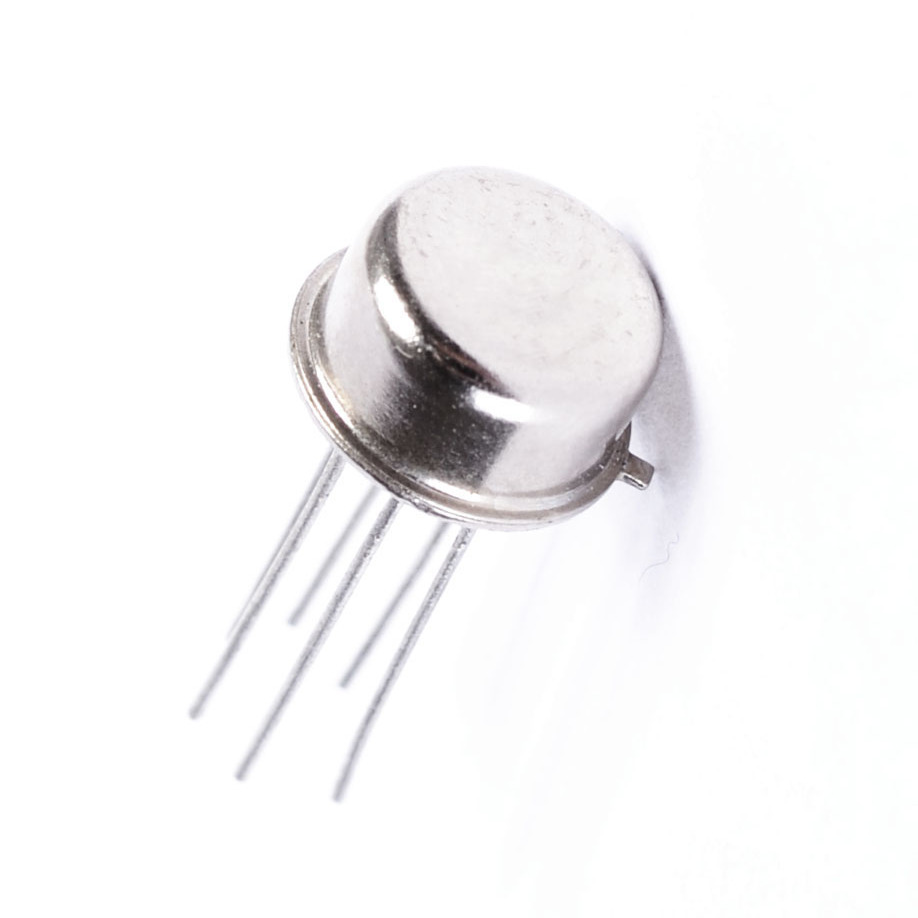

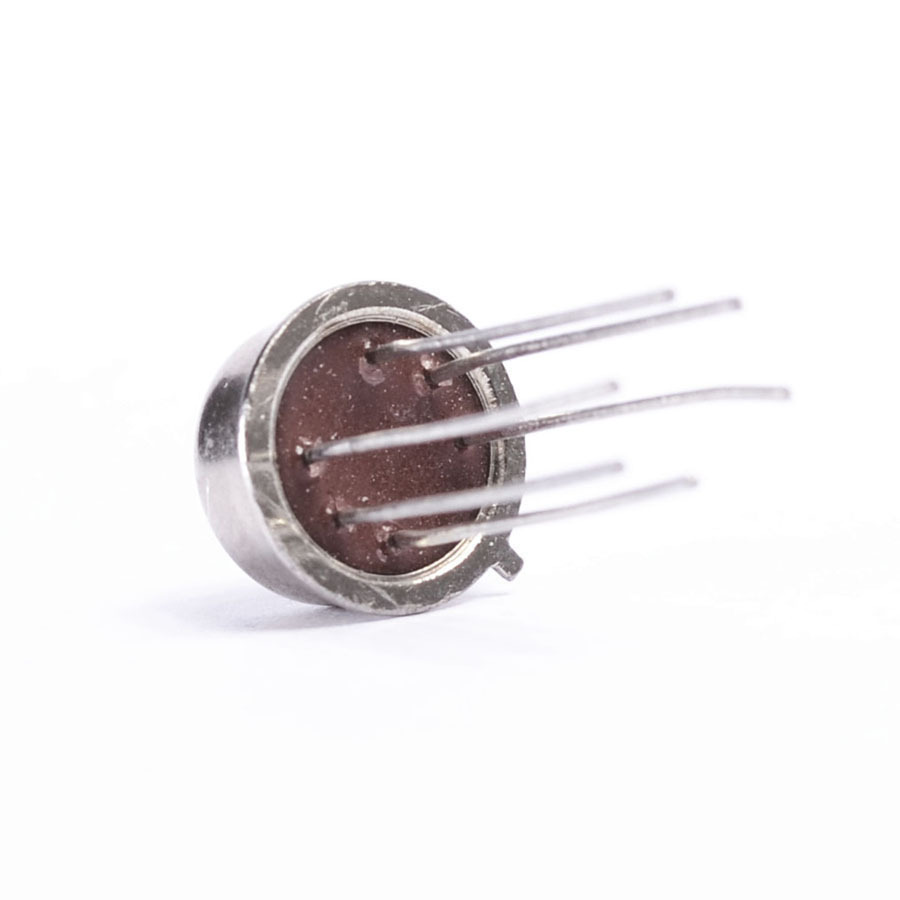

2N4022 Transistor Silicon PNP CASE: TO77 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon PNP
Case TO77
Manufacturer Motorola Semiconductor
Vbr CBO 60
Vbr CEO 60
Max. PD (W) 400m
C(ob) (F) 6p
Derate (Amb) (W/°C) 2.3m
hfe 250
Ic Max. (A) 200m
Icbo Max. @Vcb Max. (A) .01u
Polarity PNP
Trans. Freq (Hz) Min. 50M
@VCE (test) (V) 5.0
Oper. Temp (°C) Max. 175
@Ic (A) 1.0m
Pinout Equivalence Number 7-16
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.6 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 6 pF
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 250
SKU 774027
