2N4944
View detailed images (12)

2N4944

SKU: 2N4944

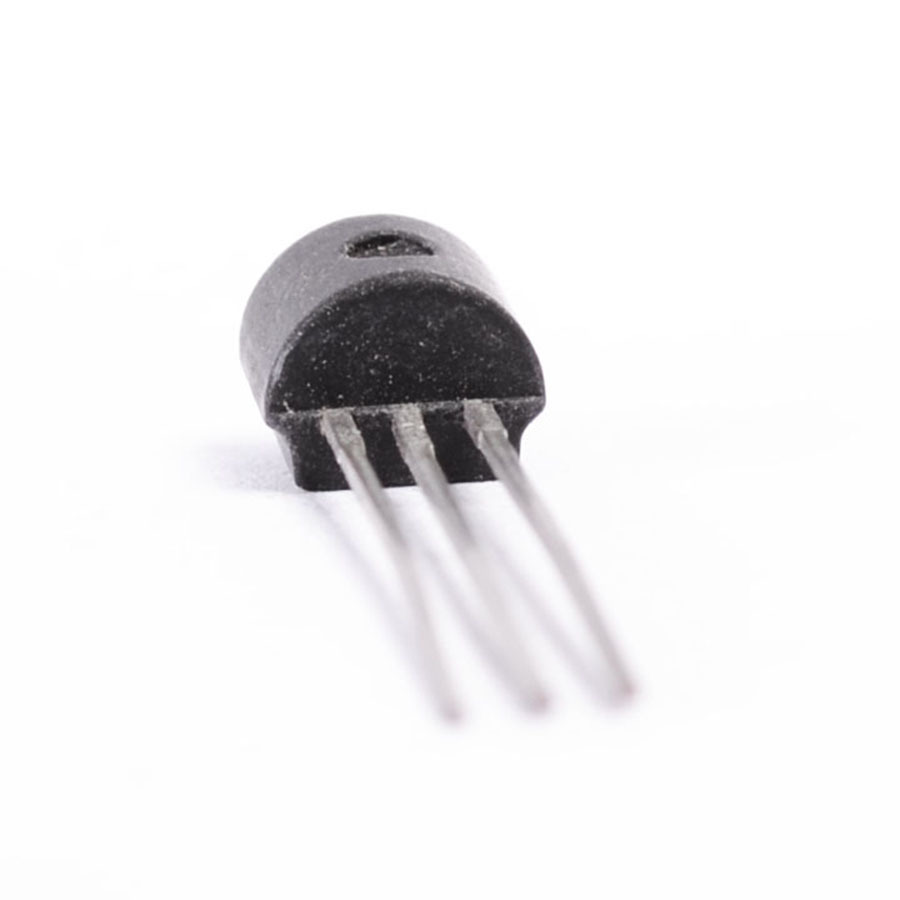

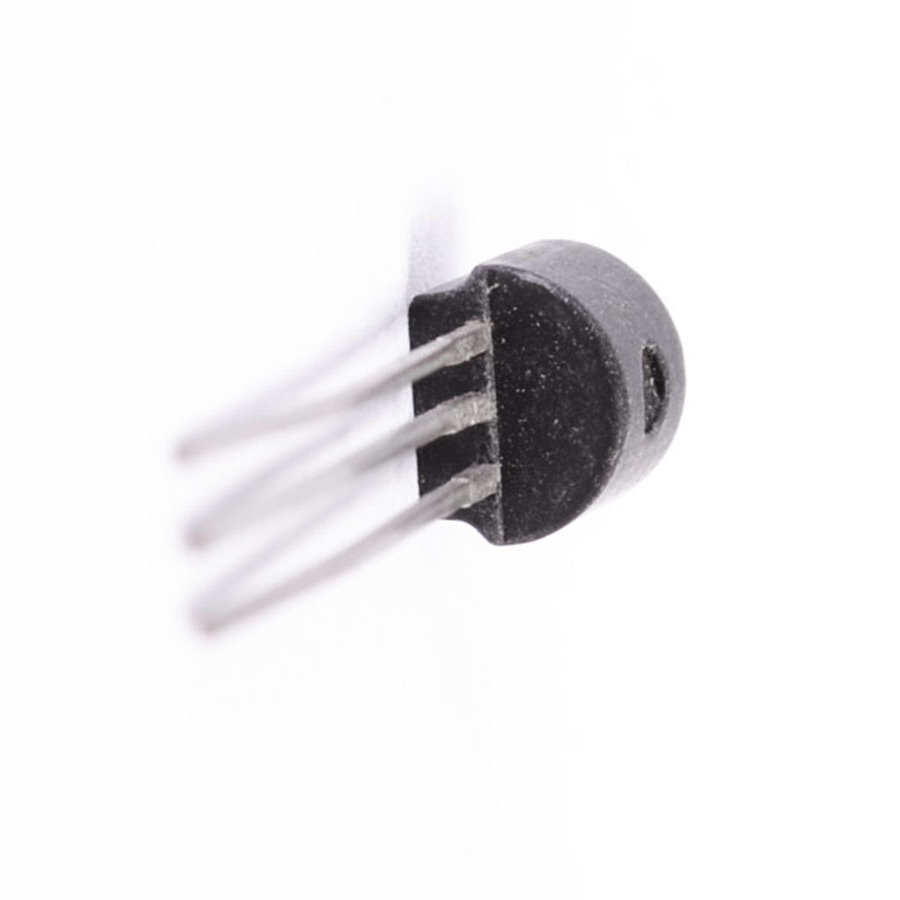

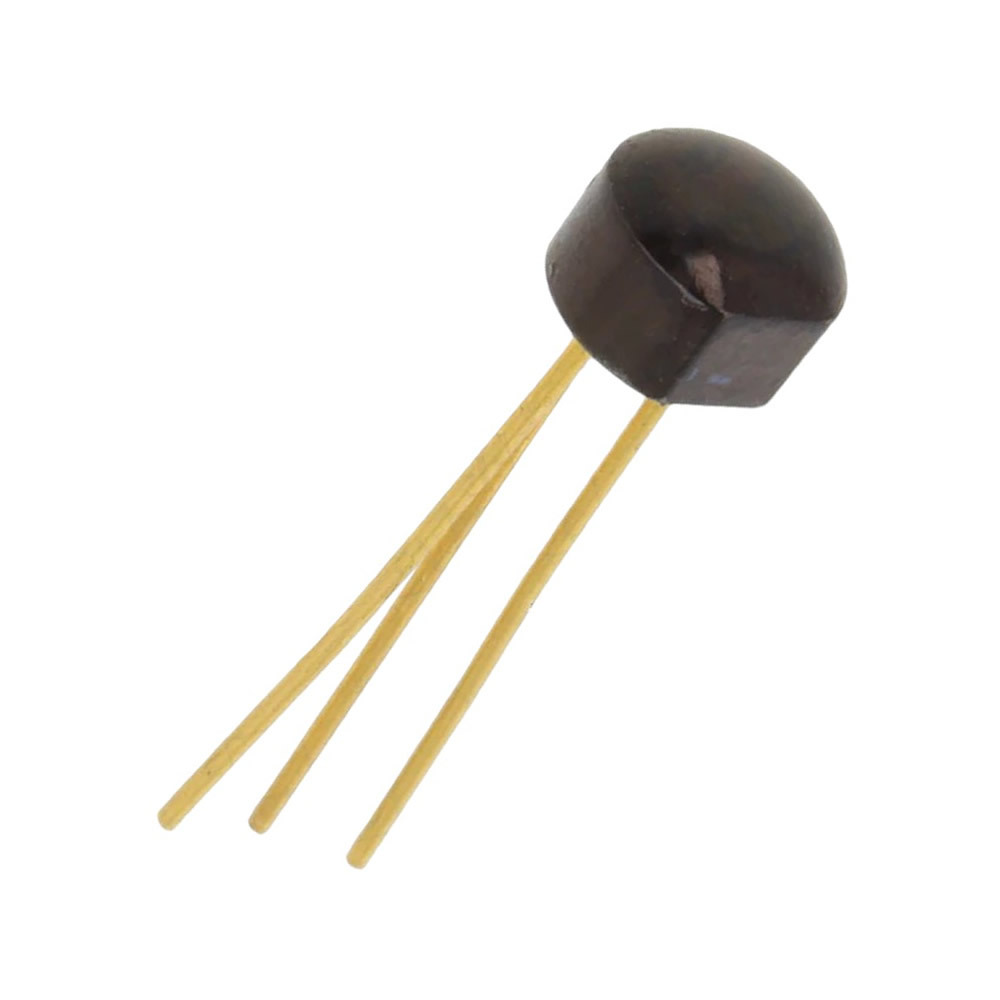

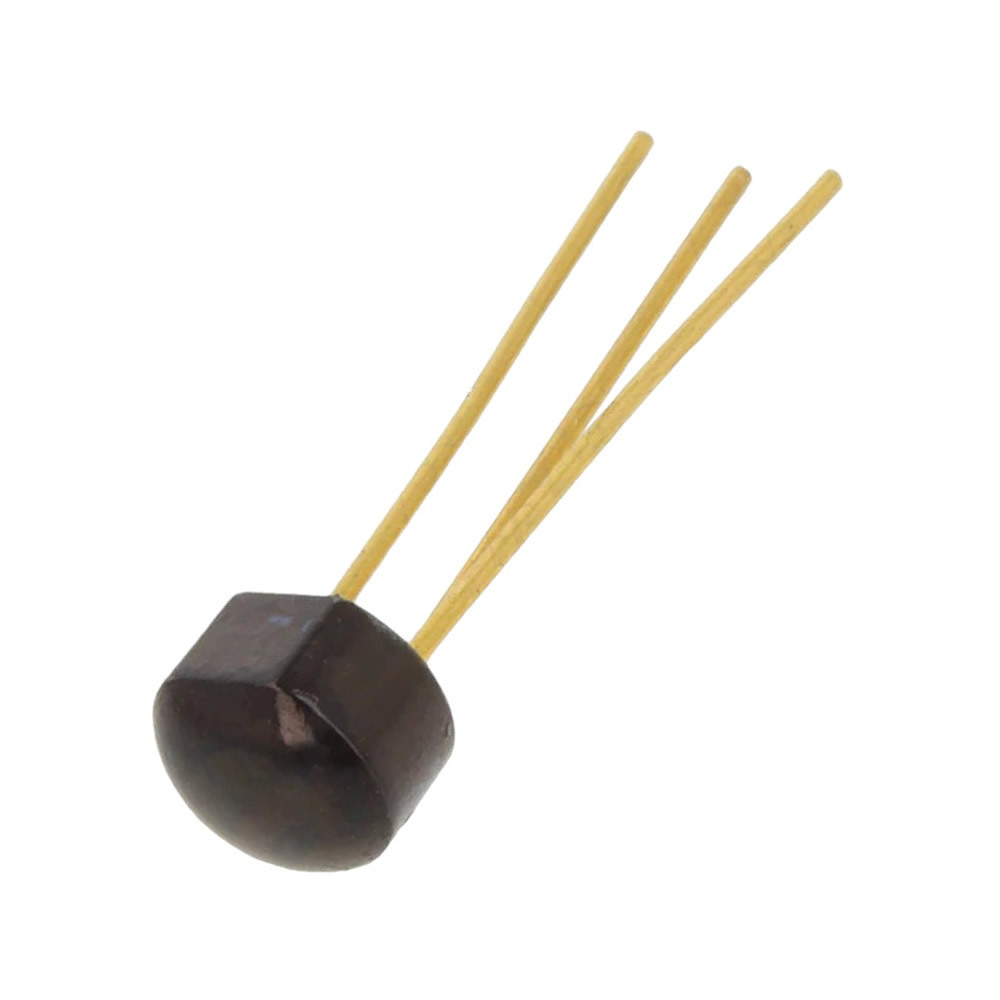

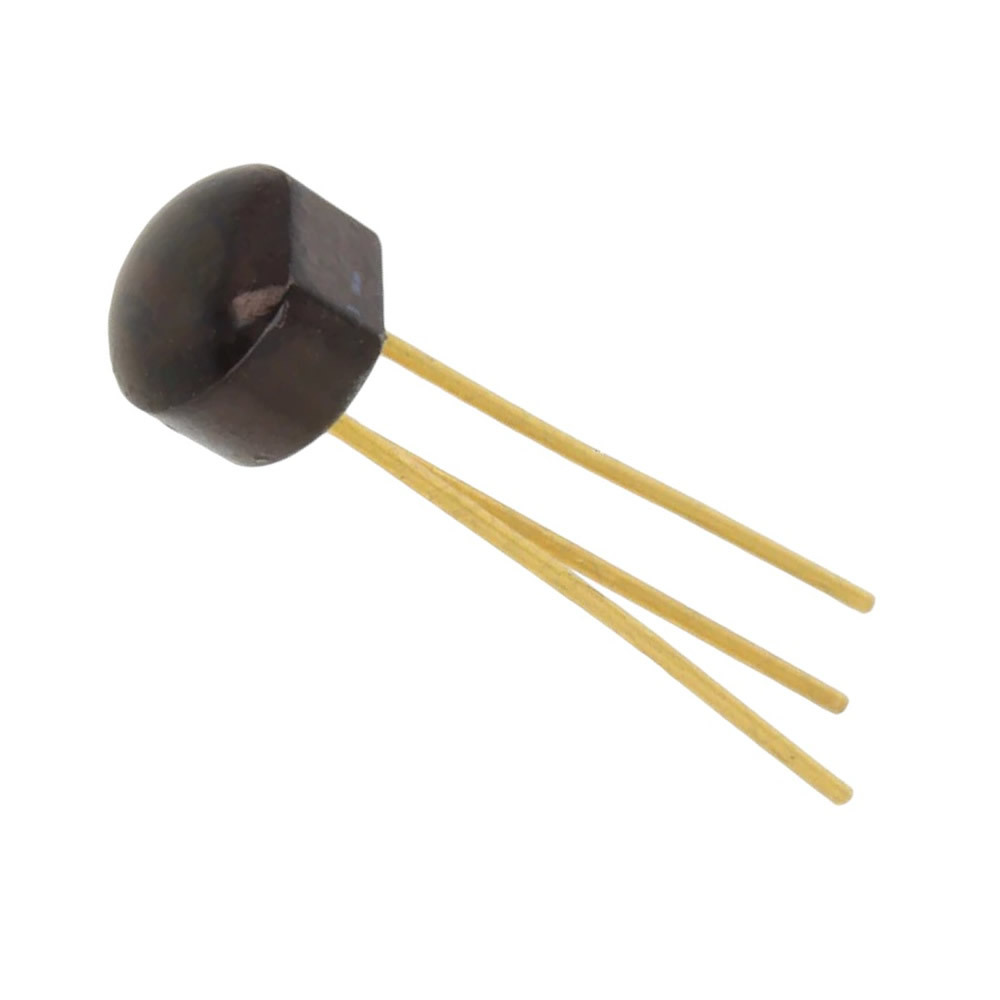

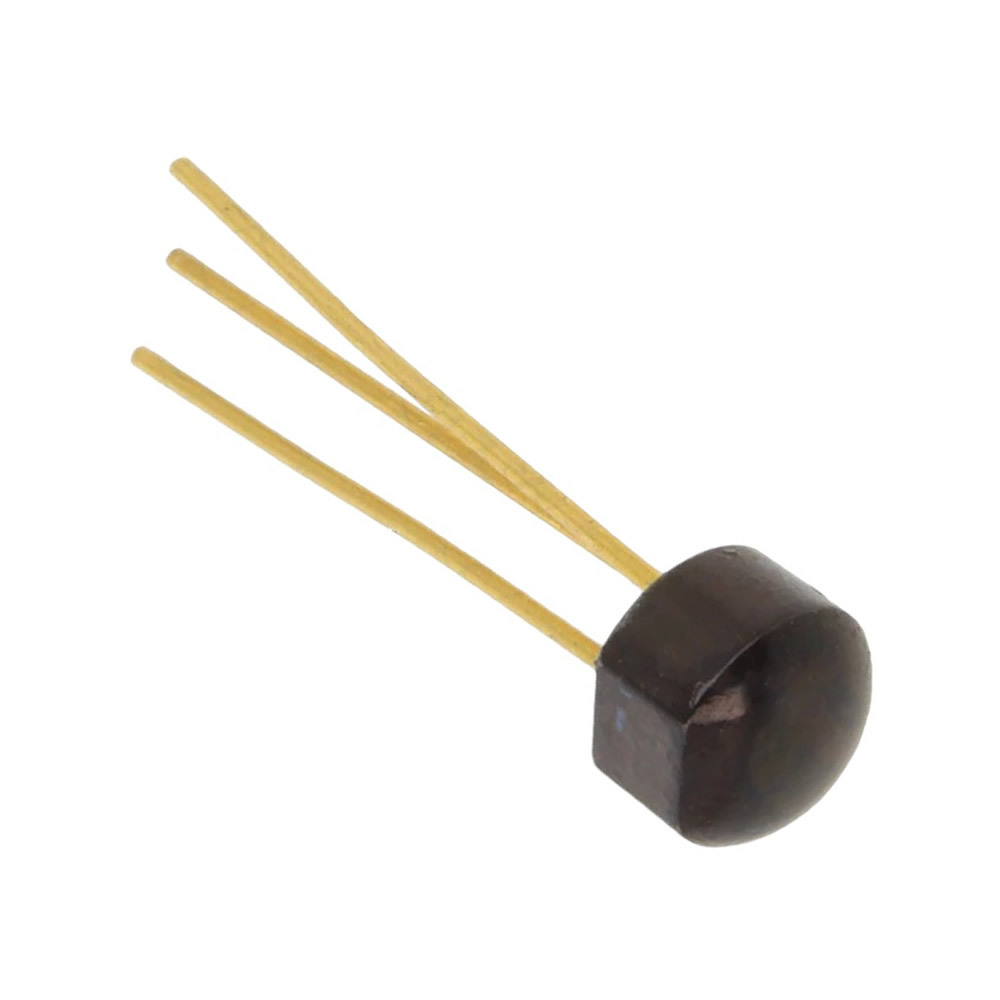

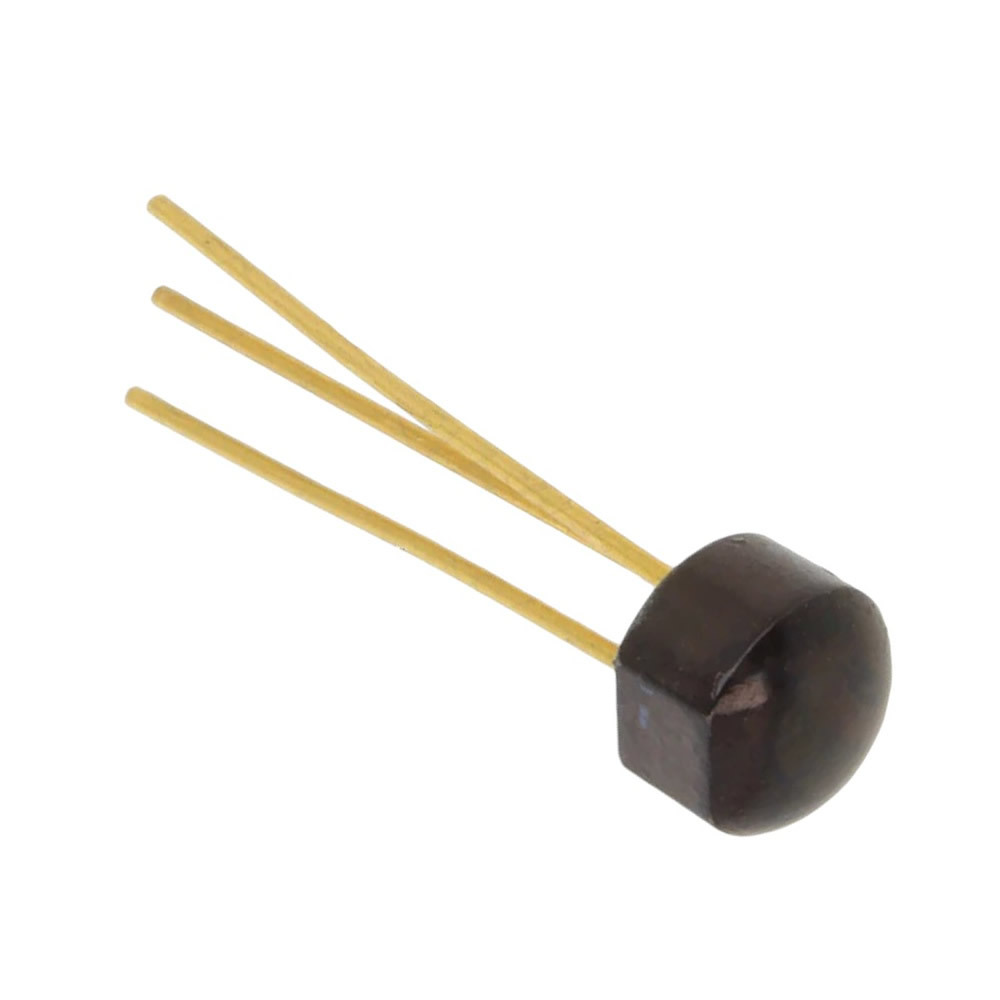

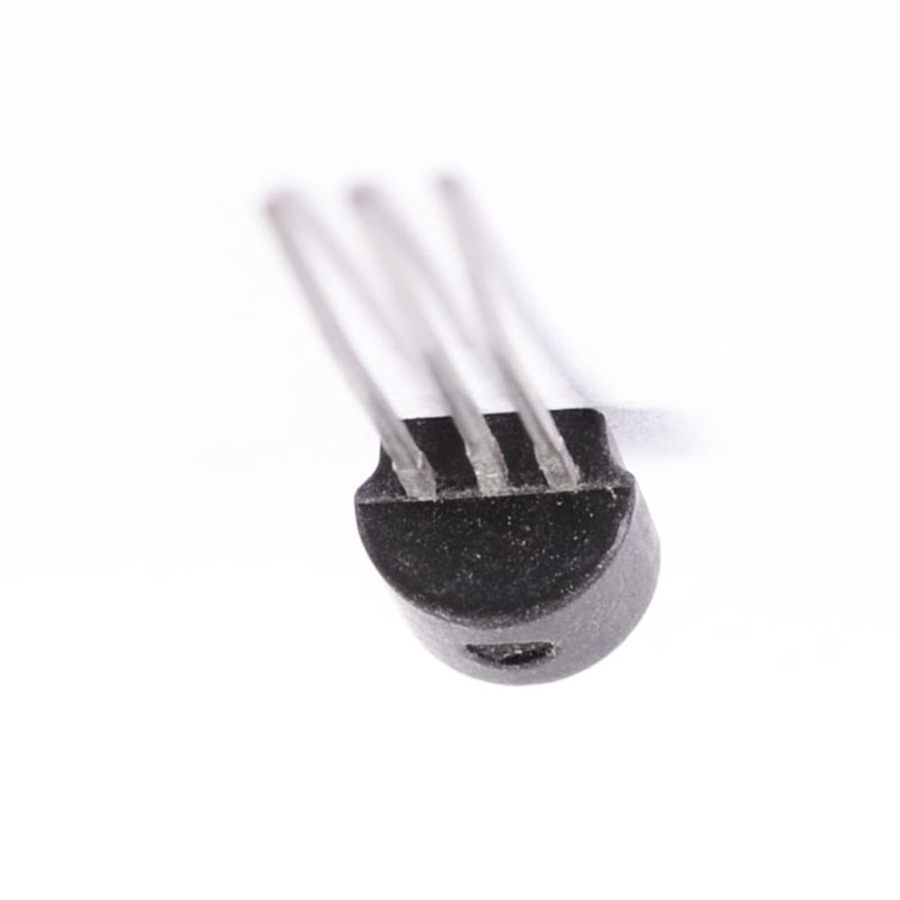

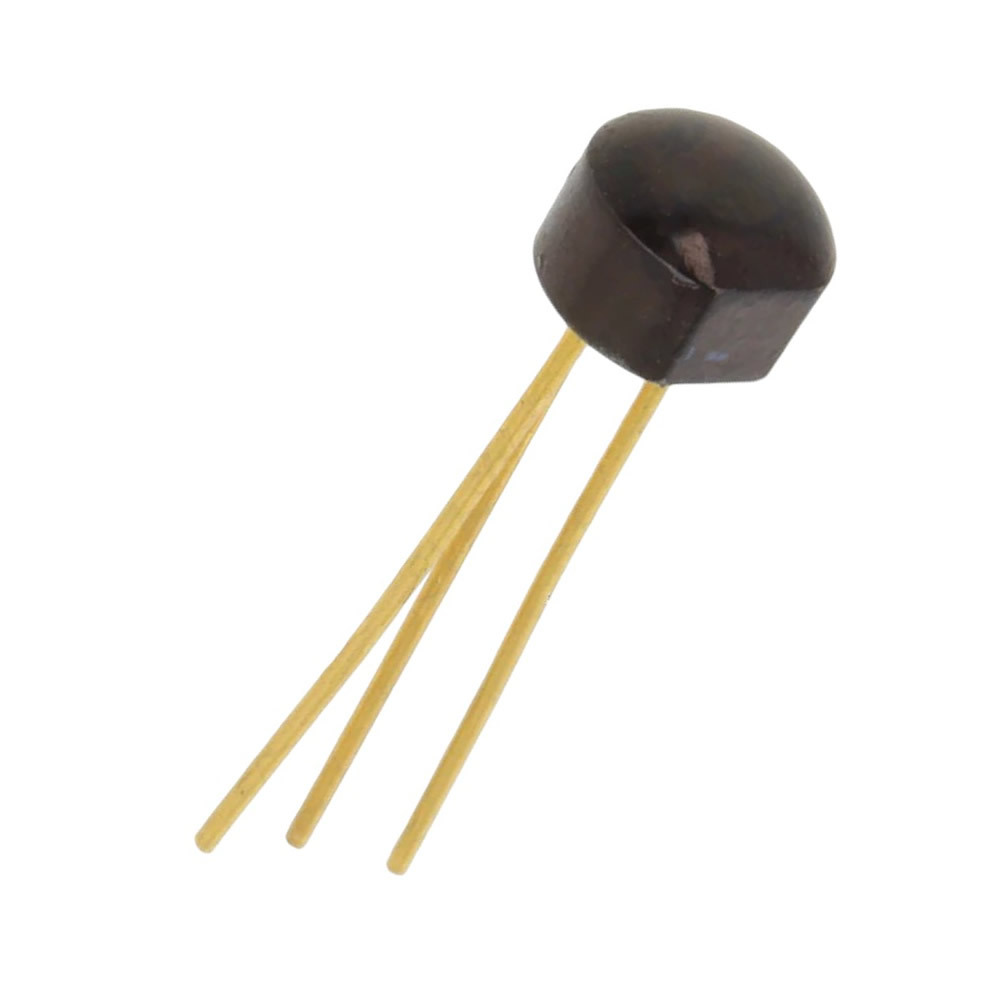

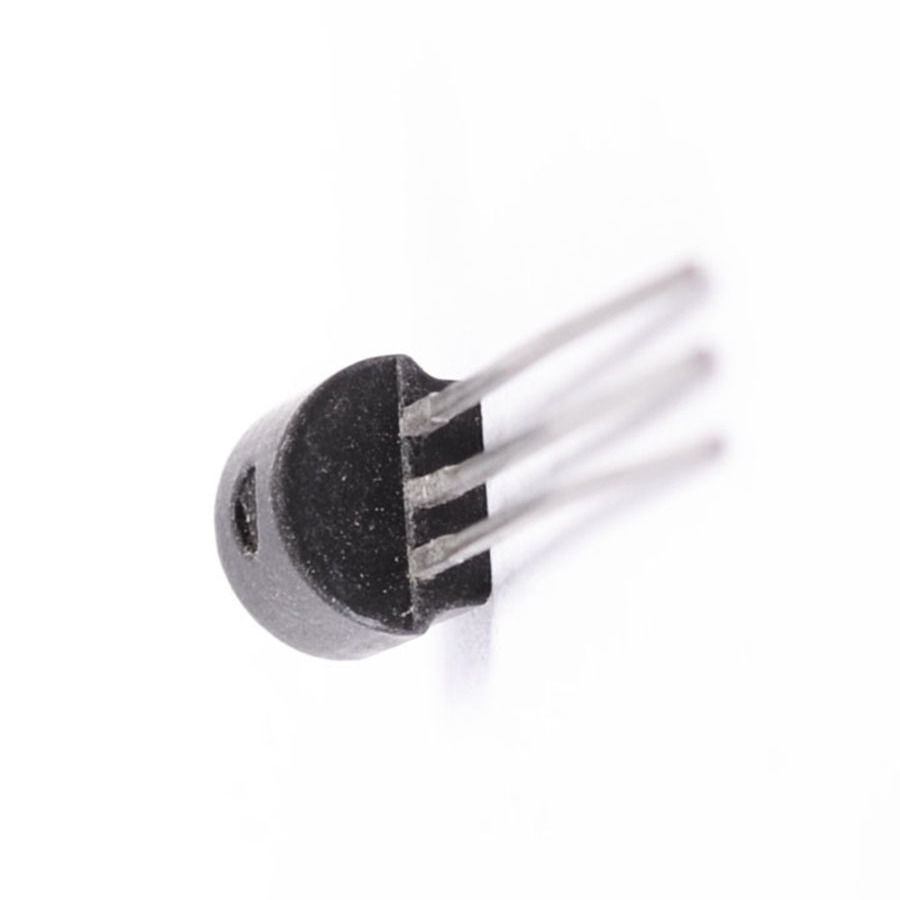

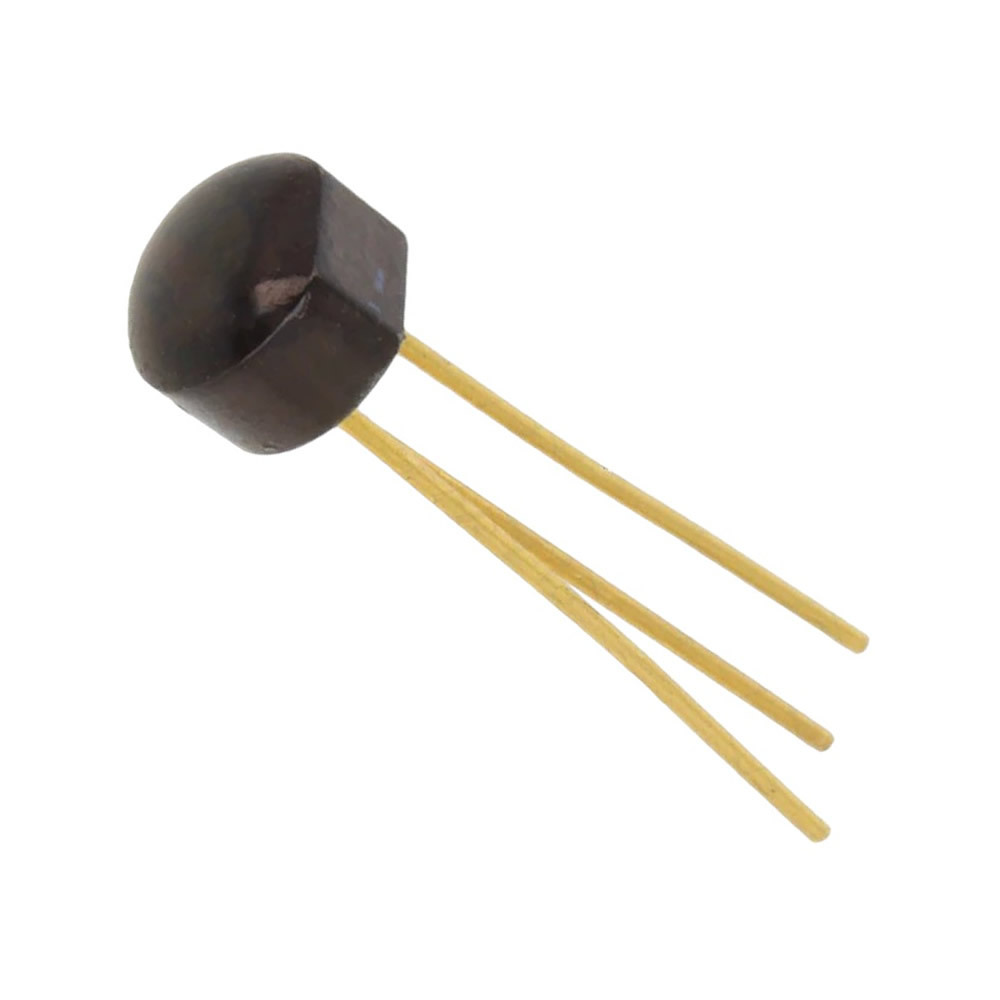

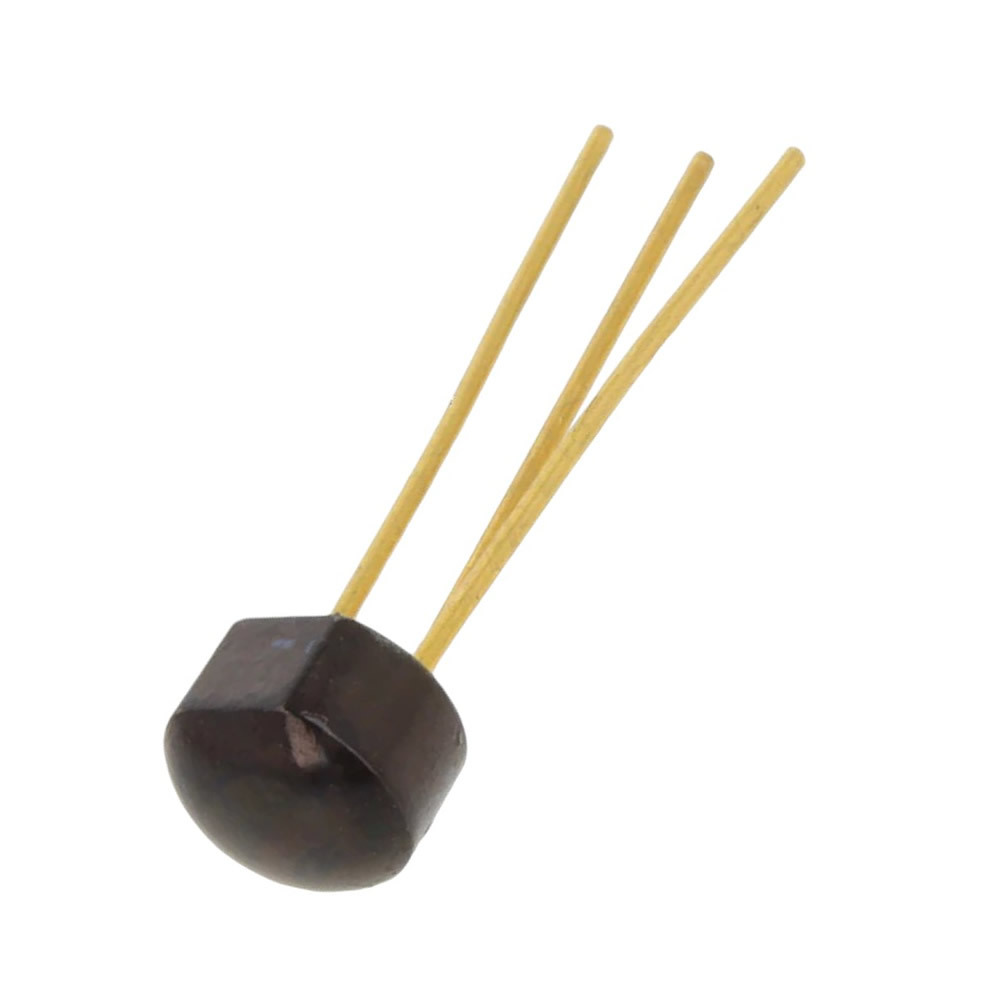

2N4944 Transistor Silicon NPN CASE: TO106 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case TO106
Manufacturer Generic
Vbr CBO 75
Vbr CEO 40
Max. PD (W) 220m
t(on) Delay (S) 10n
Derate (Amb) (W/°C) 2.2m
t(f) Max. (S) 60n
hfe 100
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 10n
Polarity NPN
Tr Max. (s) 25n
t(stor) Max. (S) 225n
Trans. Freq (Hz) Min. 300M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 150
@Ic (A) 150m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.6 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 25 pF
Transition Frequency (ft): 60 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 773517
