2N4970
View detailed images (12)

2N4970

SKU: 2N4970

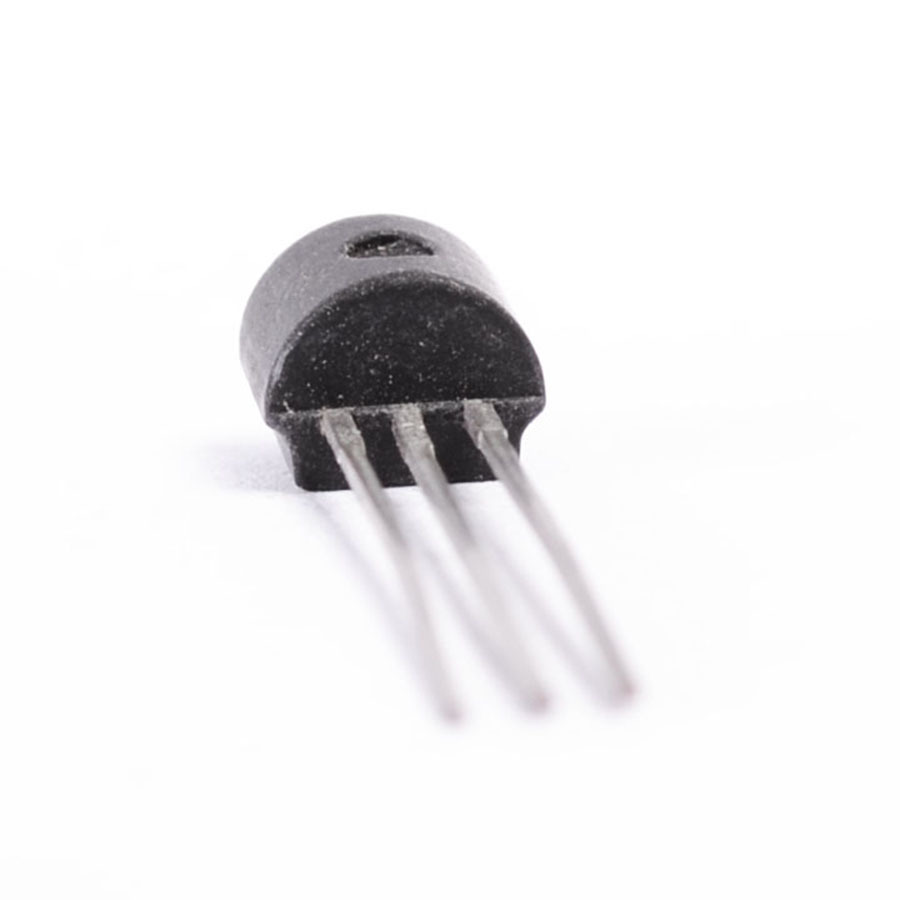

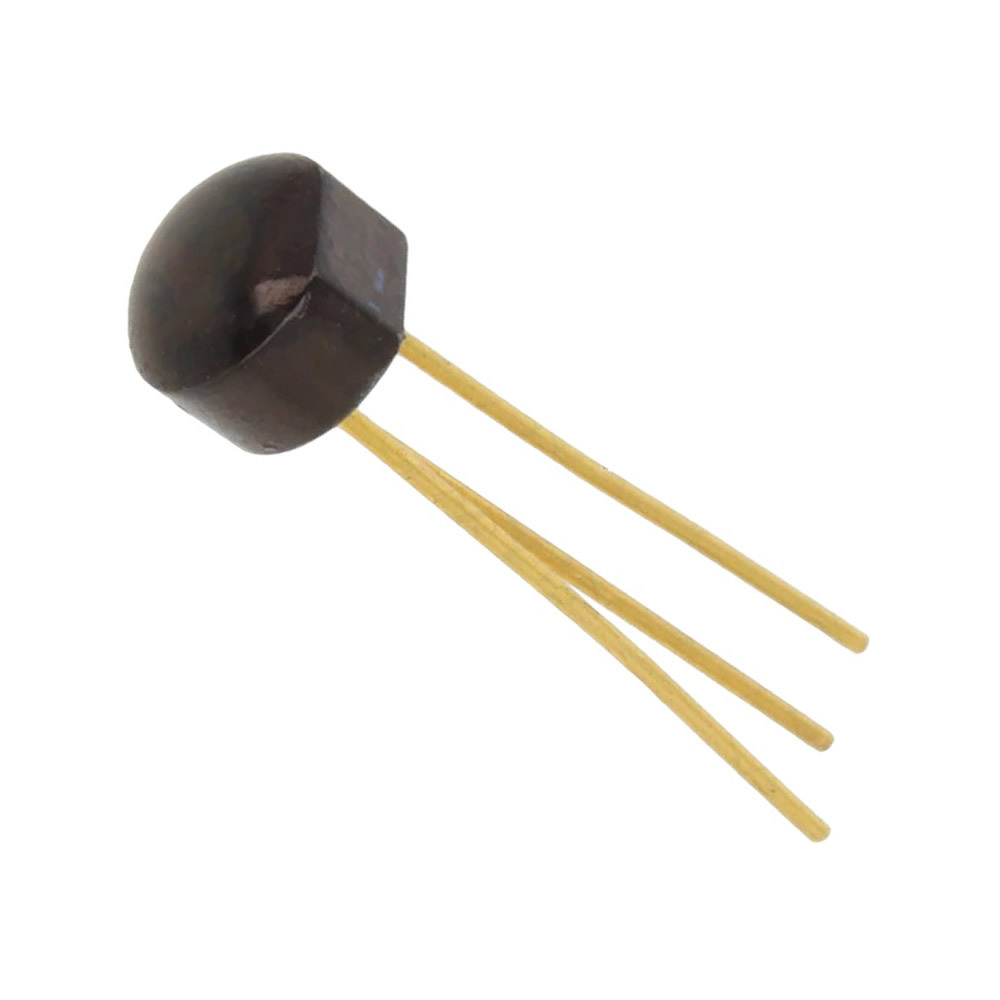

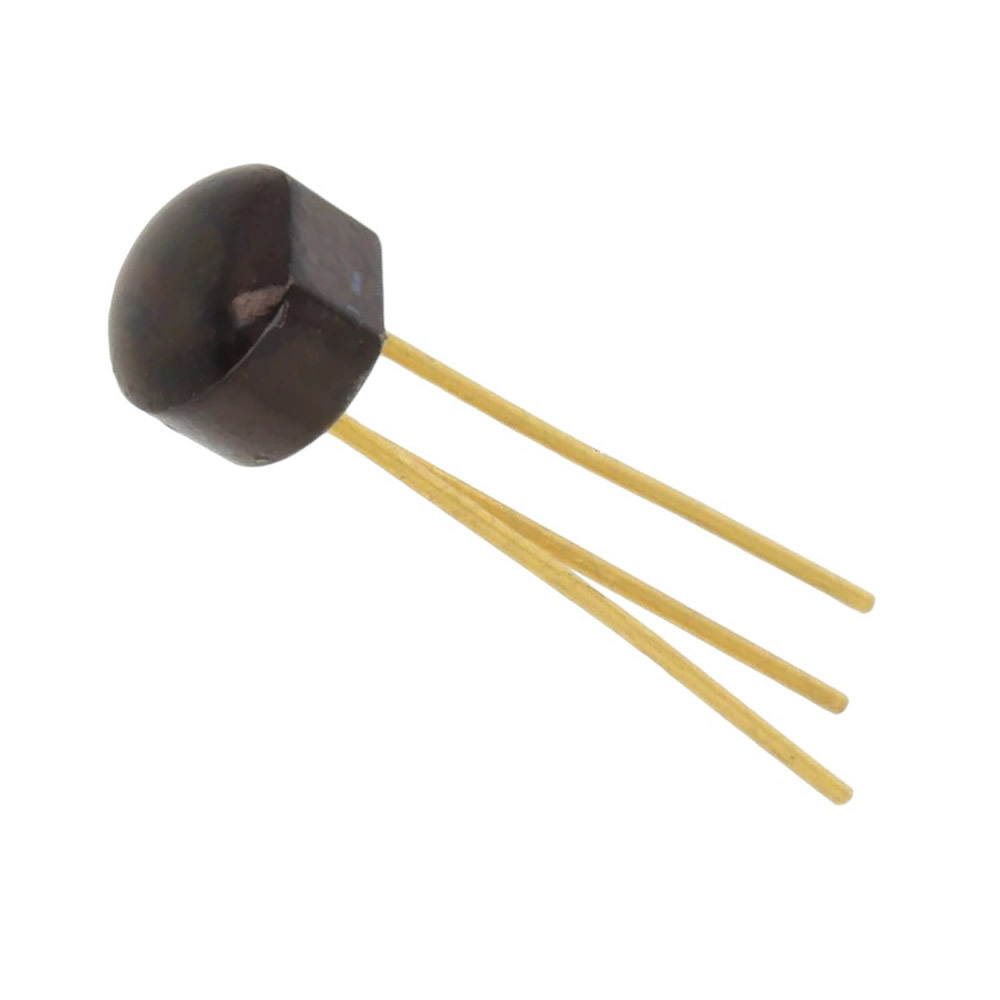

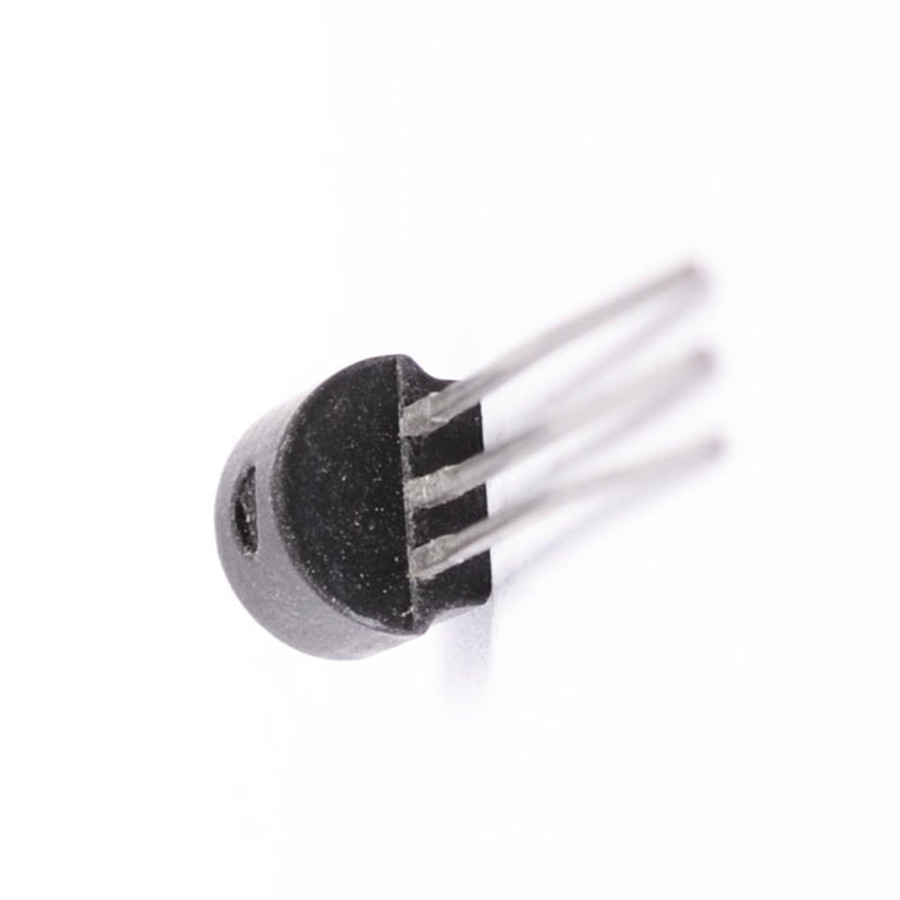

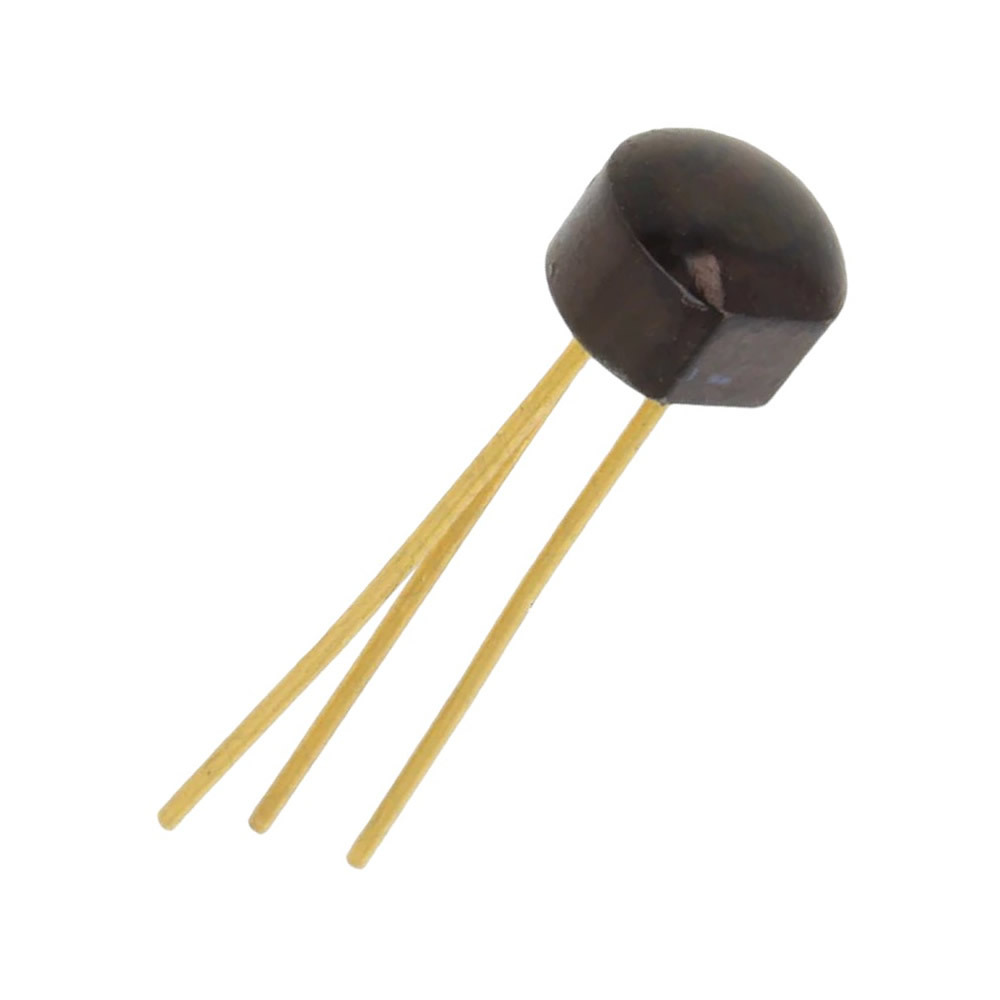

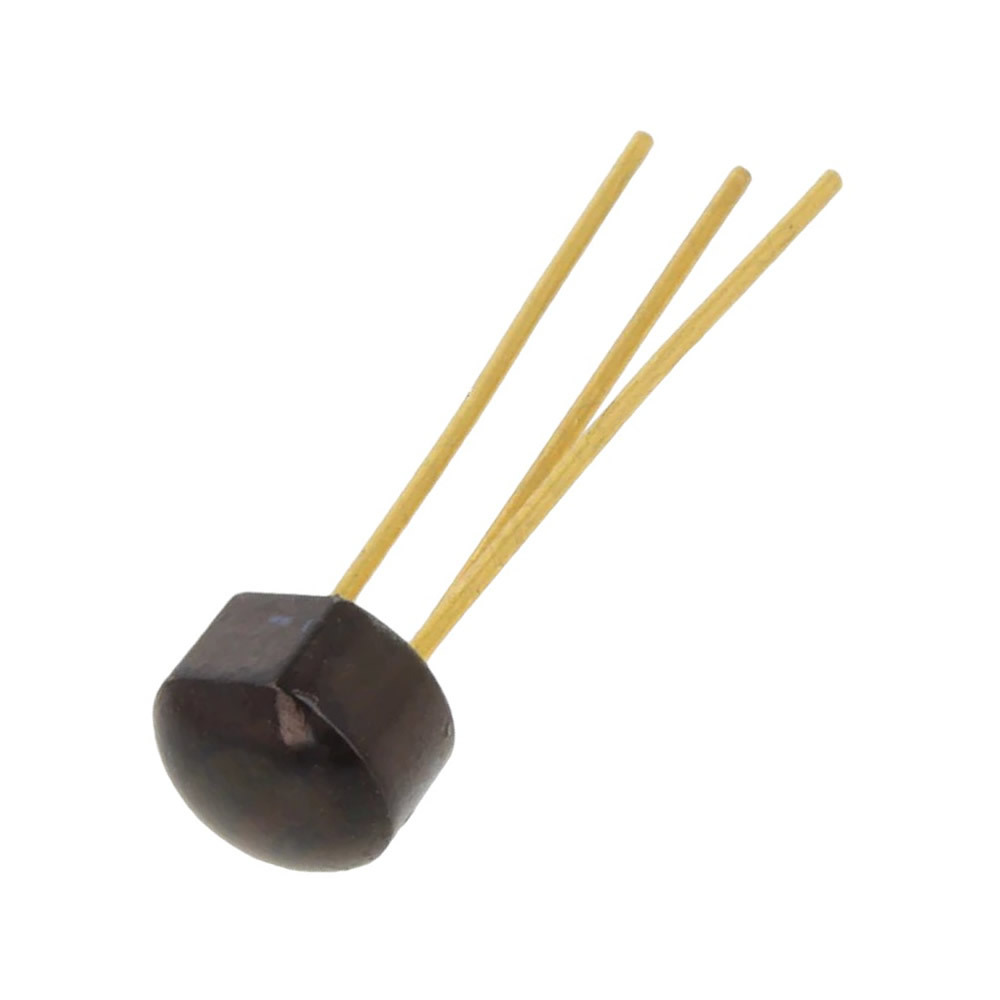

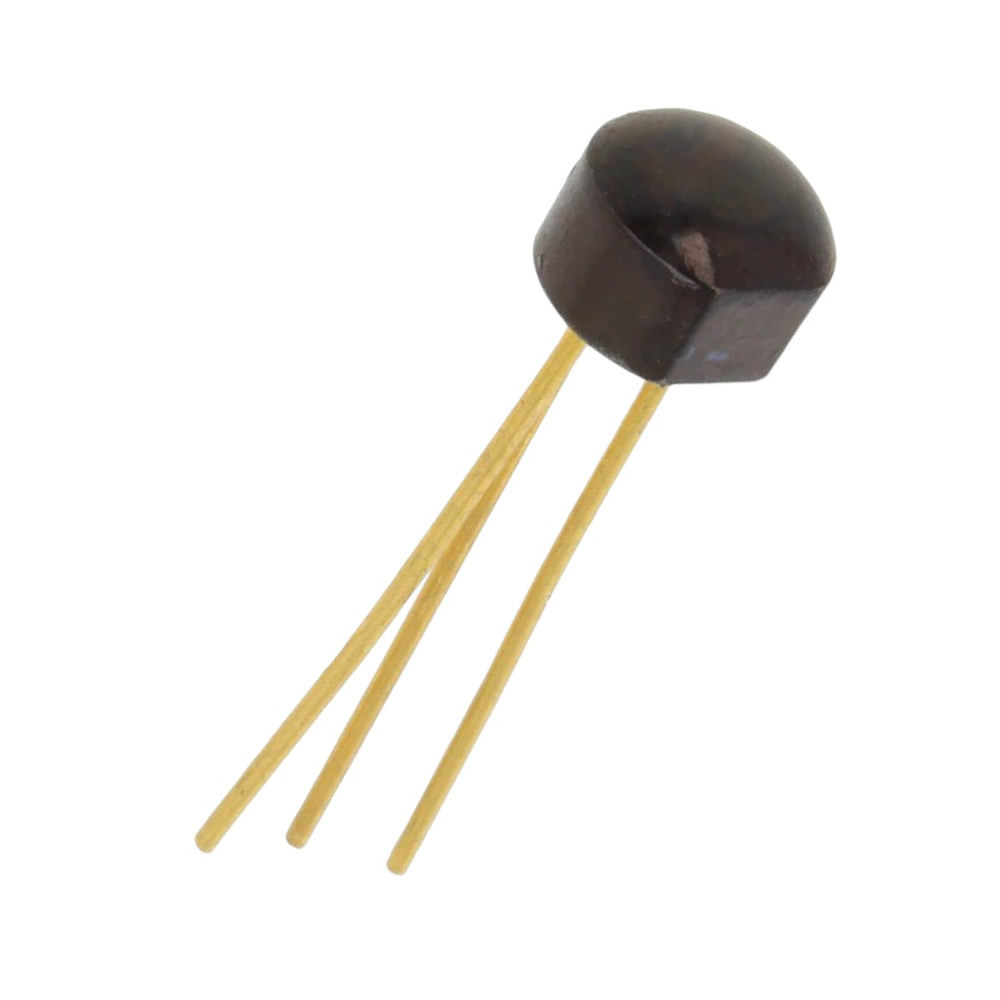

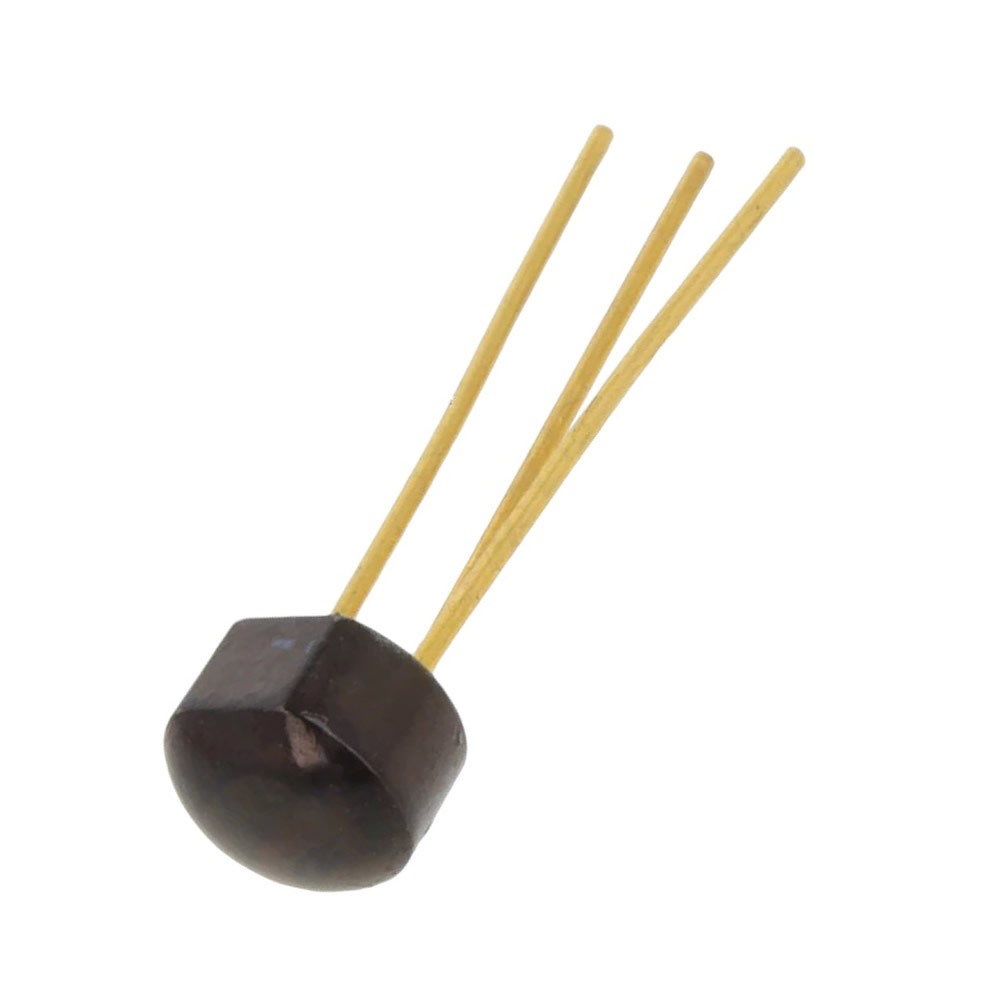

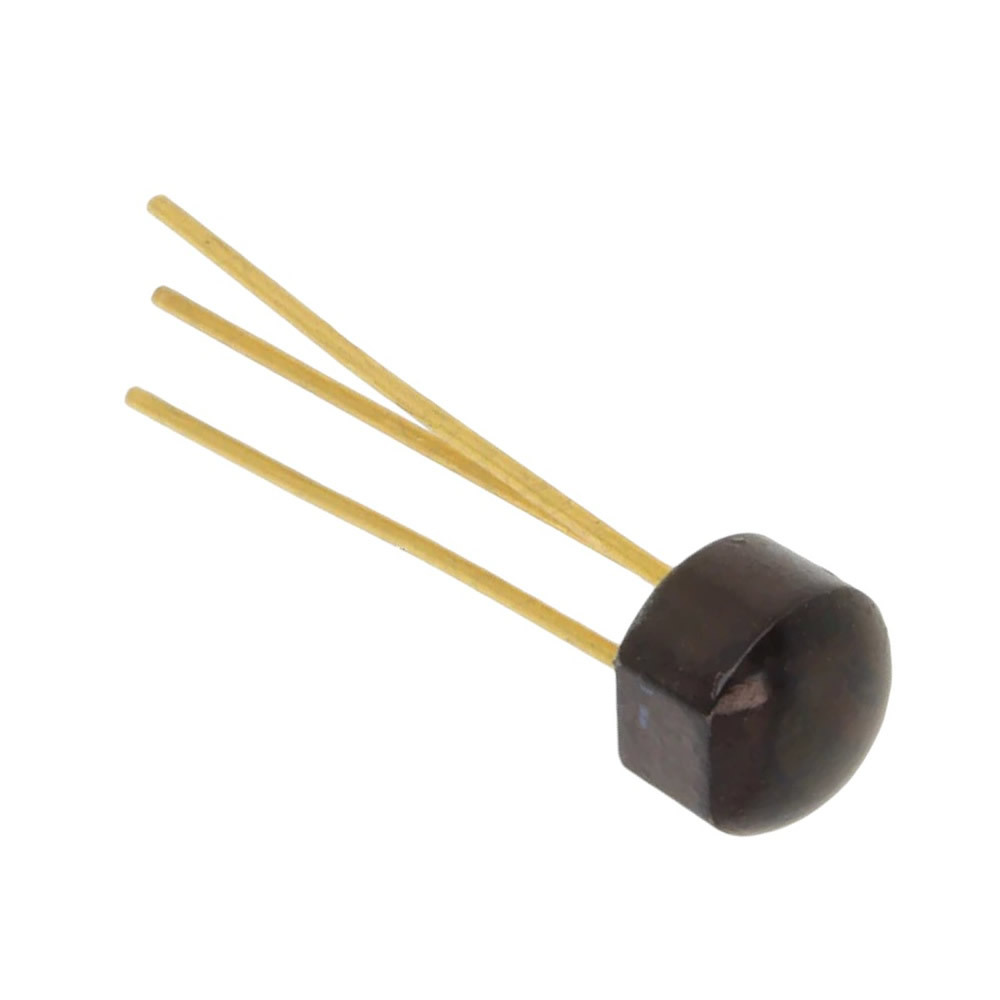

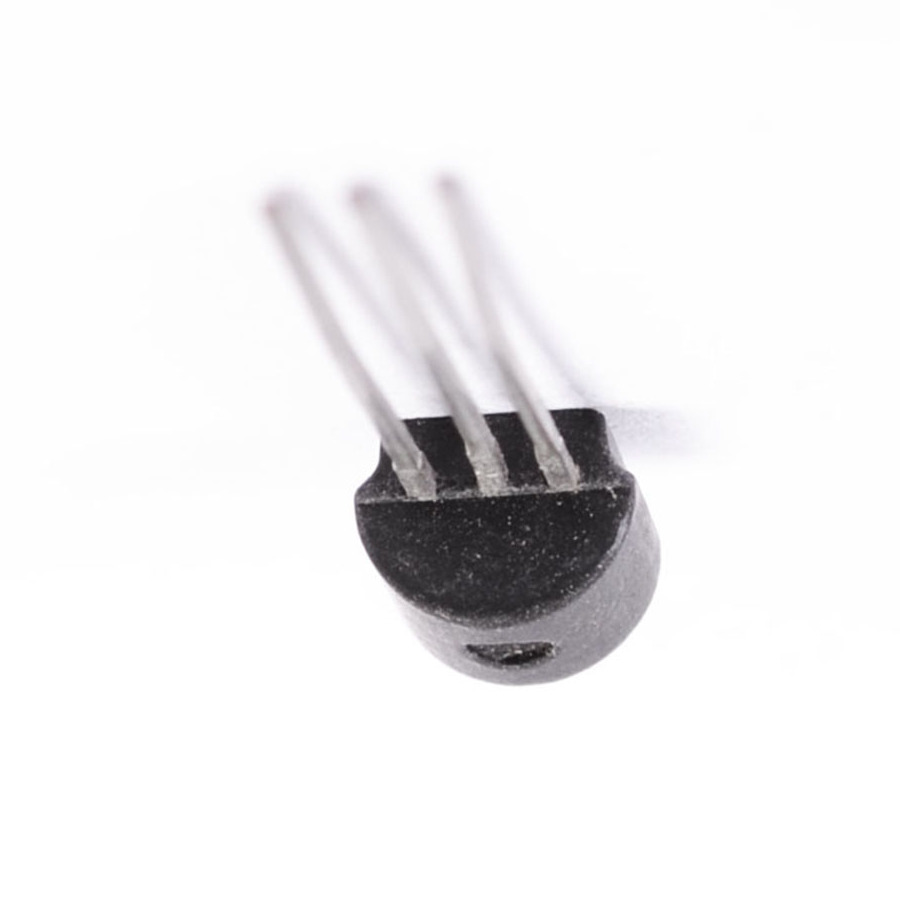

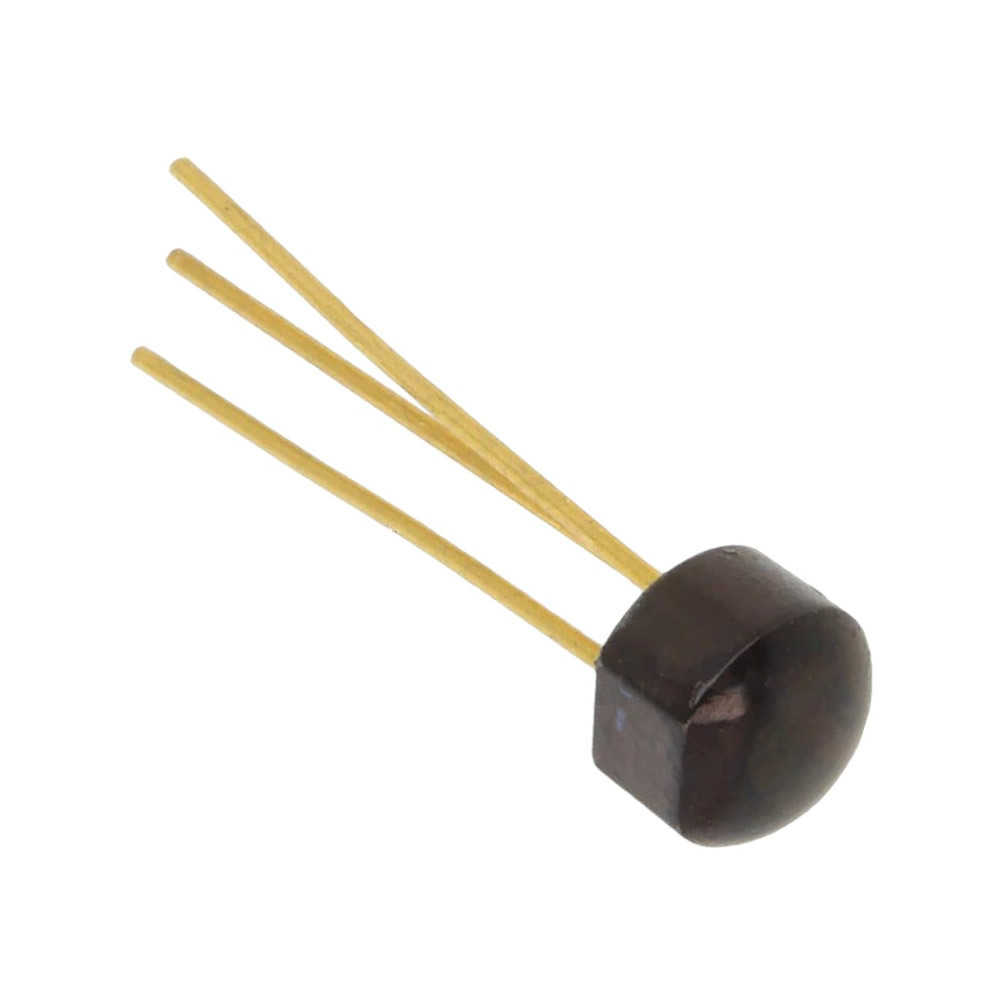

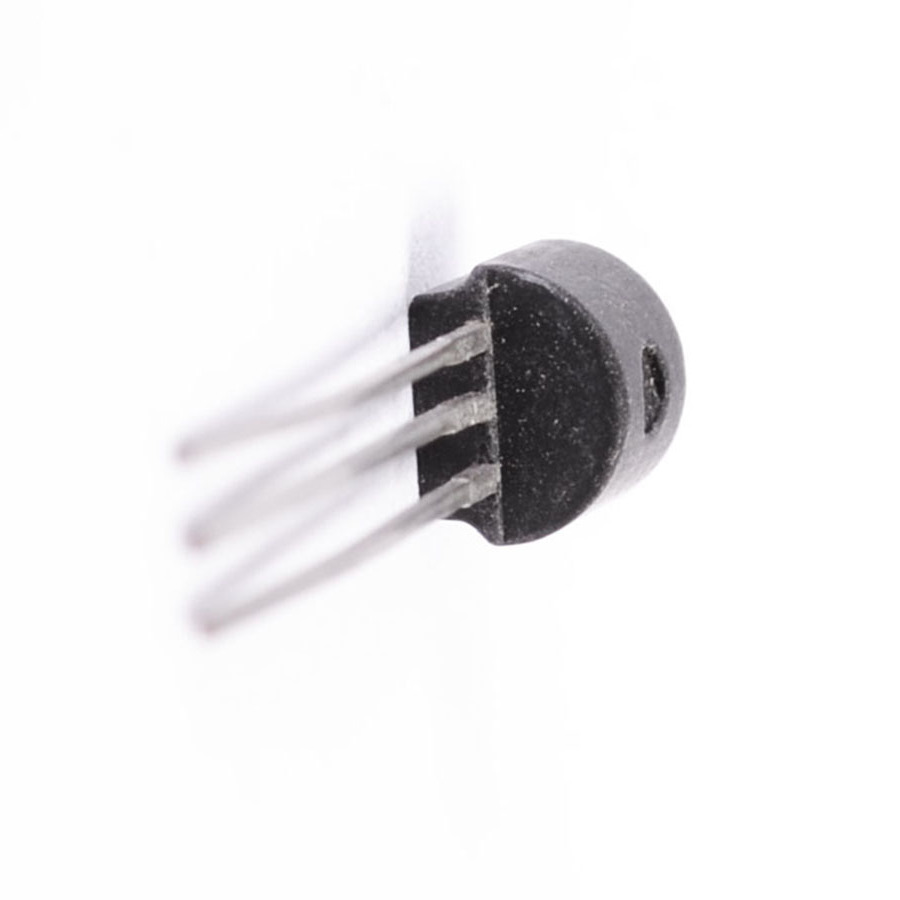

2N4970 Transistor Silicon NPN CASE: TO106 MAKE: National Semiconductor - NSC
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO106
Manufacturer National Semiconductor - NSC
Vbr CBO 60
Vbr CEO 30
Max. PD (W) 200m
C(ob) (F) 8.0p
t(on) Delay (S) 10n
Derate (Amb) (W/°C) 2.0m
t(f) Max. (S) 60n
hfe 100
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 10n
Polarity NPN
Tr Max. (s) 25n
t(stor) Max. (S) 350n
Trans. Freq (Hz) Min. 250M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 150
@Ic (A) 150m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 12 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 313021
