2N5038G
View detailed images (4)

2N5038G

SKU: 2N5038G

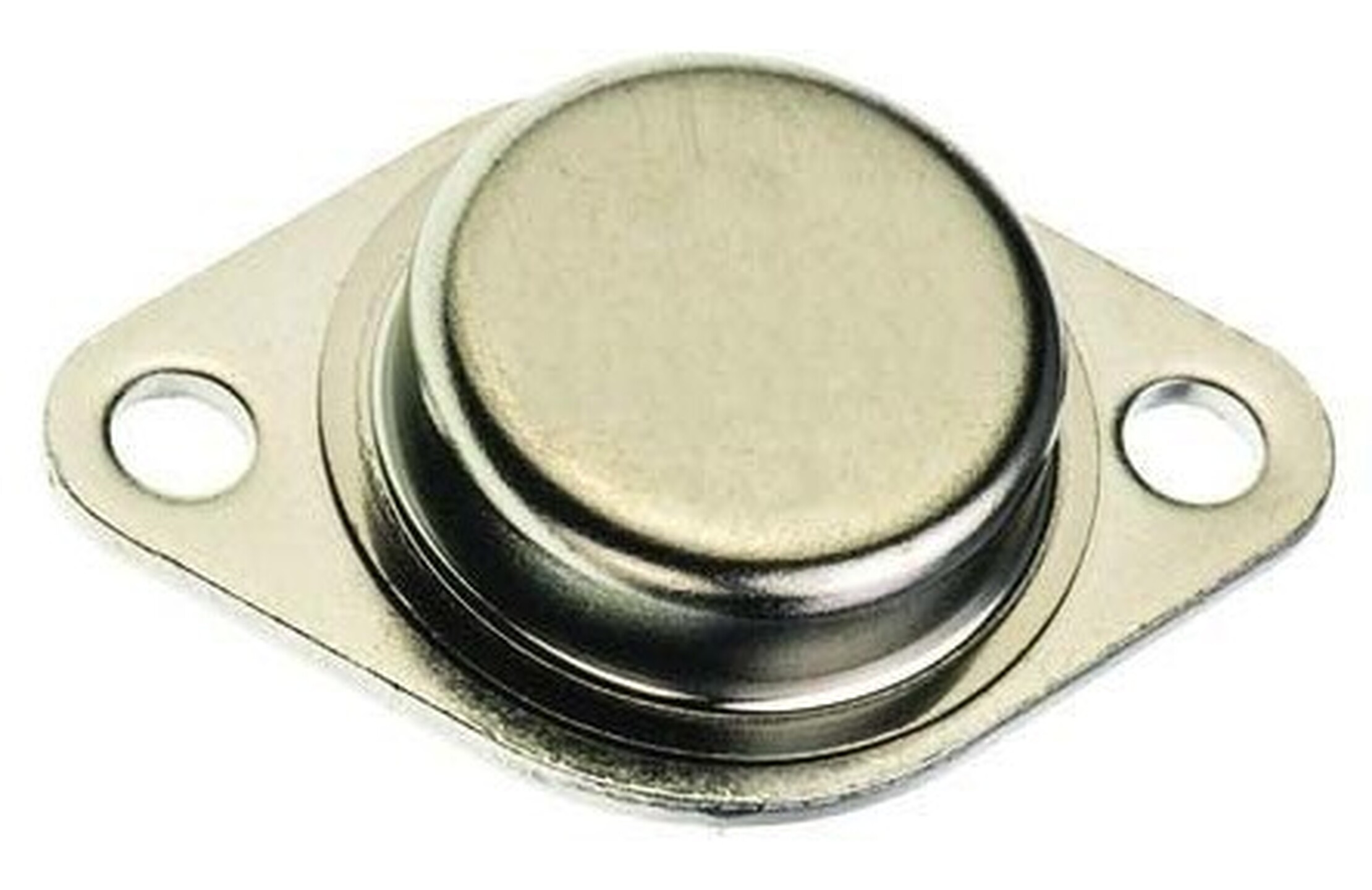

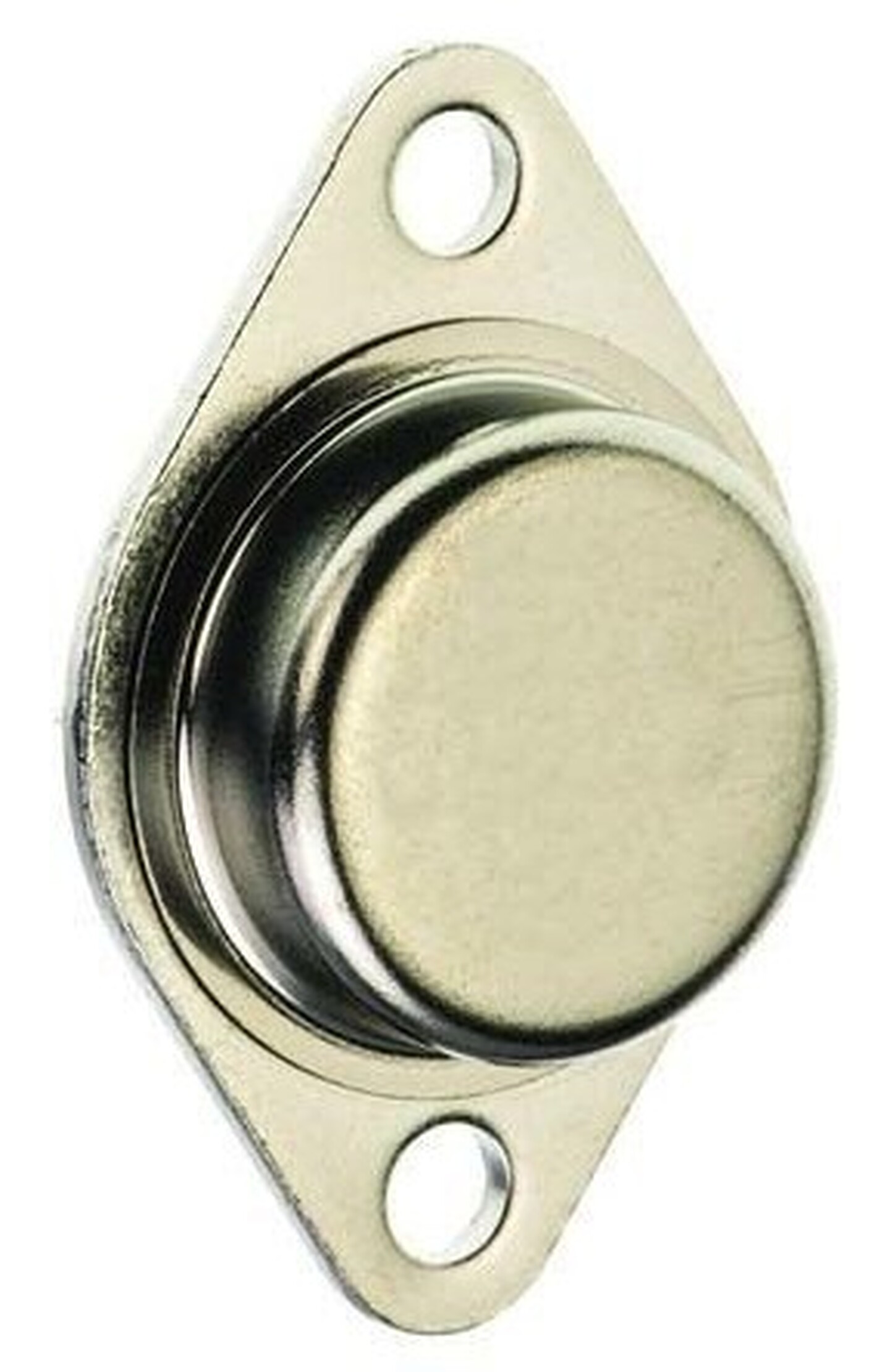

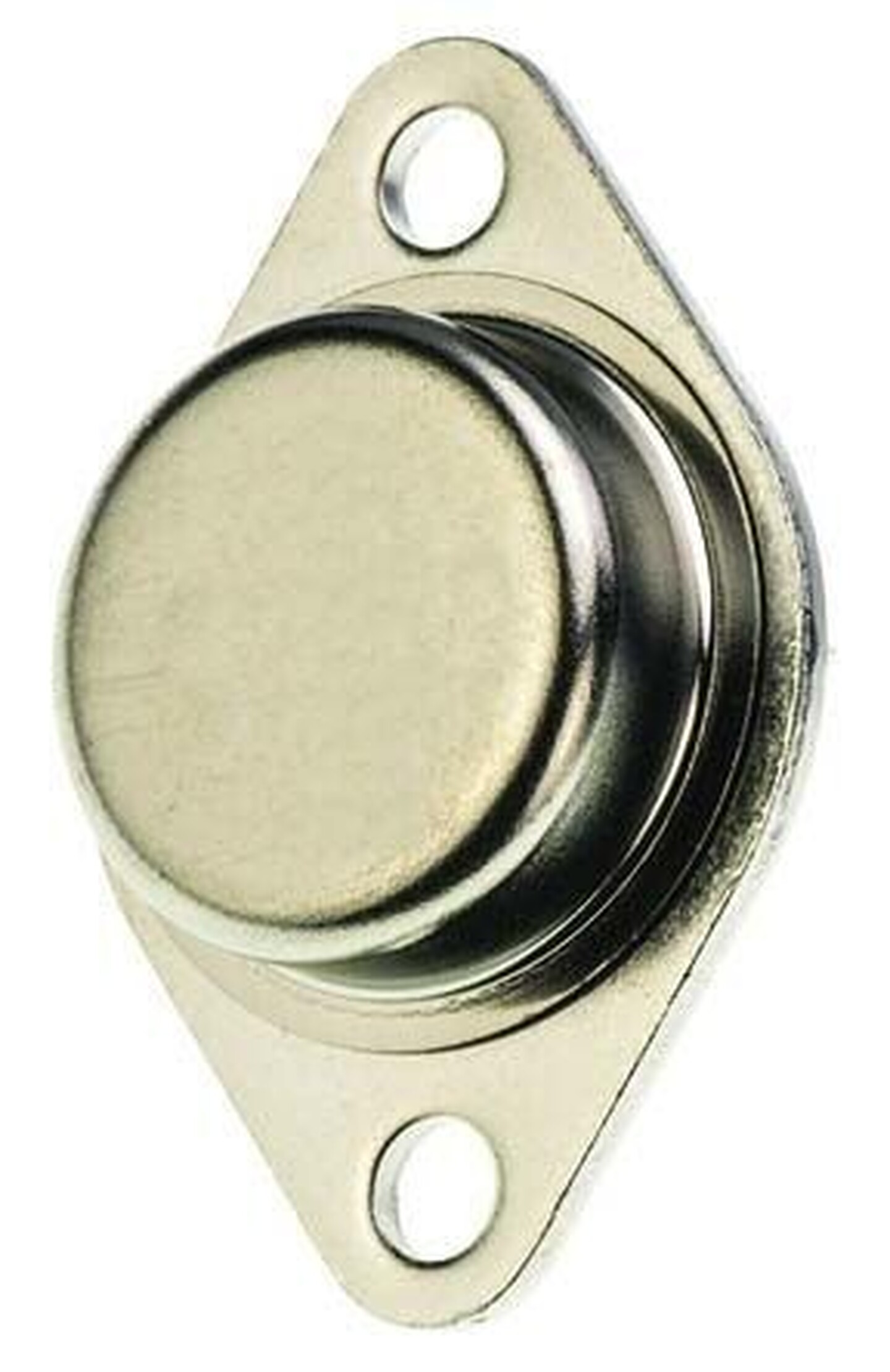

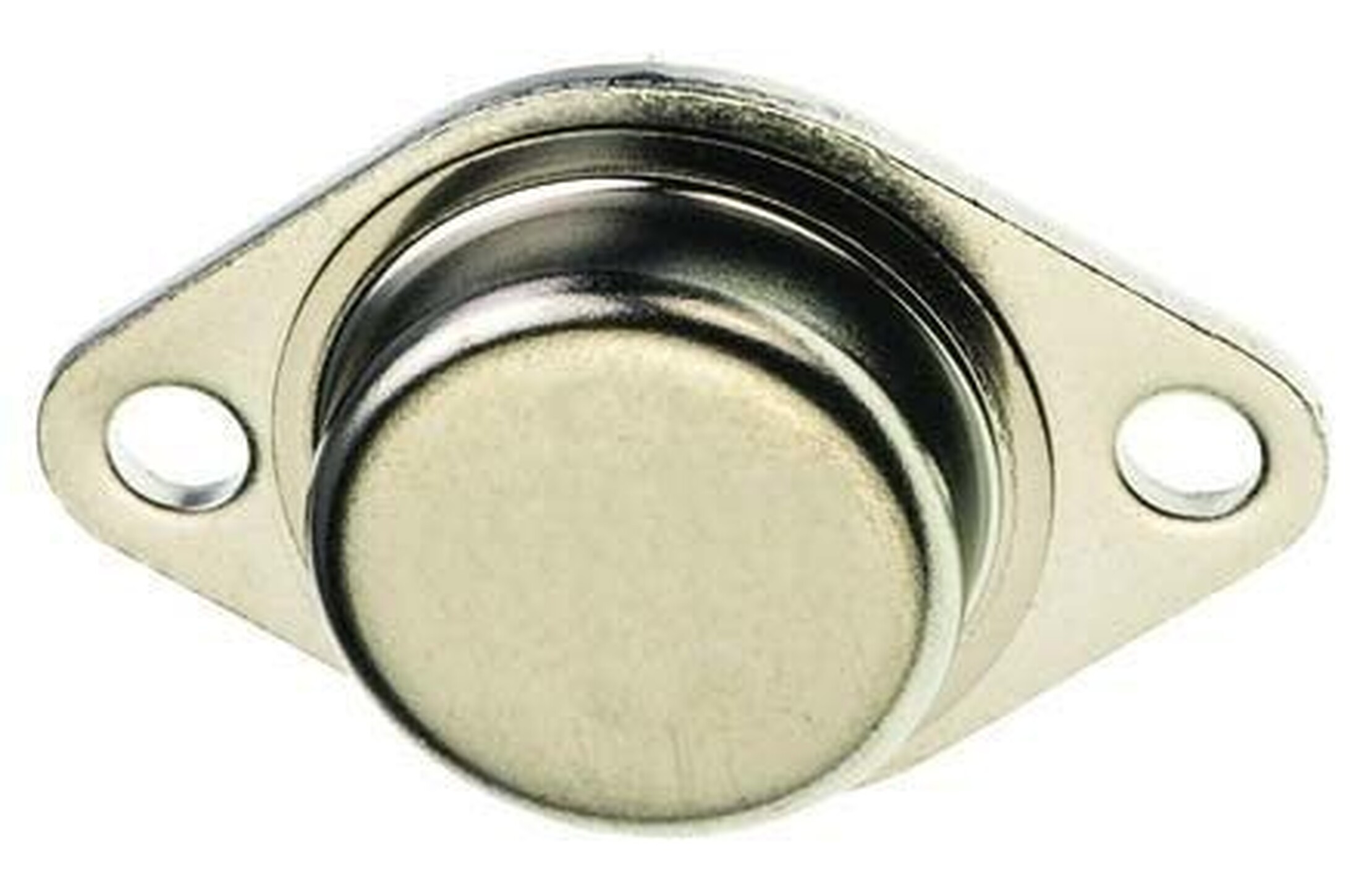

2N5038G Transistor Silicon NPN CASE: TO204AA MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case TO204AA
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 140 W
Maximum Collector-Base Voltage |Vcb| 150 V
Maximum Collector-Emitter Voltage |Vce| 90 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 20 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 500 pF
Transition Frequency (ft): 60 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 773452
