2N5138
View detailed images (12)

2N5138

SKU: 2N5138

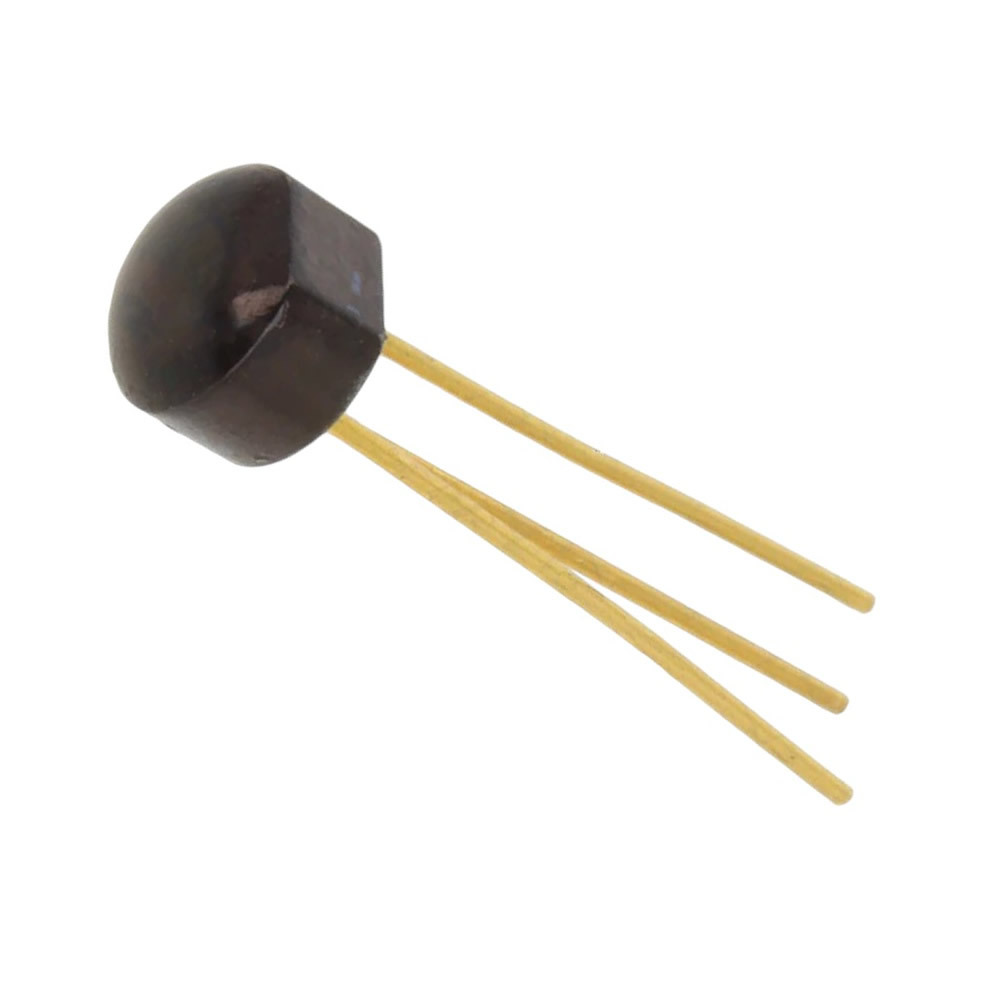

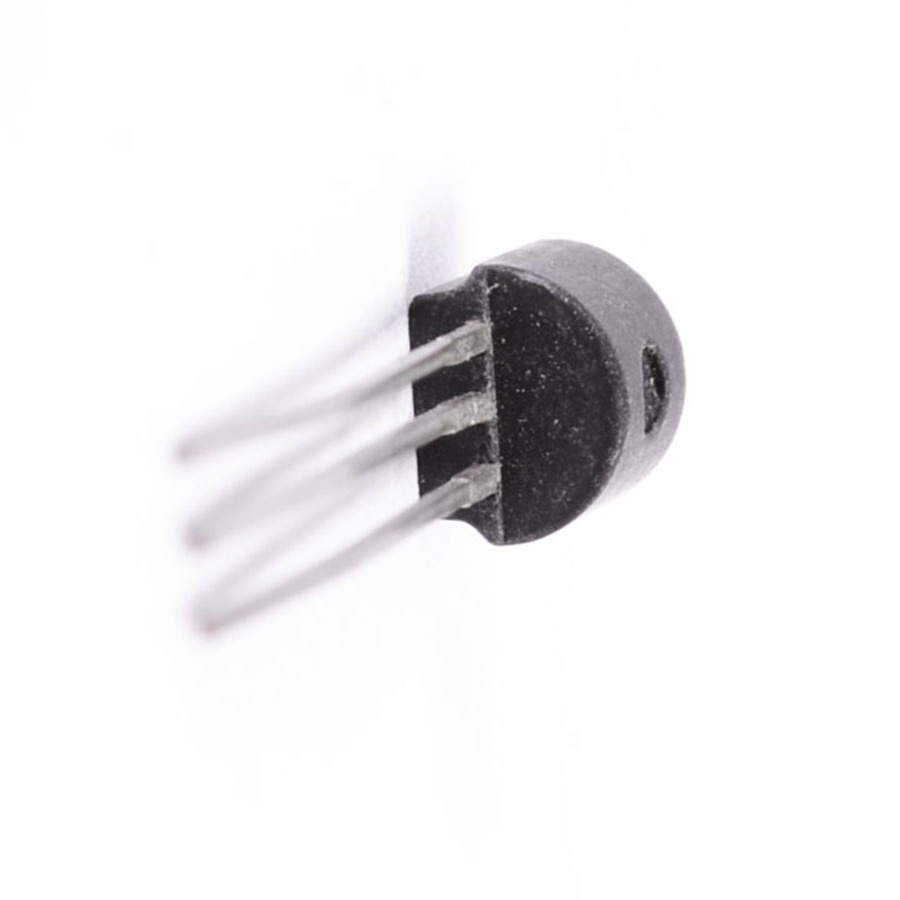

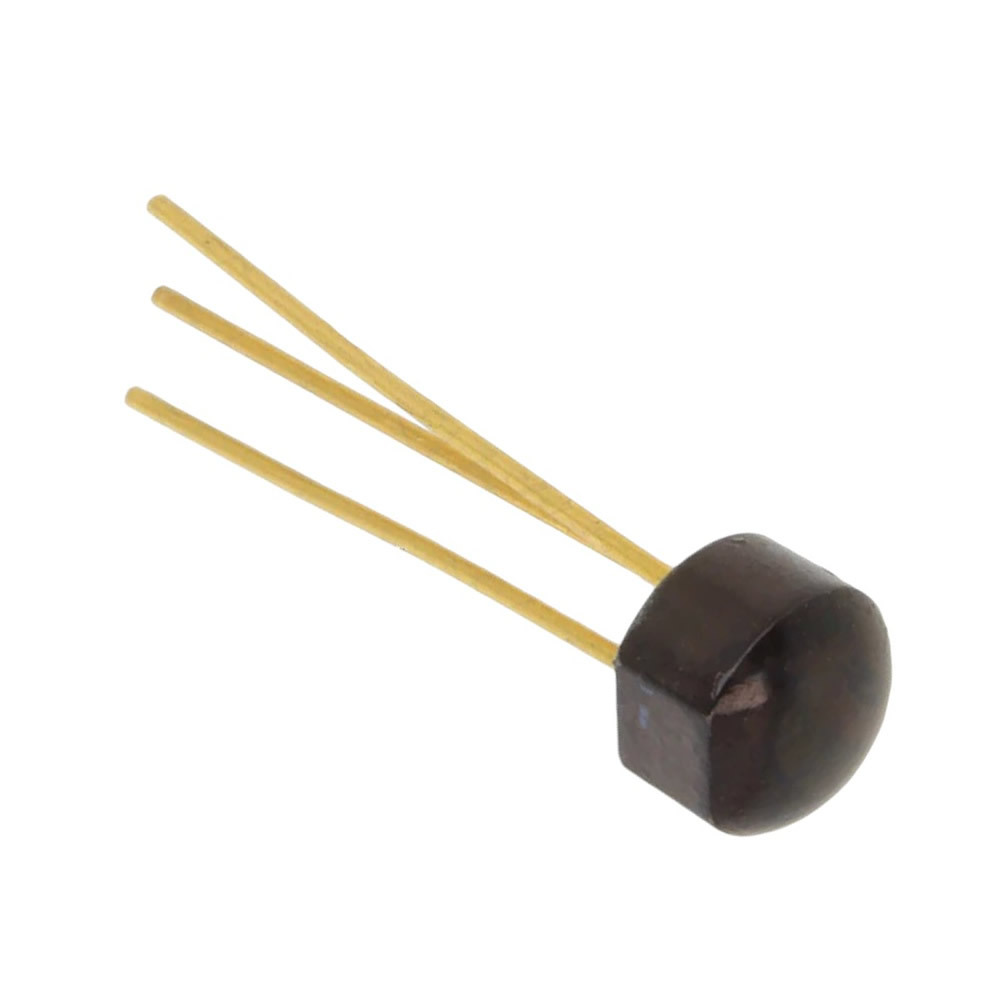

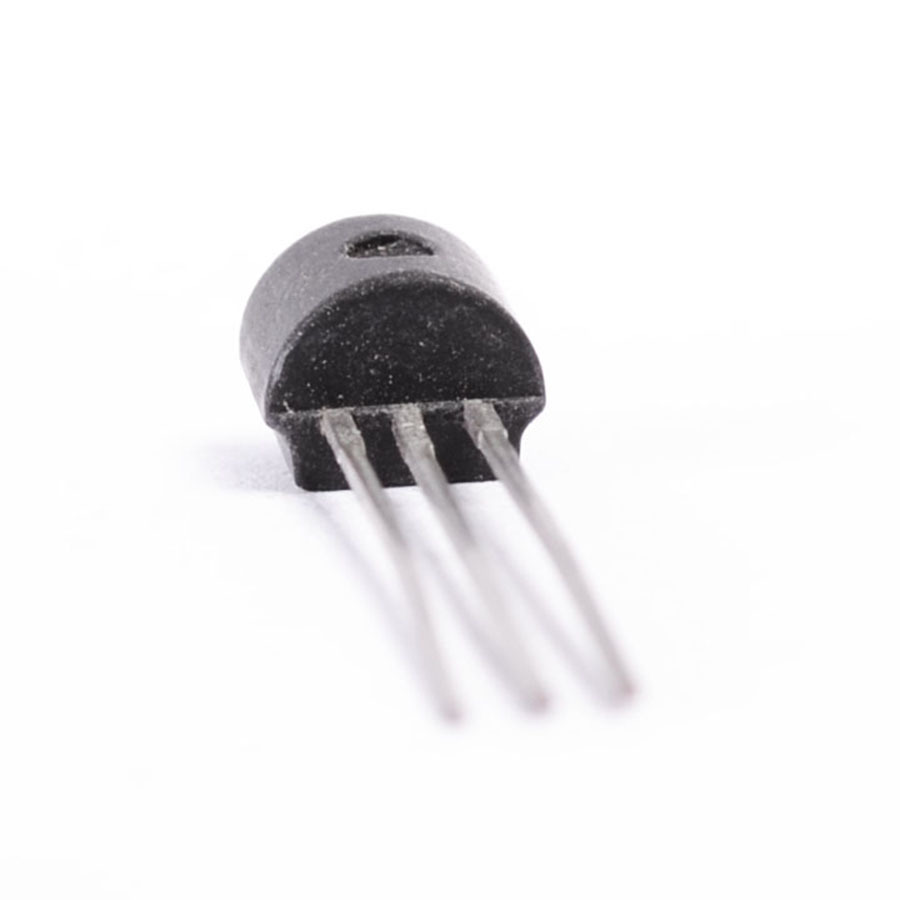

2N5138 Transistor Silicon PNP CASE: TO106 MAKE: National Semiconductor - NSC
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 3 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case TO106
Manufacturer National Semiconductor - NSC
Vbr CBO 30
Vbr CEO 30
Max. PD (W) 200m
Derate (Amb) (W/°C) 2.0m
hfe 40
Ic Max. (A) 100m
Icbo Max. @Vcb Max. (A) 50n
Polarity PNP
Trans. Freq (Hz) Min. 30M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 125
@Ic (A) 1.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 7 pF
Transition Frequency (ft): 40 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 116267
