2N5186
View detailed images (5)

2N5186

SKU: 2N5186

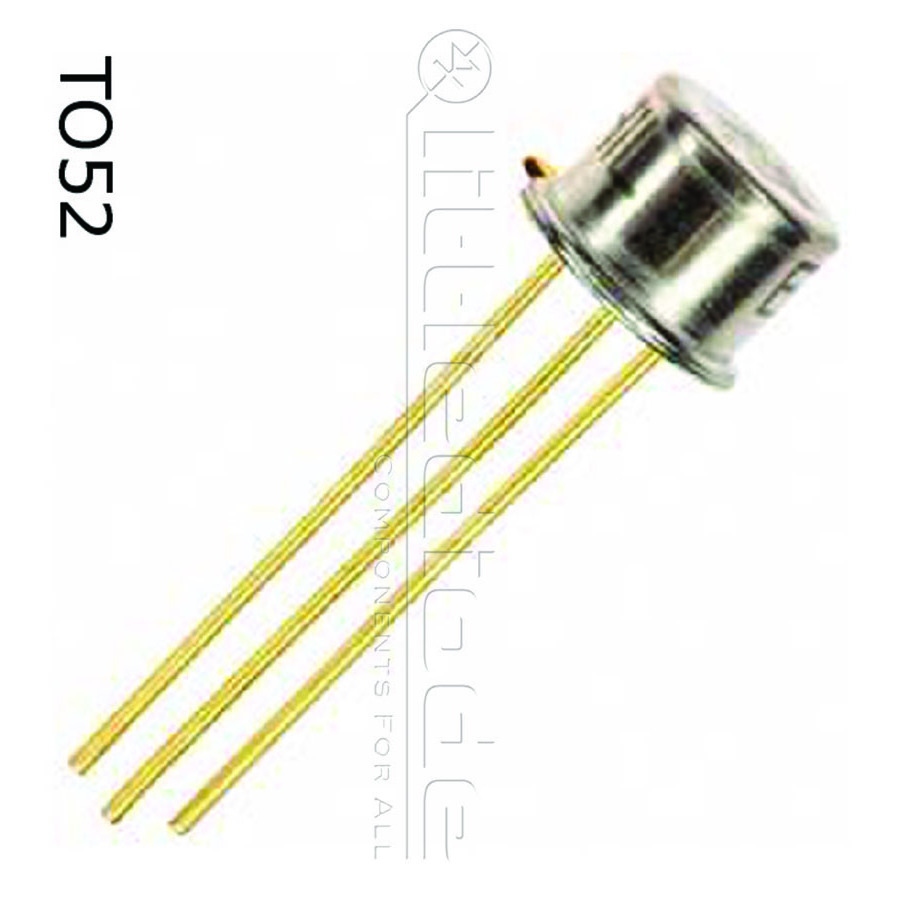

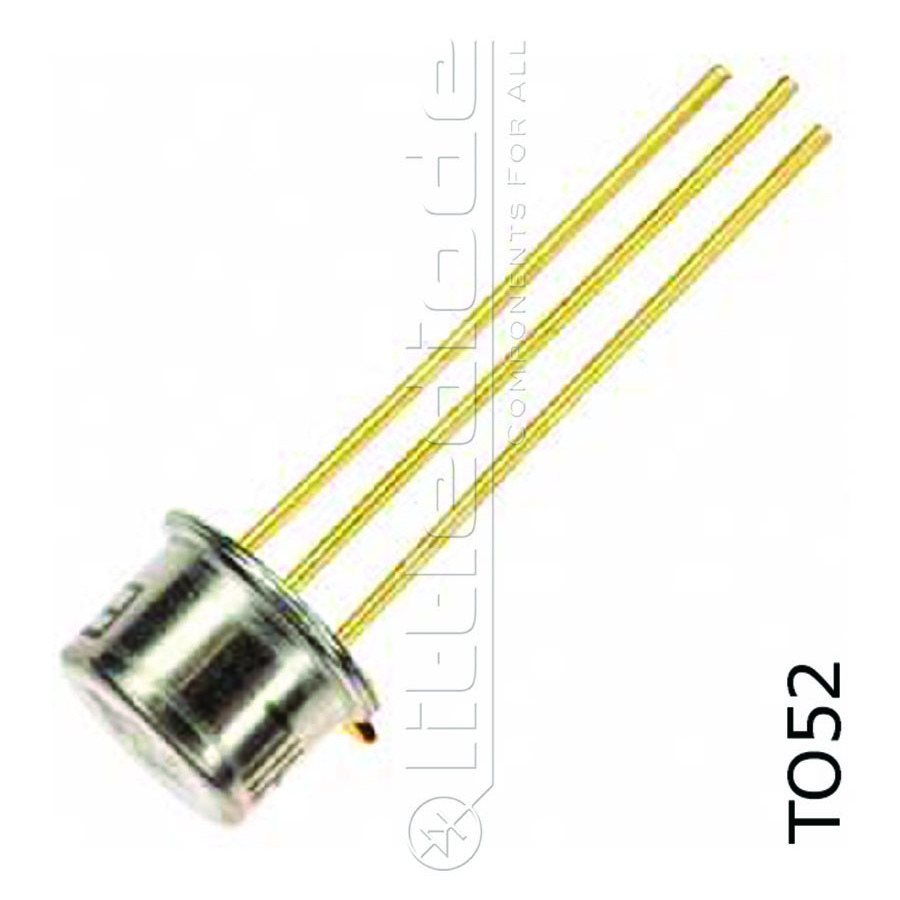

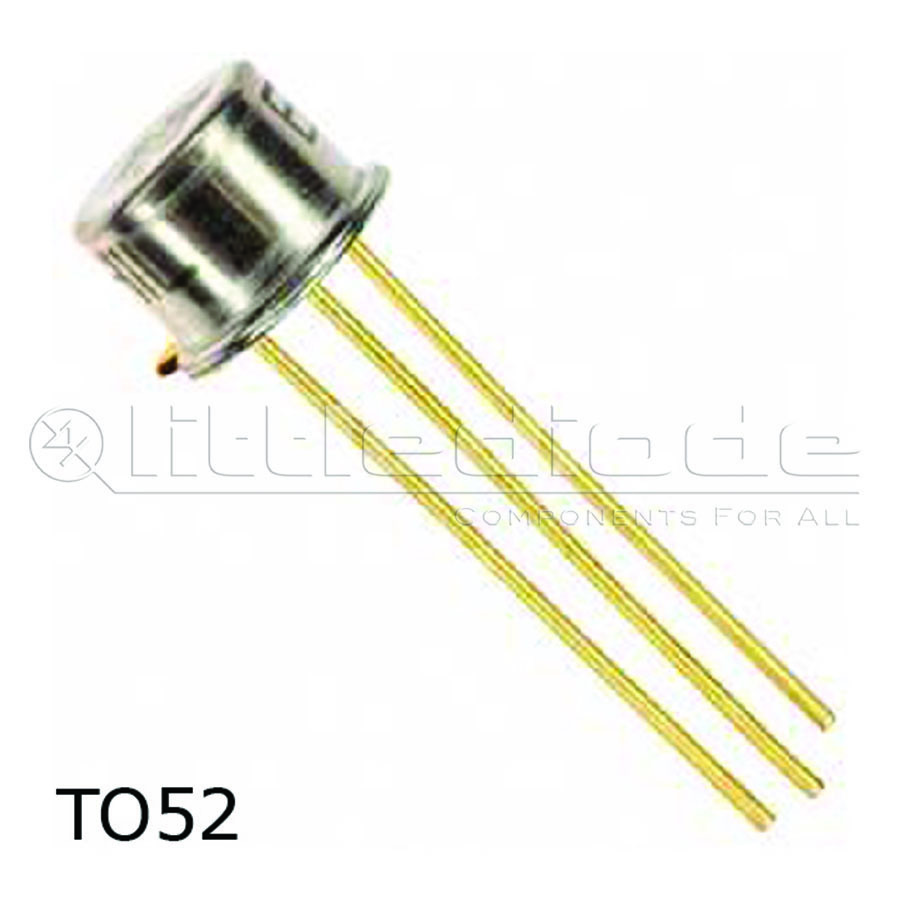

2N5186 Transistor Silicon NPN CASE: TO52 MAKE: Harris Semiconductor
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO52
Manufacturer Harris Semiconductor
Vbr CBO 10
Vbr CEO 5.0
Max. PD (W) 300m
C(ob) (F) 3p
Derate (Amb) (W/°C) 1.7m
t(f) Max. (S) 25n+
hfe 25
Ic Max. (A) 300m
Icbo Max. @Vcb Max. (A) 5.0u
Polarity NPN
Tr Max. (s) 25n
Trans. Freq (Hz) Min. 400M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 175
@Ic (A) 10m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 10 V
Maximum Collector-Emitter Voltage |Vce| 6 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.3 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 3 pF
Transition Frequency (ft): 400 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 313050
