2N5242
View detailed images (12)

2N5242

SKU: 2N5242

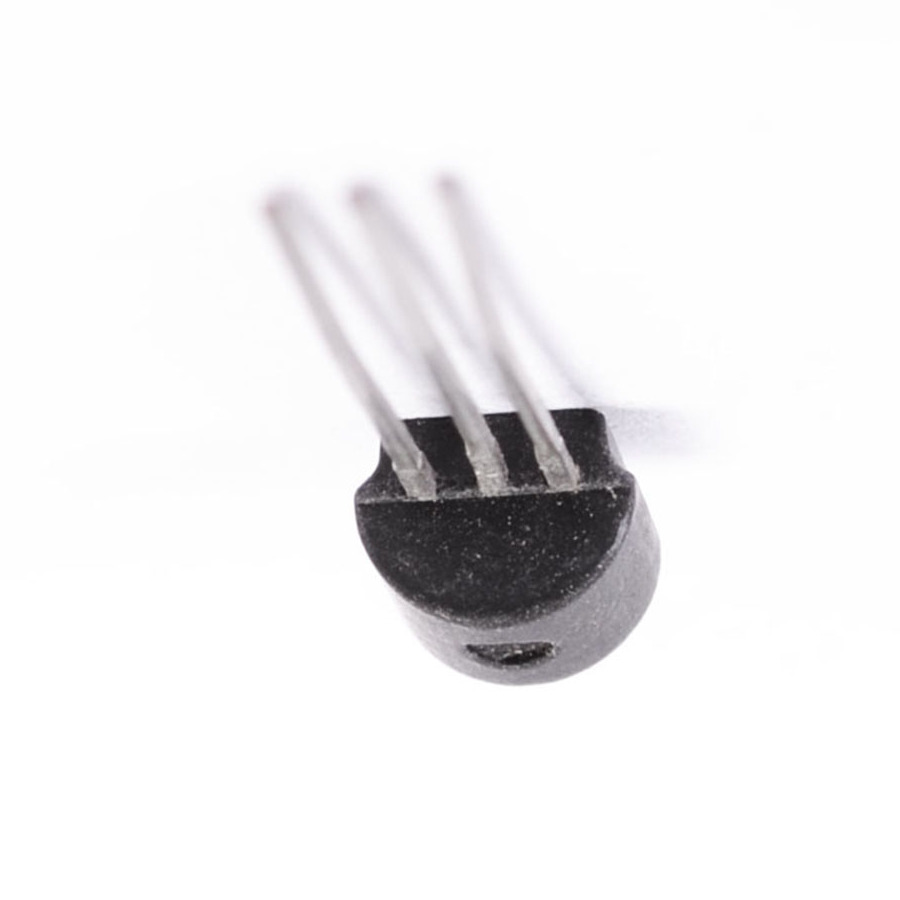

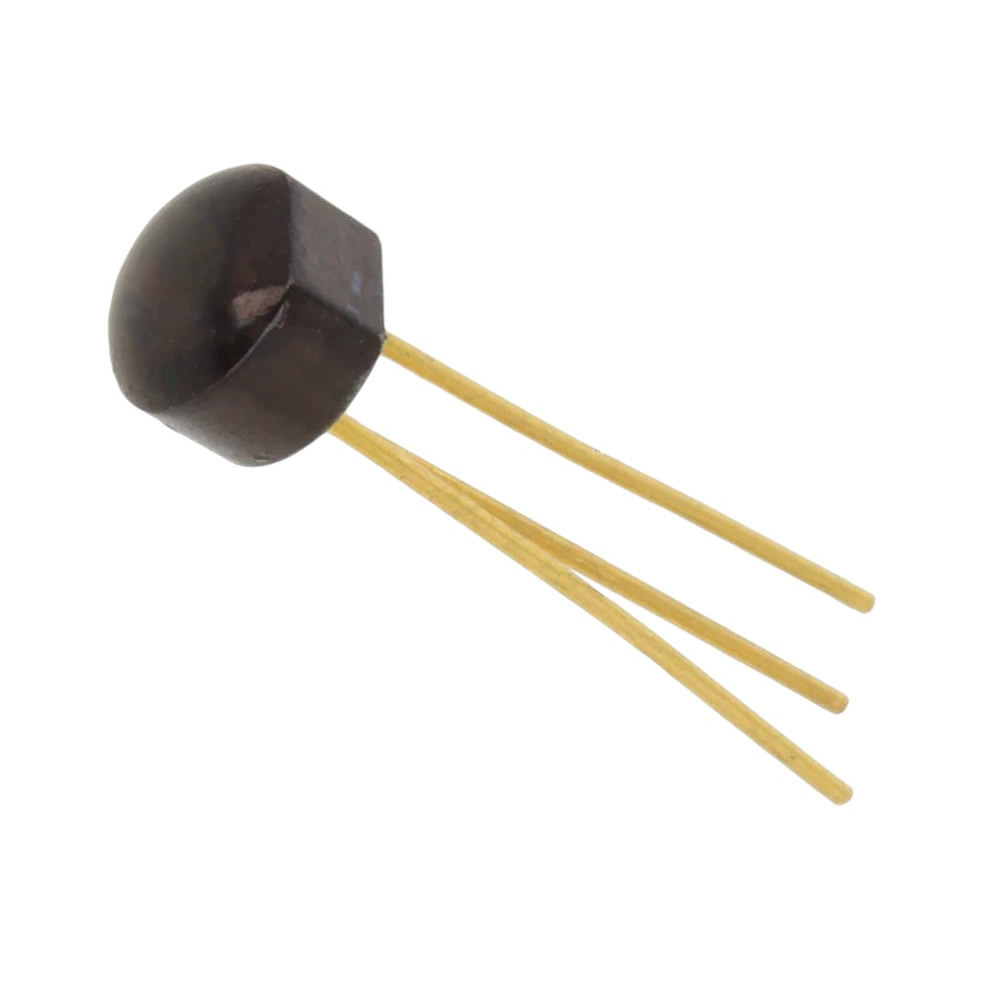

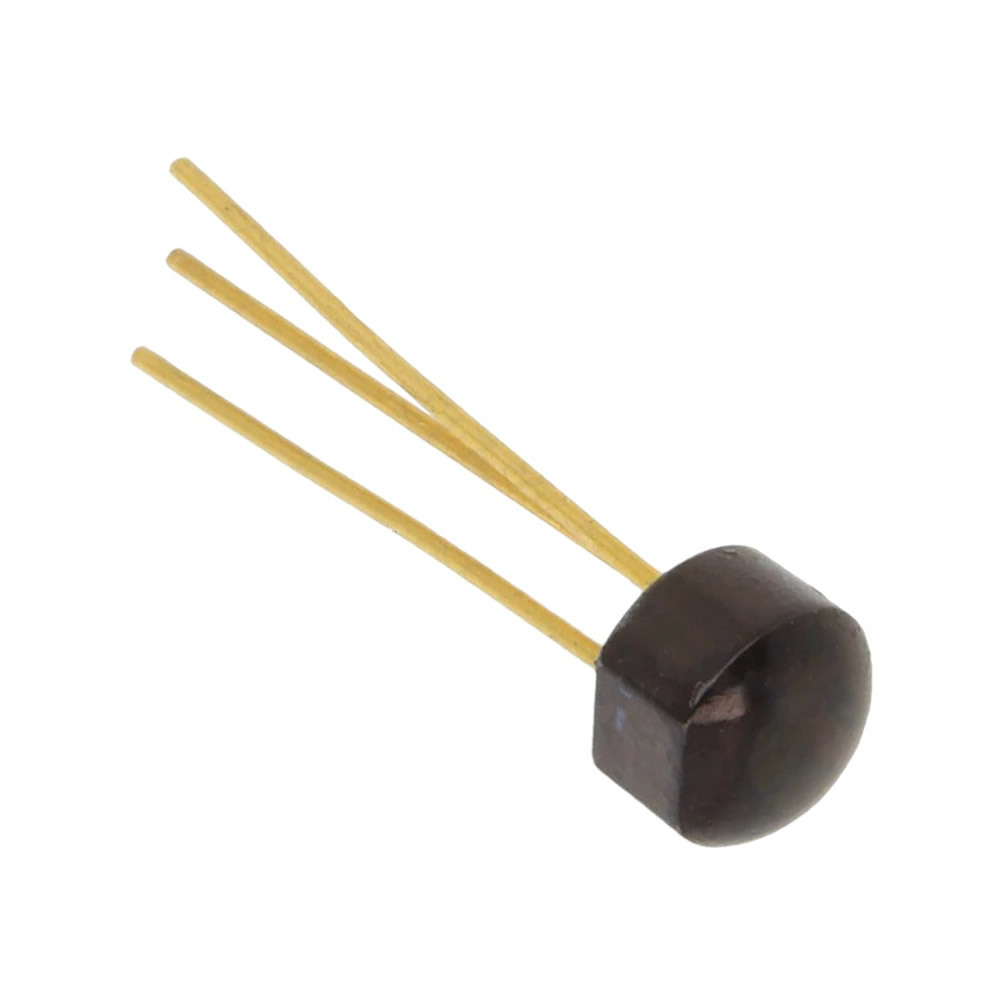

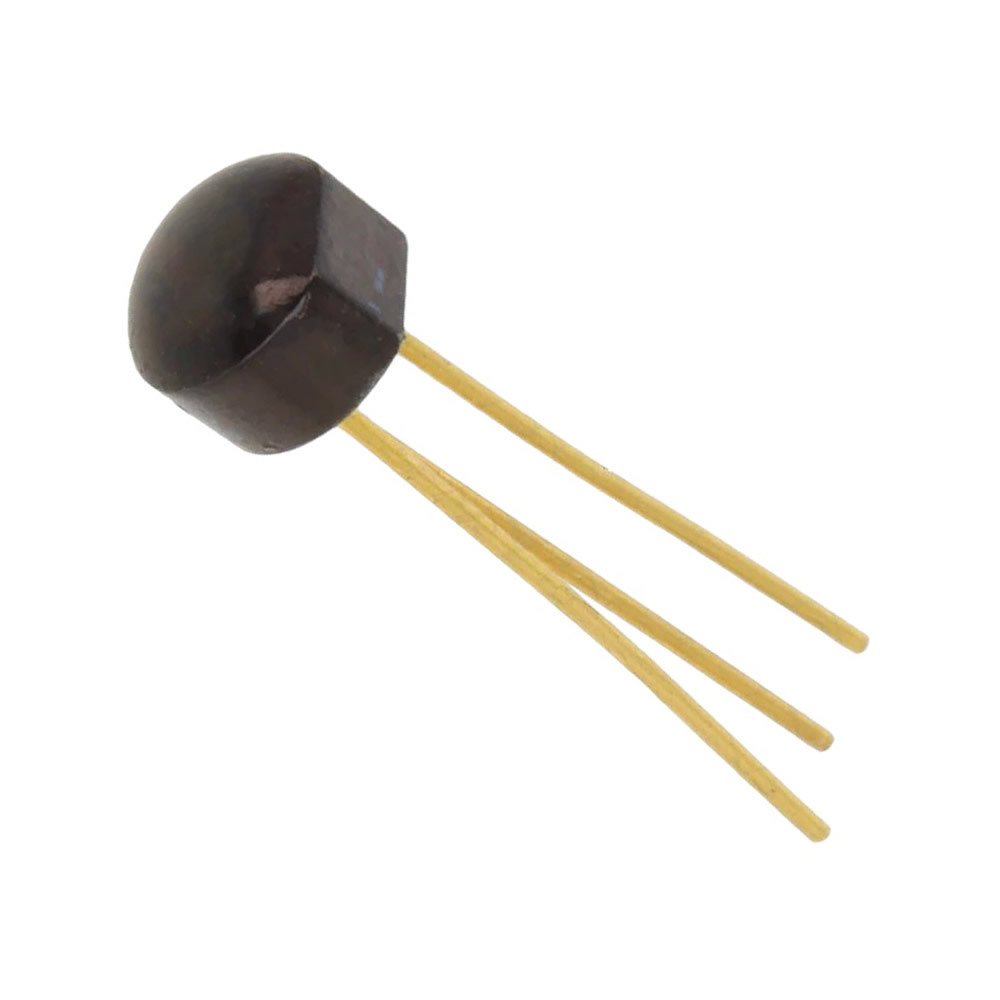

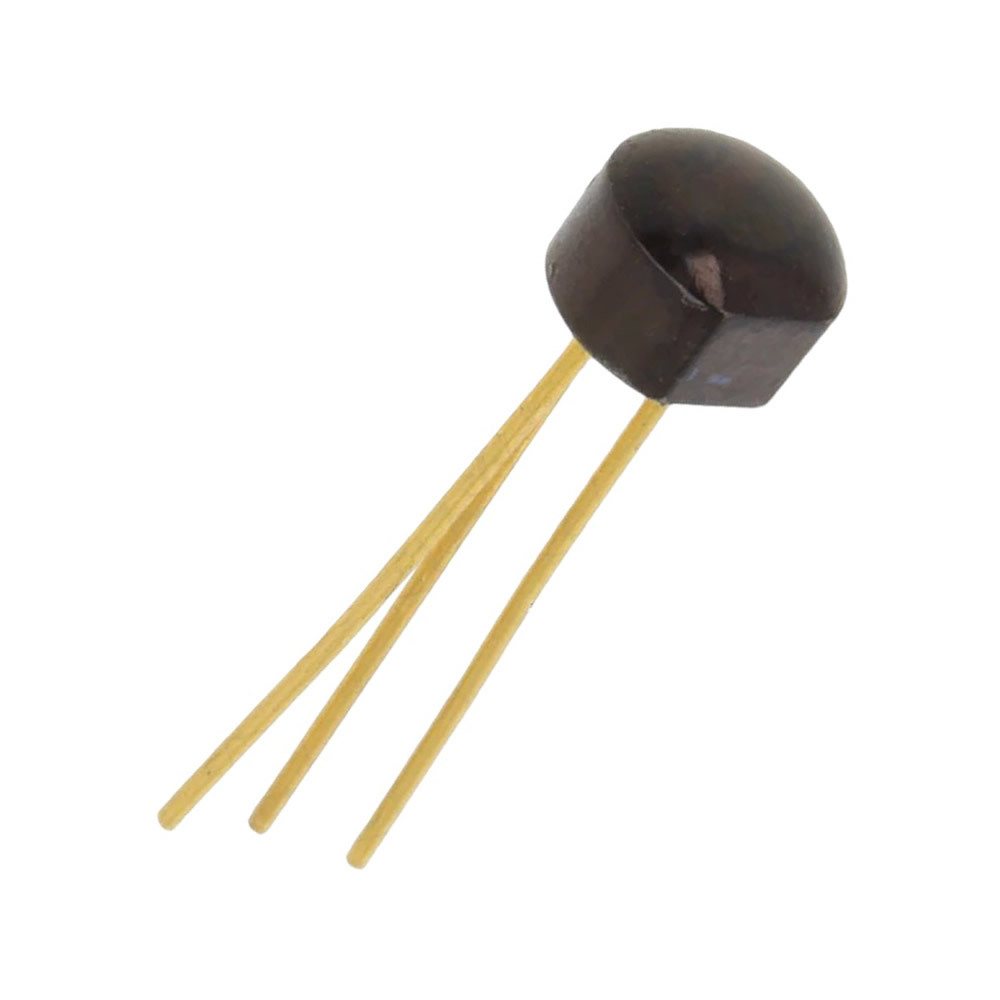

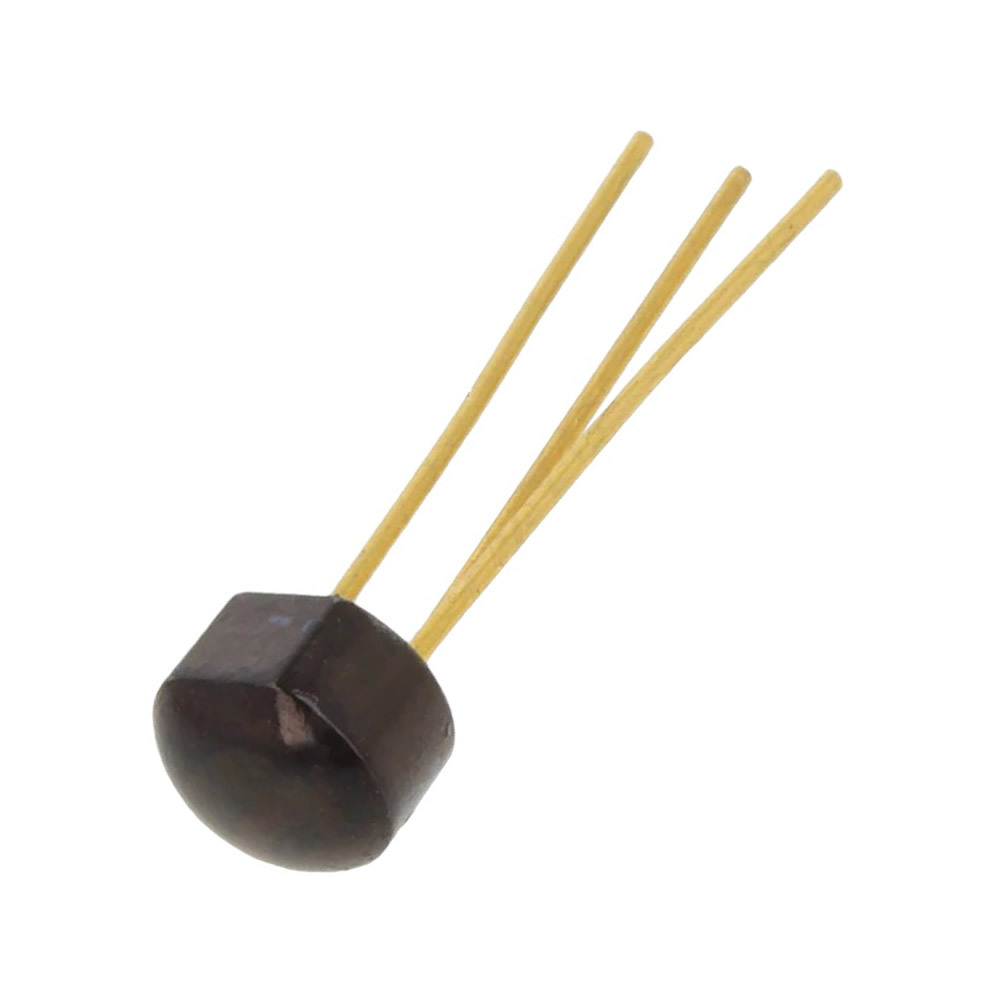

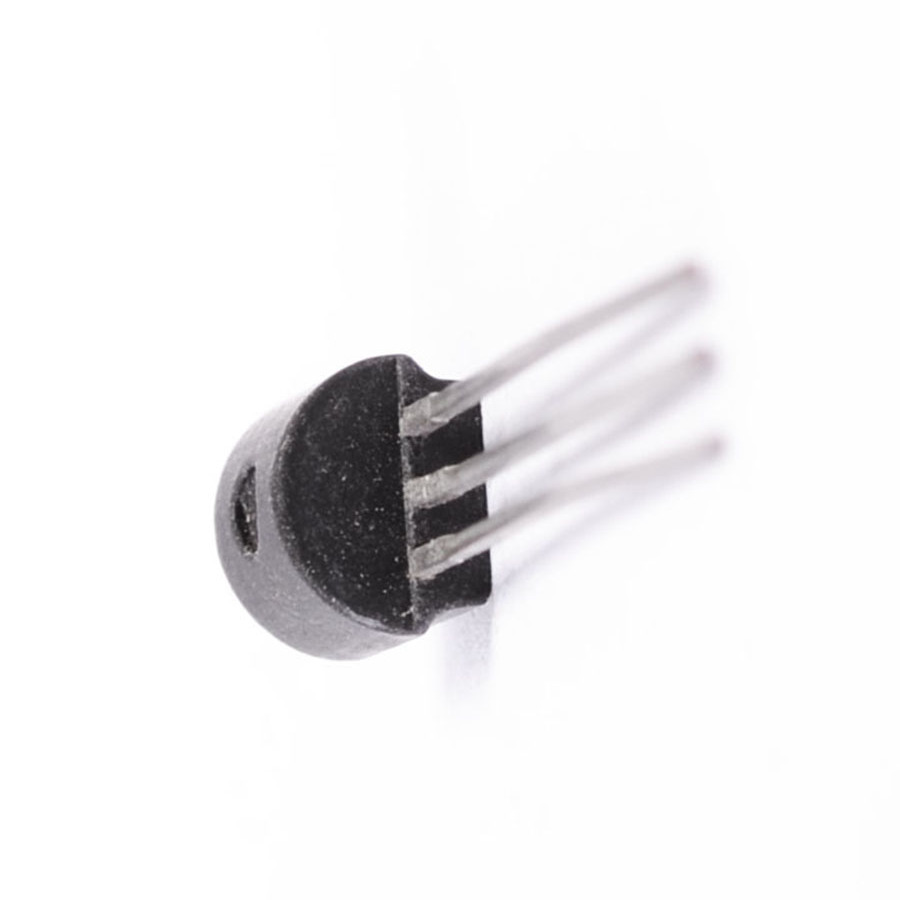

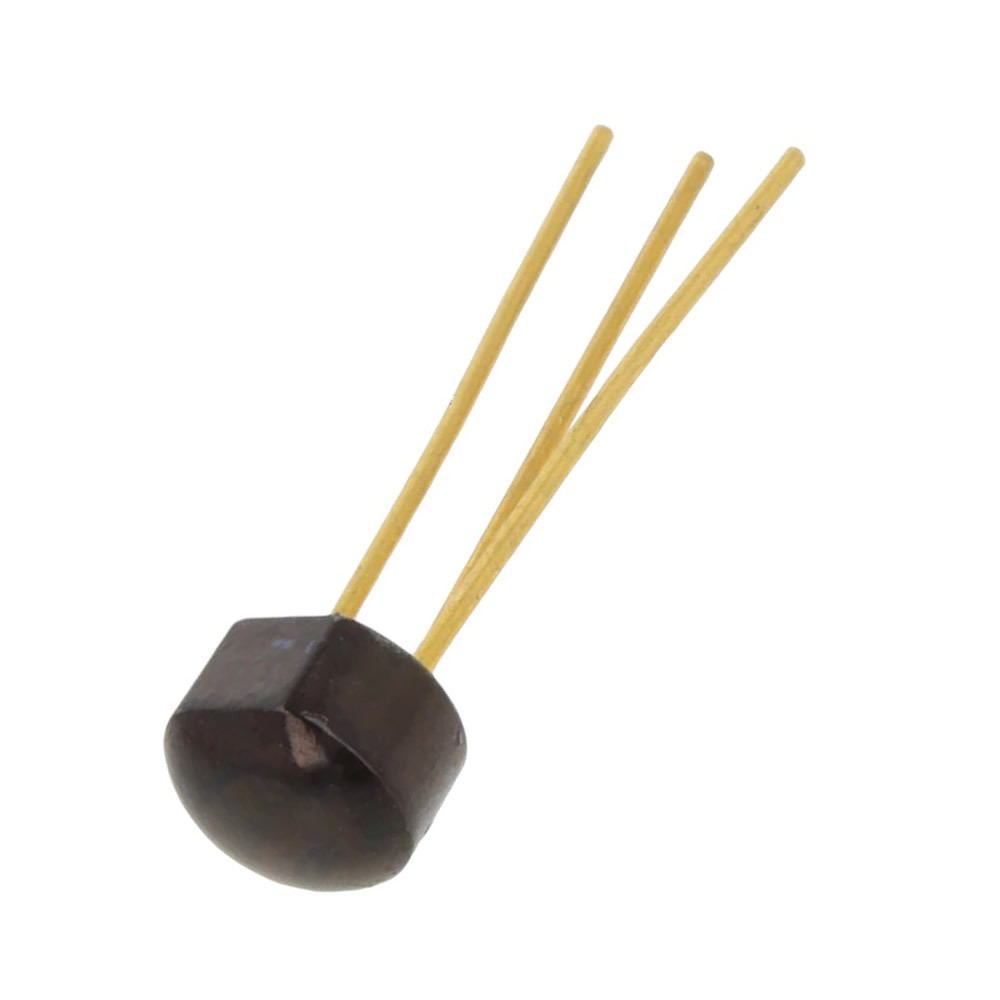

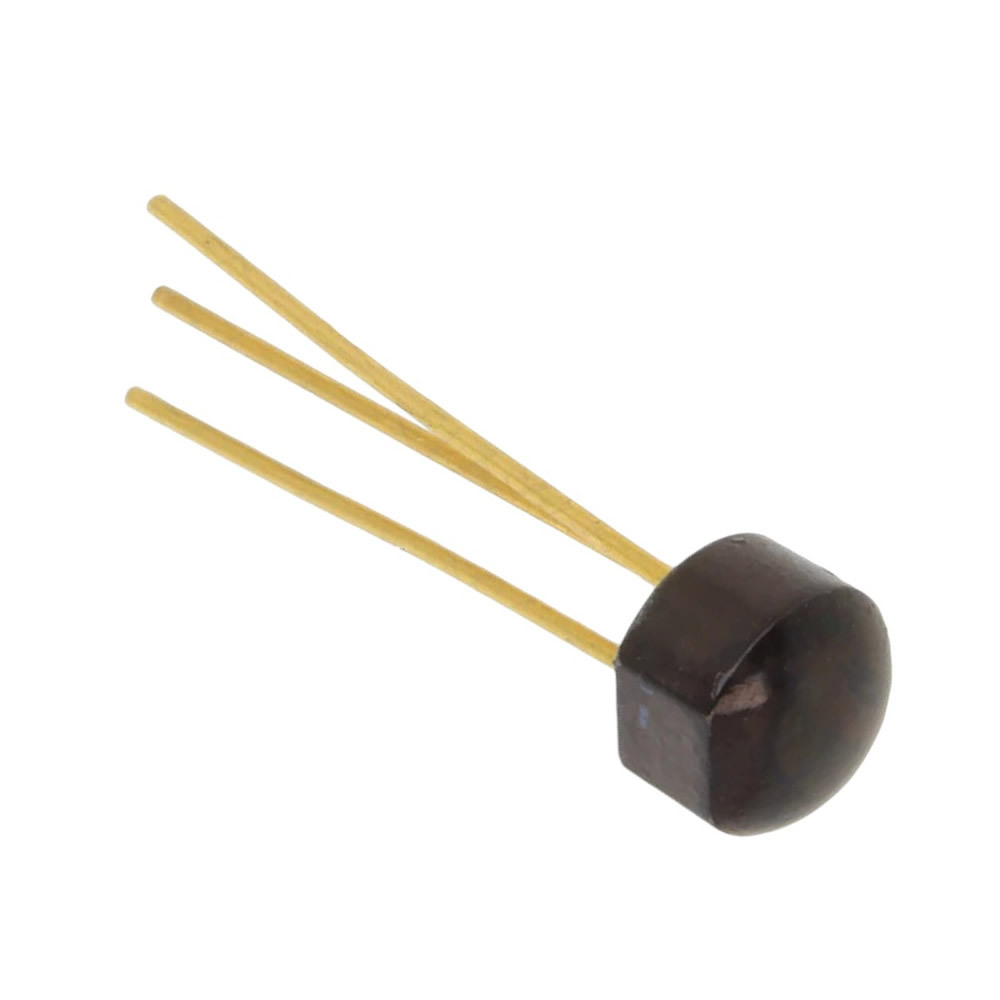

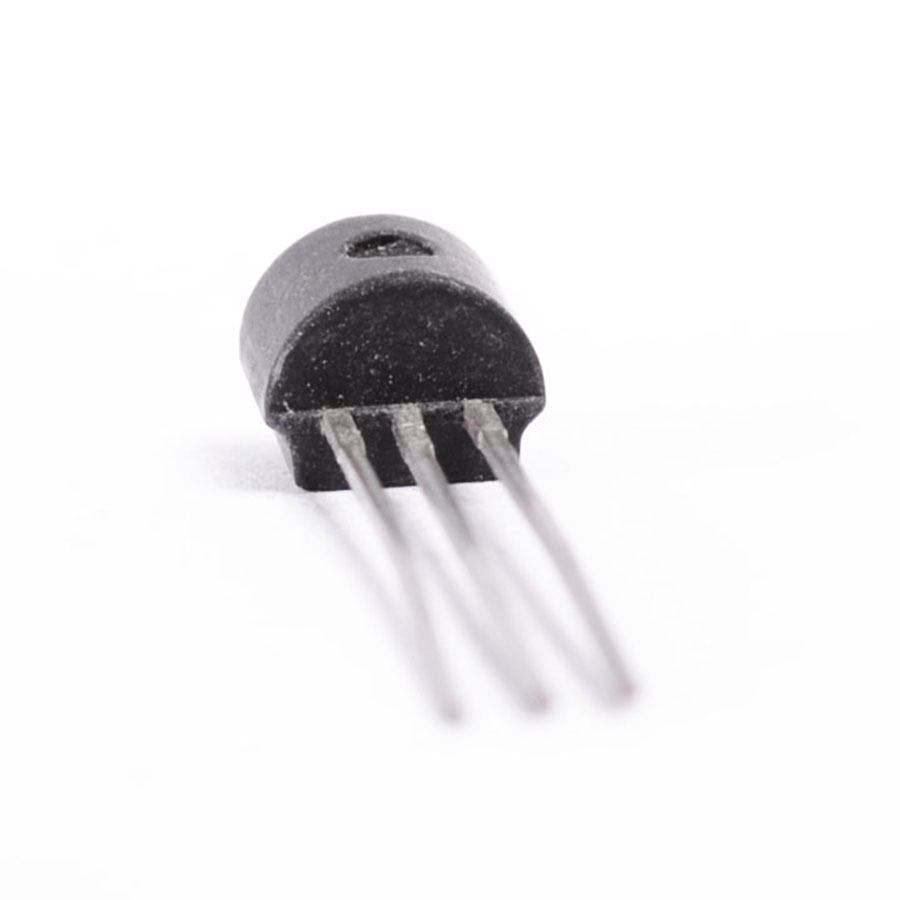

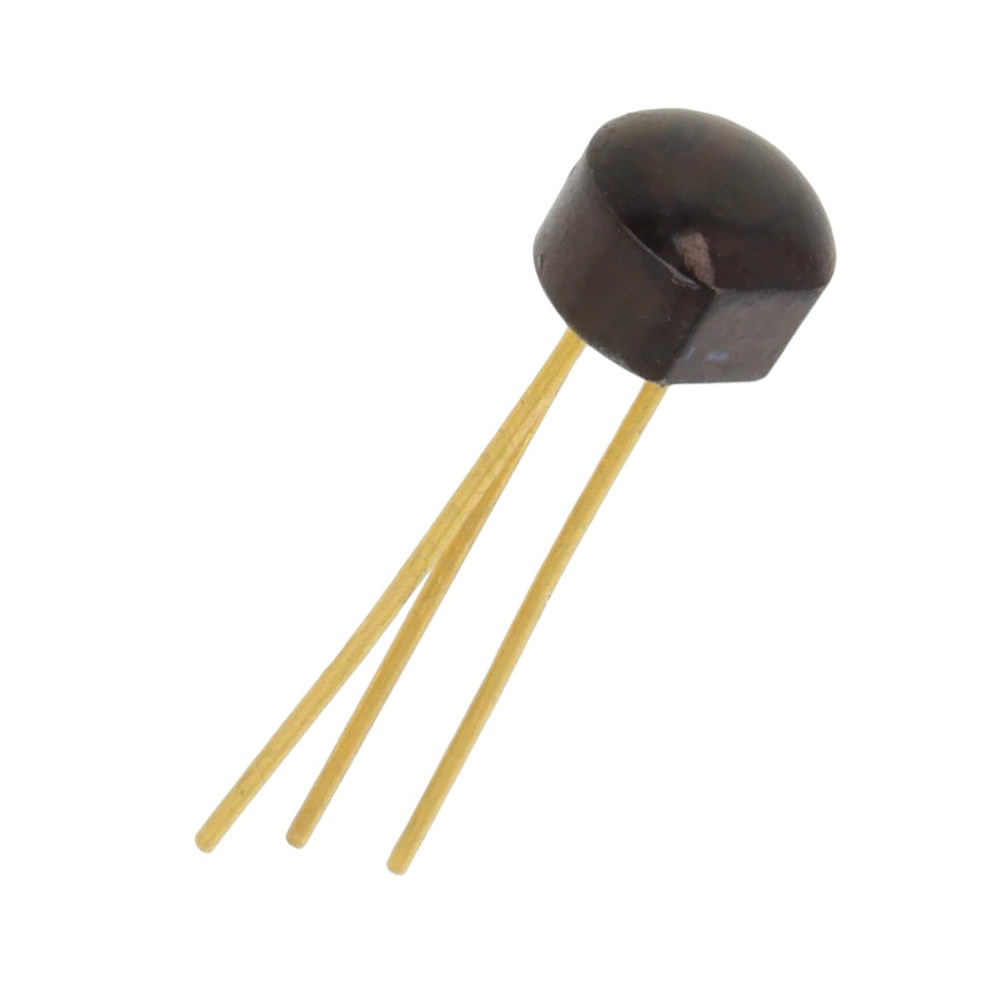

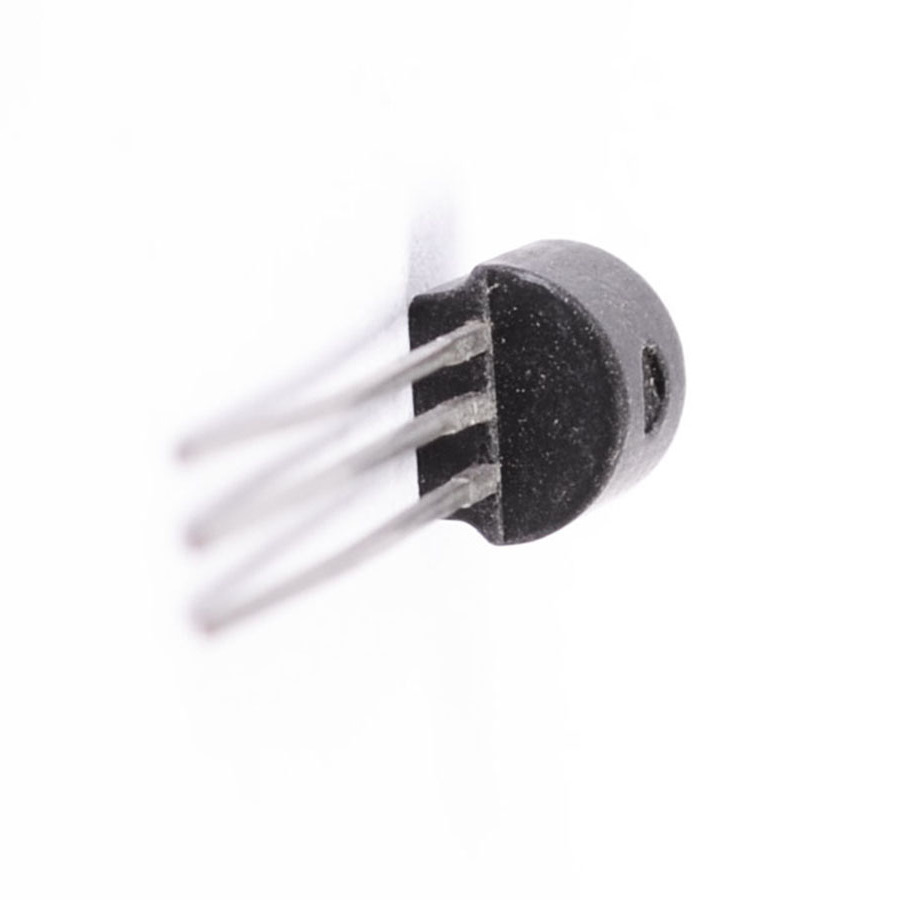

2N5242 Transistor Silicon PNP CASE: TO106 MAKE: Fairchild Semiconductor
Product specifications
Type Transistor Silicon PNP
Case TO106
Manufacturer Fairchild Semiconductor
Vbr CBO 20
Vbr CEO 20
Max. PD (W) 500m
Derate (Amb) (W/°C) 5.0m
hfe 25
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) .10u
Polarity PNP
Trans. Freq (Hz) Min. 170M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 125
@Ic (A) .50m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.5 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 35 pF
Transition Frequency (ft): 170 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 773177
