2N5446
View detailed images (12)

2N5446

SKU: 2N5446

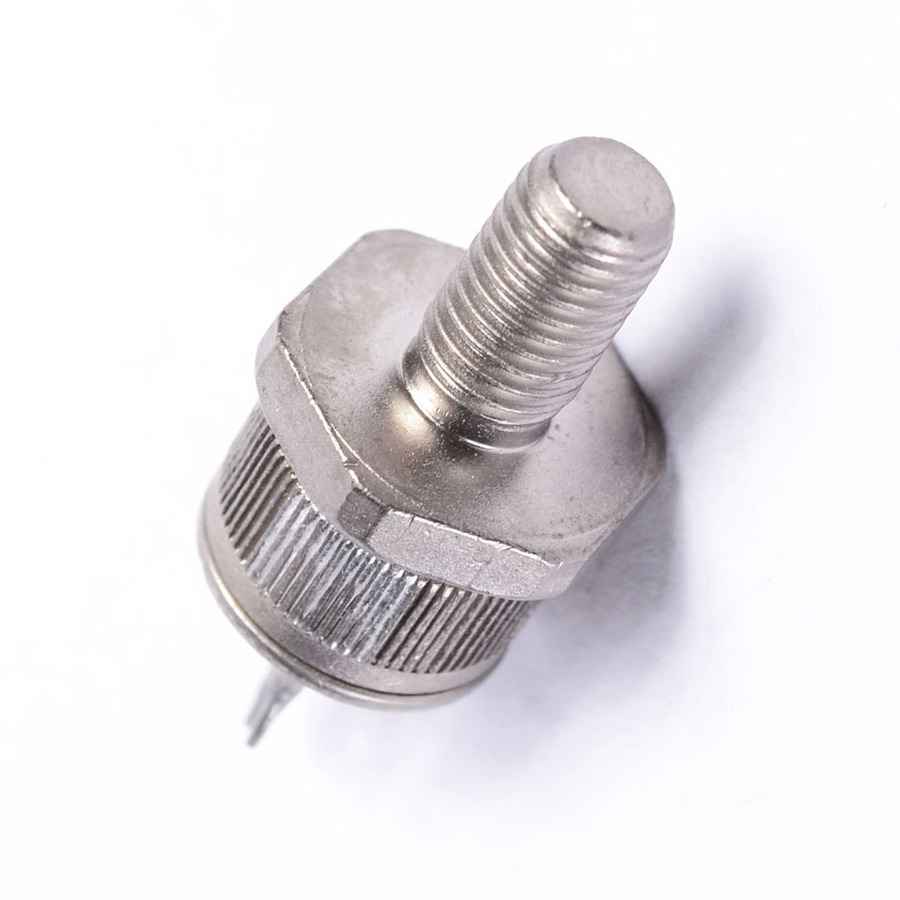

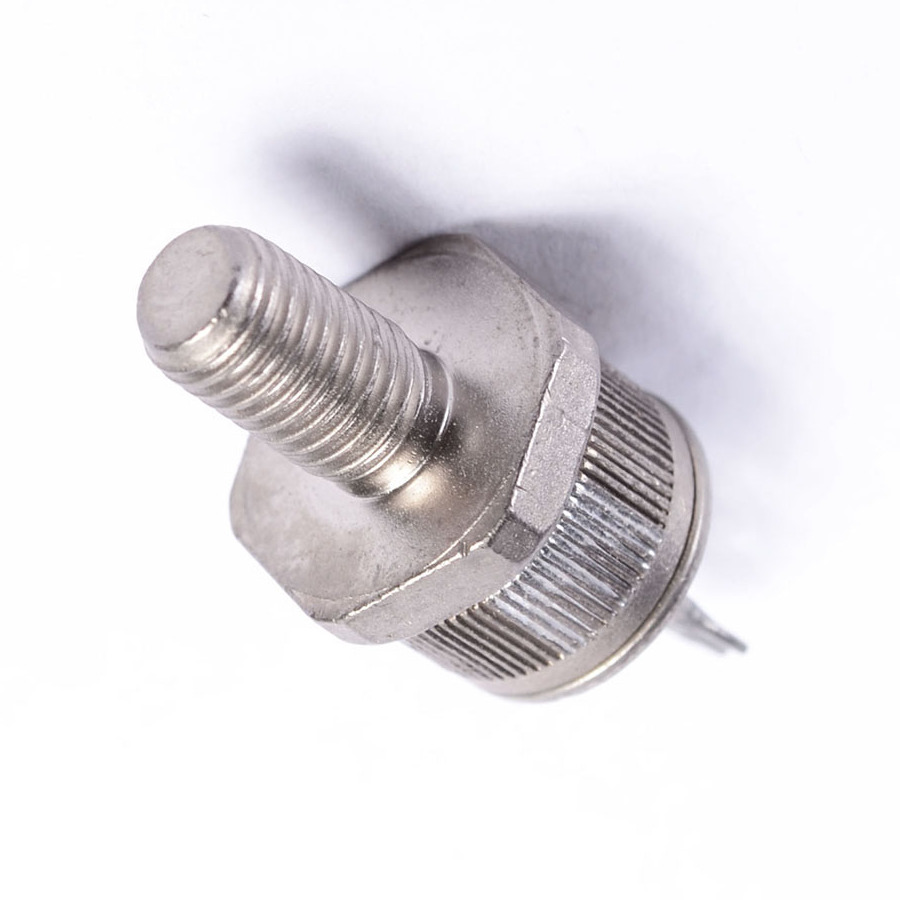

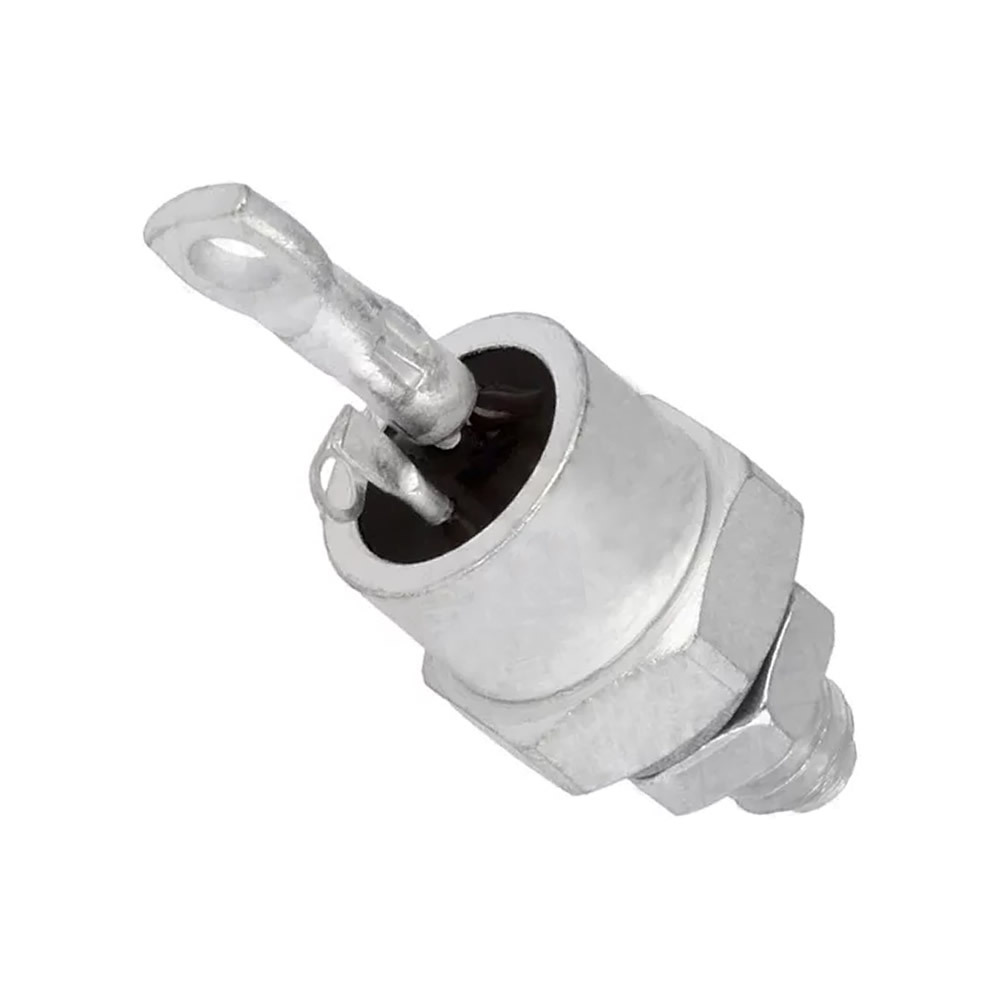

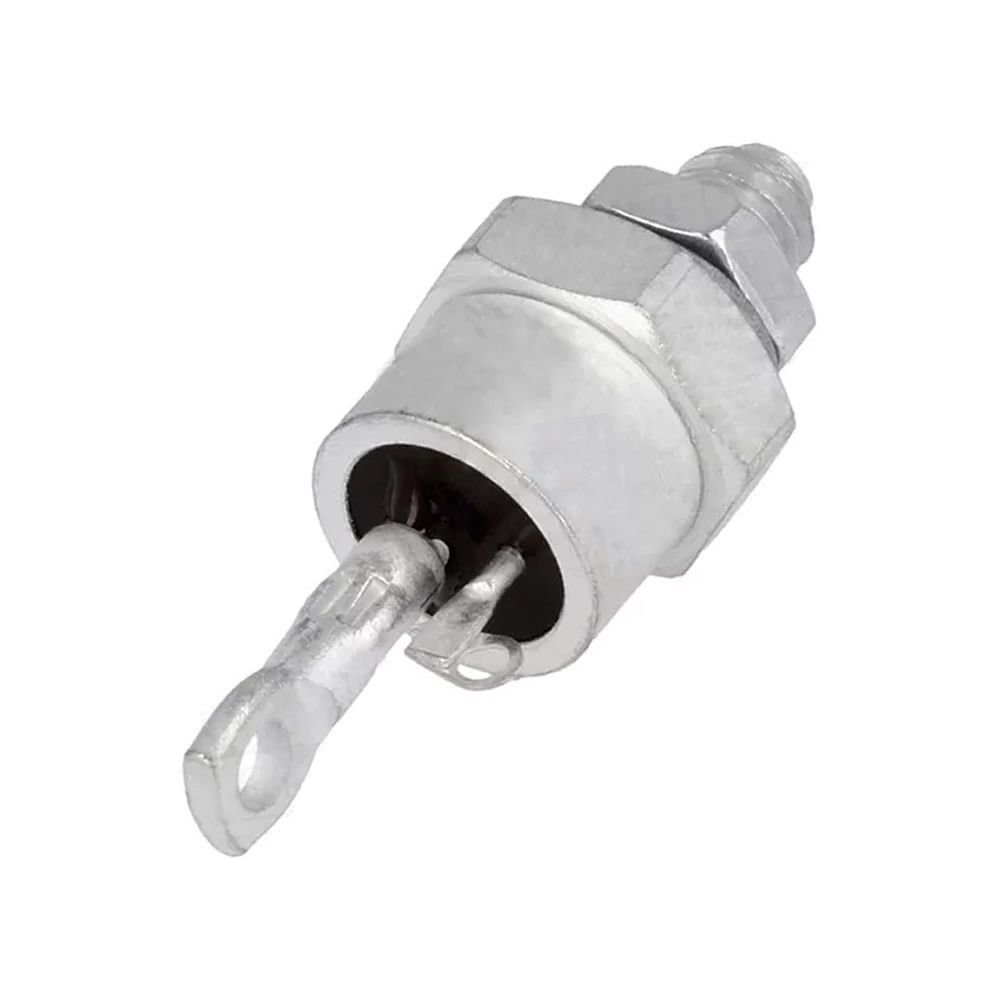

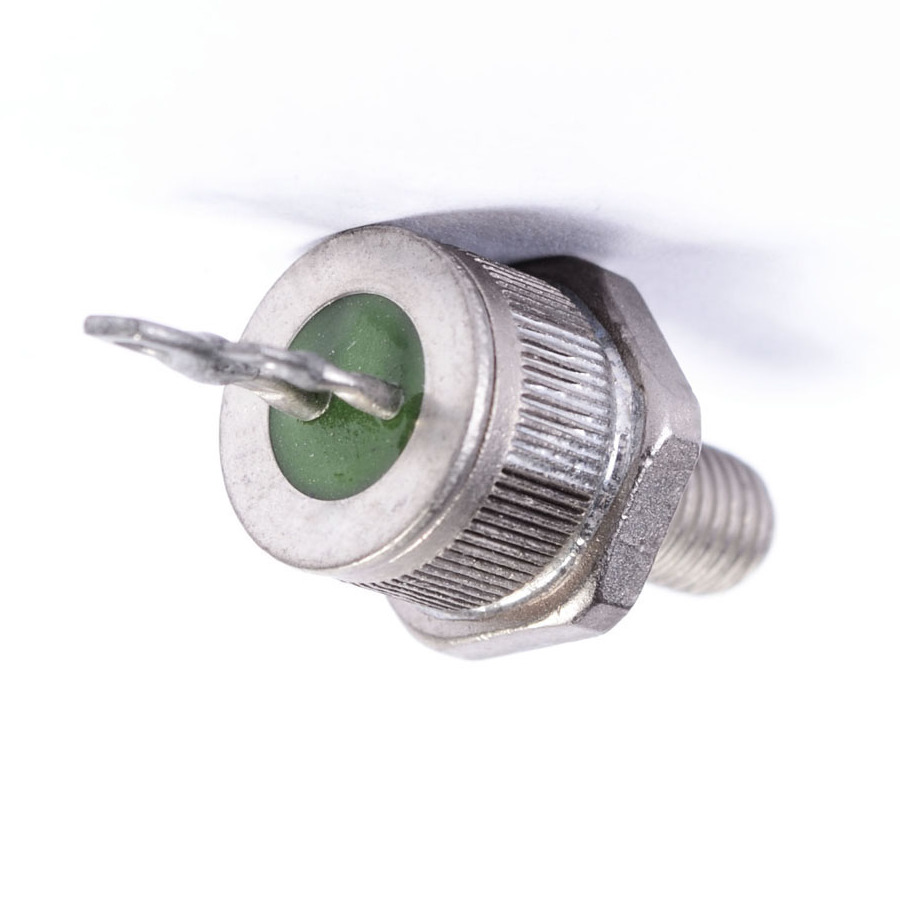

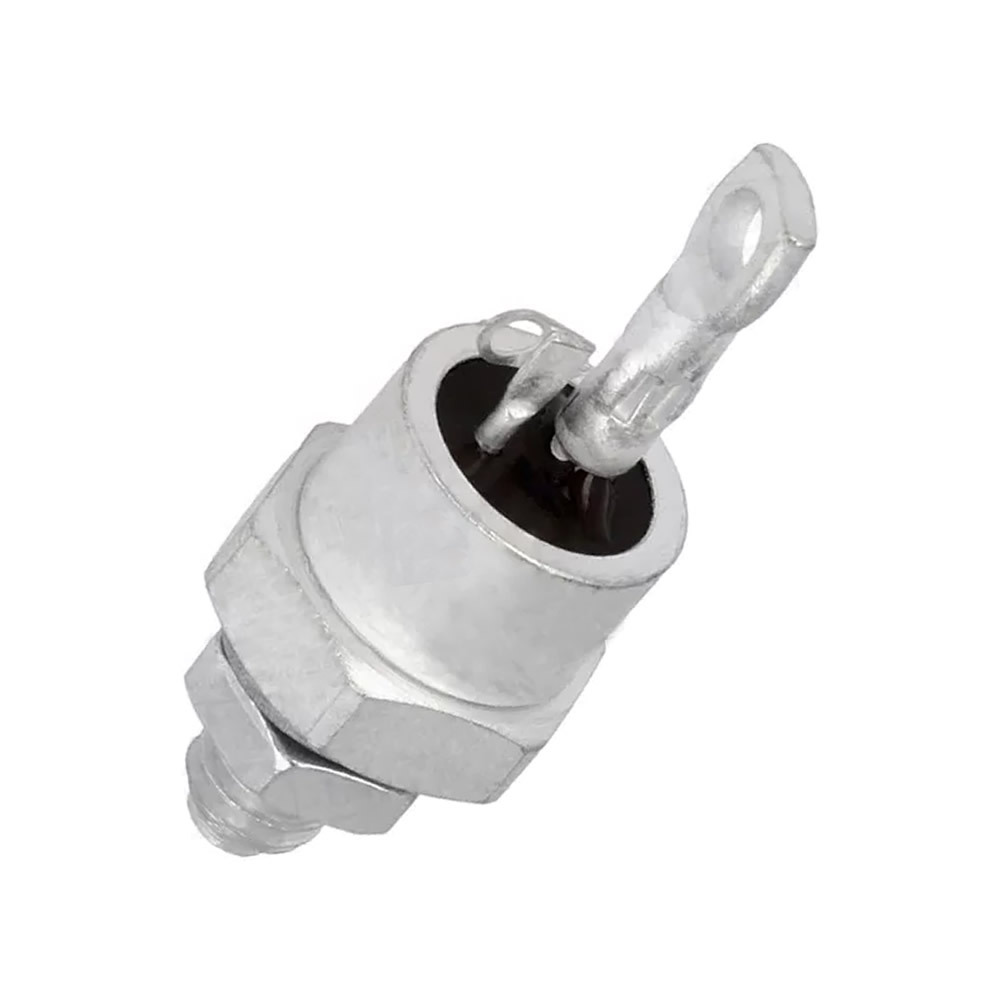

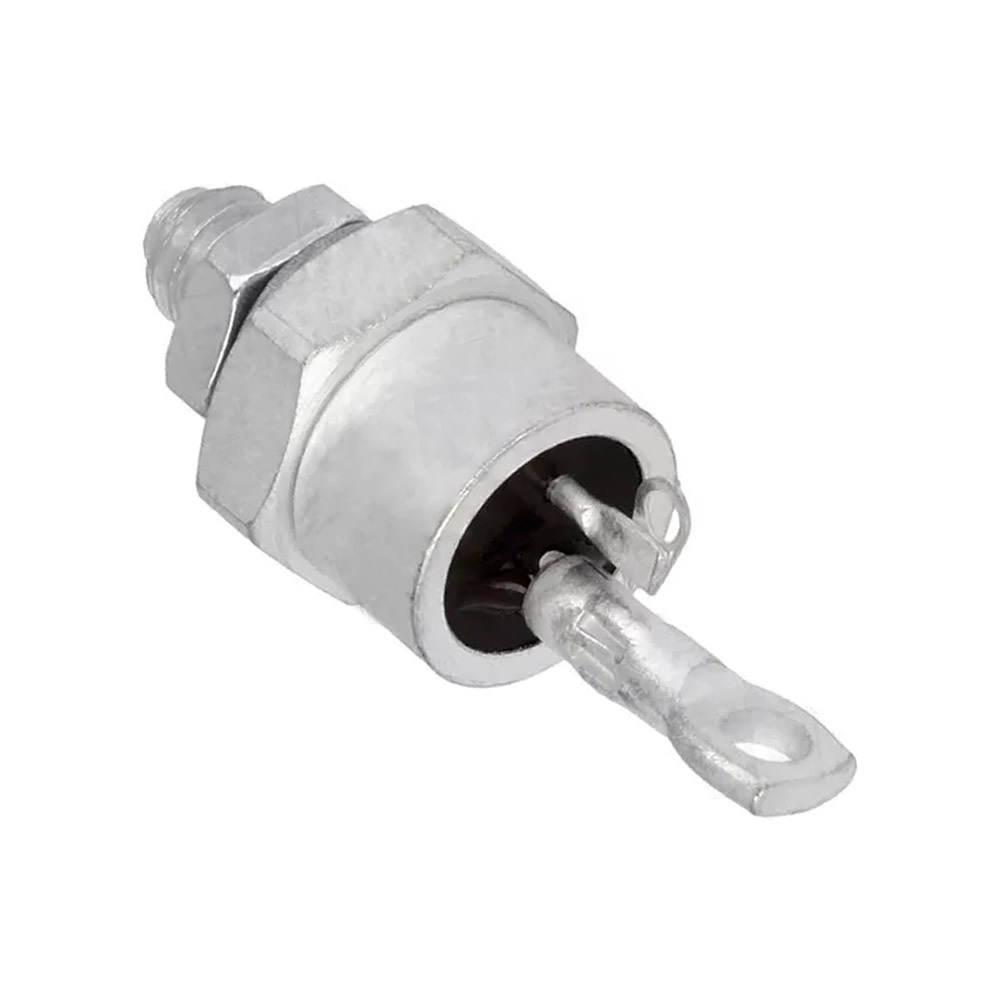

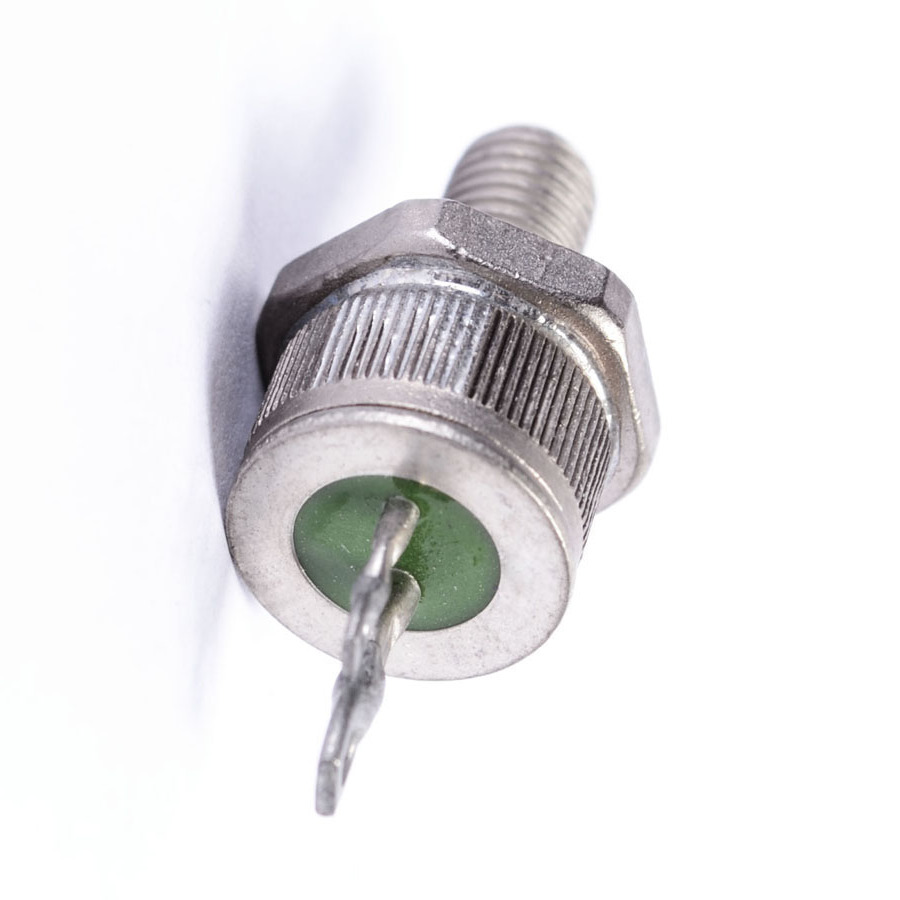

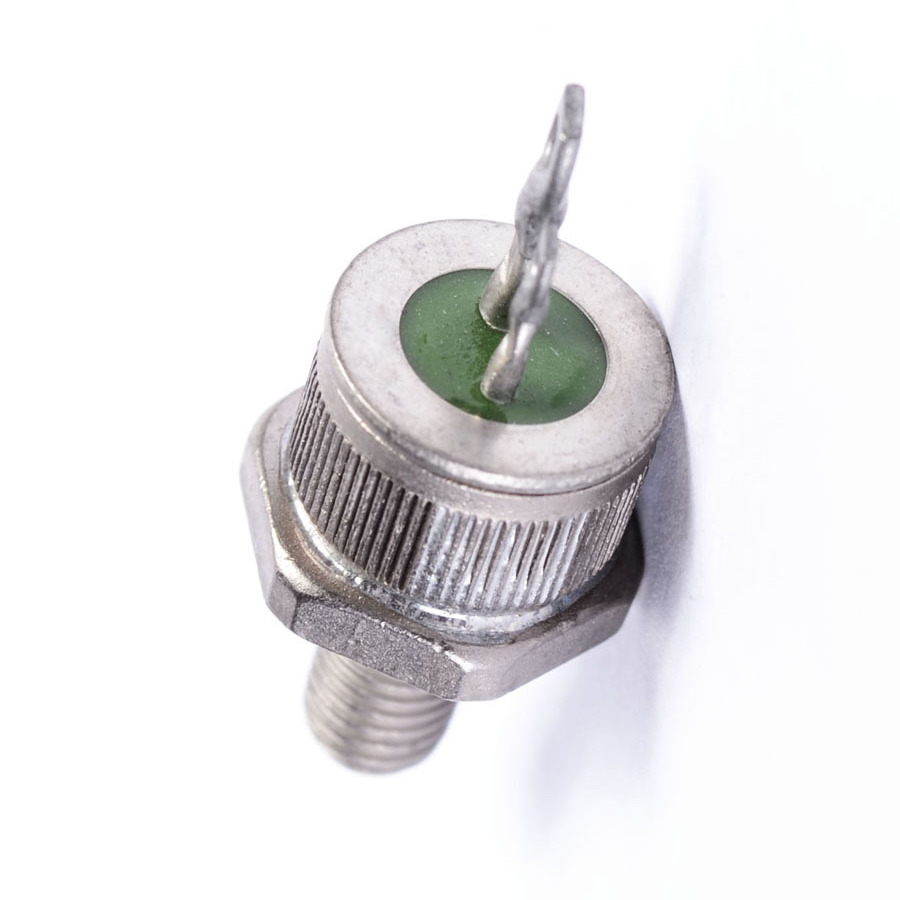

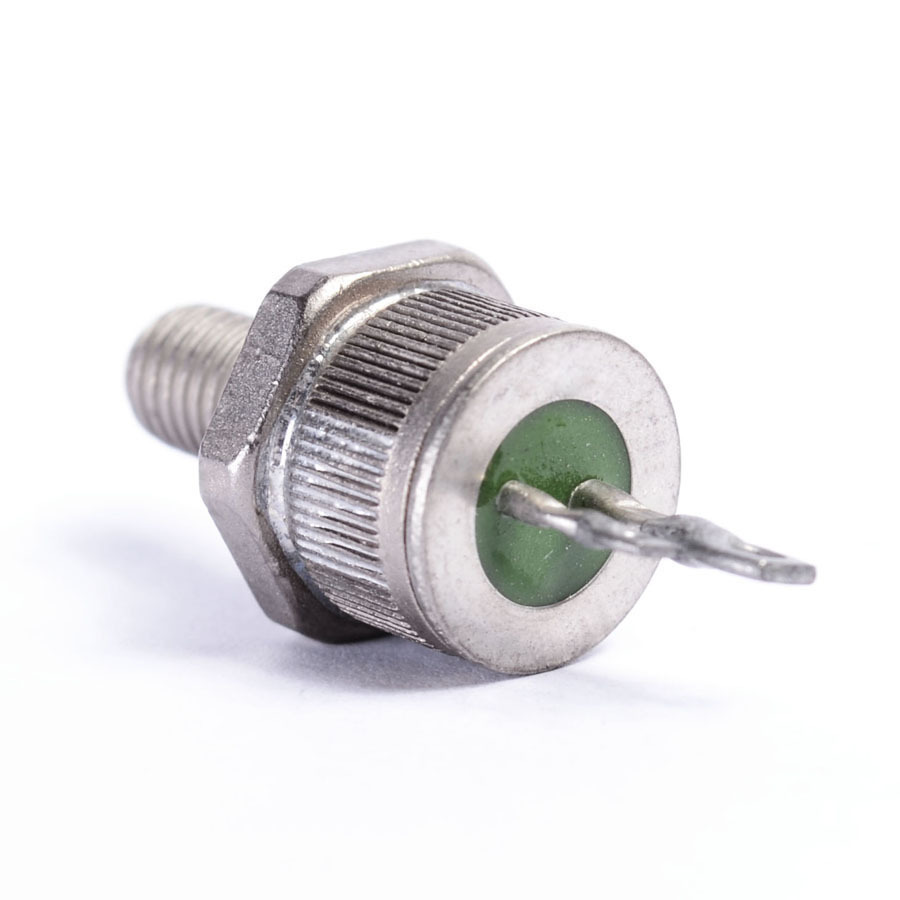

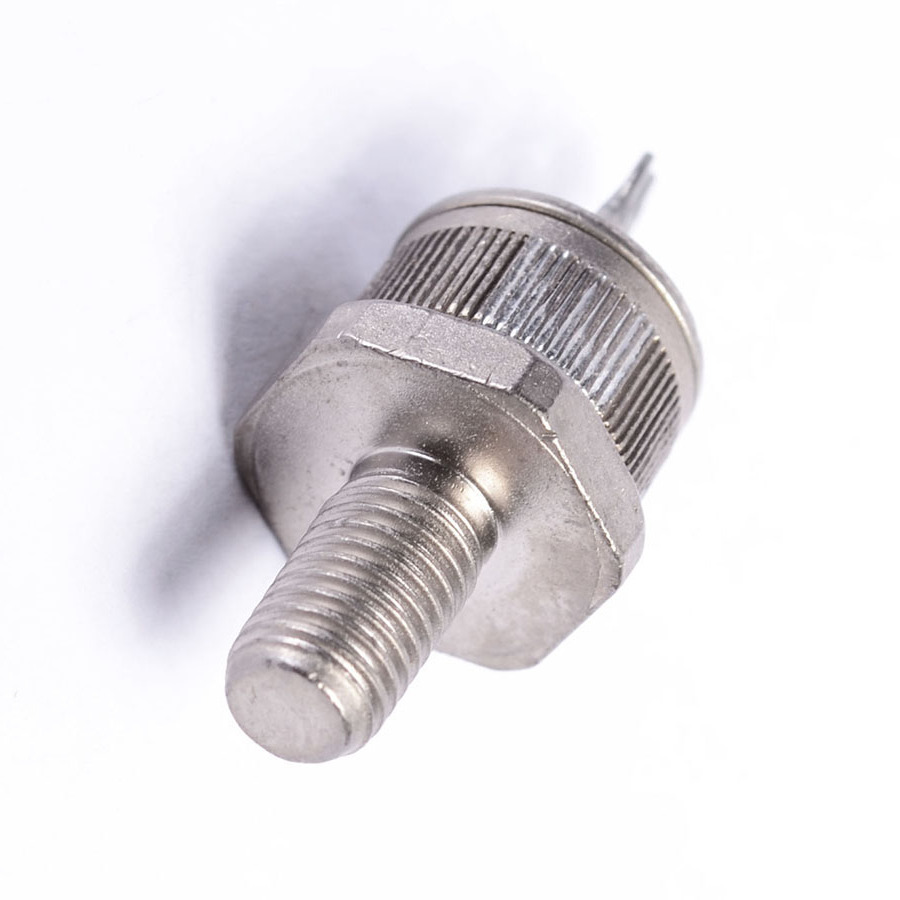

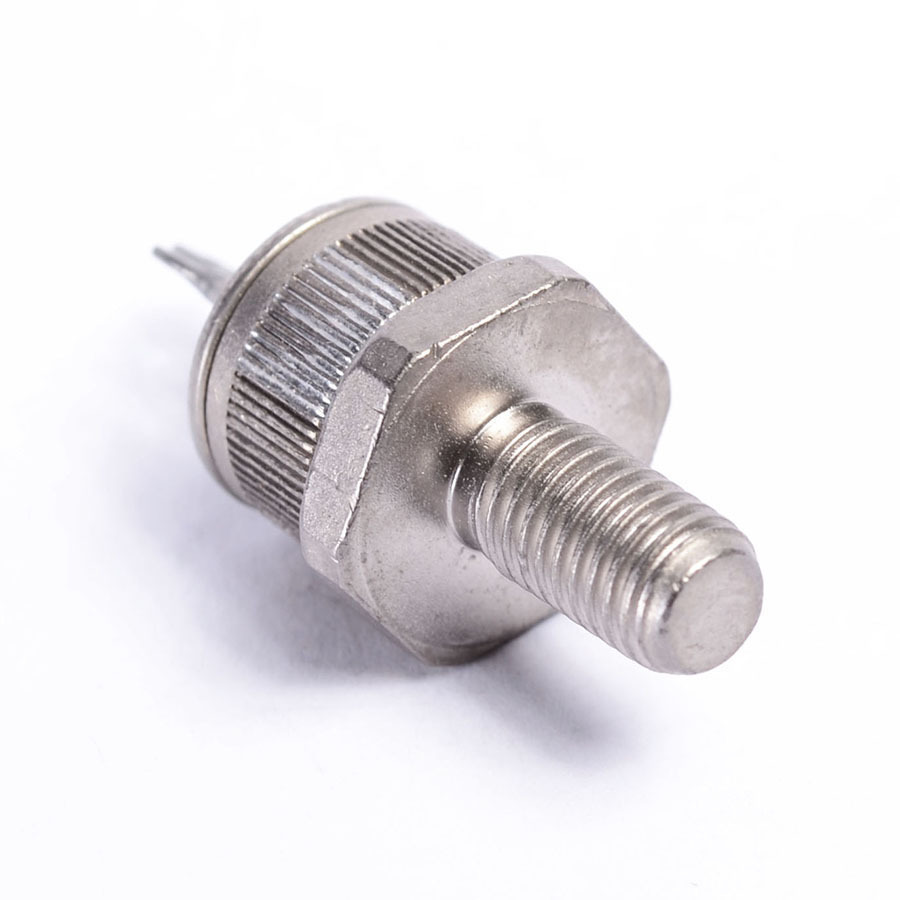

2N5446 Thyristor Triac CASE: TO48 MAKE: Motorola Semiconductor
Price: £33.99
+ VAT 20% for UK purchases
£33.99
Qty
+ VAT 20% for UK purchases
  • 1 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2N5446 Datasheet
Product specifications
Type Thyristor Triac
Case TO48
Manufacturer Motorola Semiconductor
Dv/Dt Worst Case 5.0
Dv/Dt Worst Static 20
Firing Char-Igt Max. 240m
Firing Char-Vgt Max. 3.4
I(h) Max. (A) 100m
Id(off) Max. (A) 4.0m
It(rms) Max. (A) 20
Supp Curr. I(TSM) 300
t(gt) Typ. (S) 1.0u
V(drm) Max. 600
V(T) Max. 1.8
@Temp. (test) 110
@Temp. (test) 100#
Oper. Temp (°C) Min -60
Oper. Temp (°C) Max. 110
@It (A) 56
@It (A) 56
Surface Mounted Yes/No NO
SKU 87403
