2N5634

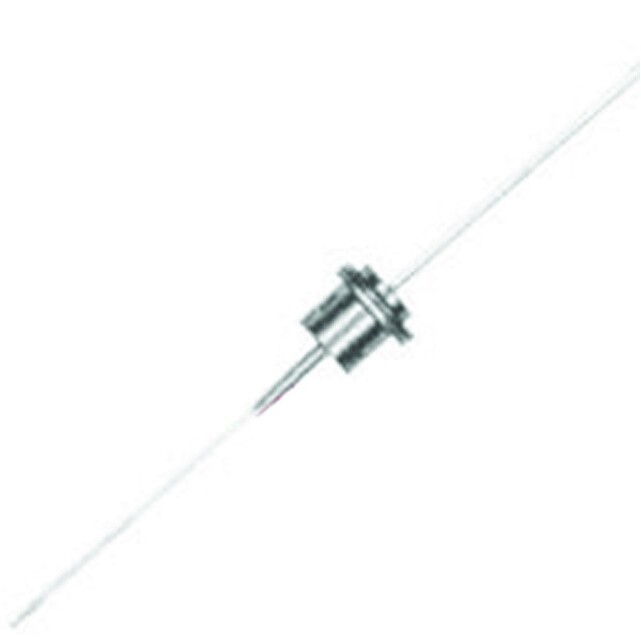

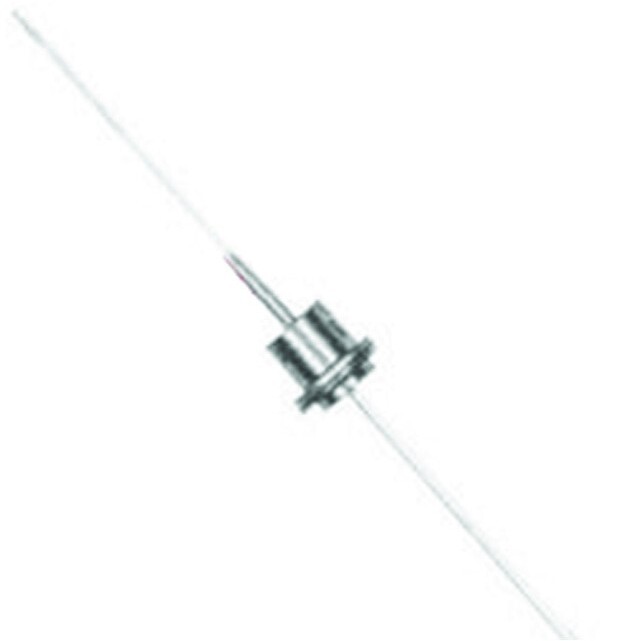

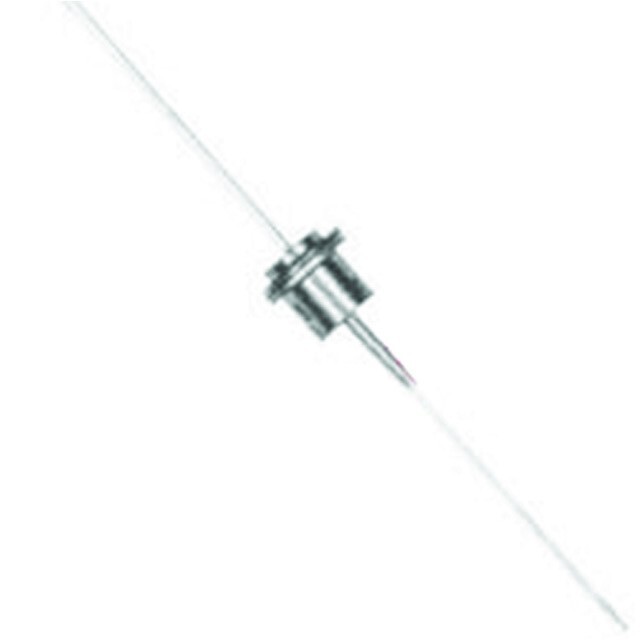

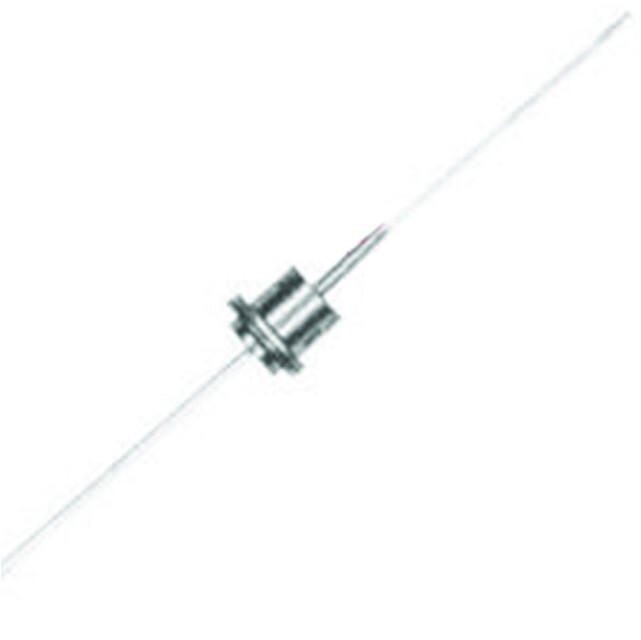

View detailed images (4)

2N5634

SKU: 2N5634
2N5634 Transistor Silicon NPN CASE: DO3 MAKE: RCA - Harris
Price:
£16.79 Inc. VAT (£13.99 Ex. VAT)
£16.79 Inc. VAT (£13.99 Ex. VAT)
Qty
  • 3 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case DO3
Manufacturer RCA - Harris
Vbr CBO 140
Vbr CEO 140
Max. PD (W) 150
Max. hFE 60
Min hFE 15
Ic Max. (A) 10
@Ic (test) (A) 5.0
Icbo Max. @Vcb Max. (A) 1.0m
Polarity NPN
Derate Above 25°C 857m
Trans. Freq (Hz) Min. 1.0M
Oper. Temp (°C) Max. 175
@VCE (V) 2.0
Pinout Equivalence Number 3-14
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 150 W
Maximum Collector-Base Voltage |Vcb| 140 V
Maximum Collector-Emitter Voltage |Vce| 140 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 15 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 300 pF
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN 15
SKU 83494
