2N5684G
View detailed images (4)

2N5684G

SKU: 2N5684G

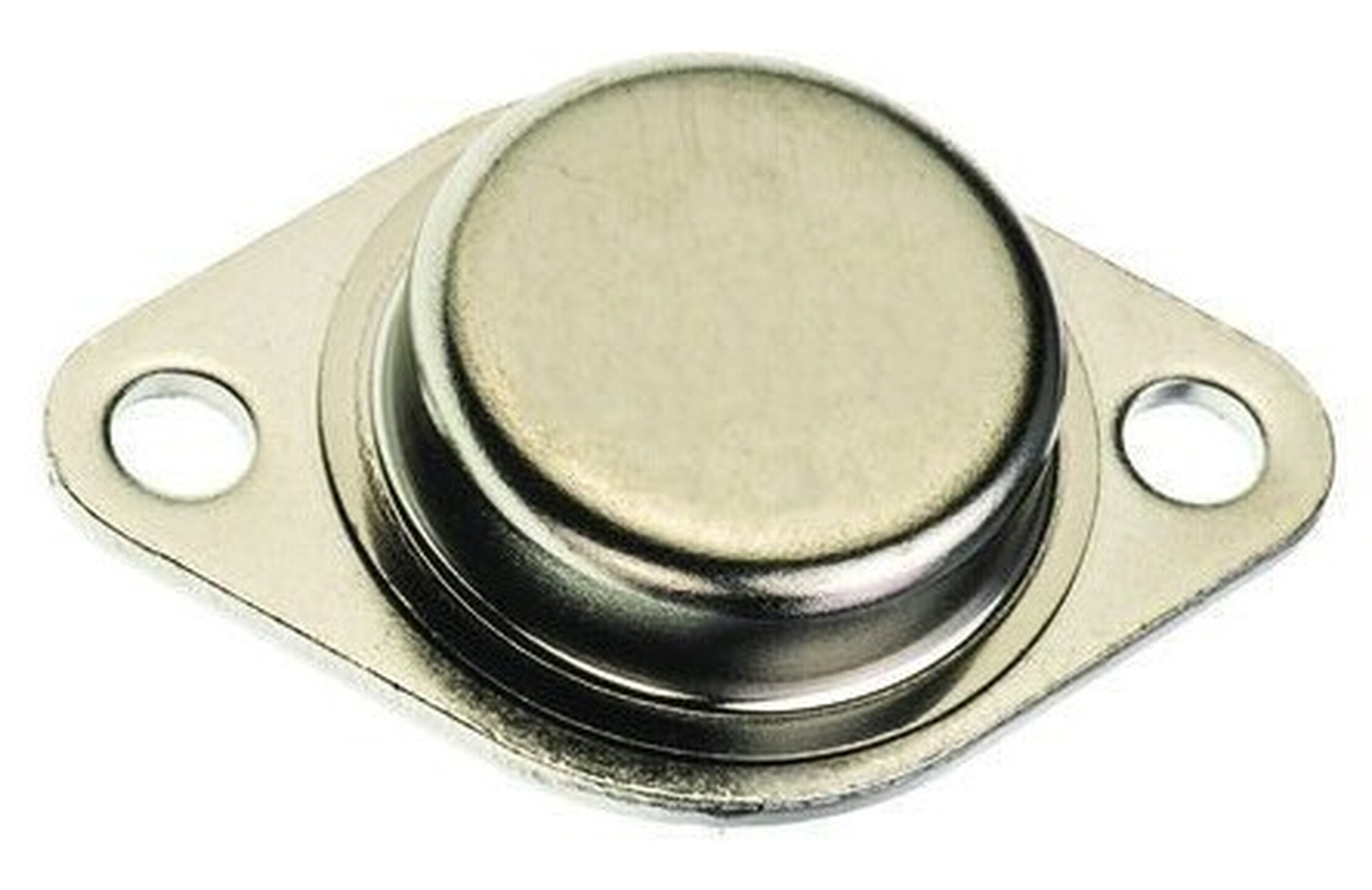

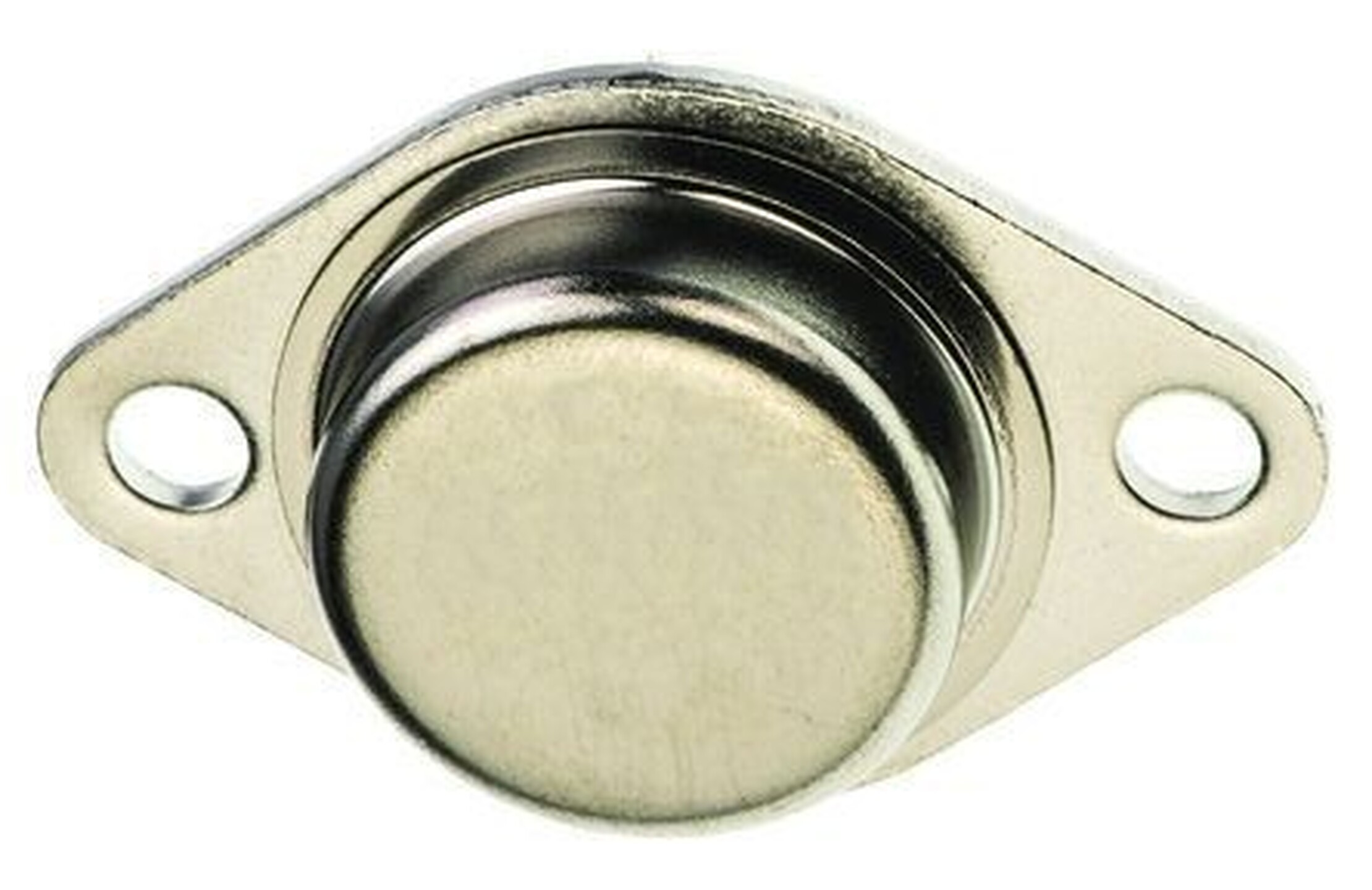

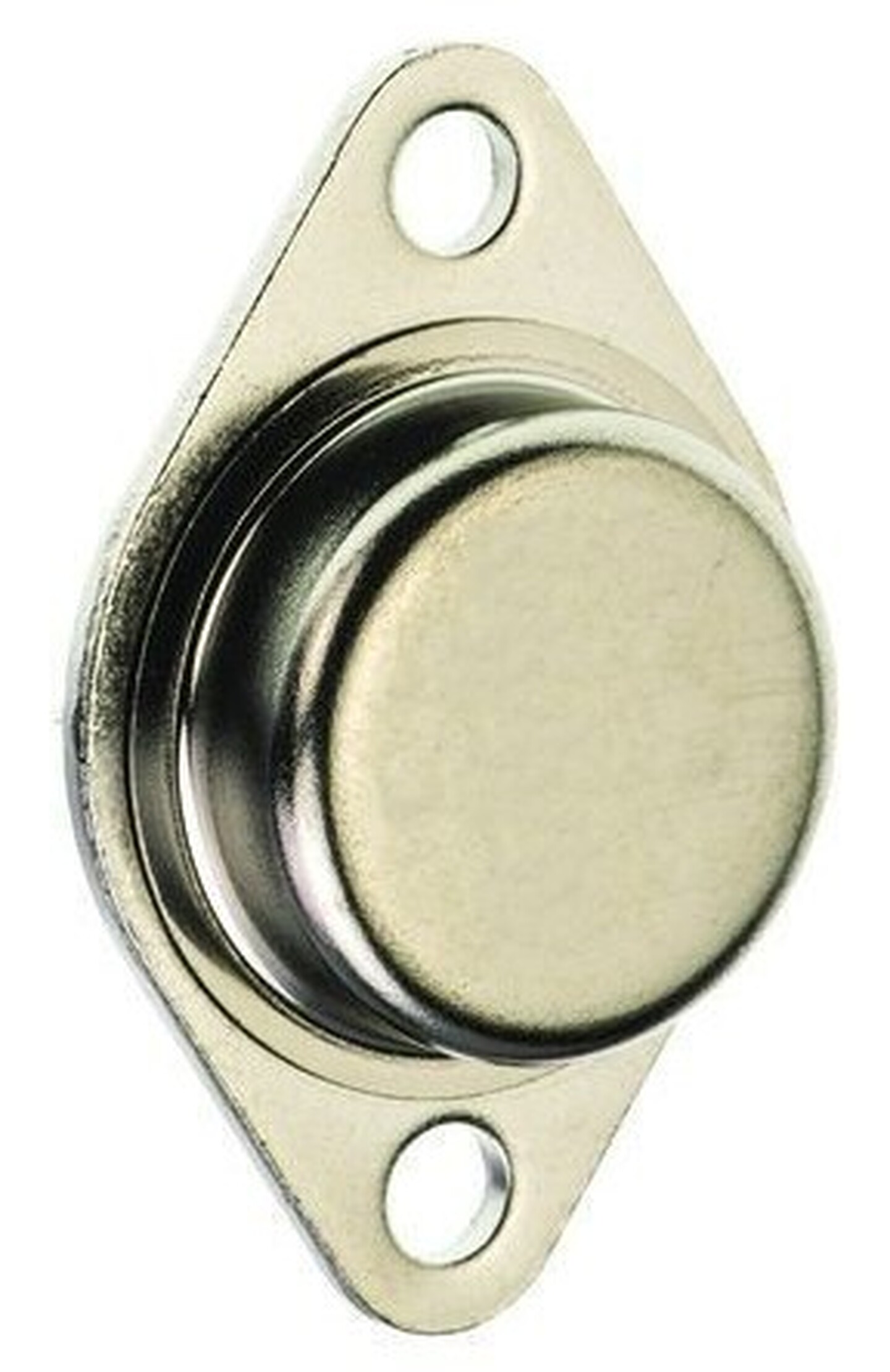

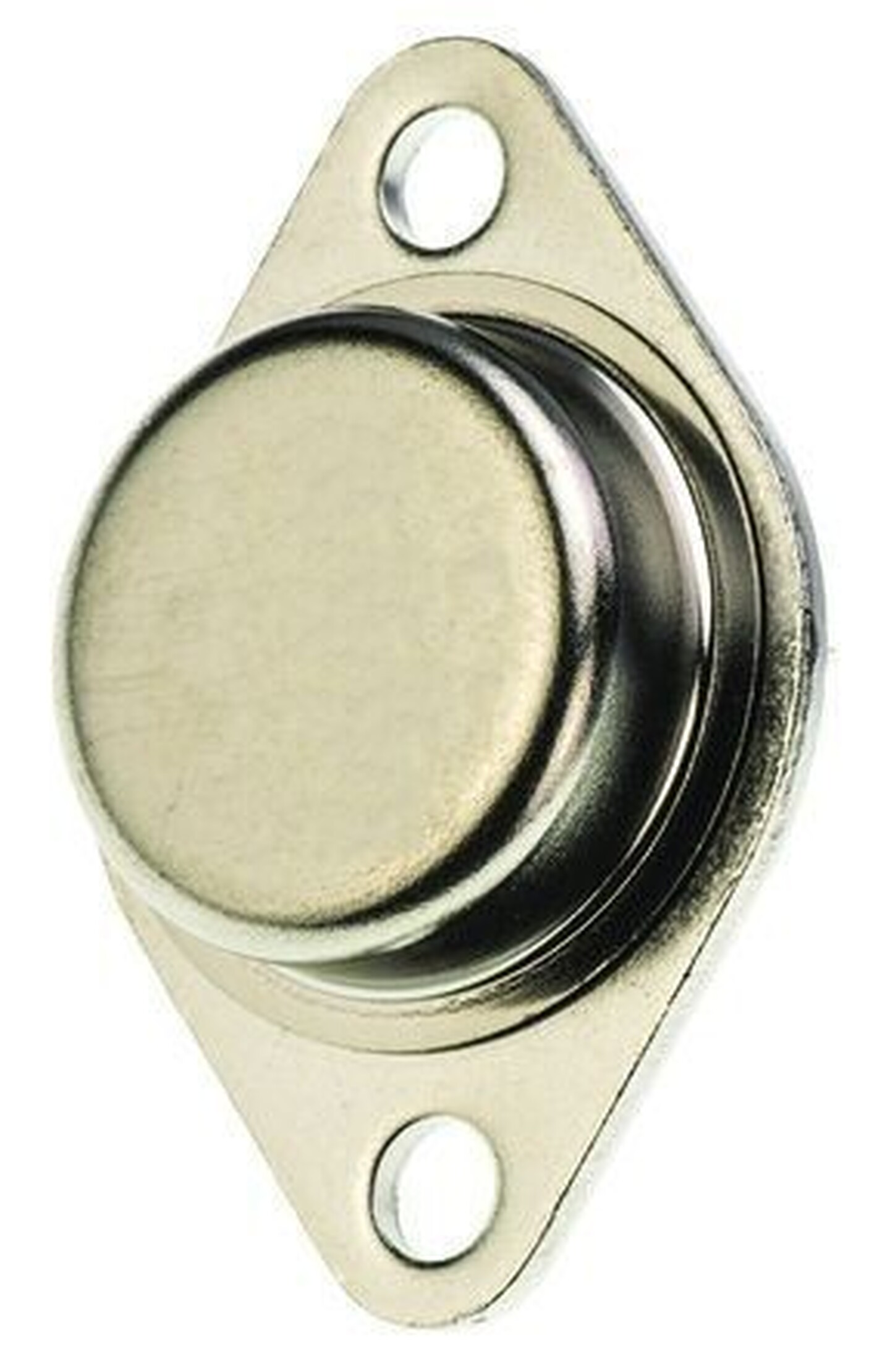

2N5684G Transistor Silicon PNP CASE: TO204 MAKE: Generic
Product specifications
Type Transistor Silicon PNP
Case TO204
Manufacturer Generic
Polarity PNP
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 50 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 2000 pF
Transition Frequency (ft): 2 MHz
Forward Current Transfer Ratio (hFE), MIN 15
SKU 772695
