2N600
View detailed images (4)

2N600

SKU: 2N600

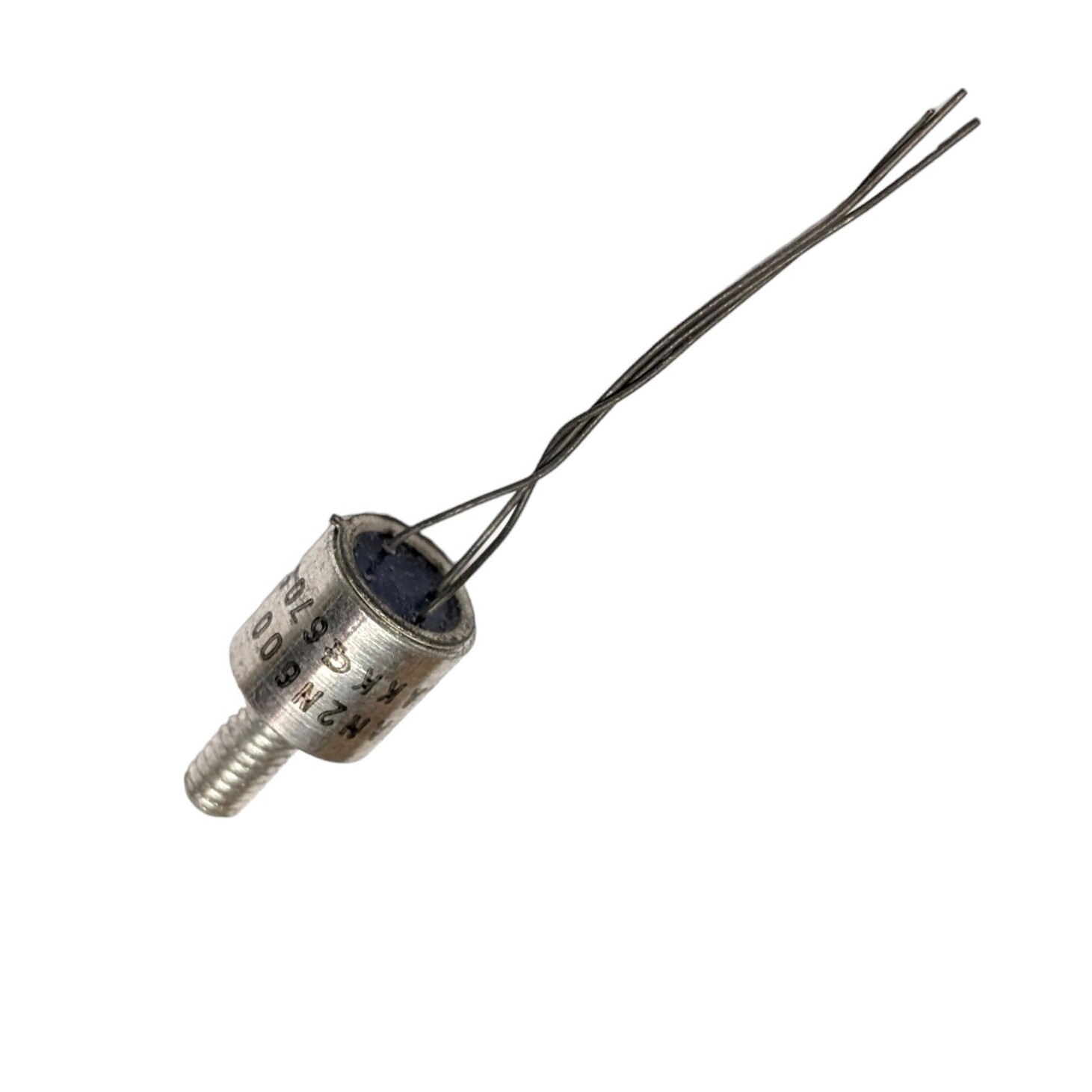

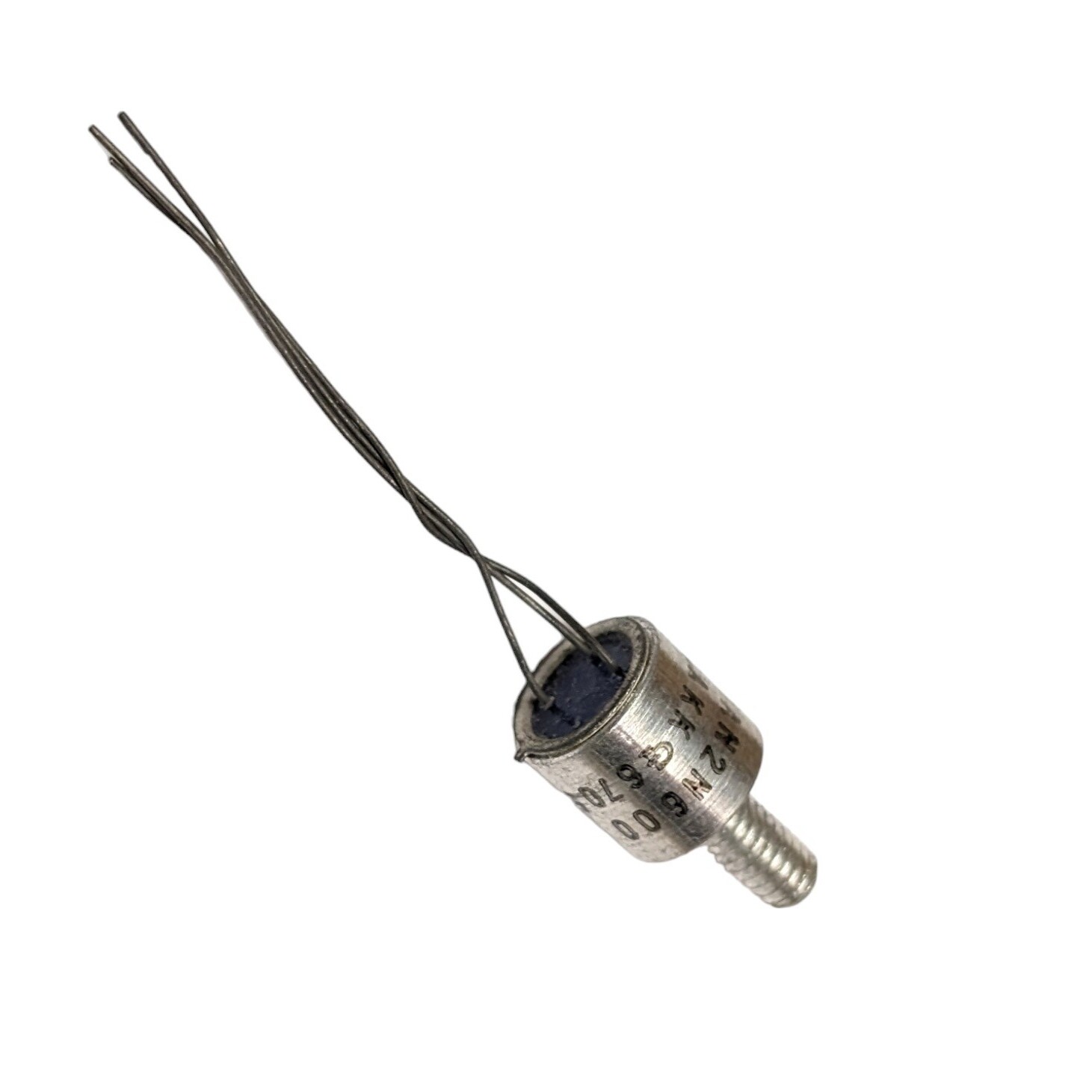

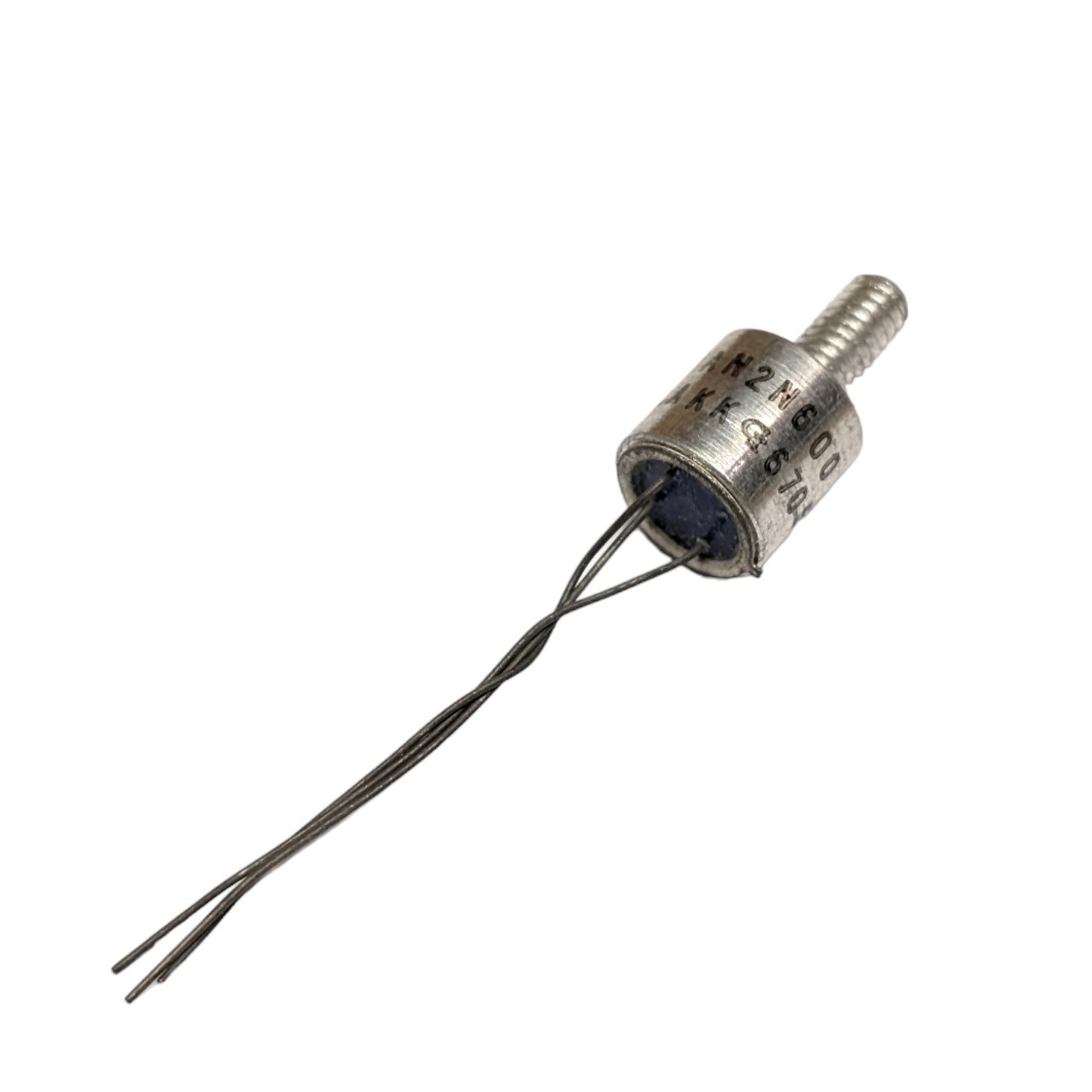

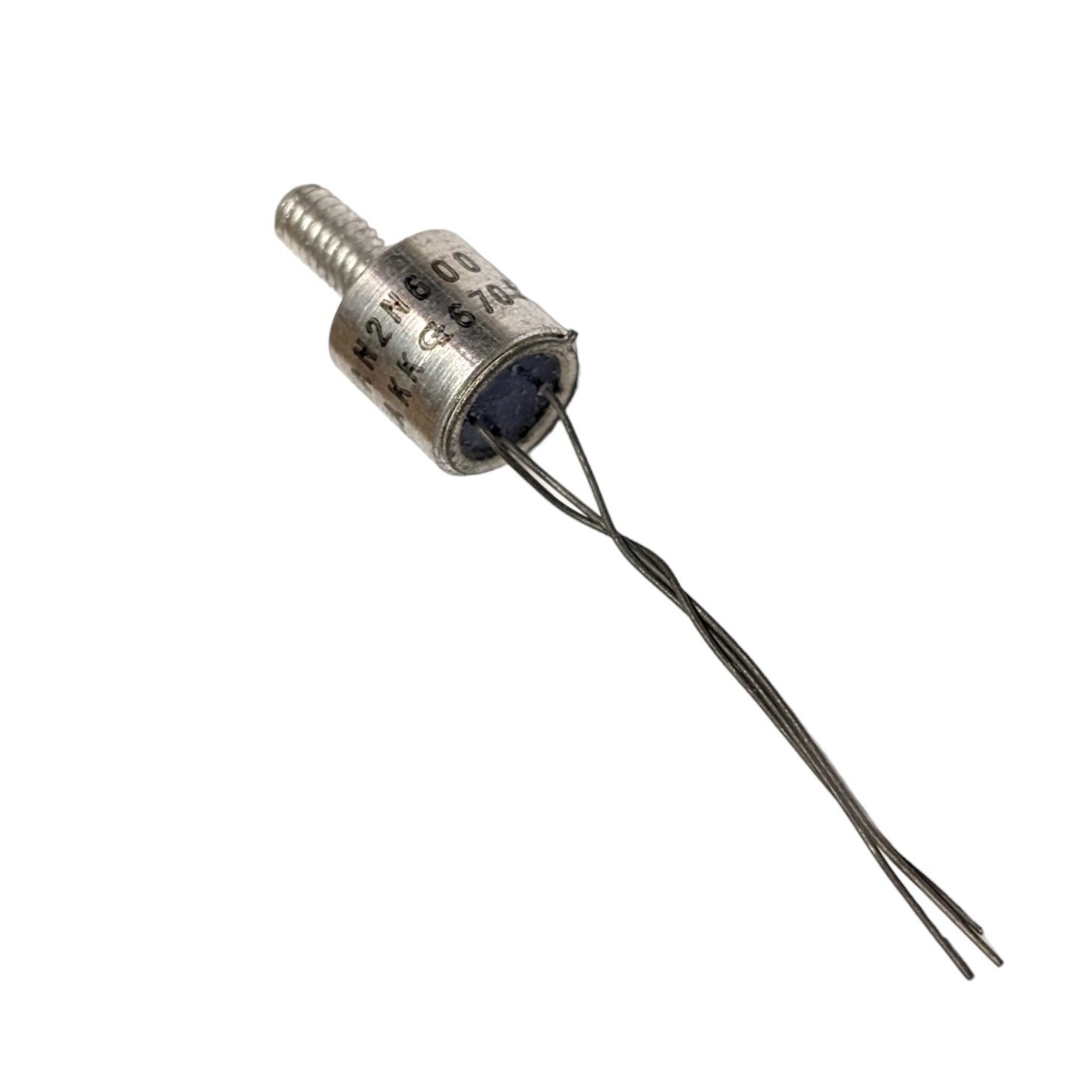

2N600 Transistor Germanium PNP CASE: TO31 MAKE: Generic
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Germanium PNP
Case TO31
Manufacturer Generic
Vbr CBO 35
Vbr CEO 35
Max. PD (W) 750m
C(ob) (F) 20p
Derate (Amb) (W/°C) 10m
hfe 1.4
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 25u
Polarity PNP
Trans. Freq (Hz) Min. 6.5M
@VCE (test) (V) 5.0
Oper. Temp (°C) Max. 100
@Ic (A) 3.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.75 W
Maximum Collector-Base Voltage |Vcb| 35 V
Maximum Emitter-Base Voltage |Veb| 30 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 100 °C
Collector Capacitance (Cc) 20 pF
Transition Frequency (ft): 5 MHz
Forward Current Transfer Ratio (hFE), MIN 70
SKU 368650
