2N6488
View detailed images (4)

2N6488

SKU: 2N6488

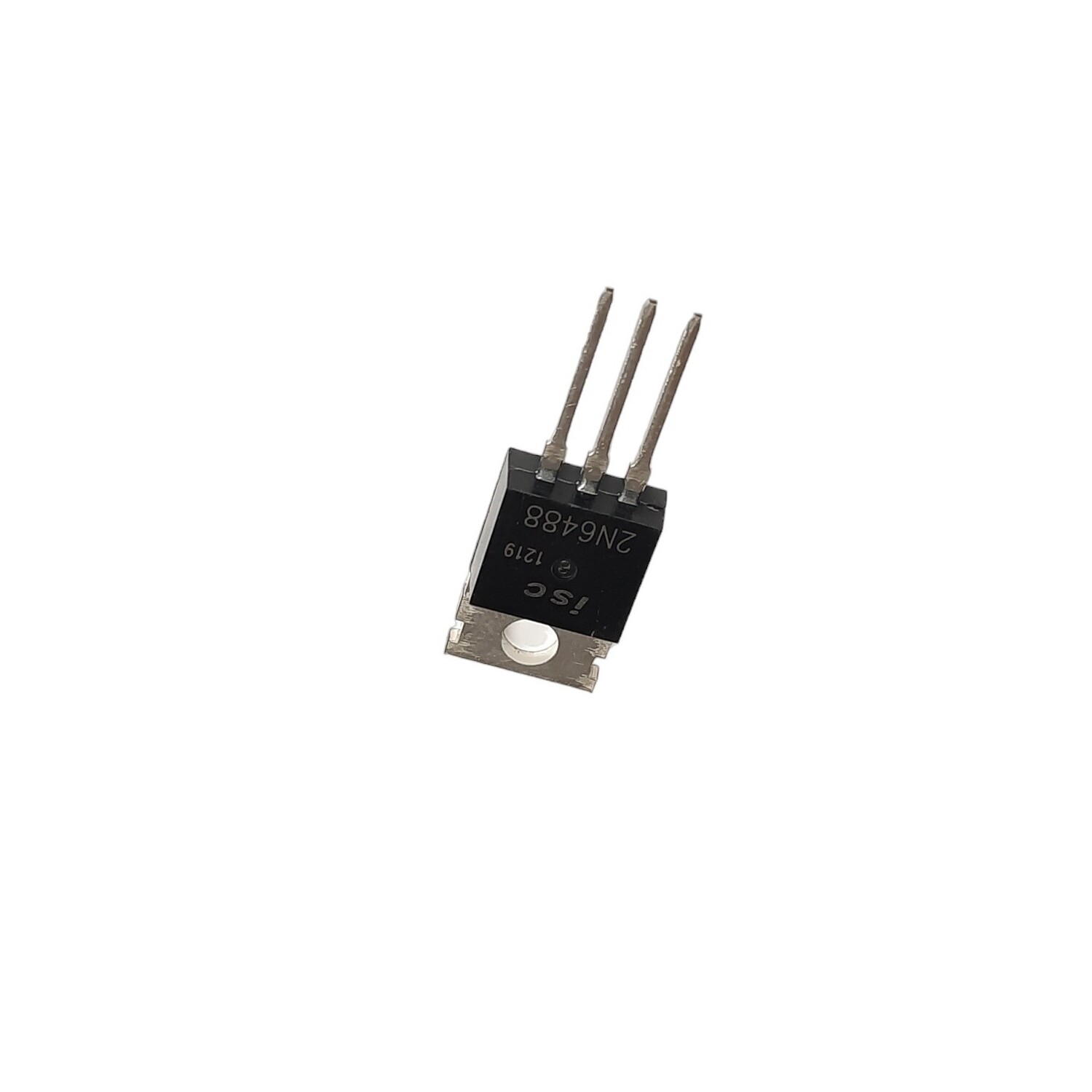

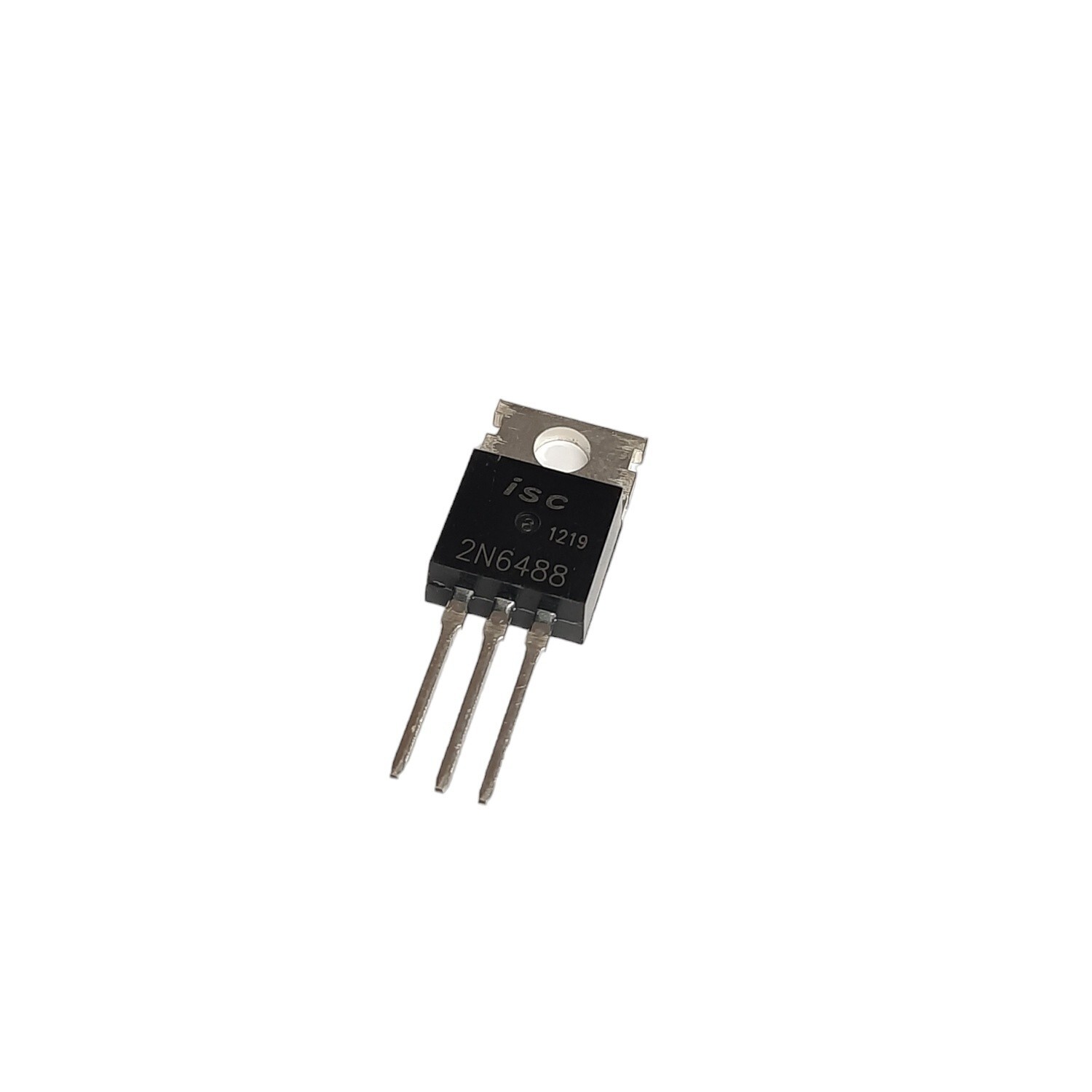

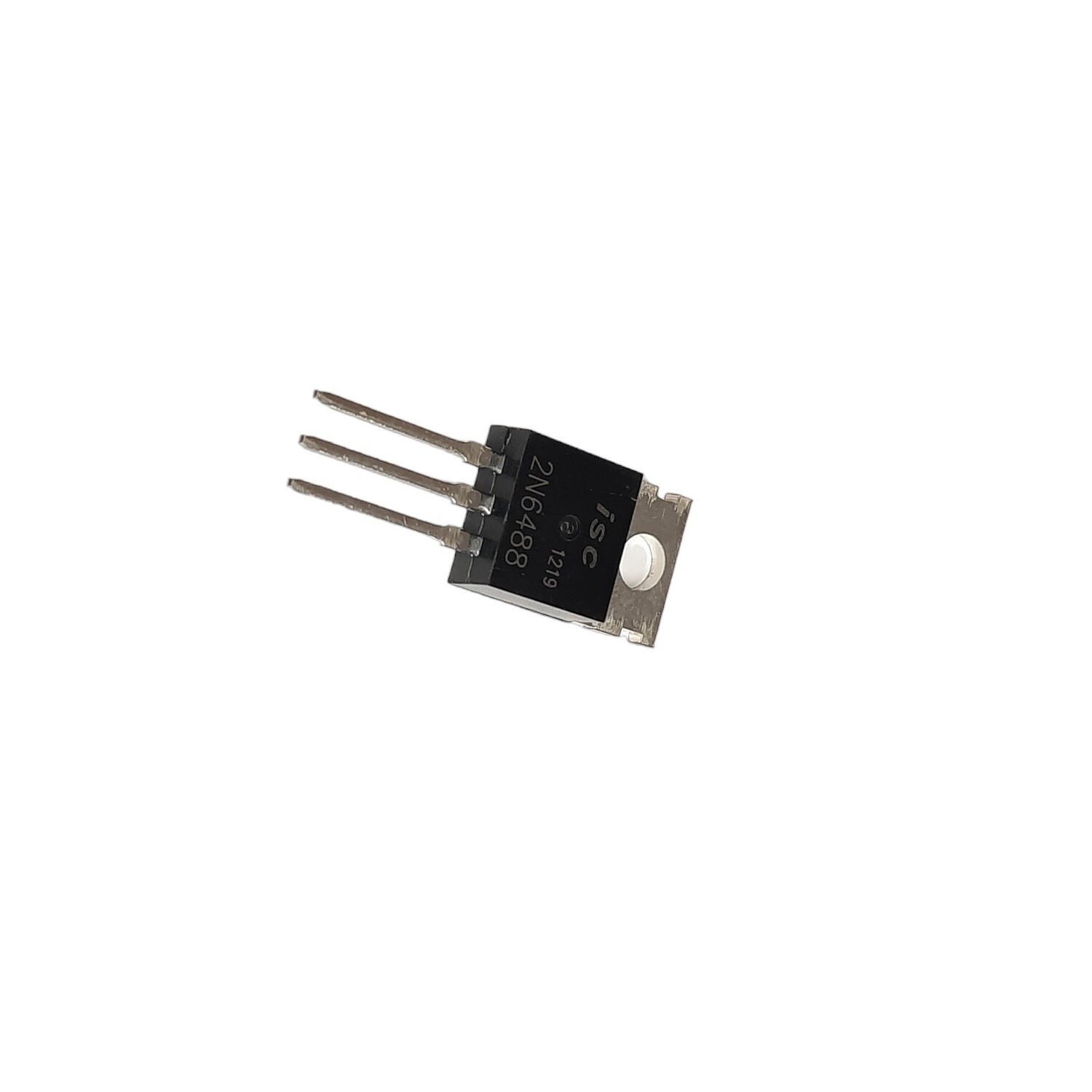

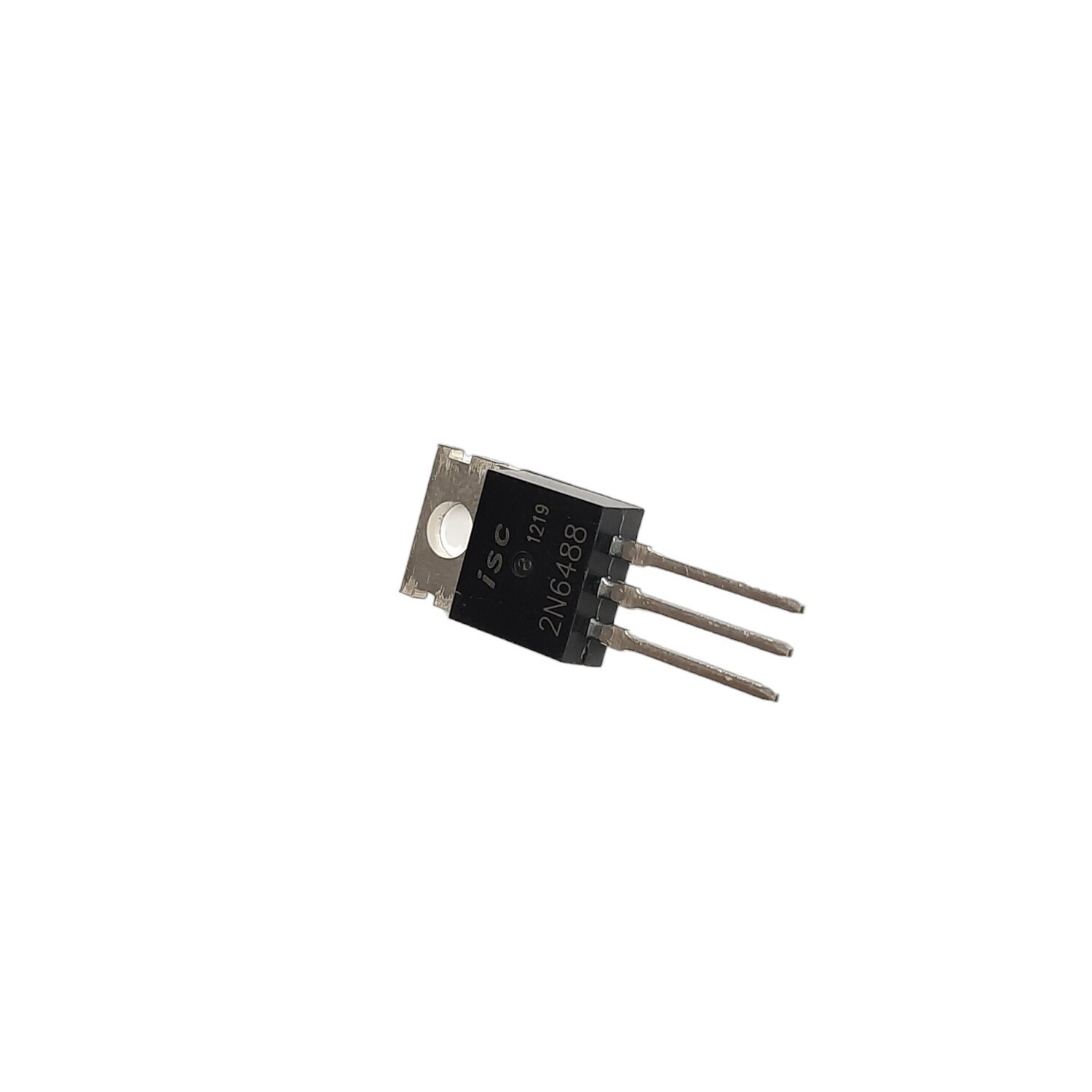

2N6488 Transistor Silicon NPN CASE: TO220 MAKE: ON Semiconductor
Price:
£7.19 Inc. VAT (£5.99 Ex. VAT)
£7.19 Inc. VAT (£5.99 Ex. VAT)
Qty
  • 170 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2N6488 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO220
Manufacturer ON Semiconductor
Vbr CBO 90
Vbr CEO 80
Max. PD (W) 30
t(f) Max. (S) 300n-
Max. hFE 150
Min hFE 20
Ic Max. (A) 15
@Ic (test) (A) 5.0
Icbo Max. @Vcb Max. (A) 1.0m
Polarity NPN
R(sat) (Û) 233m
Derate Above 25°C 600m
Trans. Freq (Hz) Min. 5.0M
Oper. Temp (°C) Max. 140
@VCE (V) 4.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 75 W
Maximum Collector-Base Voltage |Vcb| 90 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 15 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 5 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 80265
