2N6558
View detailed images (5)

2N6558

SKU: 2N6558

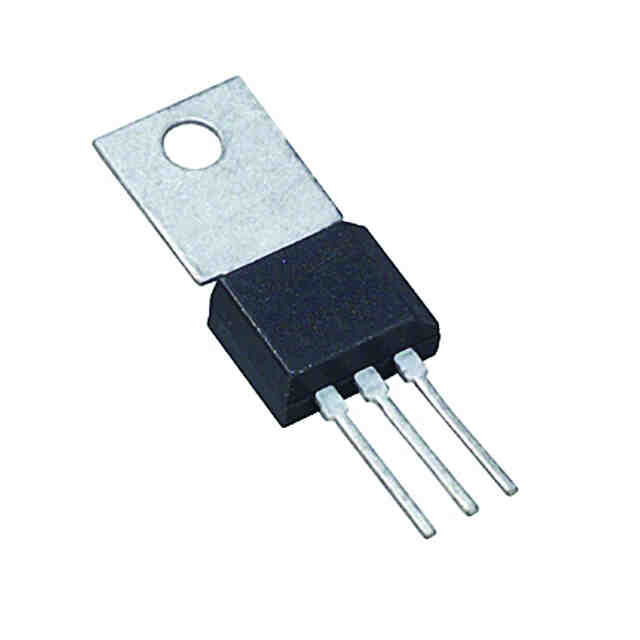

2N6558 Transistor Silicon NPN CASE: SOT128 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon NPN
Case SOT128
Manufacturer Motorola Semiconductor
Vbr CBO 300
Vbr CEO 300
Max. PD (W) 2.0
Max. hFE 180
Min hFE 40
Ic Max. (A) 500m
@Ic (test) (A) 30m
Icbo Max. @Vcb Max. (A) 200n
Polarity NPN
R(sat) (Û) 20
Derate Above 25°C 16m
Trans. Freq (Hz) Min. 45M
Oper. Temp (°C) Max. 140
@VCE (V) 10
Pinout Equivalence Number 4-20
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 2 W
Maximum Collector-Base Voltage |Vcb| 300 V
Maximum Collector-Emitter Voltage |Vce| 300 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 45 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 368705
