2N6559
View detailed images (5)

2N6559

SKU: 2N6559

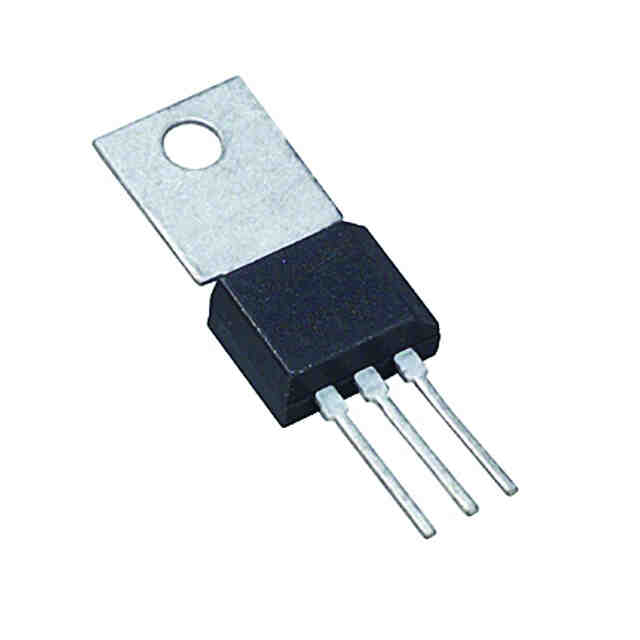

2N6559 Transistor - Case: SOT128 Make: Motorola Semiconductor
+ VAT 20% for UK purchases
Product specifications
Type Transistor Silicon NPN
Case SOT128
Manufacturer Motorola Semiconductor
Vbr CBO 350
Vbr CEO 350
Max. PD (W) 2.0
Max. hFE 180
Min hFE 40
Ic Max. (A) 500m
@Ic (test) (A) 30m
Icbo Max. @Vcb Max. (A) 200n
Polarity NPN
R(sat) (Û) 20
Derate Above 25°C 16m
Trans. Freq (Hz) Min. 45M
Oper. Temp (°C) Max. 140
@VCE (V) 10
Pinout Equivalence Number 4-20
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 2 W
Maximum Collector-Base Voltage |Vcb| 350 V
Maximum Collector-Emitter Voltage |Vce| 350 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 45 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 553170
