2N6727

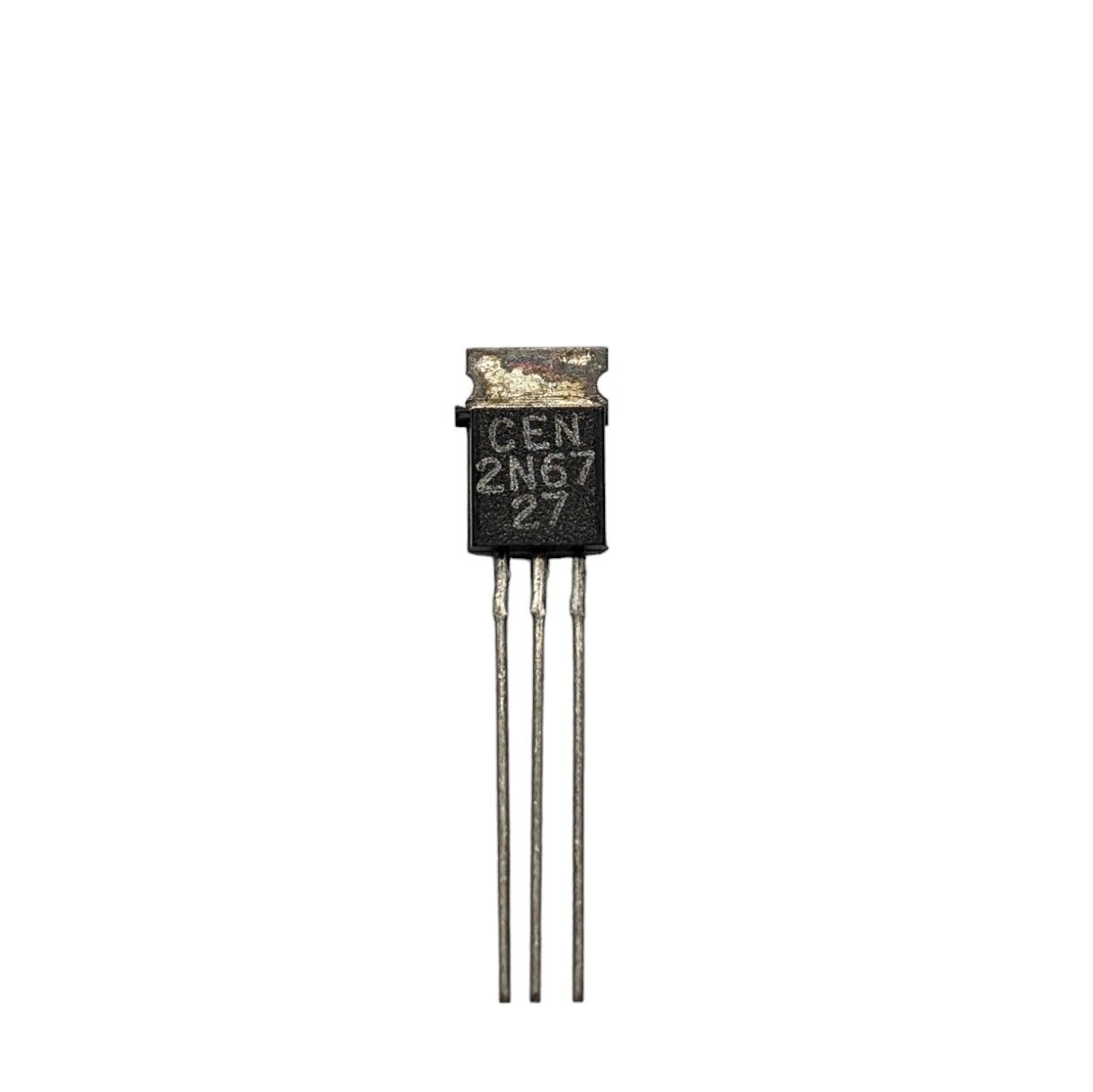

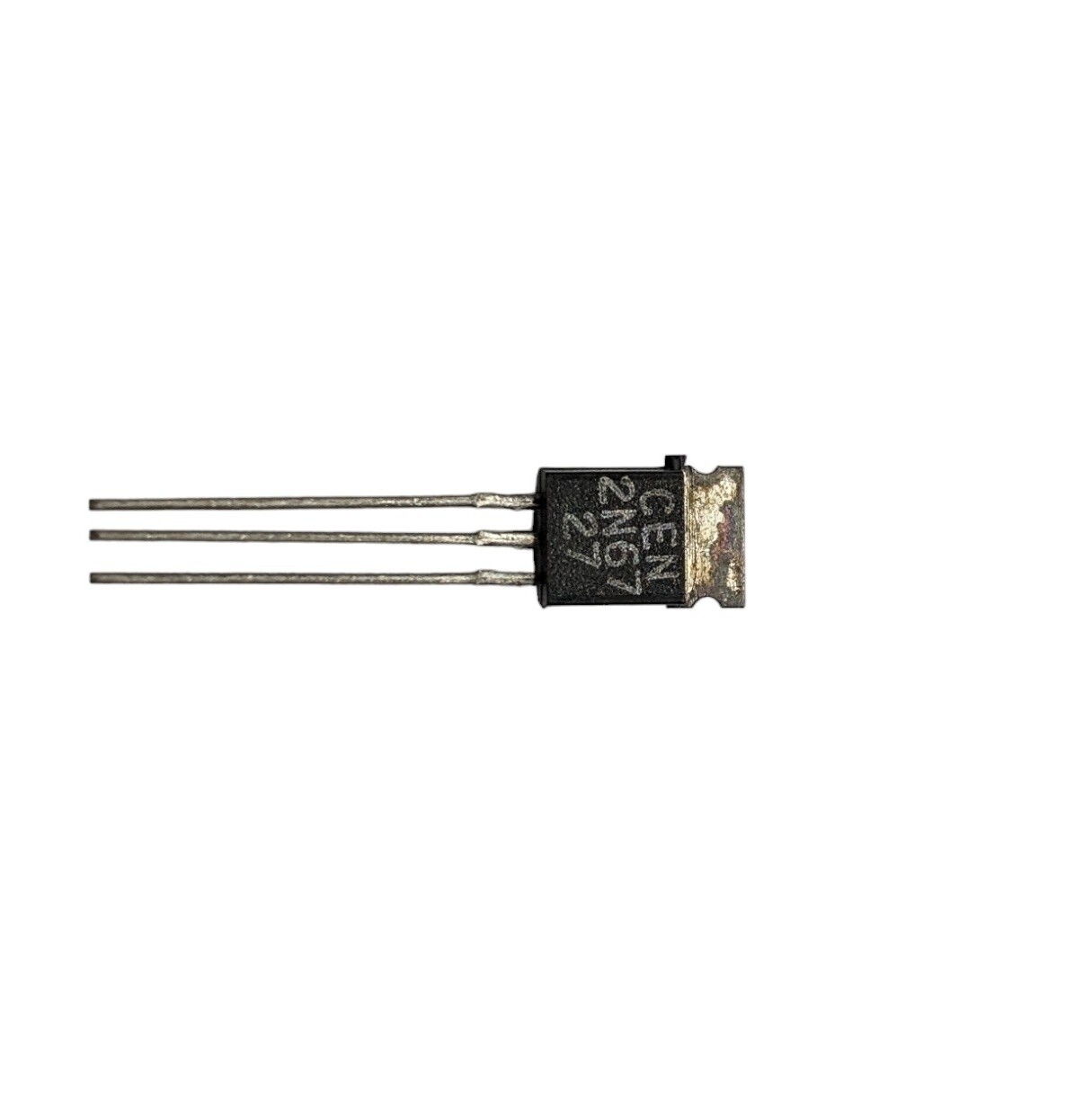

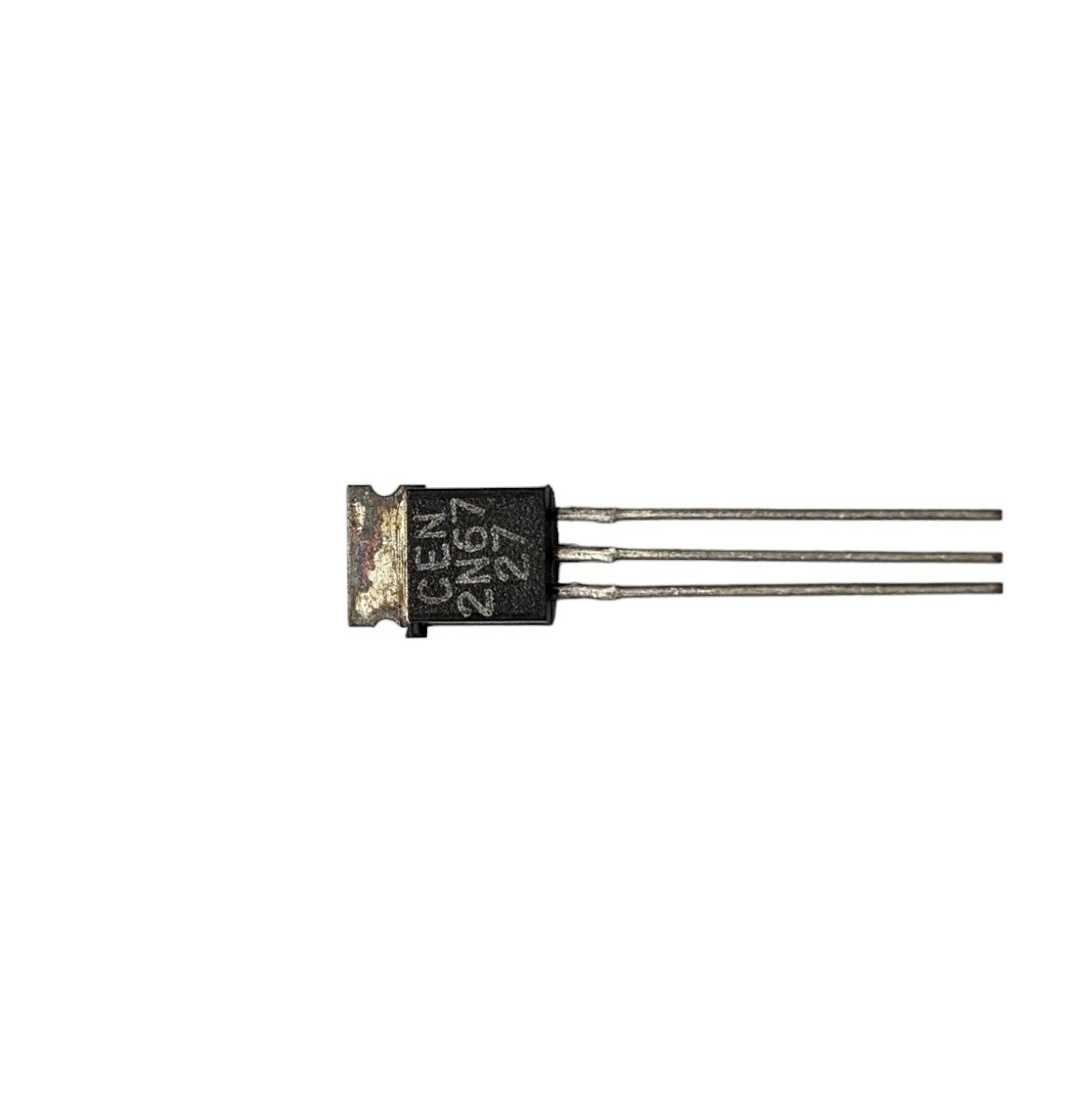

View detailed images (4)

2N6727

SKU: 2N6727
2N6727 Transistor Silicon PNP CASE: TO237 MAKE: NTE Electronics
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT for International Orders)

£14.39 Inc. VAT (£11.99 Ex. VAT for International Orders)
Qty
  • 10 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case TO237
Manufacturer NTE Electronics
Vbr CBO 50
Vbr CEO 40
Max. PD (W) 2.0
Derate (Amb) (W/°C) 20m
Min hFE 50
Ic Max. (A) 2.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
R(sat) (Û) 500m
Trans. Freq (Hz) Min. 50M
Oper. Temp (°C) Max. 140
@VCE (V) 1.0
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 2 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 84437
