2N850
View detailed images (4)

2N850

SKU: 2N850

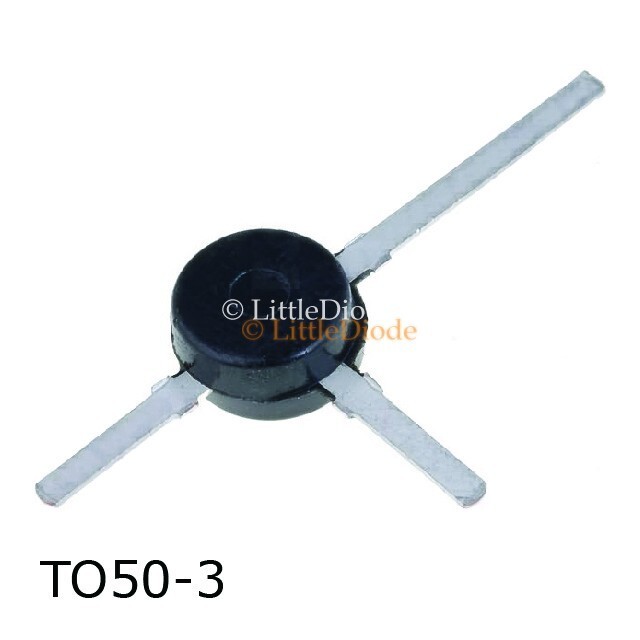

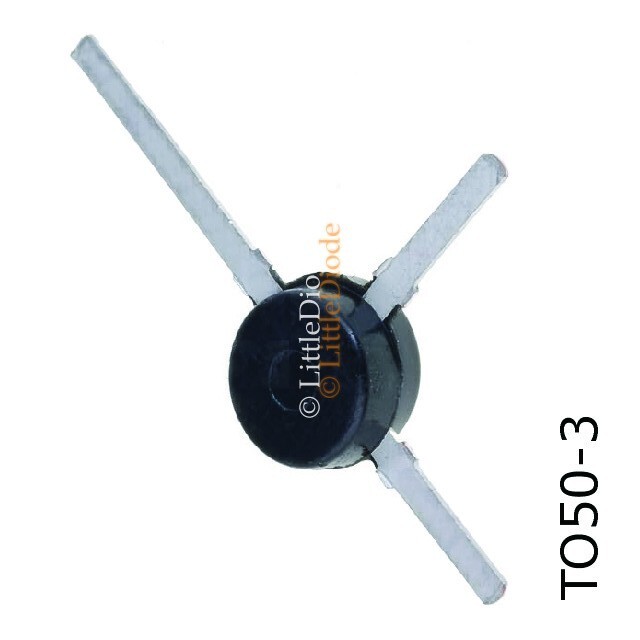

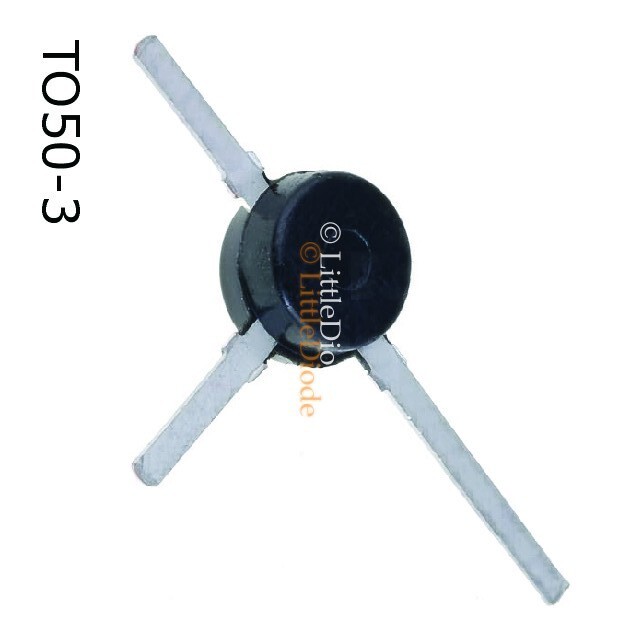

2N850 Transistor Silicon NPN CASE: TO50-3 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case TO50-3
Manufacturer Generic
Vbr CBO 25
Vbr CEO 15
Max. PD (W) 300m
C(ob) (F) 5.0p
Derate (Amb) (W/°C) 2.0m
Ic Max. (A) 50m
Icbo Max. @Vcb Max. (A) 10u
Polarity NPN
t(stor) Max. (S) 35n
Oper. Temp (°C) Max. 200
Pinout Equivalence Number 3-10
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 600 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 1279982
