2PC4617J
View detailed images (4)

2PC4617J

SKU: 2PC4617J

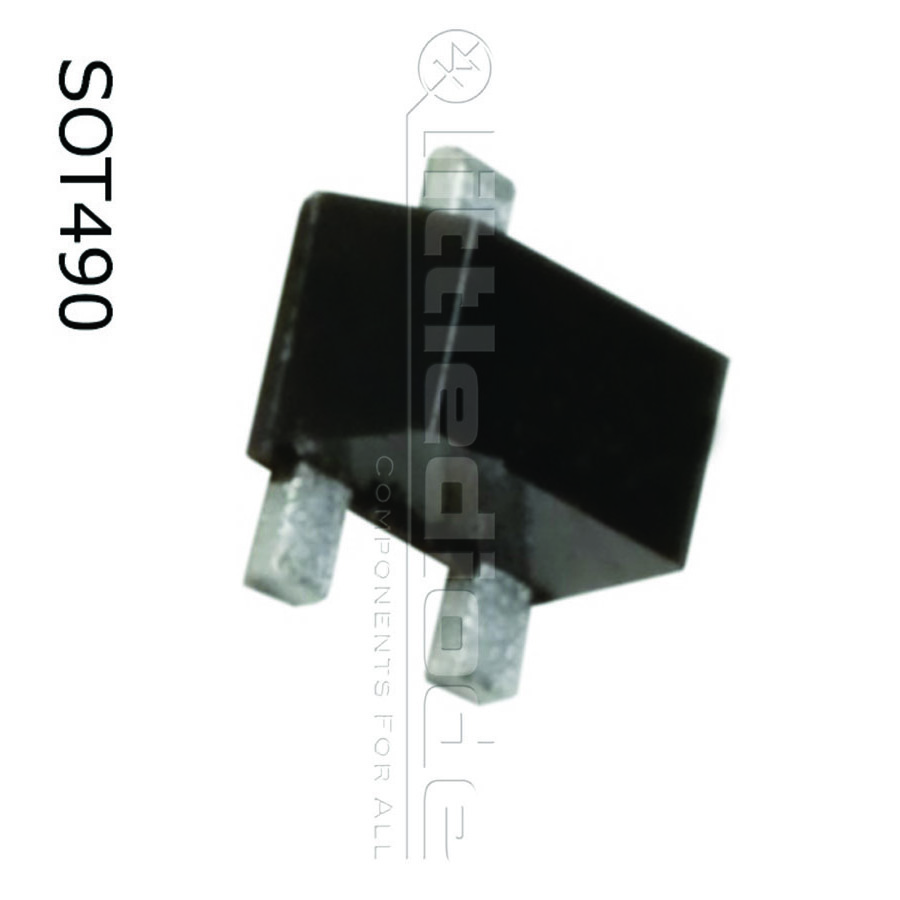

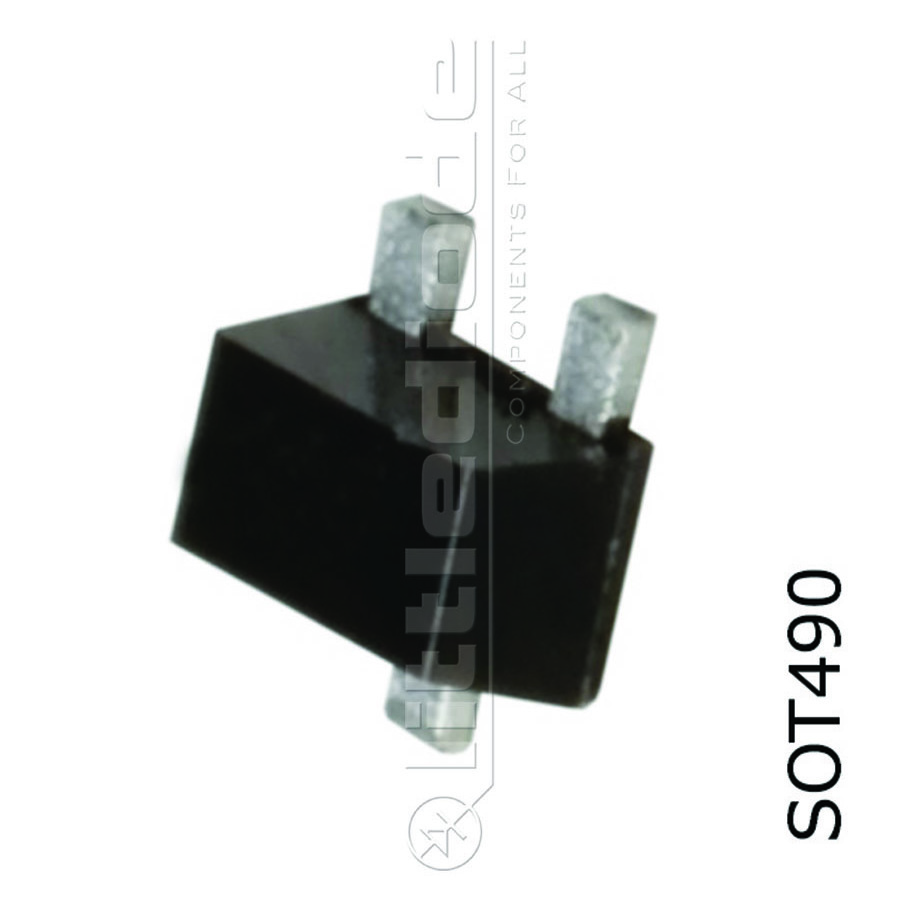

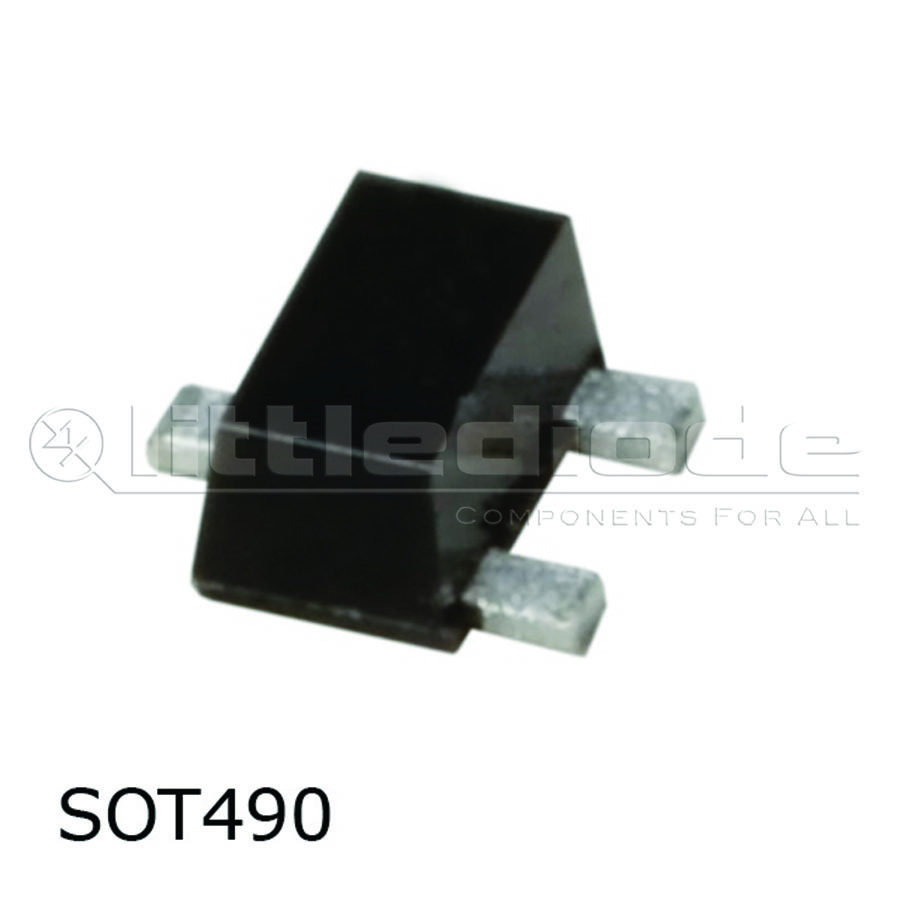

2PC4617J Transistor Silicon NPN CASE: SOT490 MAKE: Philips
Datasheet
2PC4617J Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT490
Manufacturer Philips
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 1.5 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SKU 1421913
