2SA1057
View detailed images (12)

2SA1057

SKU: 2SA1057

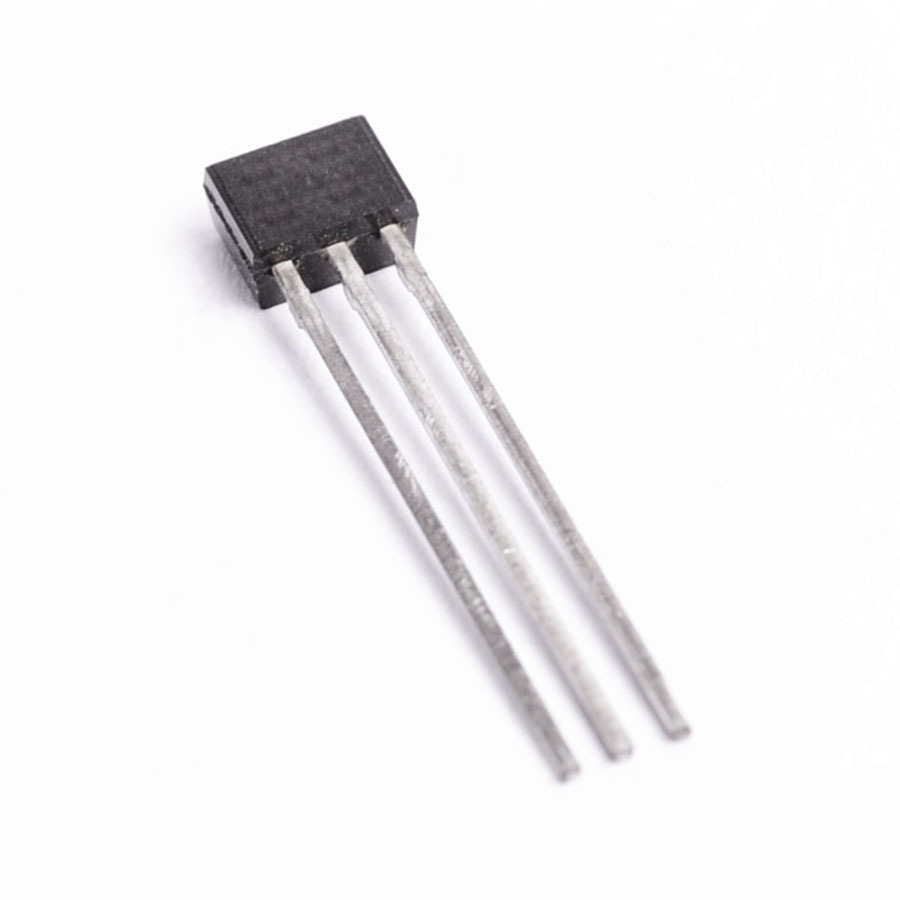

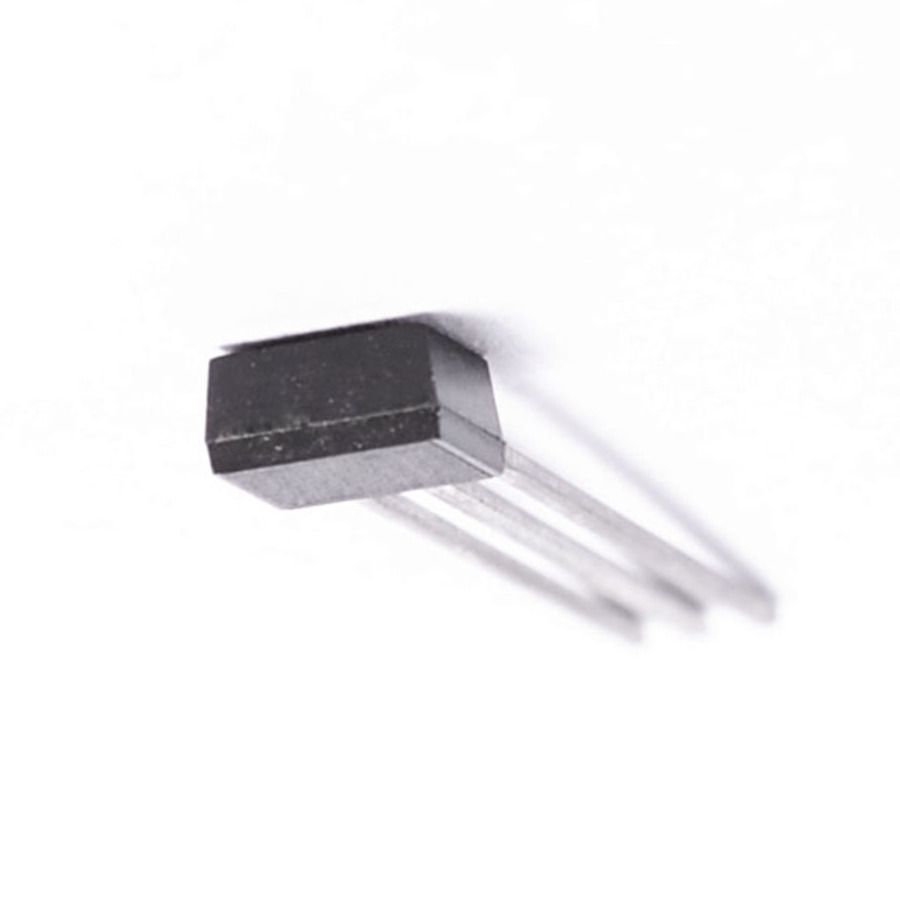

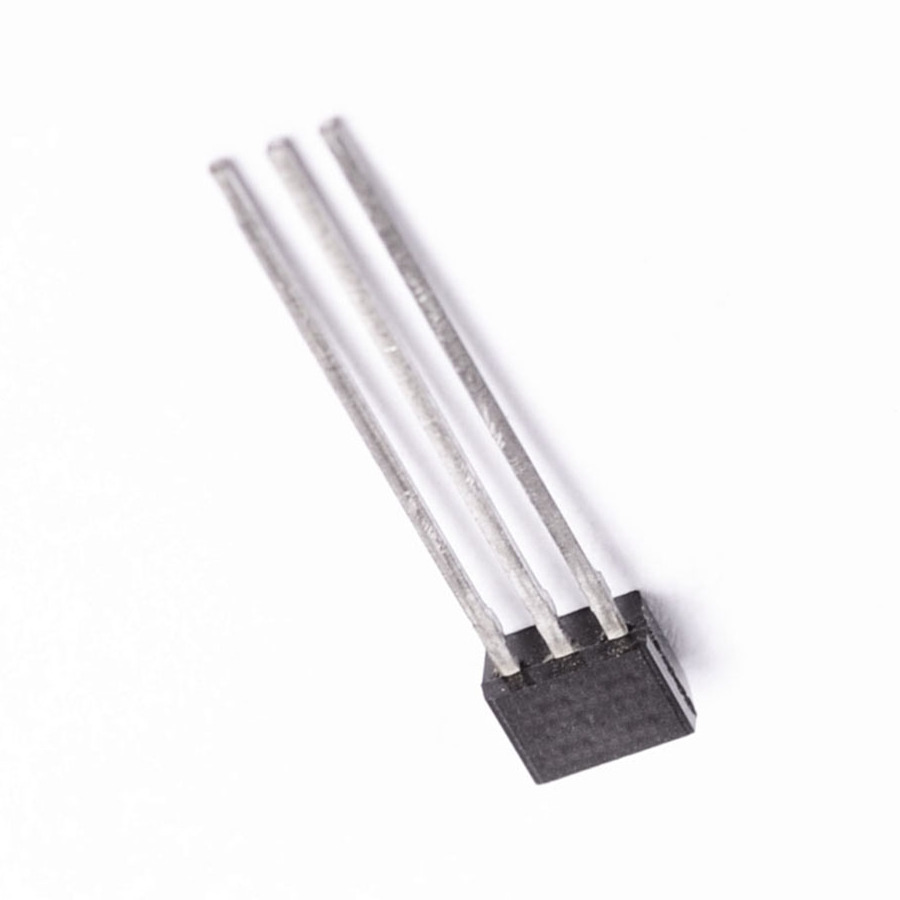

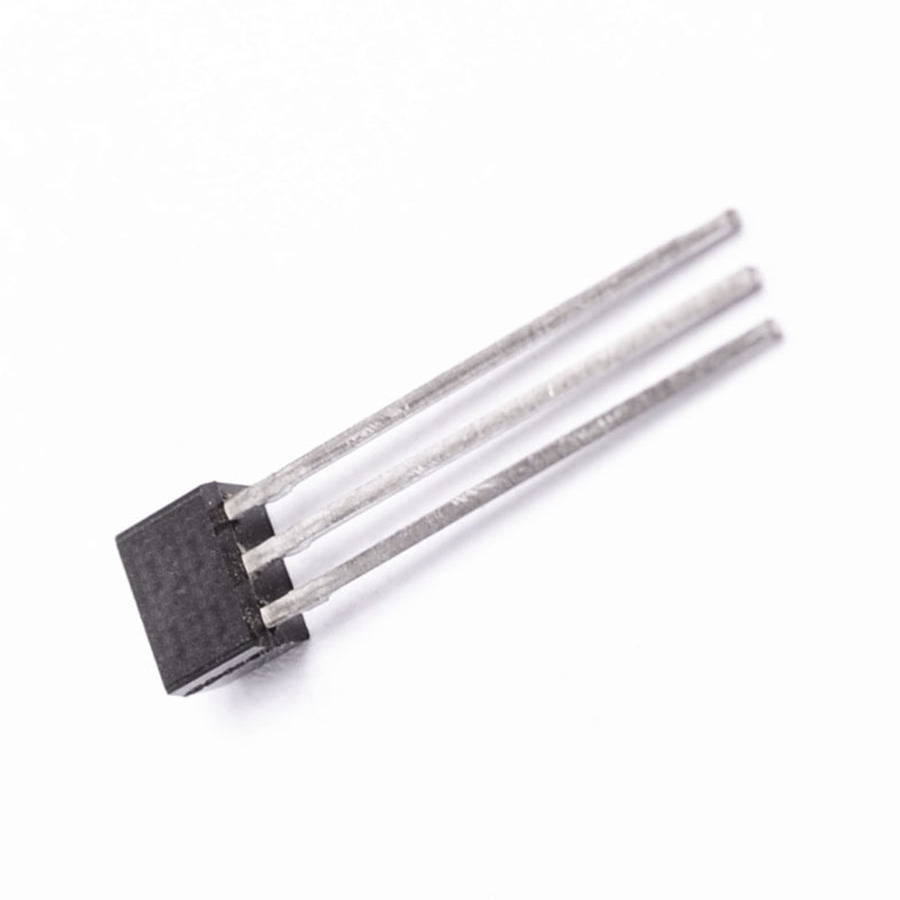

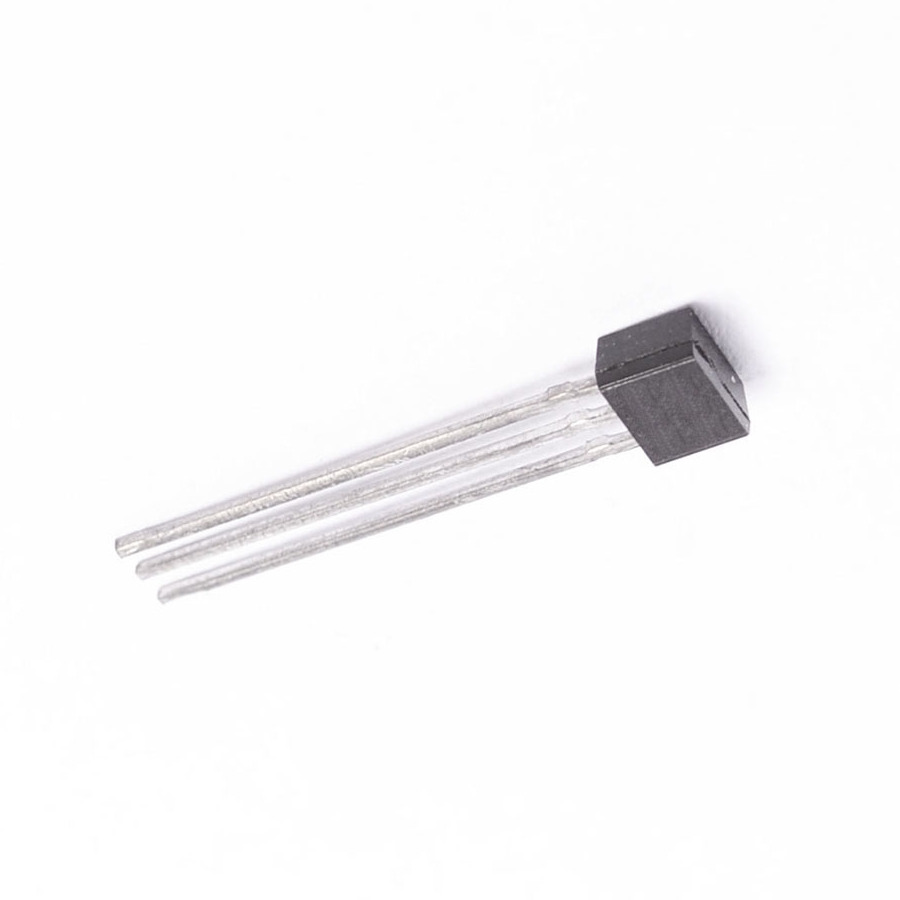

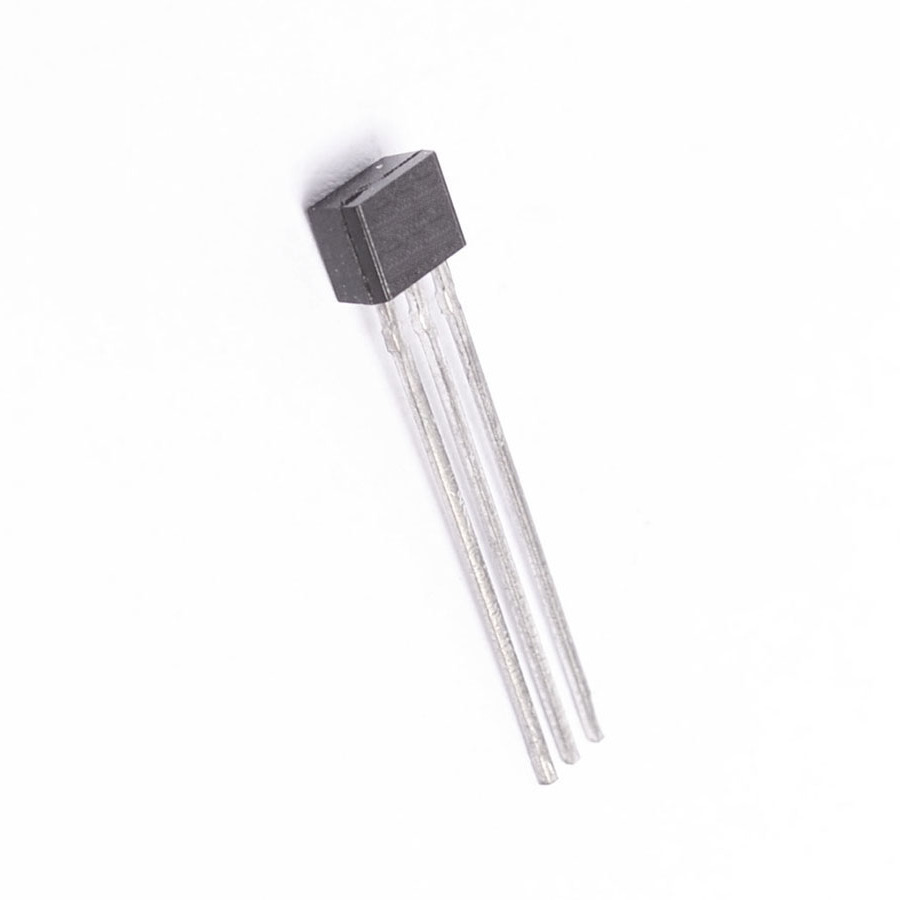

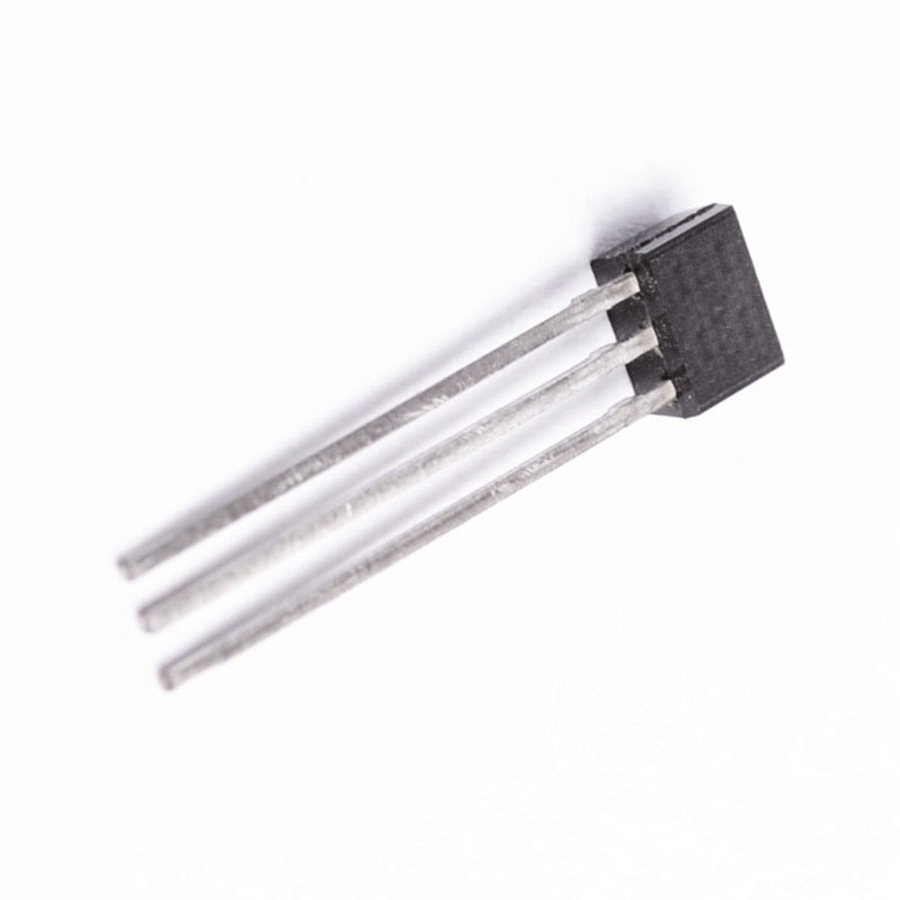

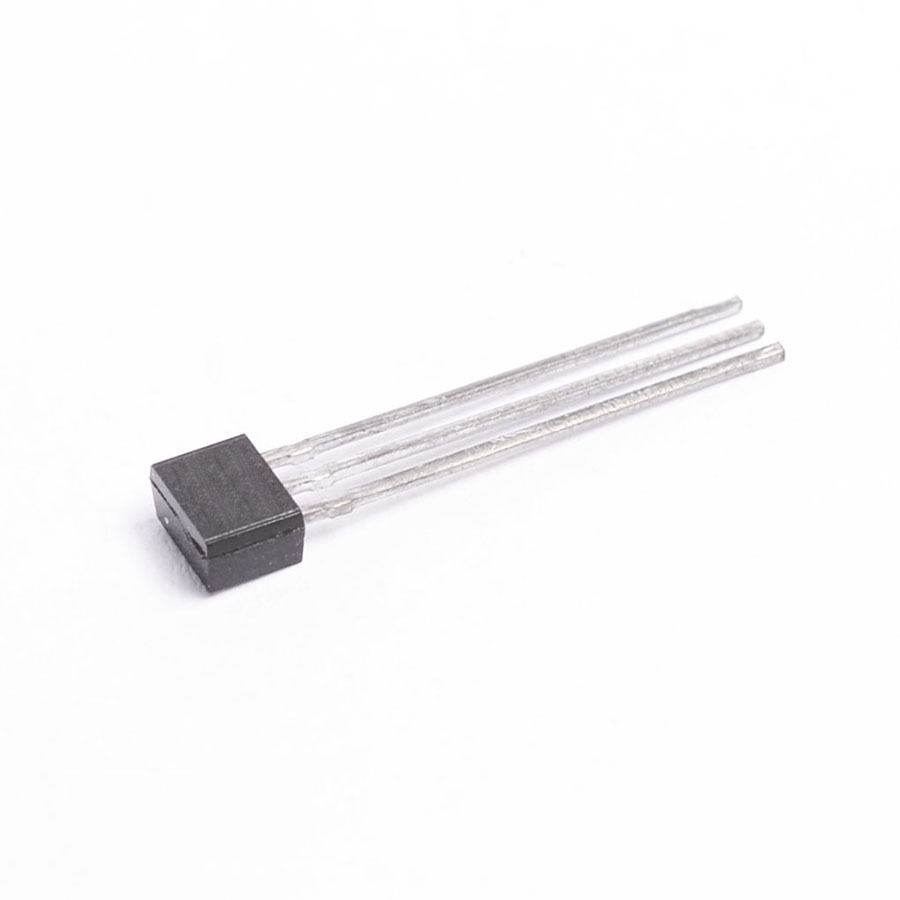

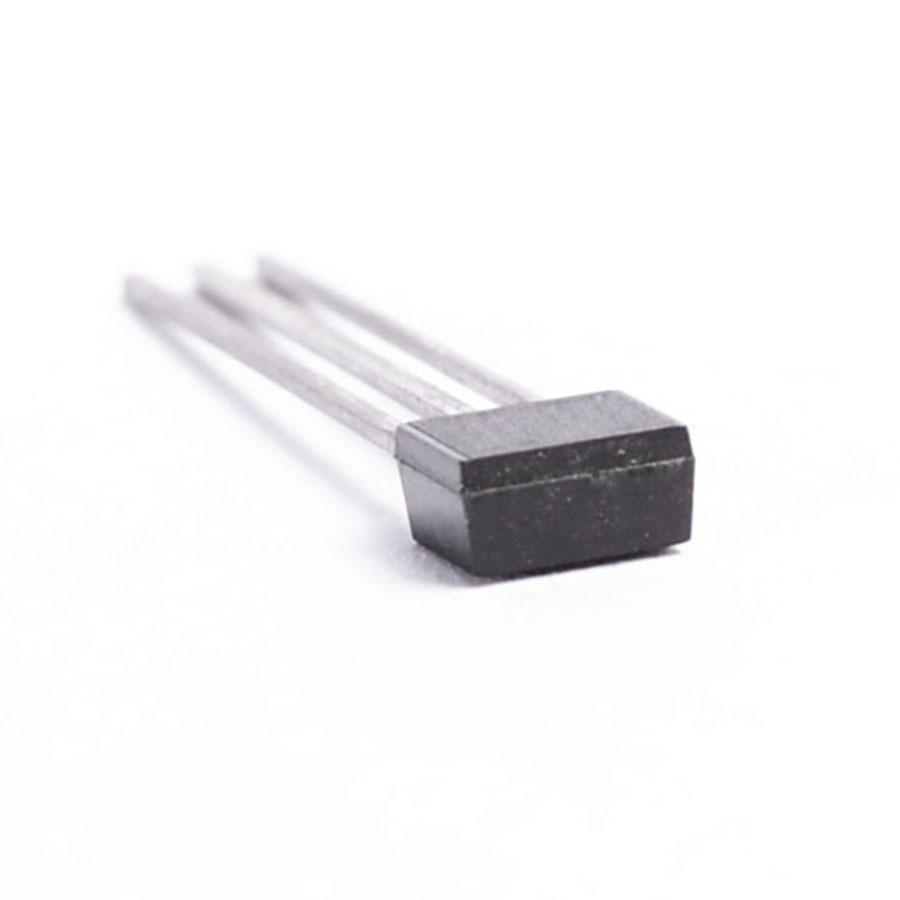

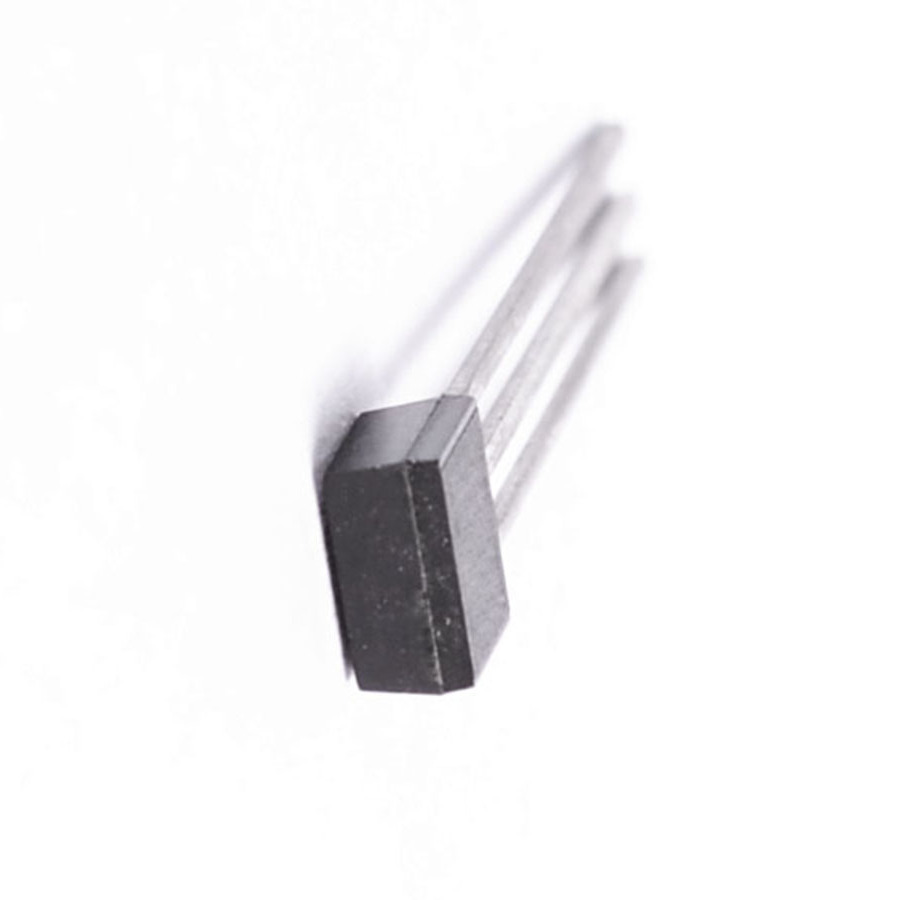

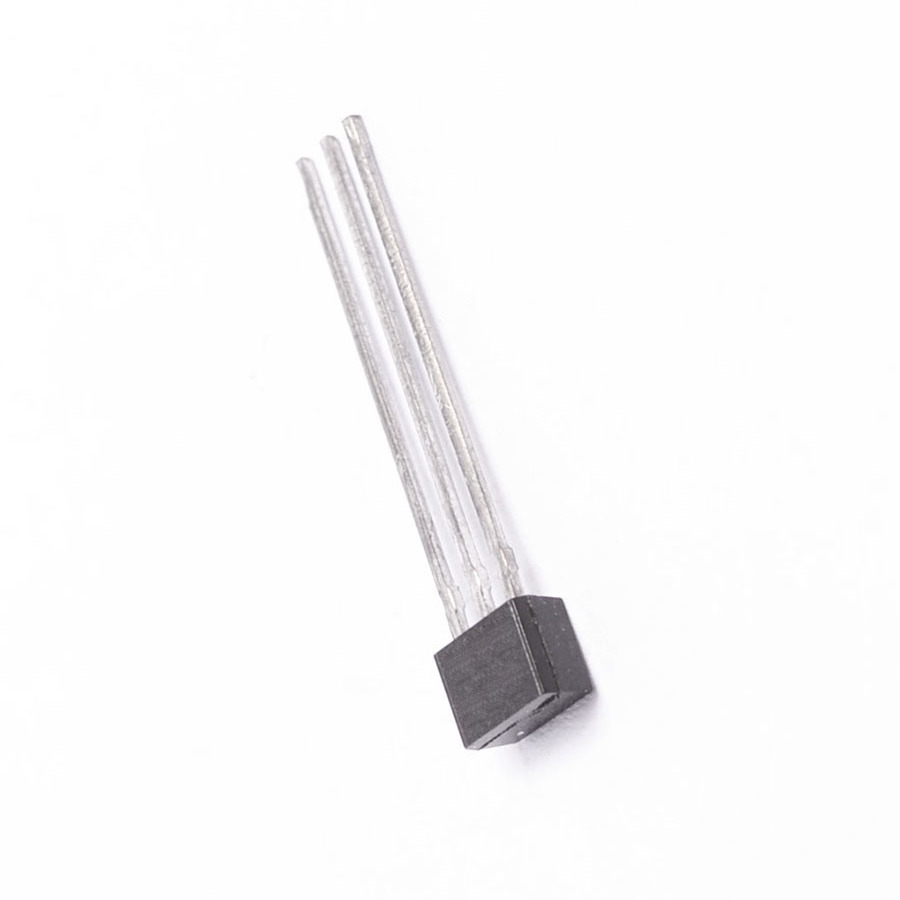

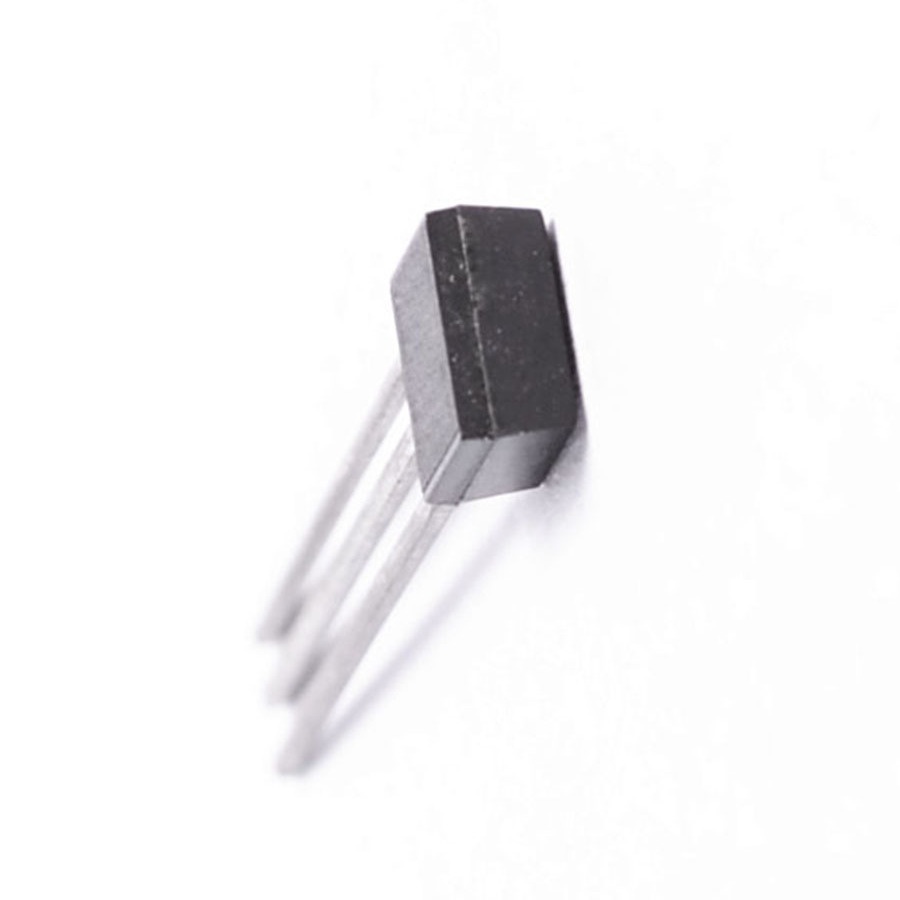

2SA1057 Transistor Silicon PNP CASE: SOT100 MAKE: NEC
Product specifications
Type Transistor Silicon PNP
Case SOT100
Manufacturer NEC
Vbr CBO 20
Vbr CEO 12
Max. PD (W) 300m
C(ob) (F) 1p
t(on) Delay (S) 1.3n-
Derate (Amb) (W/°C) 1.7m
t(f) Max. (S) 0.9n
hfe 20
Ic Max. (A) 50m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Tr Max. (s) 0.7n-
t(stor) Max. (S) 0.9n-
Trans. Freq (Hz) Min. 4G
@VCE (test) (V) 10
Oper. Temp (°C) Max. 175
@Ic (A) 15m
Pinout Equivalence Number 4-29
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.1 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 4000 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 556808
