2SA1141
View detailed images (12)

2SA1141

SKU: 2SA1141

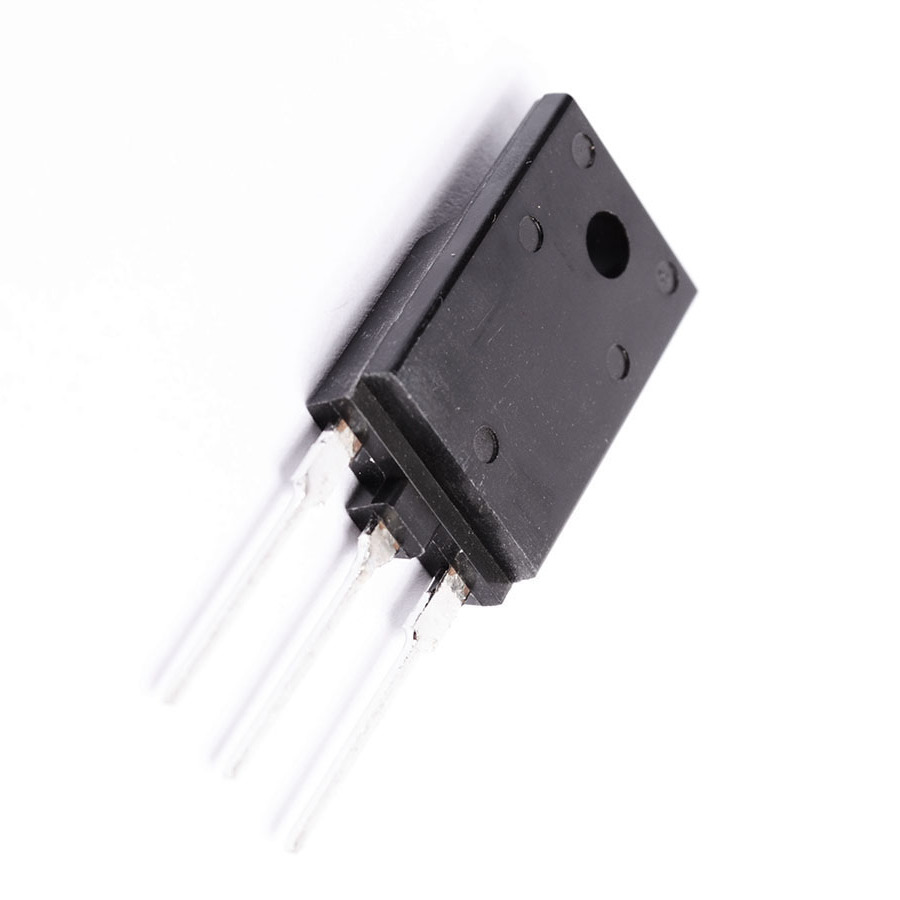

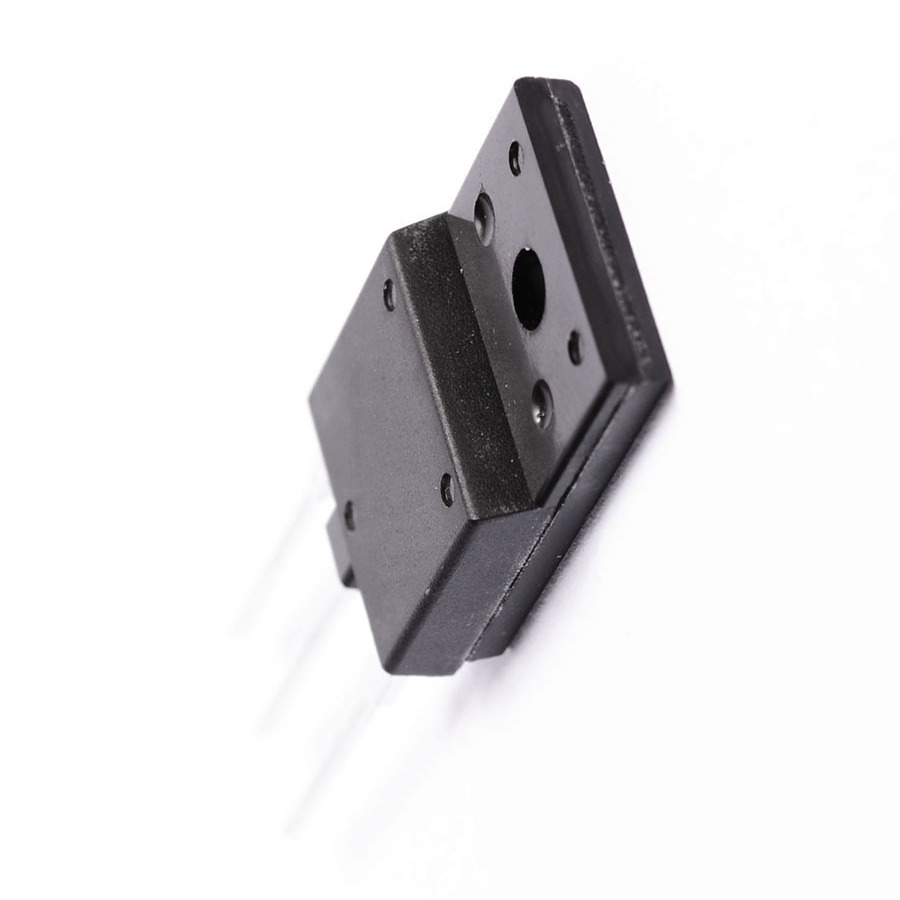

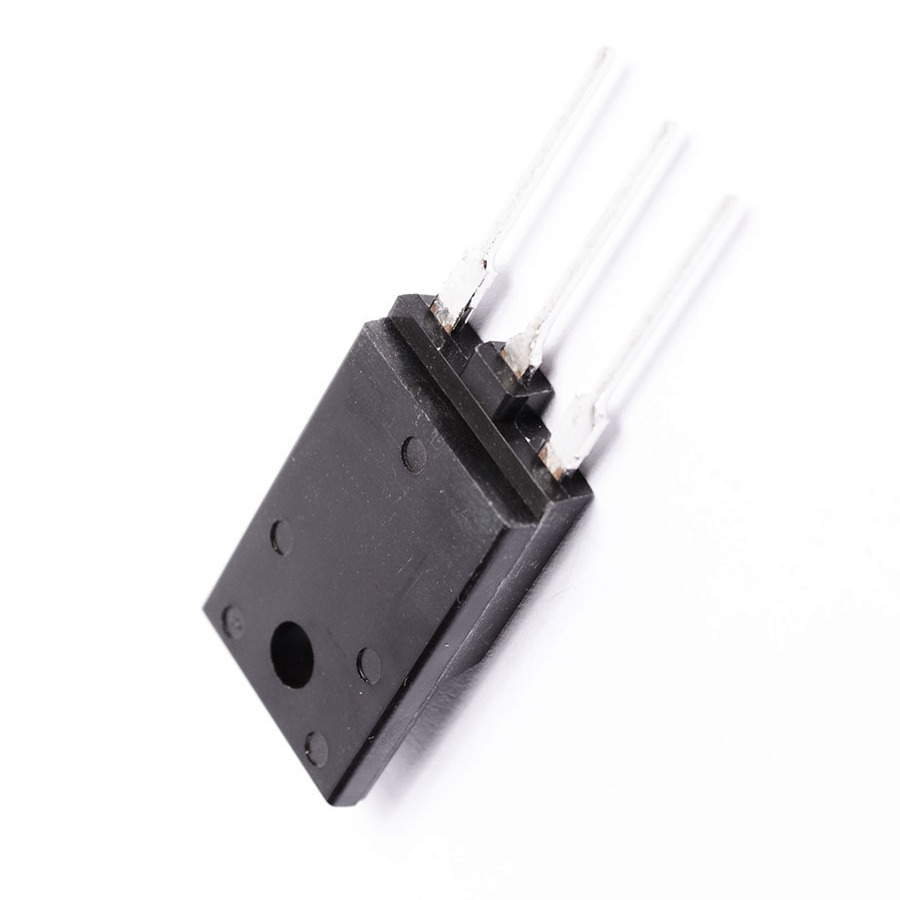

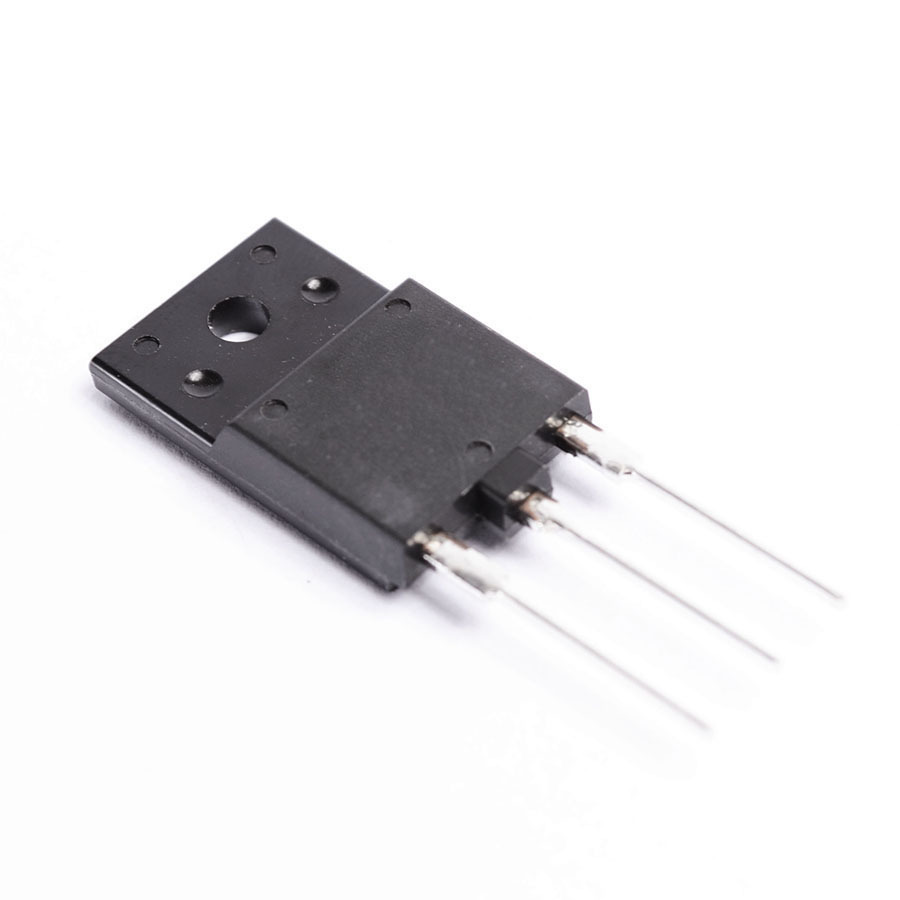

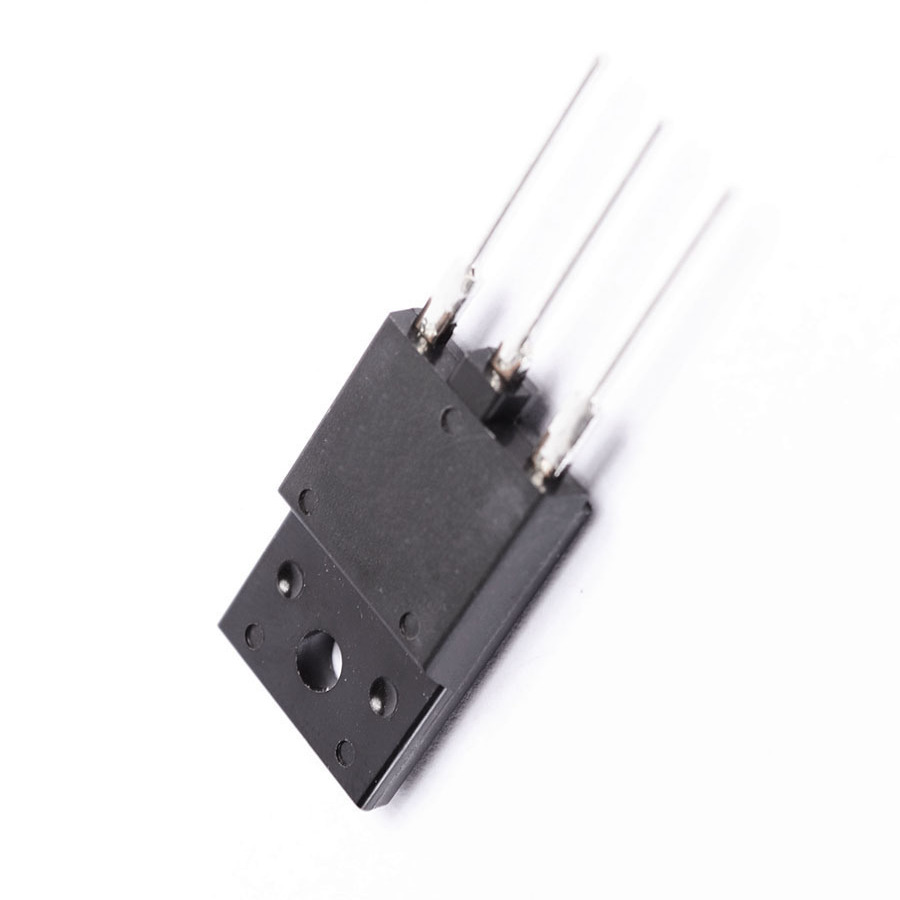

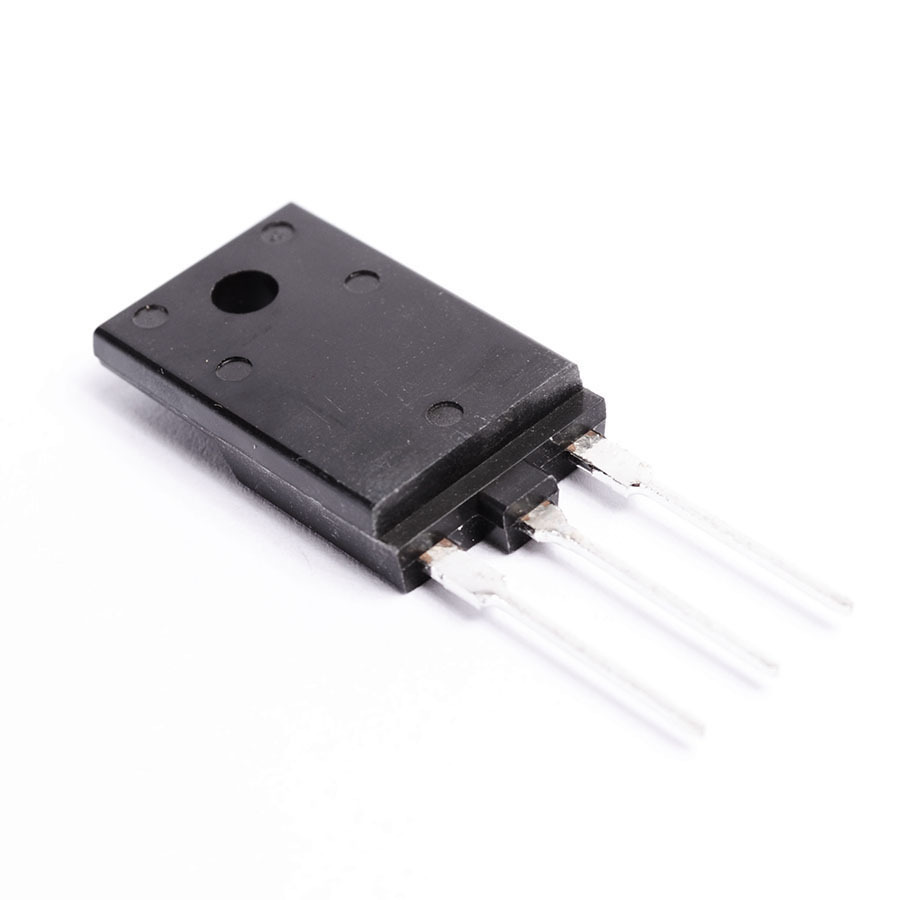

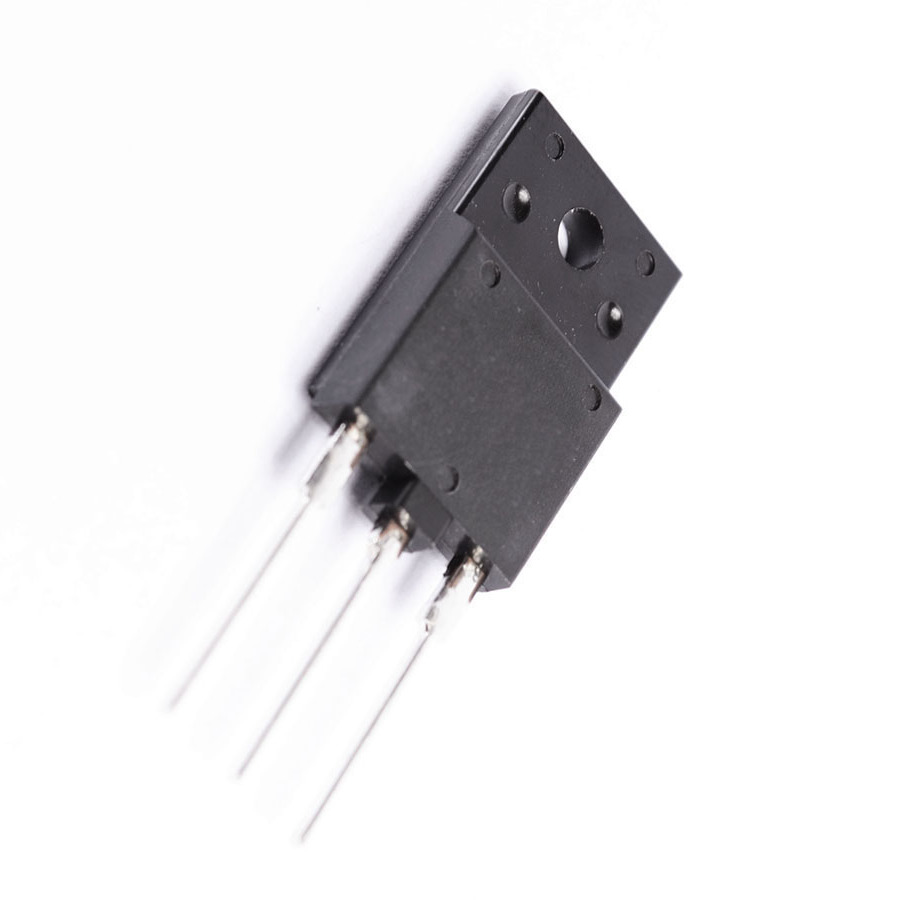

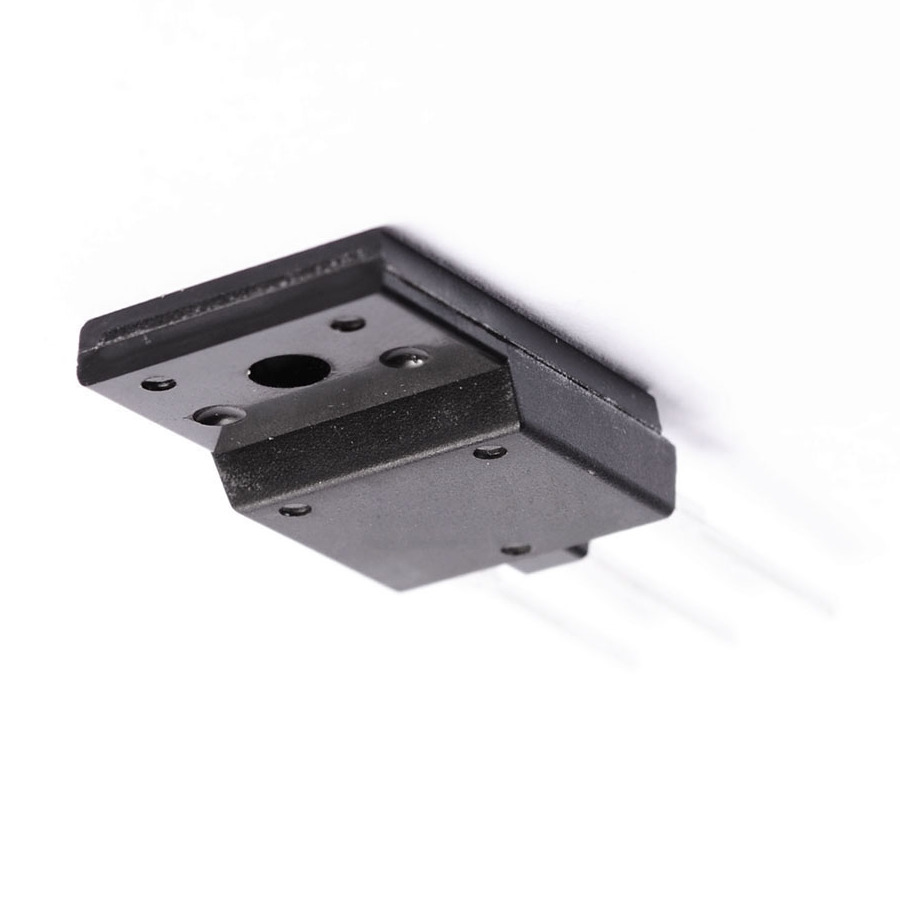

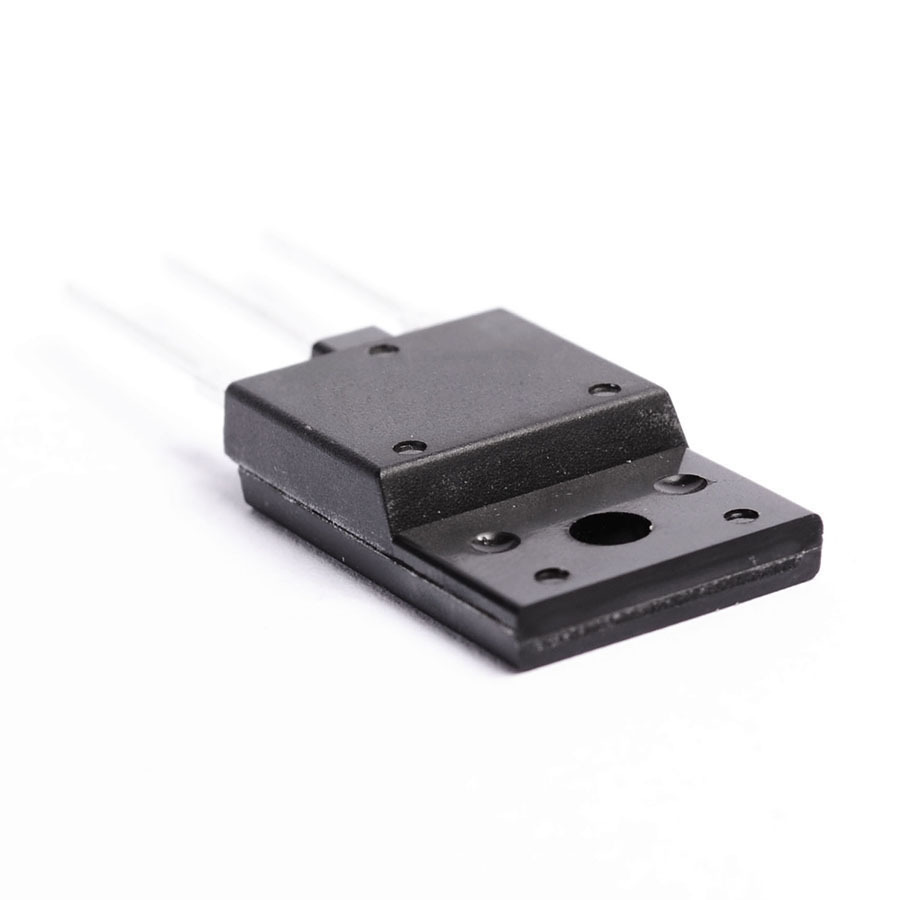

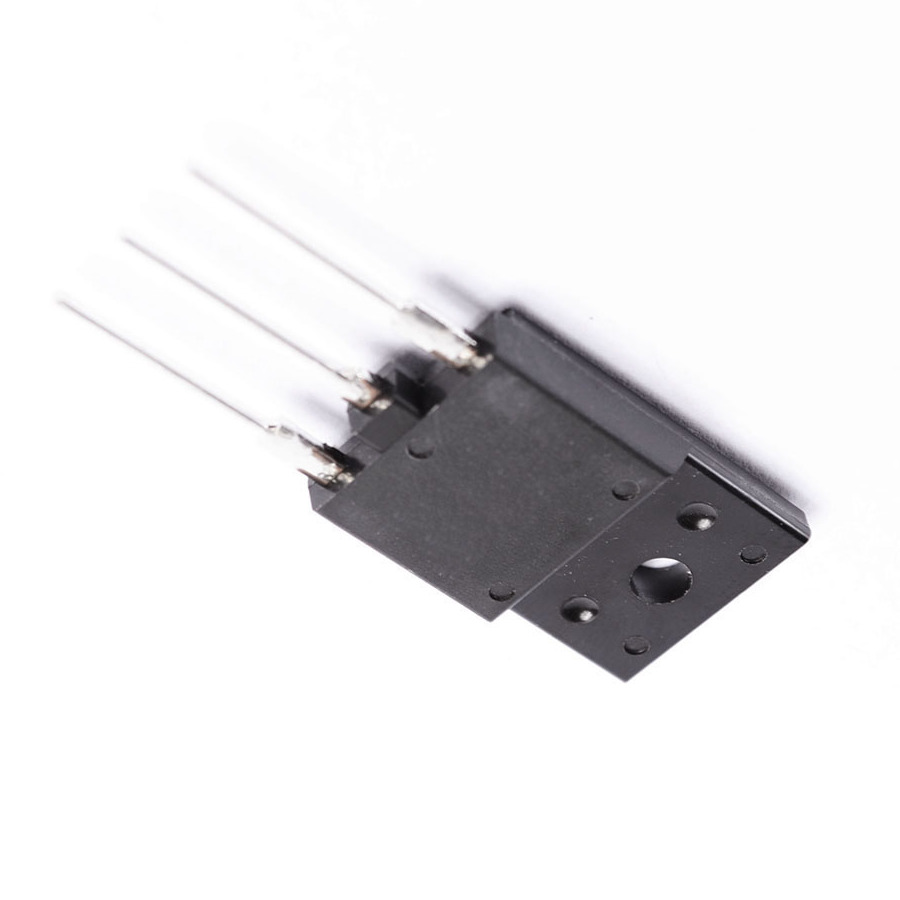

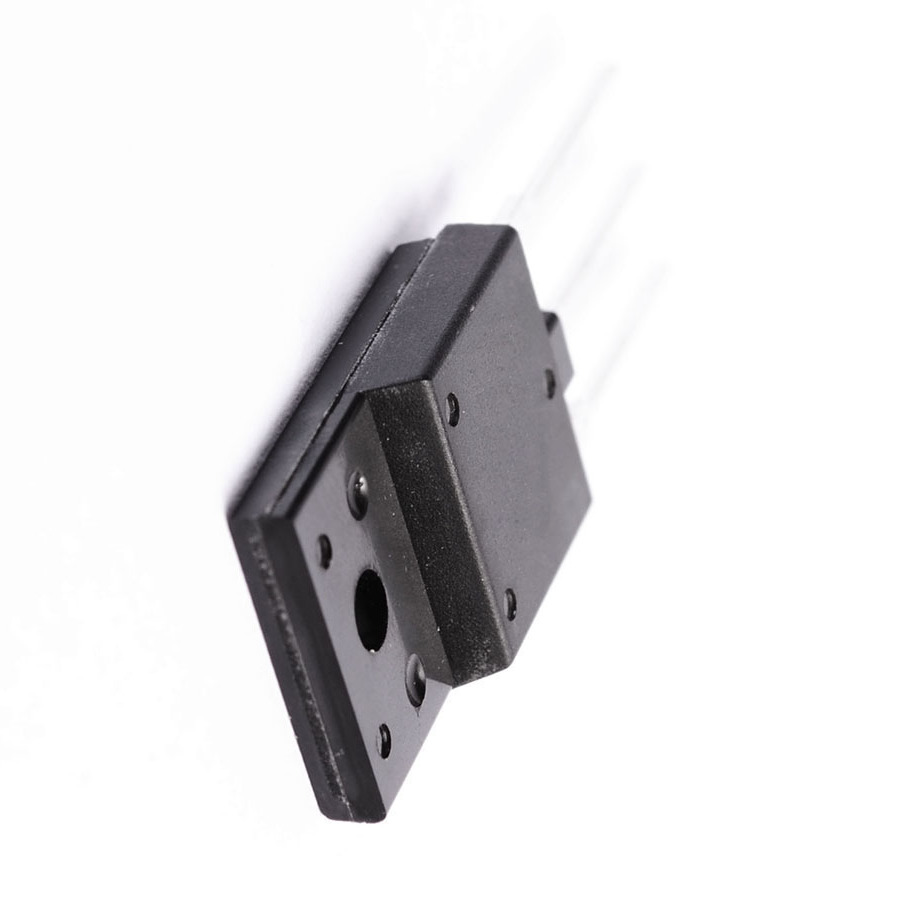

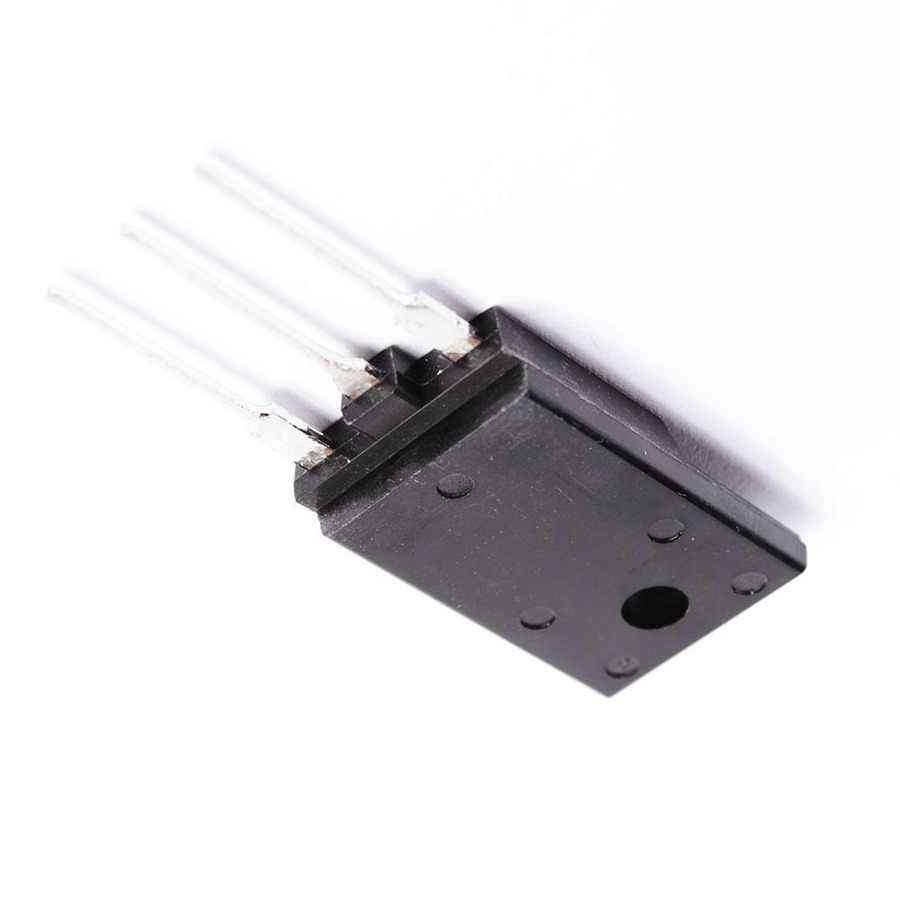

2SA1141 Transistor Silicon PNP - Case: TO3PF Make: NEC
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • 3 pieces in 1-2 Days
  • More pieces shipped in 14 days
Datasheet
2SA1141 Datasheet
Product specifications
Type Transistor Silicon PNP
Manufacturer NEC
Case TO3PF
Vbr CBO 115
Vbr CEO 115
Max. PD (W) 100
Derate (Amb) (W/°C) .80
Max. hFE 200
Min hFE 60
Ic Max. (A) 10
@Ic (test) (A) -1
Icbo Max. @Vcb Max. (A) -50
Polarity PNP
Trans. Freq (Hz) Min. 90M
Oper. Temp (°C) Max. 140
@VCE (V) -2
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 100 W
Maximum Collector-Base Voltage |Vcb| 115 V
Maximum Collector-Emitter Voltage |Vce| 115 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 135 °C
Collector Capacitance (Cc) 390 pF
Transition Frequency (ft): 90 MHz
Forward Current Transfer Ratio (hFE), MIN 140
SKU 80623
