2SA1216
View detailed images (8)

2SA1216

SKU: 2SA1216

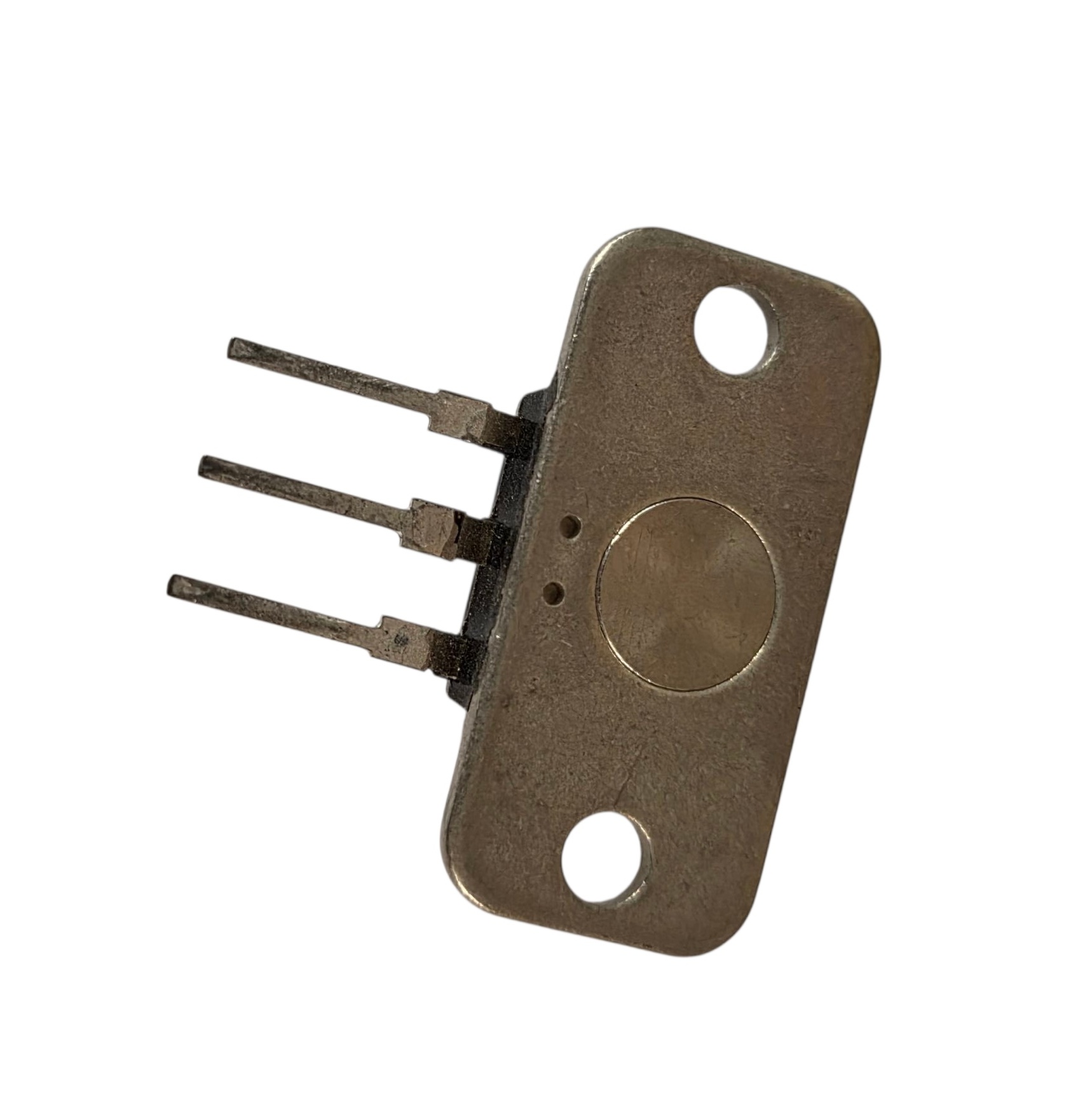

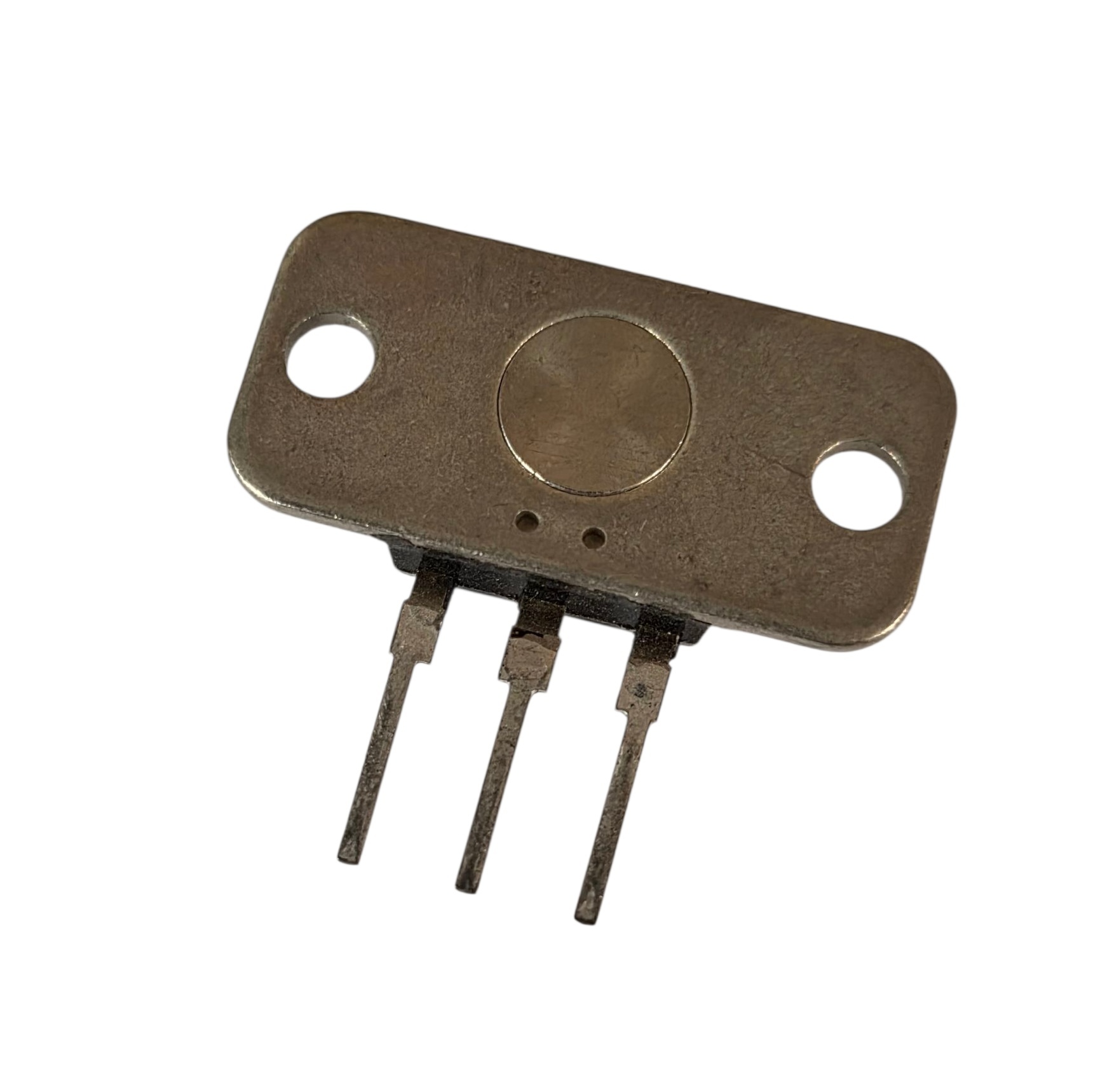

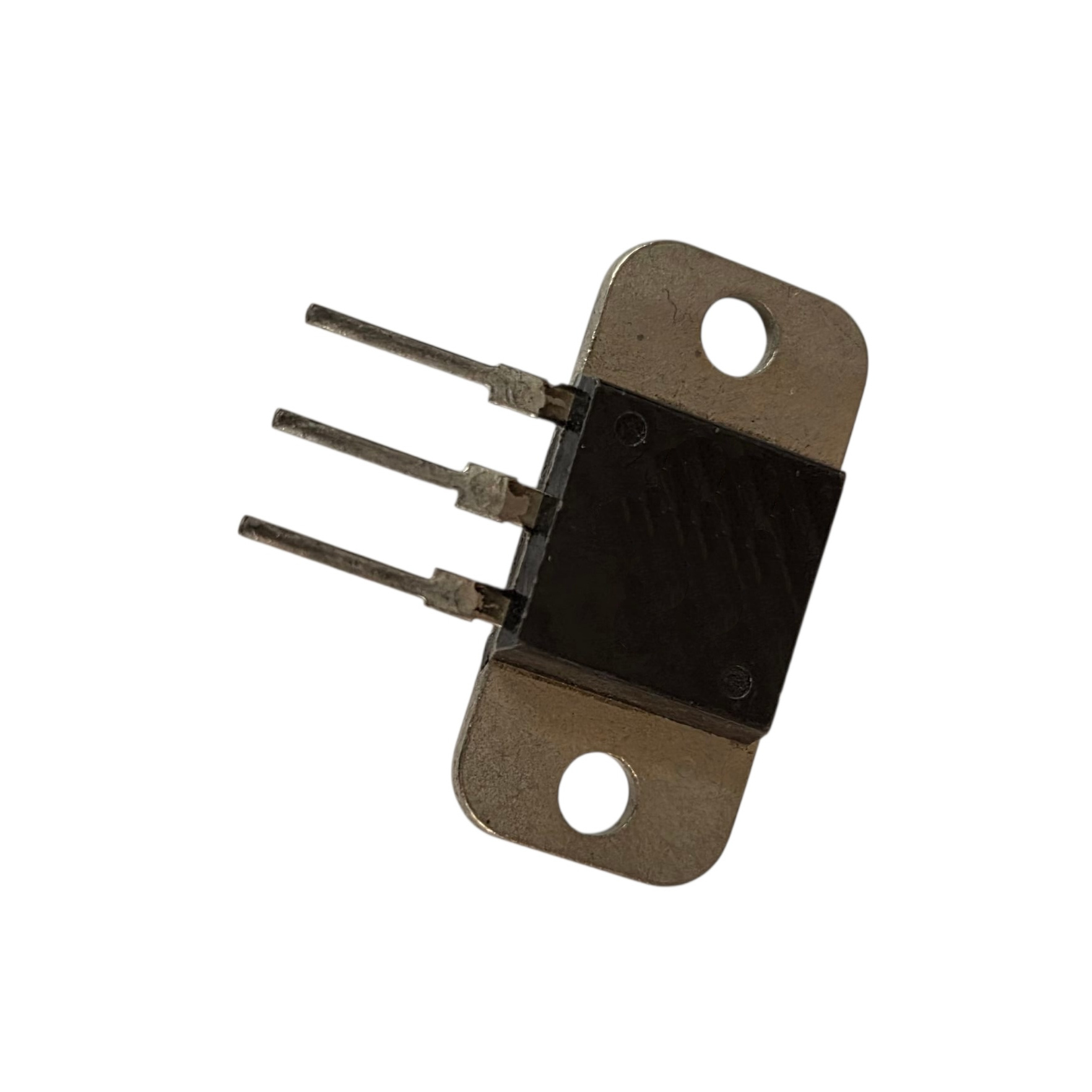

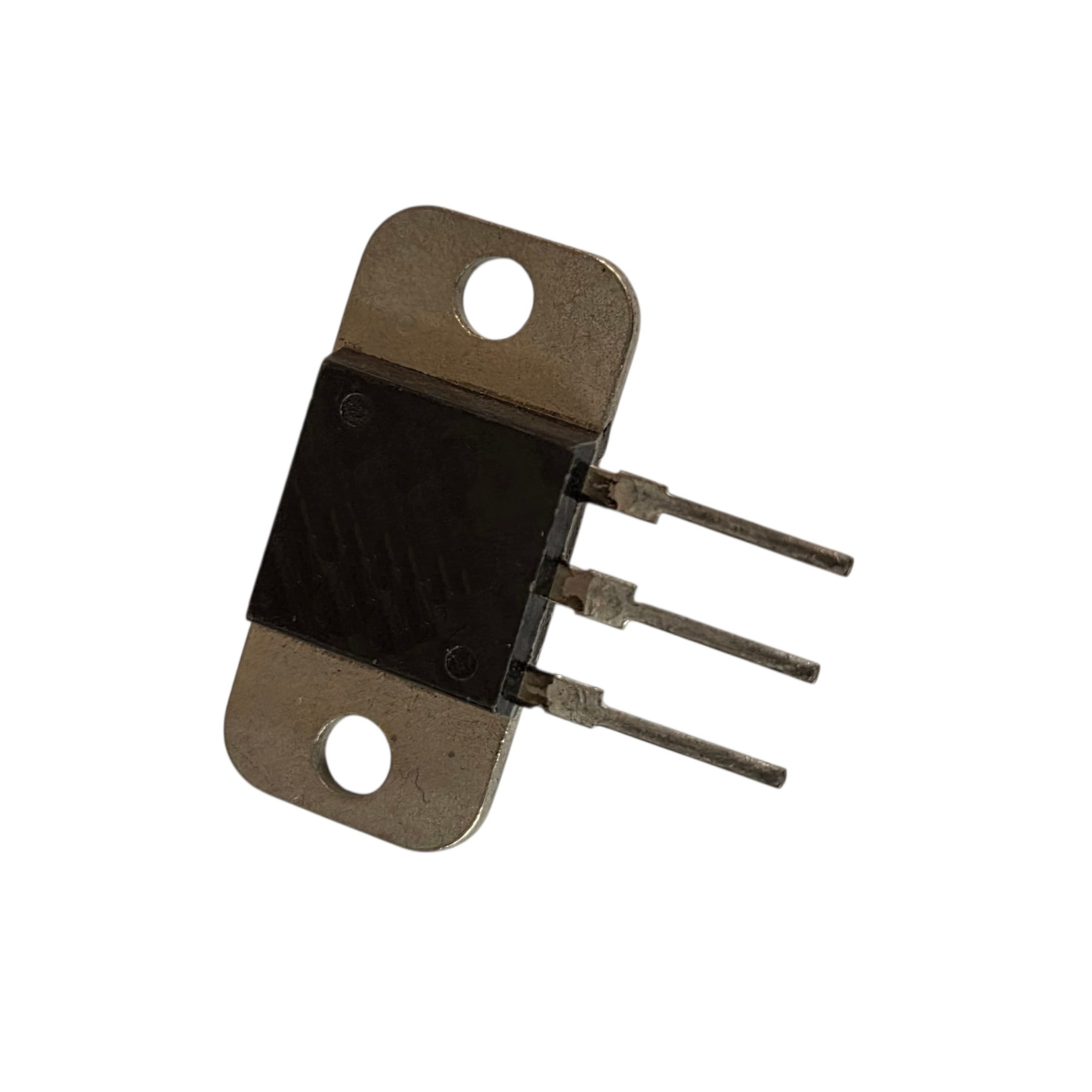

2SA1216 Transistor Silicon PNP - CASE: HPAK MAKE: Sanken
Price: £11.99
+ VAT 20% for UK purchases
£11.99
Qty
+ VAT 20% for UK purchases
  • 4 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SA1216 Datasheet
Product specifications
Type Transistor Silicon PNP
Case HPAK
Manufacturer Sanken
Vbr CBO 180
Vbr CEO 180
Max. PD (W) 200
Derate (Amb) (W/°C) 1.6
Max. hFE 200
Min hFE 20
Ic Max. (A) 17
@Ic (test) (A) 8.0
Icbo Max. @Vcb Max. (A) 100u
Polarity PNP
Trans. Freq (Hz) Min. 40M
Oper. Temp (°C) Max. 140
@VCE (V) 4.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 200 W
Maximum Collector-Base Voltage |Vcb| 180 V
Maximum Collector-Emitter Voltage |Vce| 180 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 17 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 500 pF
Transition Frequency (ft): 40 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 16794
