2SA1216Y
View detailed images (13)

2SA1216Y

SKU: 2SA1216Y

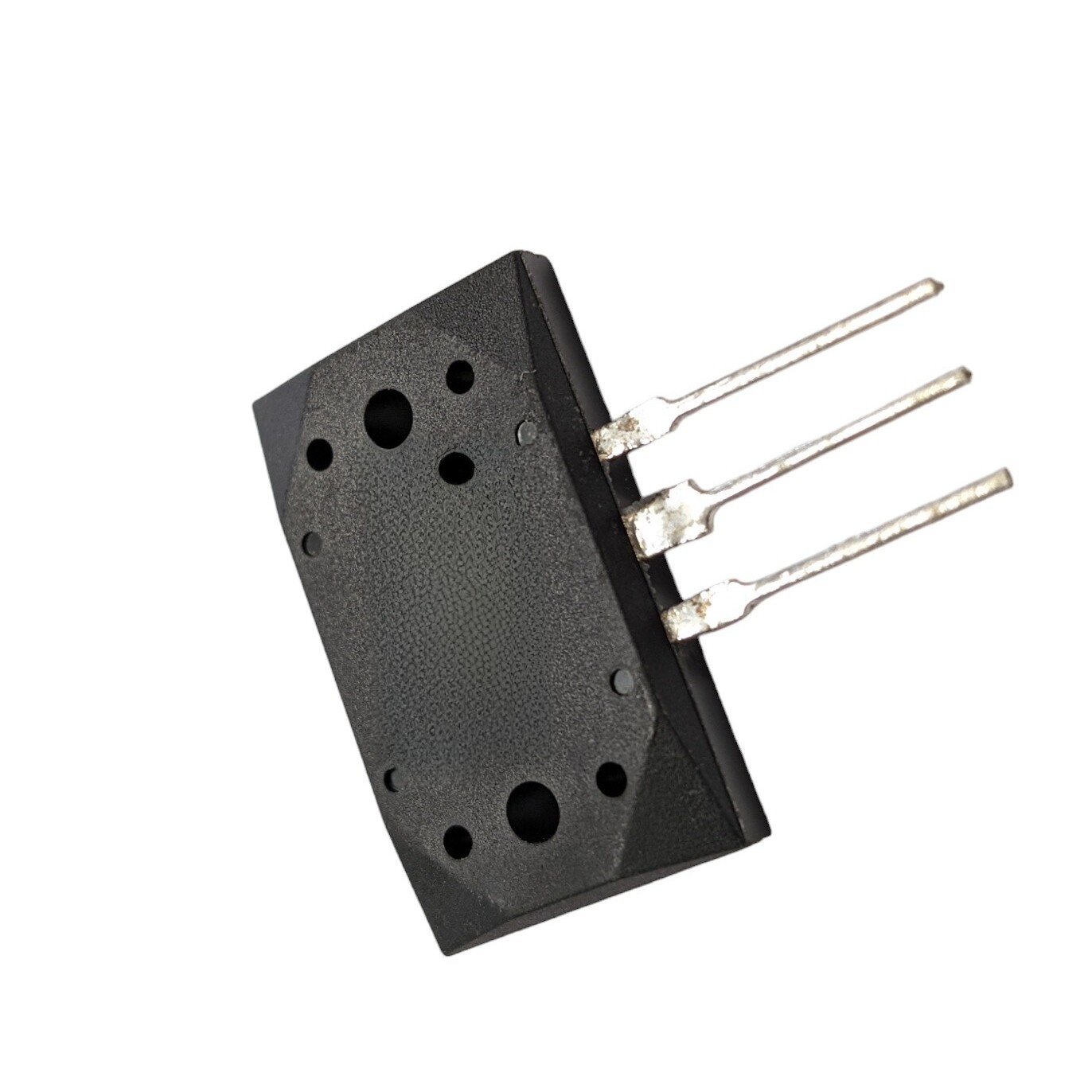

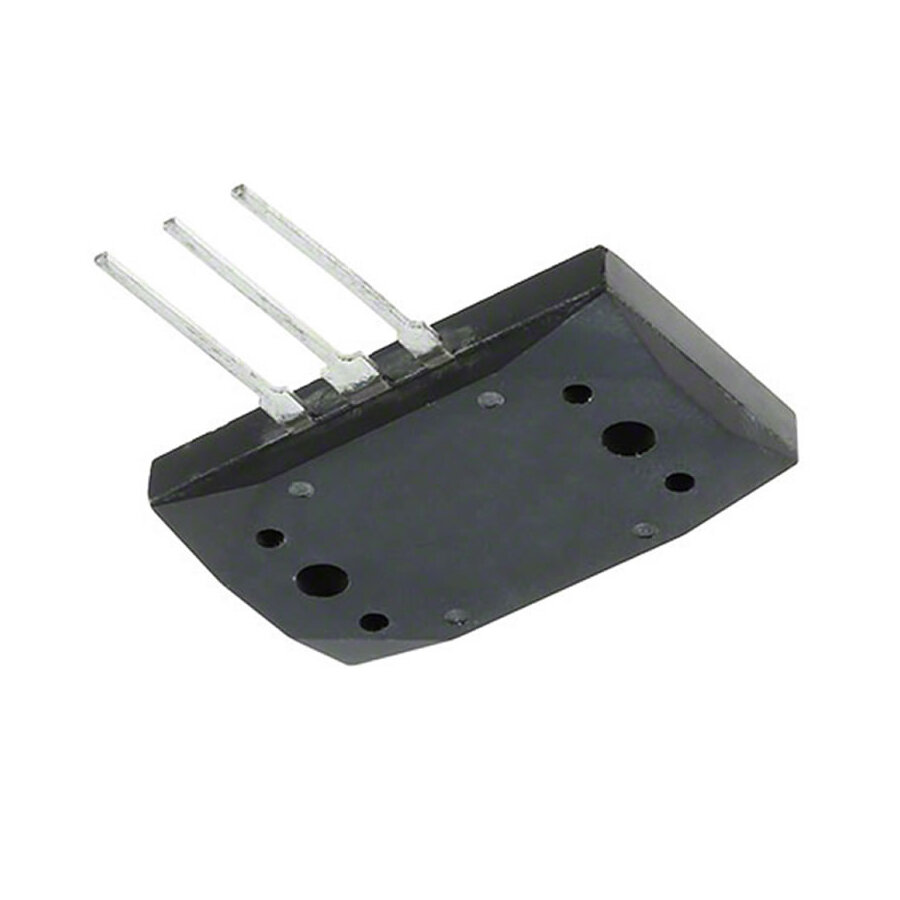

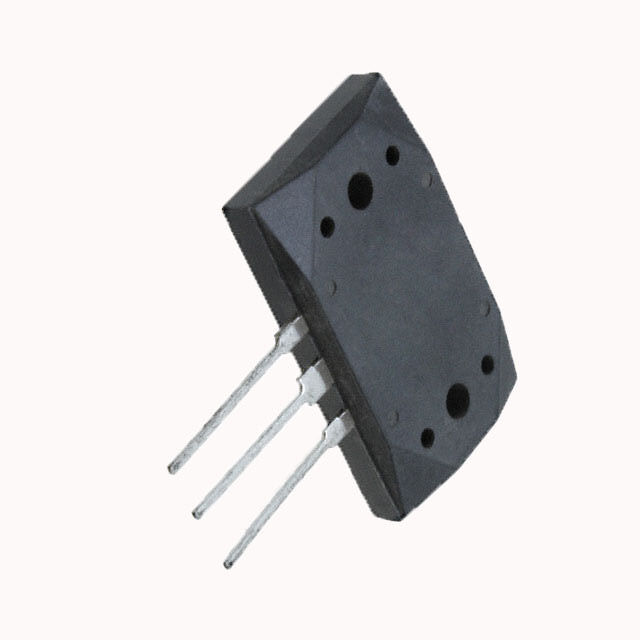

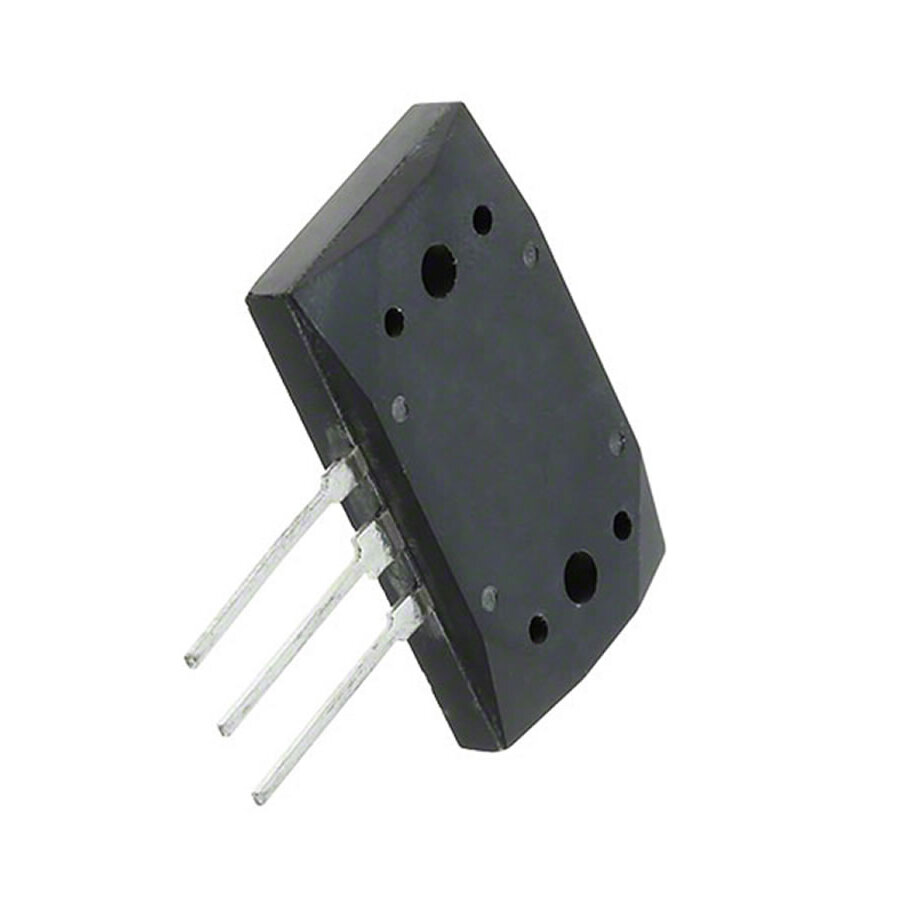

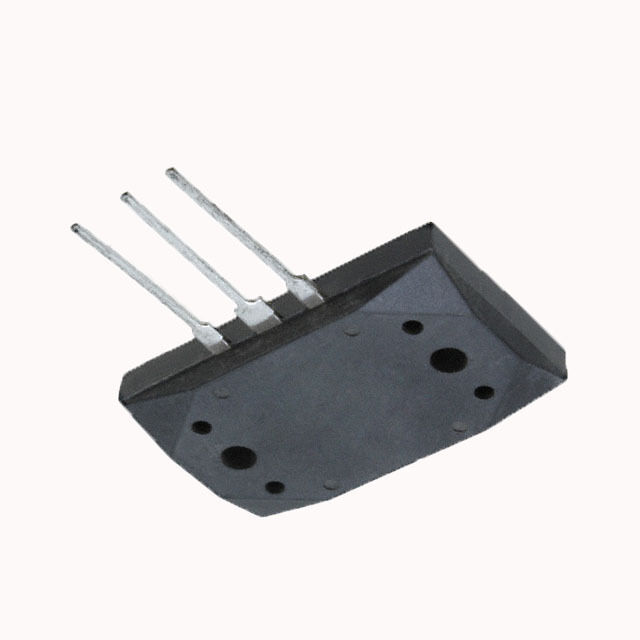

2SA1216Y Transistor Silicon PNP CASE: MT200 MAKE: Sanken
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • 14 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case MT200
Manufacturer Sanken
Polarity PNP
Maximum Collector Power Dissipation (Pc) 200 W
Maximum Collector-Base Voltage |Vcb| 180 V
Maximum Collector-Emitter Voltage |Vce| 180 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 17 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 500 pF
Transition Frequency (ft): 40 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 394649
