2SA1223
View detailed images (4)

2SA1223

SKU: 2SA1223

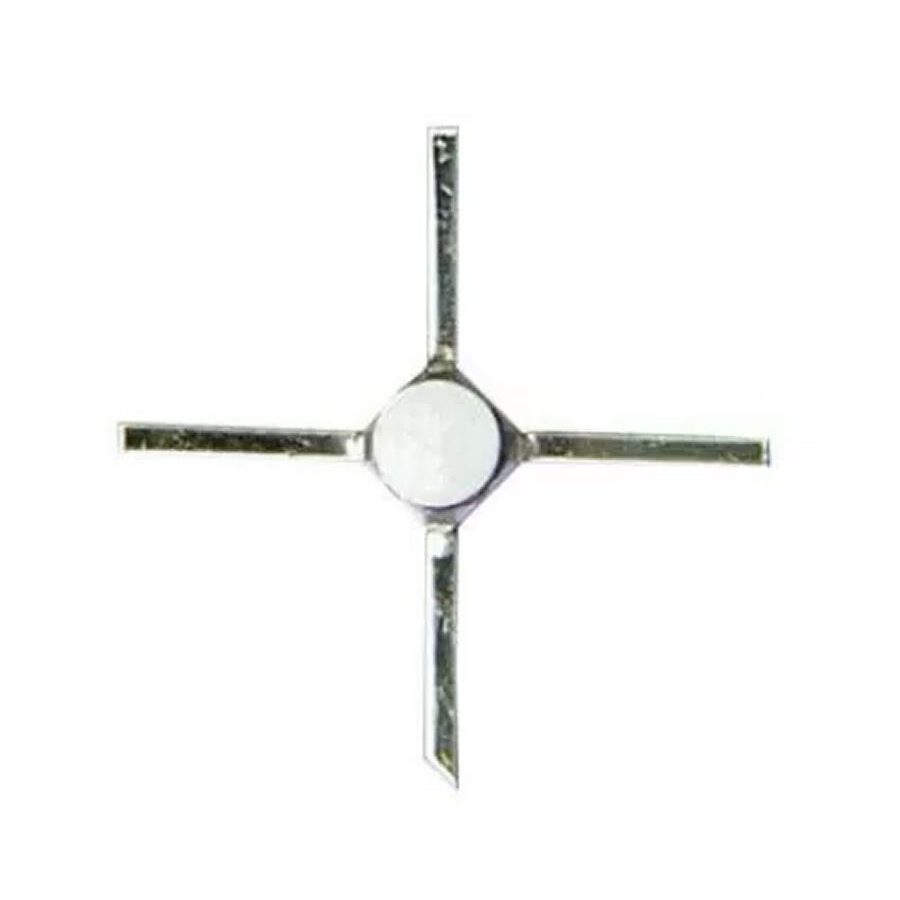

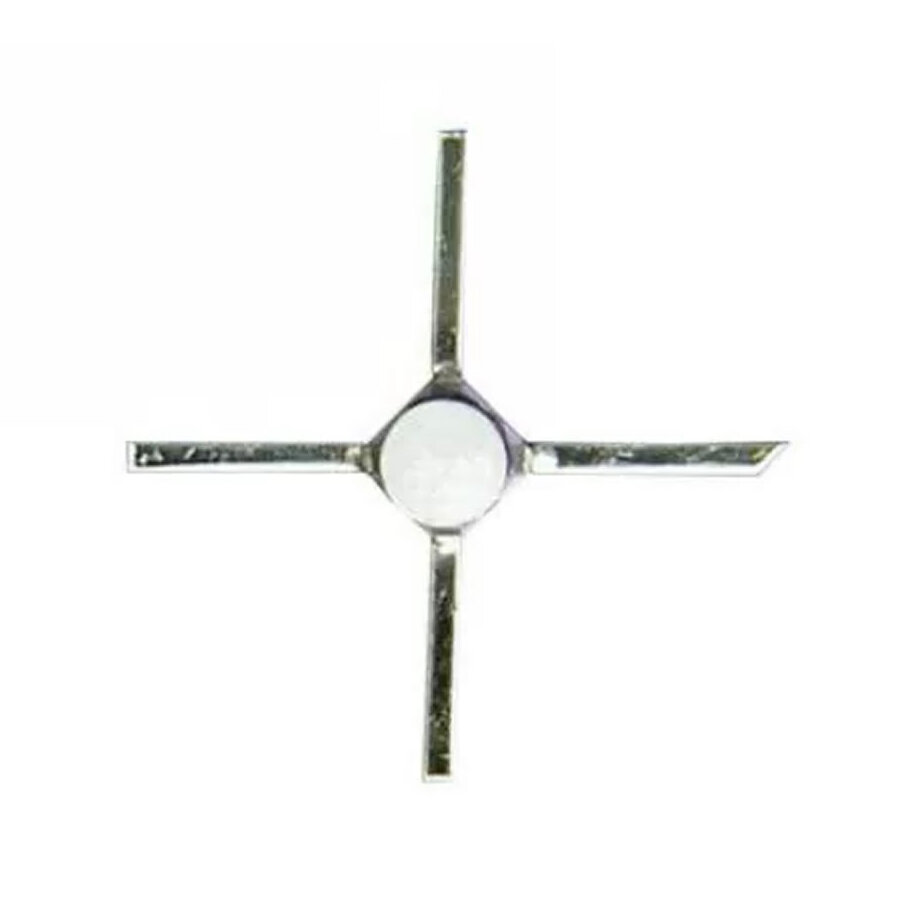

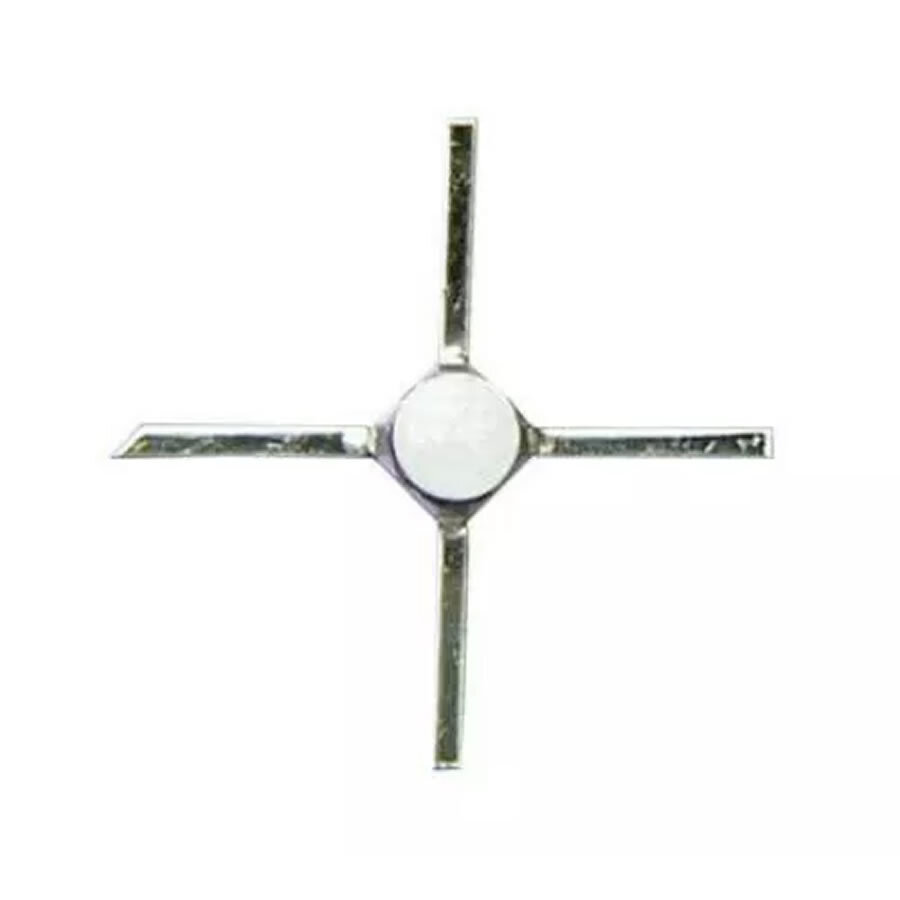

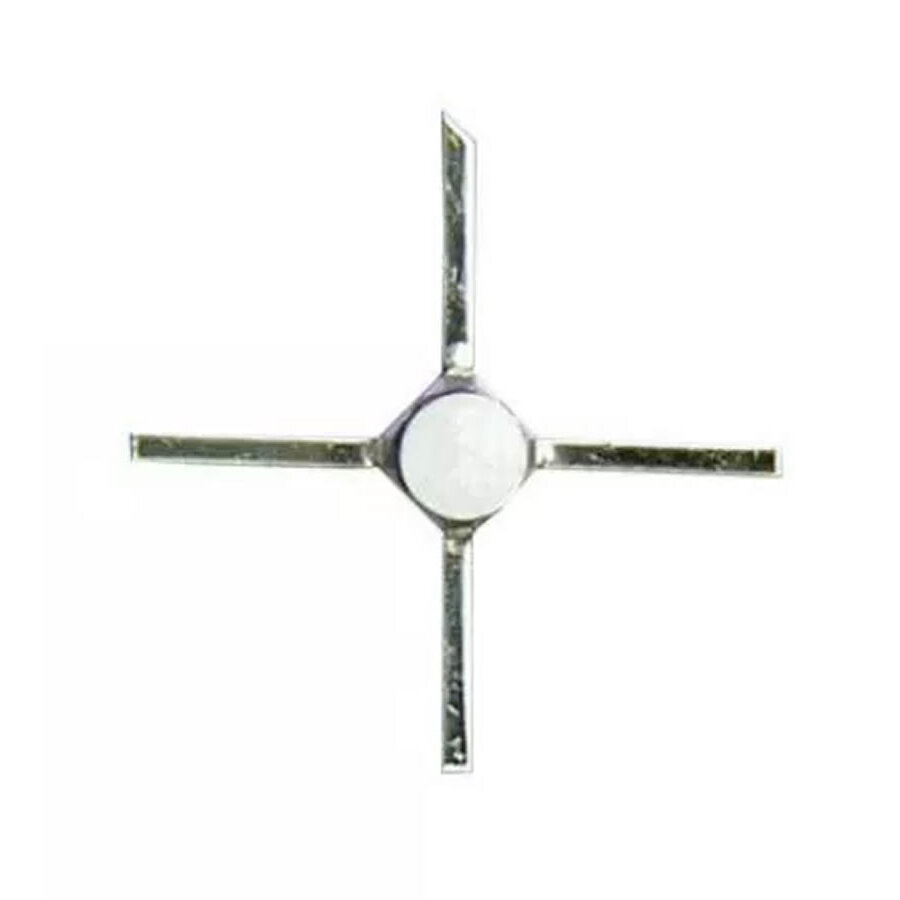

2SA1223 Transistor Silicon PNP CASE: SOT173 MAKE: NEC
Product specifications
Type Transistor Silicon PNP
Case SOT173
Manufacturer NEC
Vbr CBO 20
@Freq. (test) 1.0G
@Ic (A) 3.0m
@Ic (A) 15m
Mat. Silicon Logic
Noise Fig. 4.0
f(osc) Max. (Hz) 1.0G
Polarity PNP
PD Max. (W) 250m
S11 Deg. (Typ) 148
S11 Mag Typ. .022
S22 Deg. Typ. -122
S22 Mag Typ. .42
@VDS (VCE) (test) (V) -10
Coll. (or drain) Current Max. 50m
@Freq. (test) 1.0G
@VCE (test) 10
Oper. Temp (°C) Max. 175
Pinout Equivalence Number 4-29
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.05 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 135 °C
Collector Capacitance (Cc) 1 pF
Transition Frequency (ft): 4000 MHz
Forward Current Transfer Ratio (hFE), MIN 150
SKU 556811
