2SA1309A
View detailed images (4)

2SA1309A

SKU: 2SA1309A

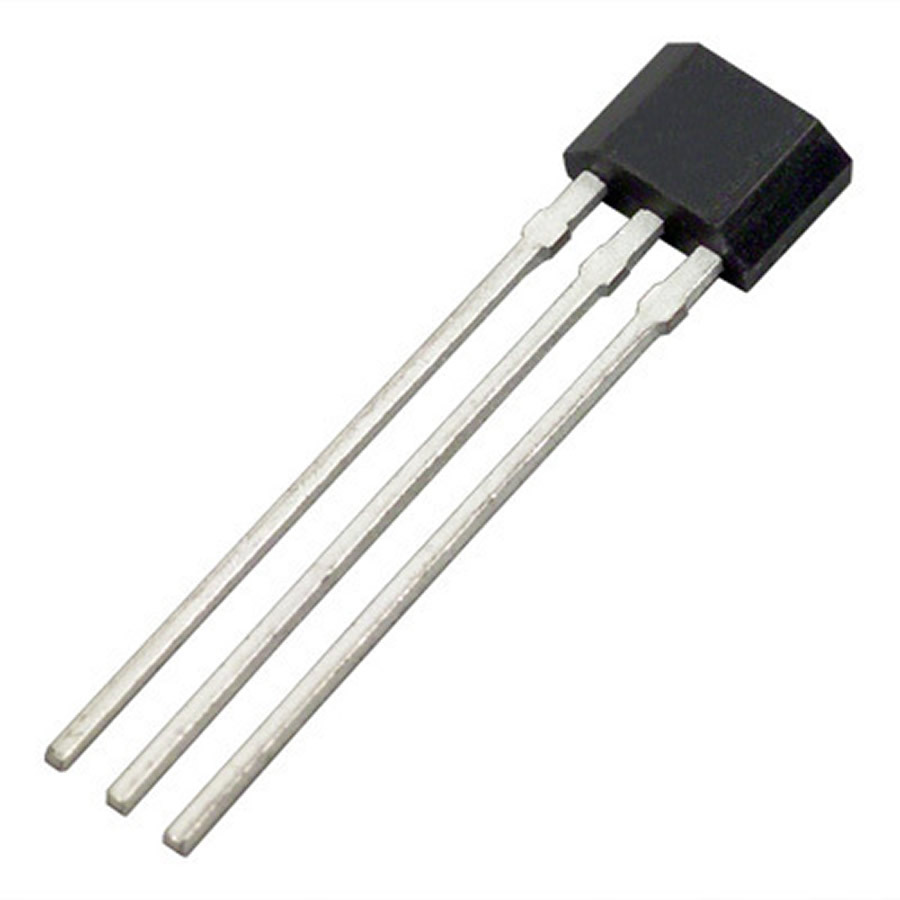

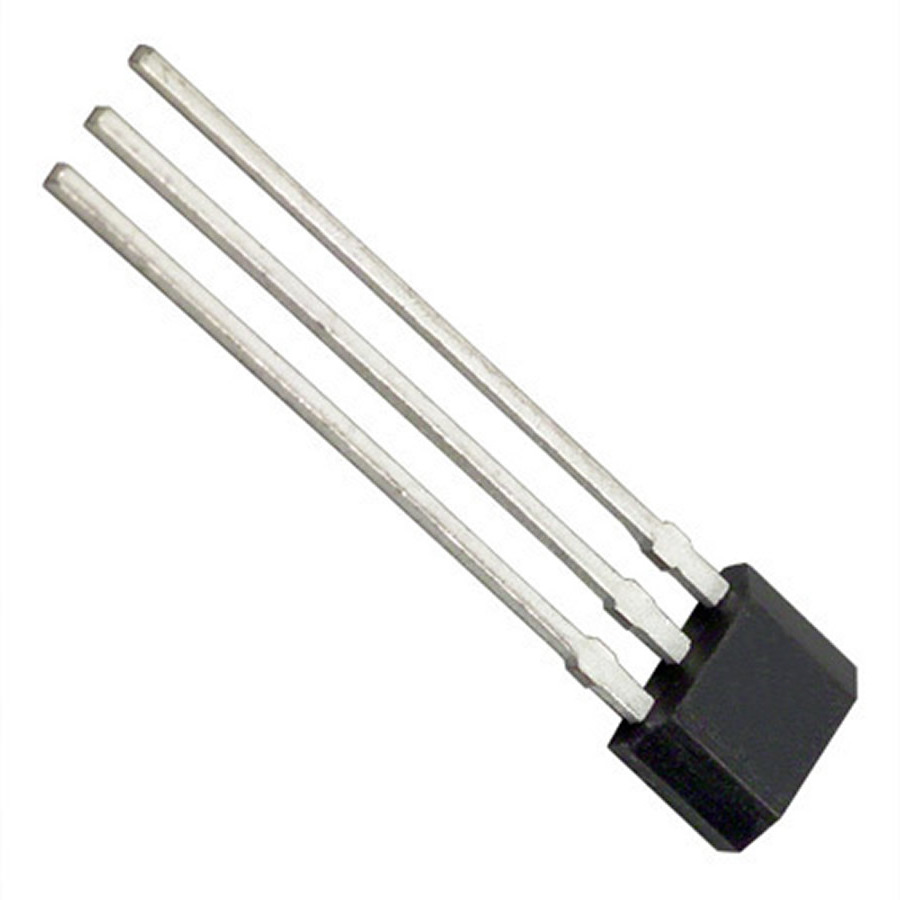

2SA1309A Transistor Silicon PNP CASE: TO92S MAKE: Panasonic
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
2SA1309A Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO92S
Manufacturer Panasonic
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 300m
Derate (Amb) (W/°C) 3.0m
hfe 460=
Ic Max. (A) 100m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
@VCE (test) (V) 10
Oper. Temp (°C) Max. 125
@Ic (A) 1.0m
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 125 °C
Transition Frequency (ft): 80 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SKU 342940
