2SA1349BL

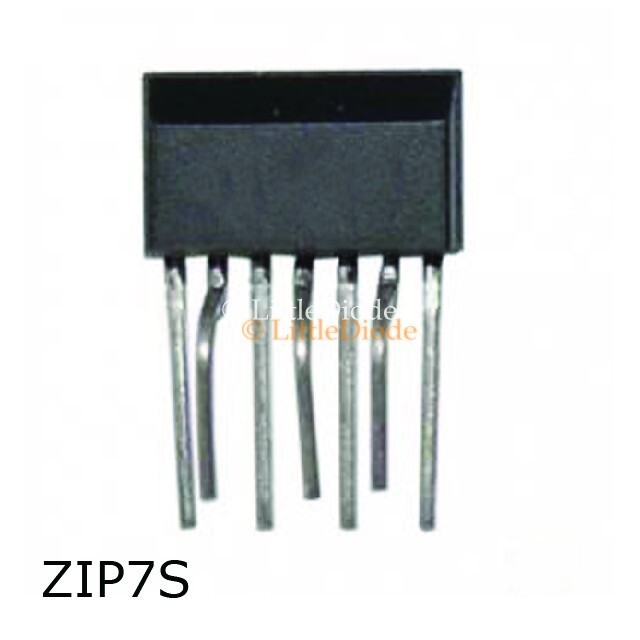

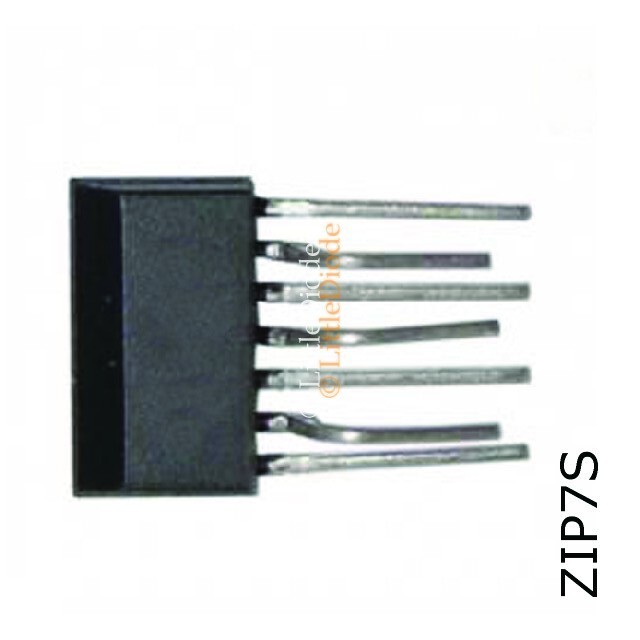

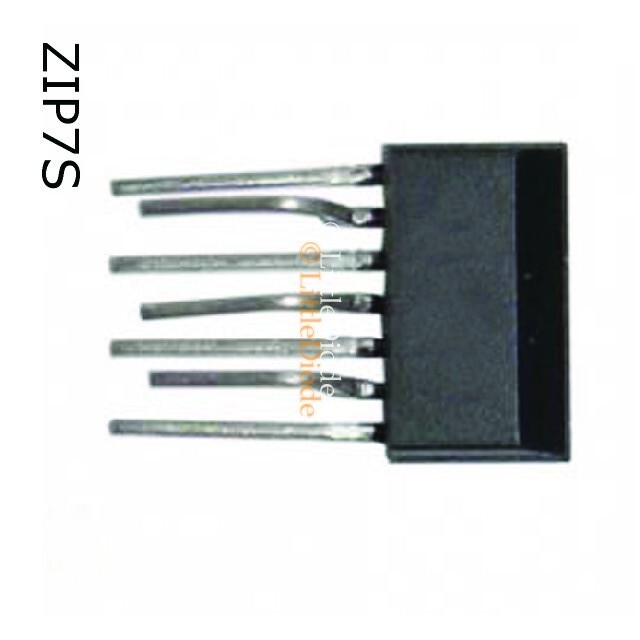

View detailed images (4)

2SA1349BL

SKU: 2SA1349BL
2SA1349BL Transistor Silicon PNP CASE: ZIP7S MAKE: Toshiba
Datasheet
2SA1349BL Datasheet
Product specifications
Type Transistor Silicon PNP
Case ZIP7S
Manufacturer Toshiba
Min hFE 350
Polarity PNP
PD Max. (W) 200m
@VCE (test) (V) 6.0
@Ic (test) 2.0m
Pinout Equivalence Number 7-48
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.4 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 4.2 pF
Transition Frequency (ft): 170 MHz
Forward Current Transfer Ratio (hFE), MIN 350
SKU 342957
