2SA1358O
View detailed images (4)

2SA1358O

SKU: 2SA1358O

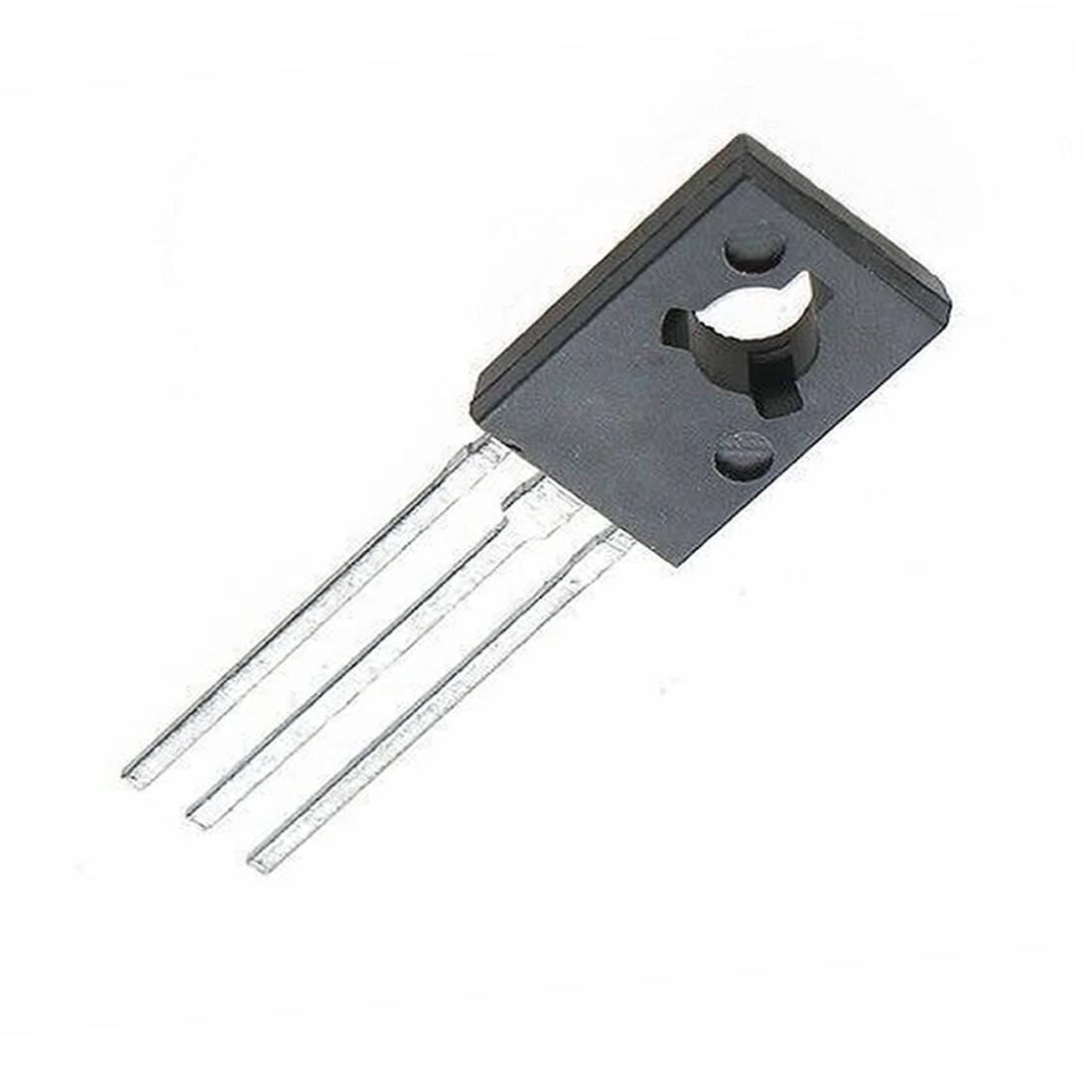

2SA1358O Transistor Silicon PNP CASE: TO126F MAKE: Toshiba
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
Product specifications
Equivalent 2SA1358
Type Transistor Silicon PNP
Case TO126F
Manufacturer Toshiba
Vbr CBO 120
Vbr CEO 120
Max. PD (W) 1.5
Derate (Amb) (W/°C) 12m
Max. hFE 160
Min hFE 80
Ic Max. (A) 1.0
@Ic (test) (A) 100m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 120M
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 10 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 30 pF
Transition Frequency (ft): 120 MHz
Forward Current Transfer Ratio (hFE), MIN 70
SKU 585837
