2SA1385Z

2SA1385Z

SKU: 2SA1385Z

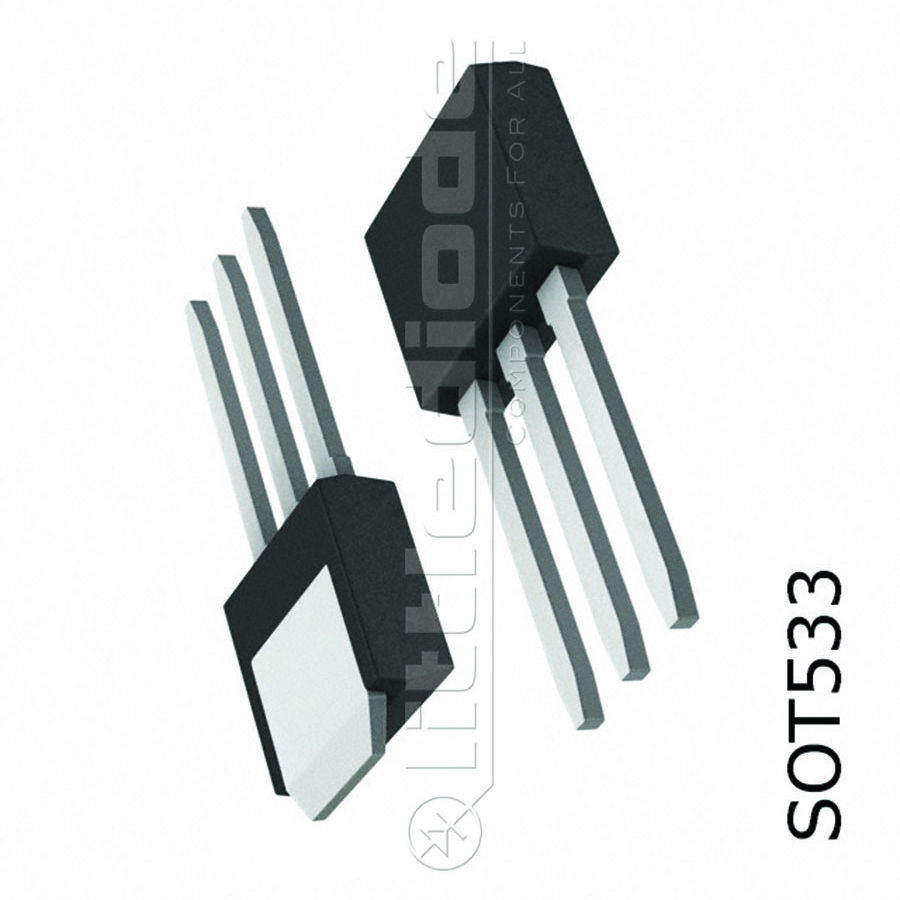

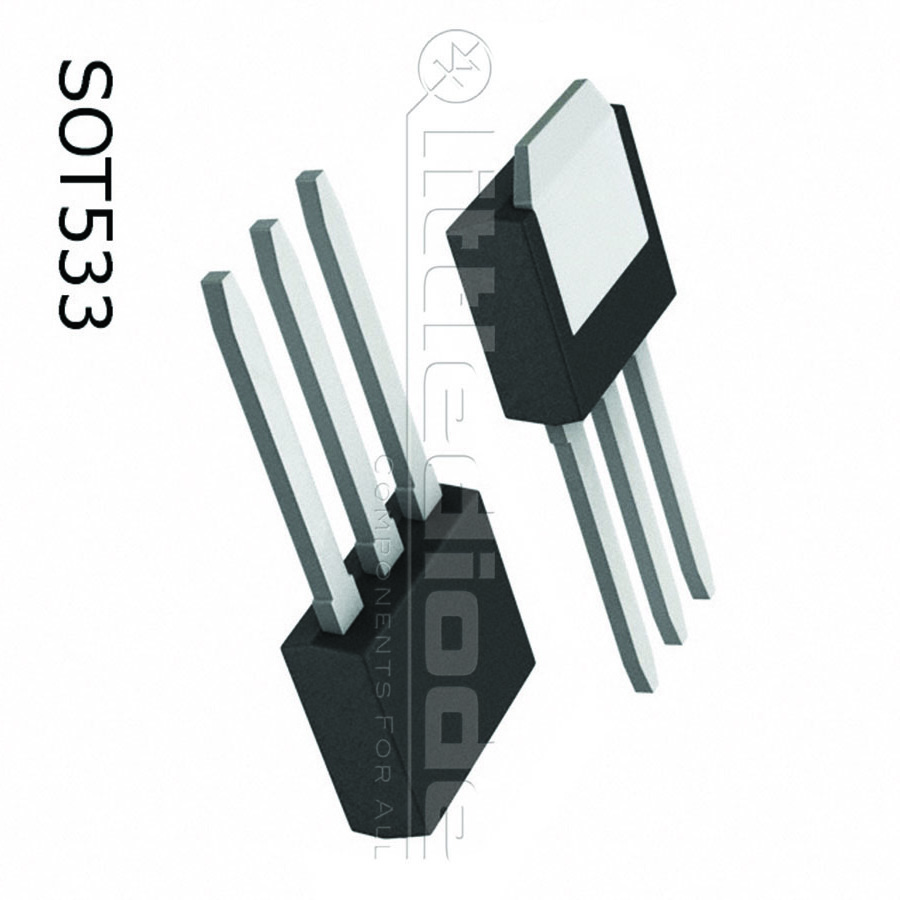

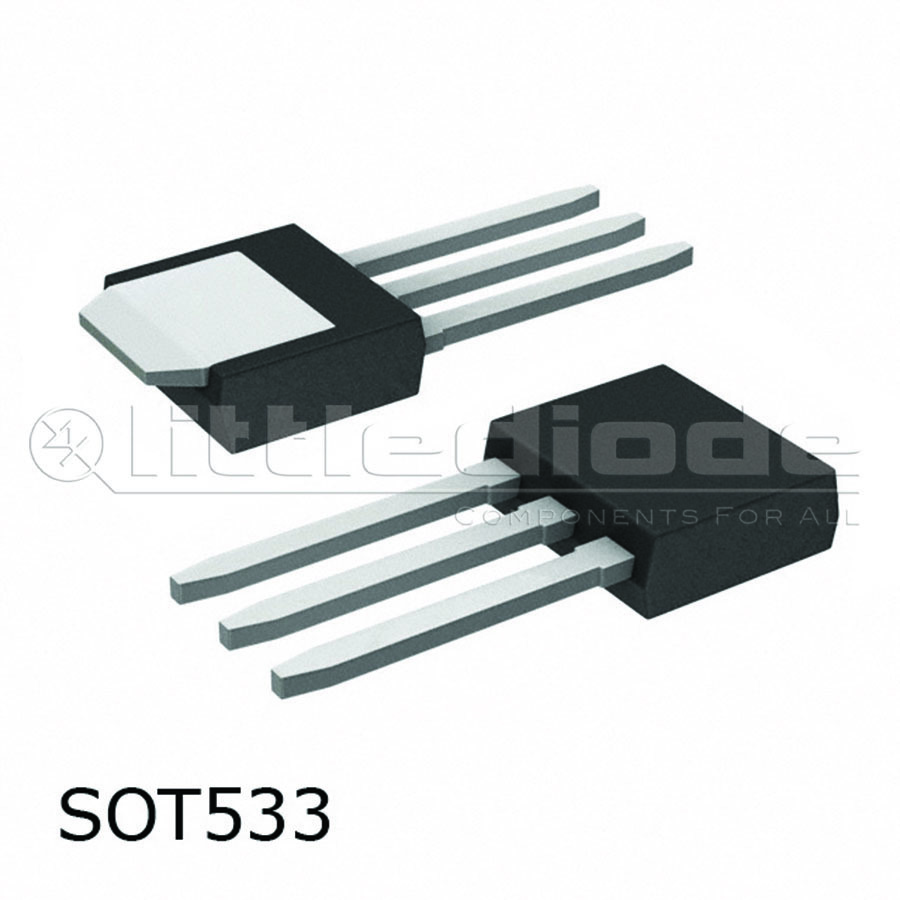

2SA1385Z Transistor CASE: SOT533 MAKE: NEC
Datasheet
2SA1385Z Datasheet
Product specifications
Type Transistor
Case SOT533
Manufacturer NEC
Vbr CBO 60
Vbr CEO 60
Max. PD (W) 10
t(f) Max. (S) 1.0u
Max. hFE 400
Min hFE 100
Ic Max. (A) 5.0
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 10u
Tr Max. (s) 1.0u
Trans. Freq (Hz) Min. 140M
Oper. Temp (°C) Max. 150
@VCE (V) 1.0
Pinout Equivalence Number 4-104
Surface Mounted Yes/No YES
SKU 342968
