2SA1509
View detailed images (4)

2SA1509

SKU: 2SA1509

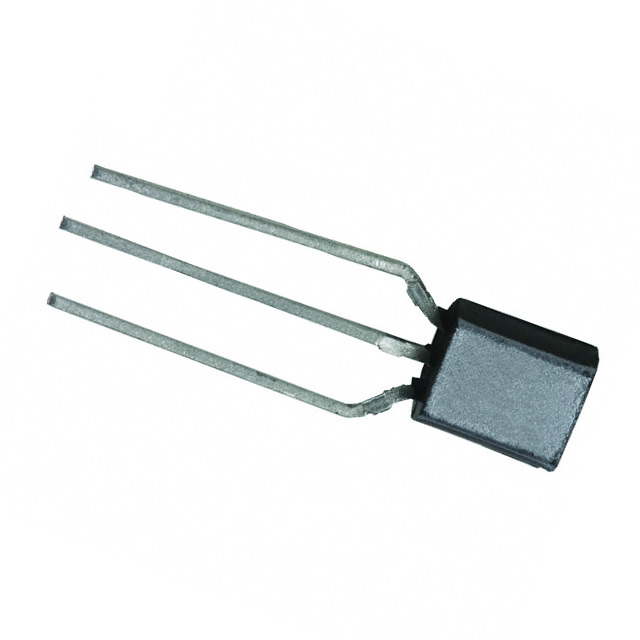

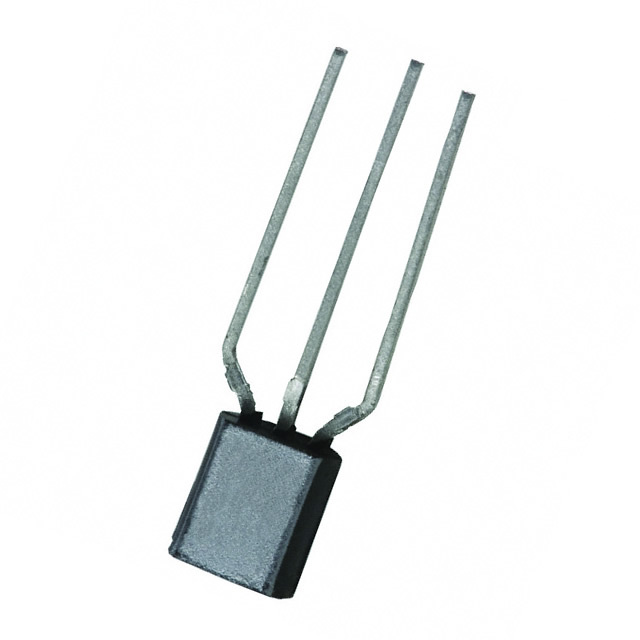

2SA1509 Transistor Silicon PNP CASE: TO92T MAKE: Sanyo Semiconductor
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 6 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case TO92T
Manufacturer Sanyo Semiconductor
Min hFE 100
@Ic (test) (A) 10m
Icbo Max. @Vcb Max. (A) 100n
Mat. Silicon Logic
Polarity PNP
Mat. Struct. PNP
@VCE (V) 5.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 5.5 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 55
SKU 80687
