2SA1512
View detailed images (4)

2SA1512

SKU: 2SA1512

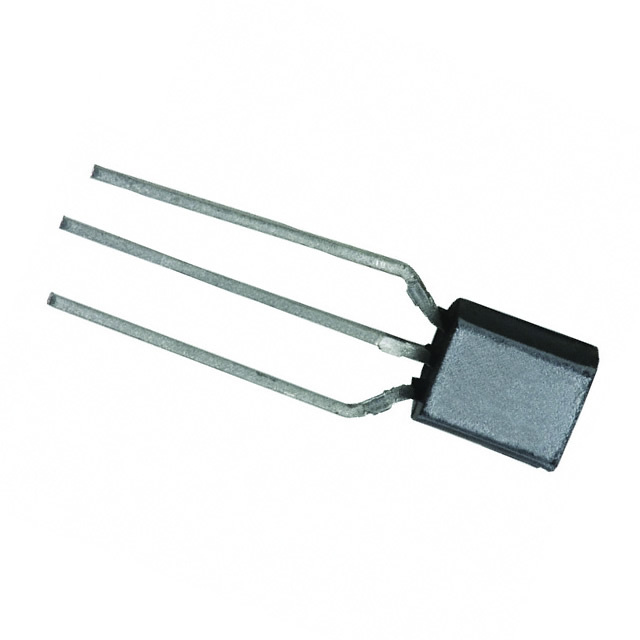

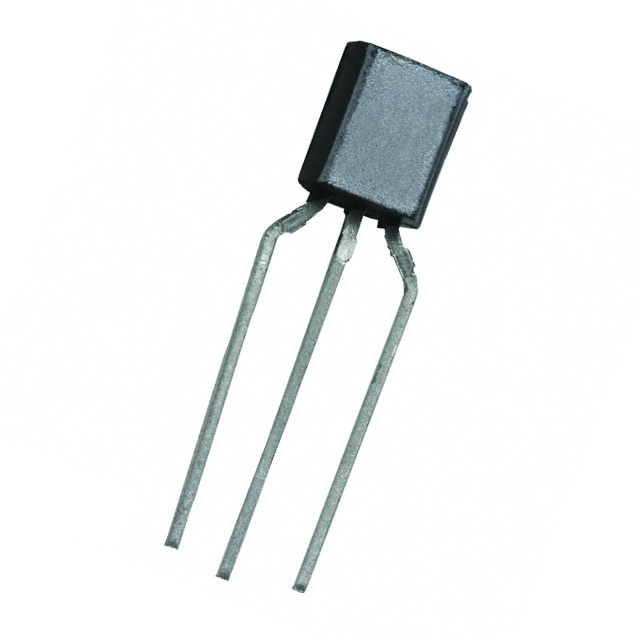

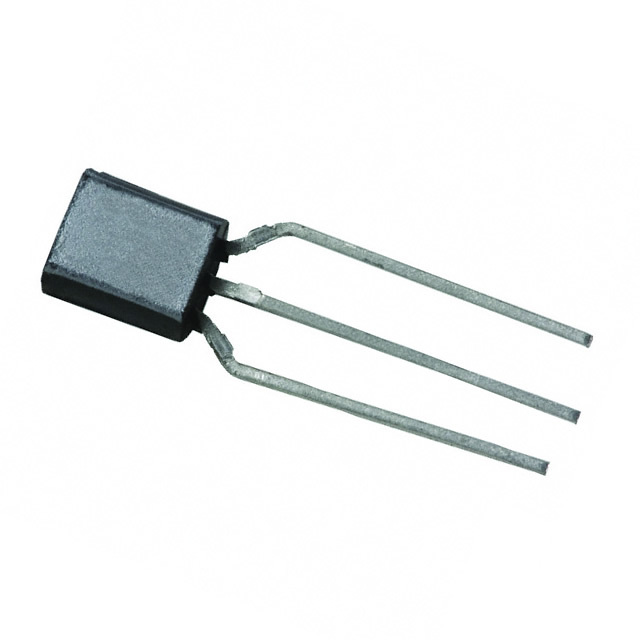

2SA1512 Transistor Silicon PNP CASE: TO92T MAKE: Panasonic
Datasheet
2SA1512 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO92T
Manufacturer Panasonic
Vbr CBO 25
Vbr CEO 20
Max. PD (W) 300m
C(ob) (F) 15
Derate (Amb) (W/°C) 2.4m
hfe 65
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 150M
@VCE (test) (V) 2.0
Oper. Temp (°C) Max. 150
@Ic (A) 500m
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 220 pF
Forward Current Transfer Ratio (hFE), MIN 90
SKU 80688
