2SA1523
View detailed images (4)

2SA1523

SKU: 2SA1523

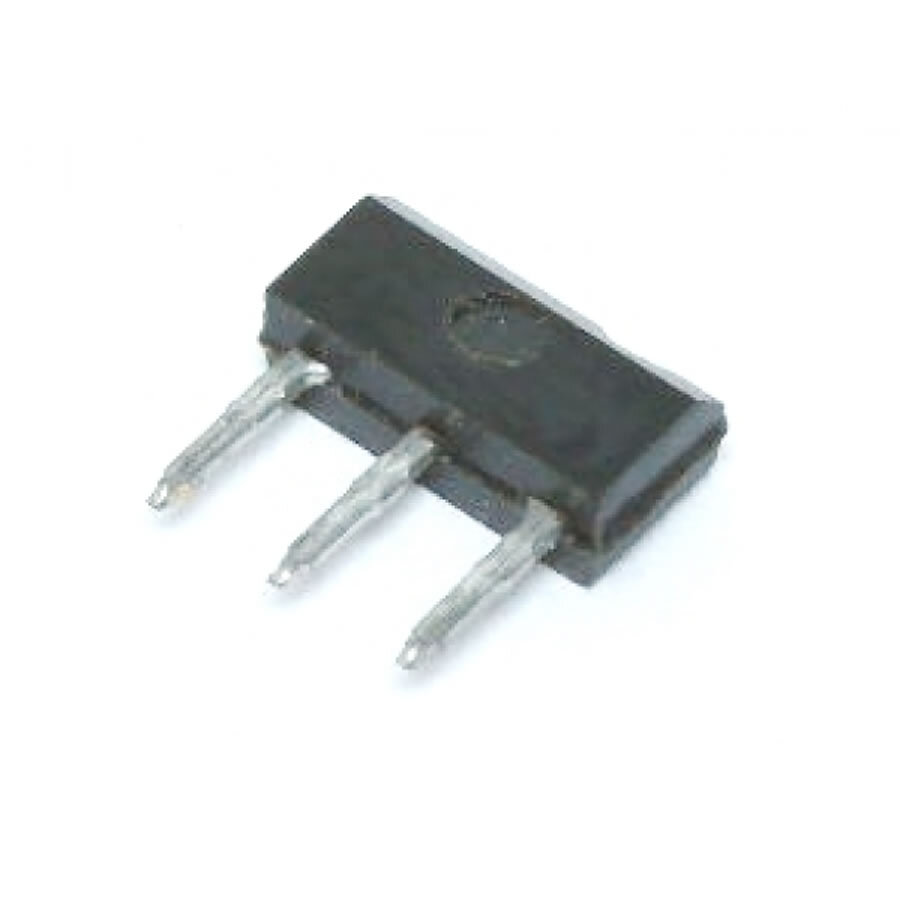

2SA1523 Transistor Silicon PNP CASE: SOT33 MAKE: Sanyo Semiconductor
Datasheet
2SA1523 Datasheet
Product specifications
Type Transistor Silicon PNP
Case SOT33
Manufacturer Sanyo Semiconductor
Min hFE 50
@Ic (test) (A) 20m
Icbo Max. @Vcb Max. (A) 100n
Mat. Silicon Logic
Polarity PNP
Mat. Struct. PNP
@VCE (V) 5.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 5.5 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 343027
