2SA1553O
View detailed images (4)

2SA1553O

SKU: 2SA1553O

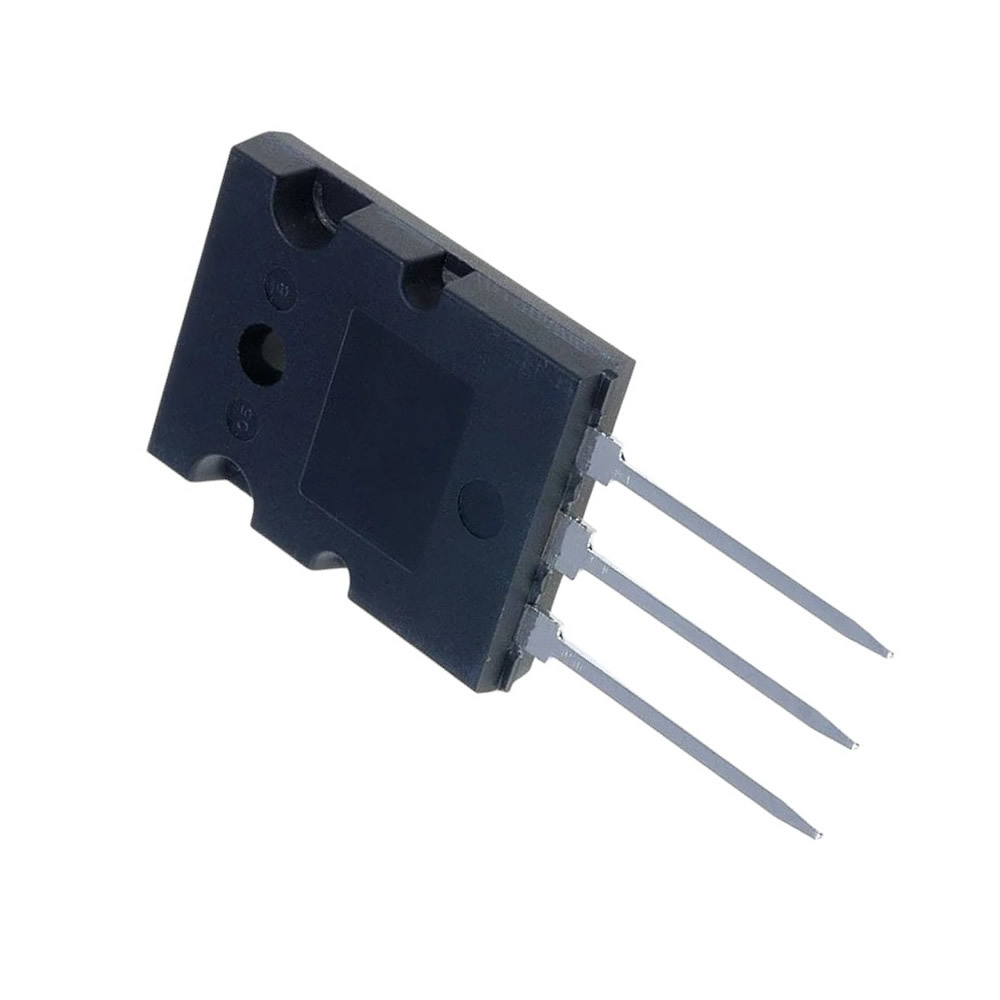

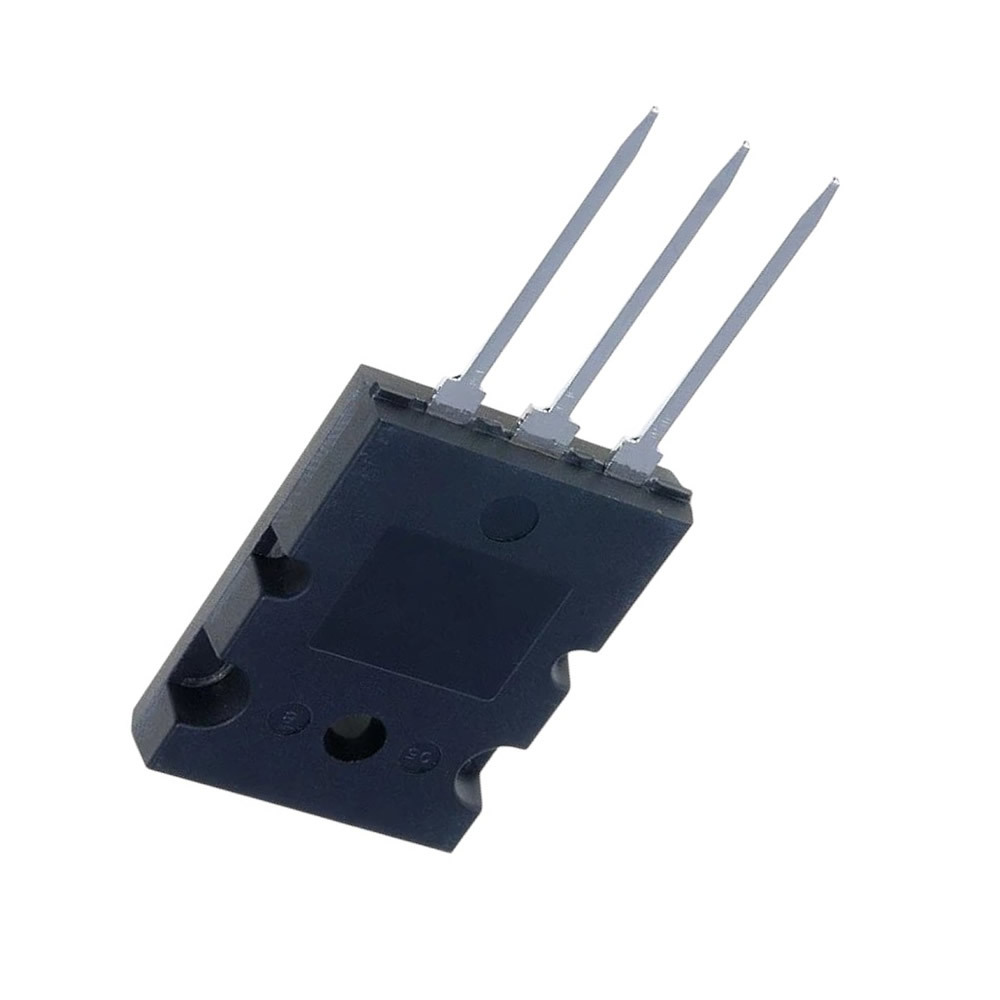

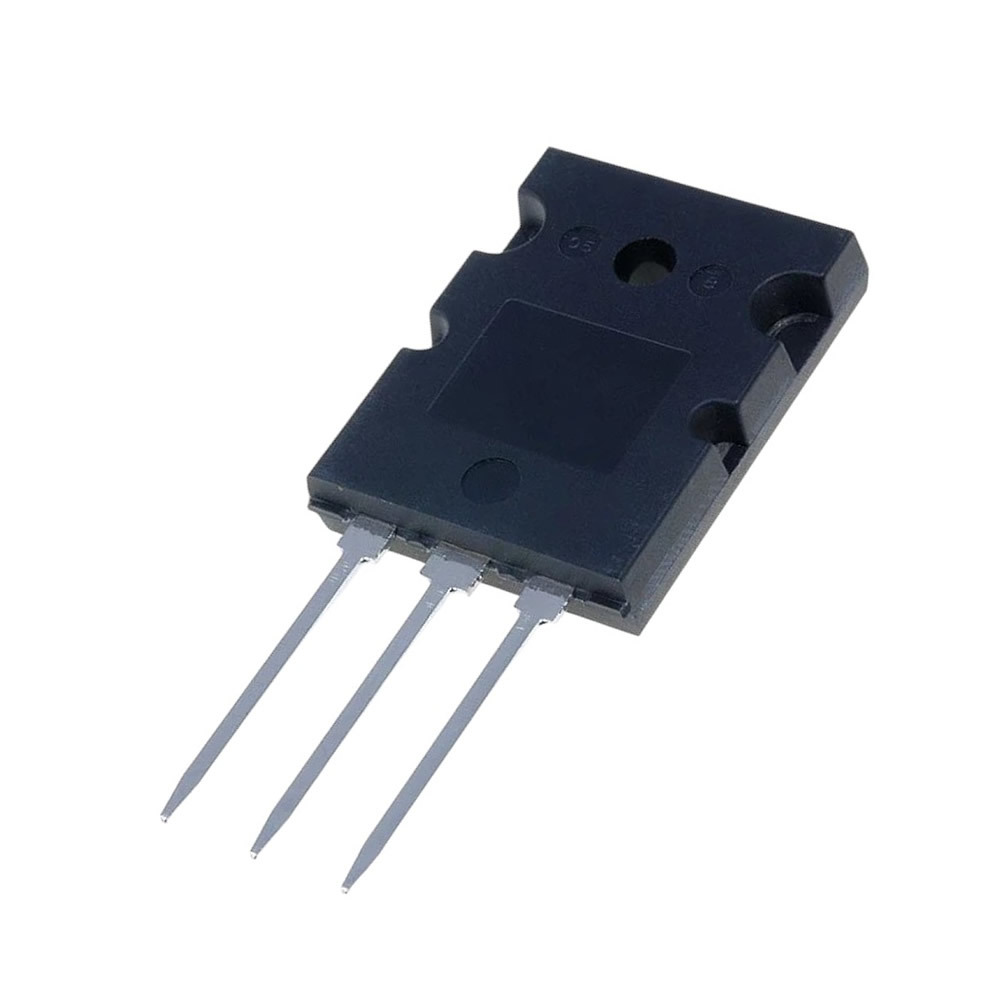

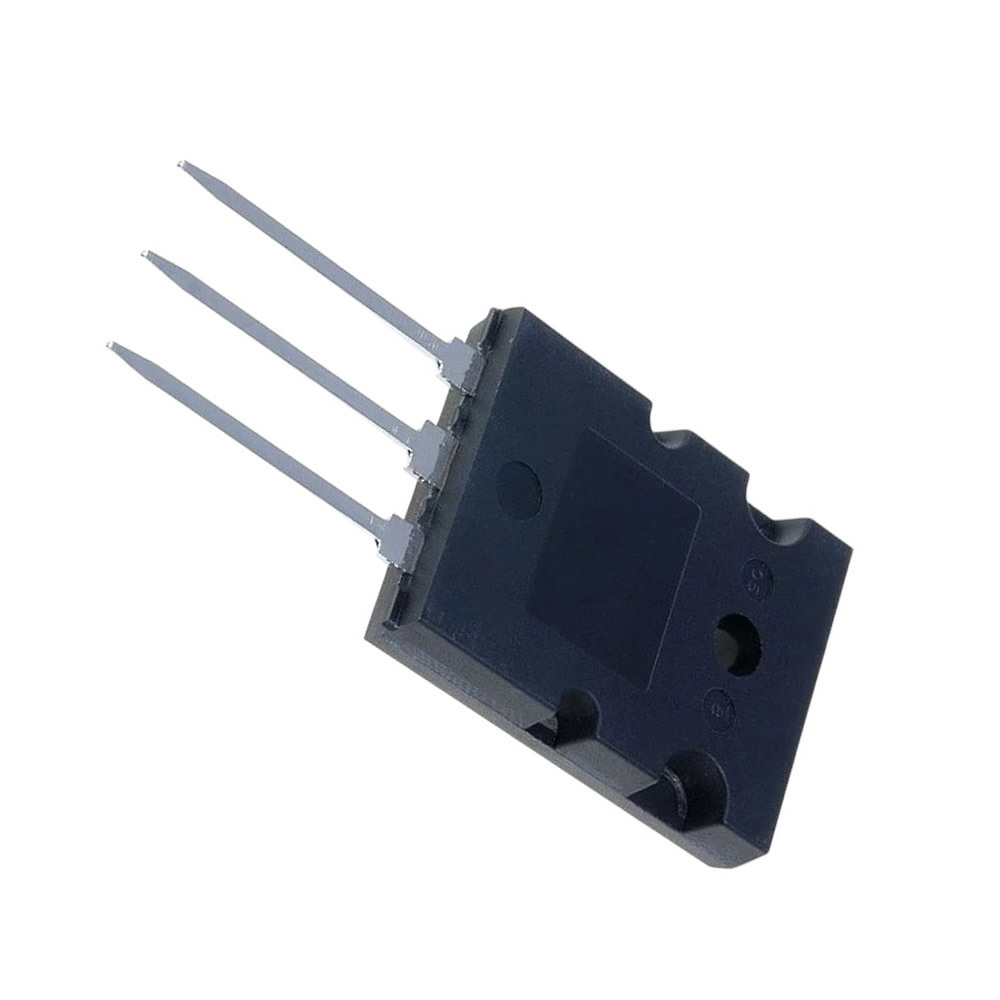

2SA1553O Transistor Silicon PNP CASE: TO264 MAKE: Toshiba
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 1 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case TO264
Manufacturer Toshiba
Polarity PNP
Maximum Collector Power Dissipation (Pc) 150 W
Maximum Collector-Base Voltage |Vcb| 230 V
Maximum Collector-Emitter Voltage |Vce| 230 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 15 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 25 pF
Transition Frequency (ft): 25 MHz
Forward Current Transfer Ratio (hFE), MIN 55
SKU 394692
