2SA1560
View detailed images (4)

2SA1560

SKU: 2SA1560

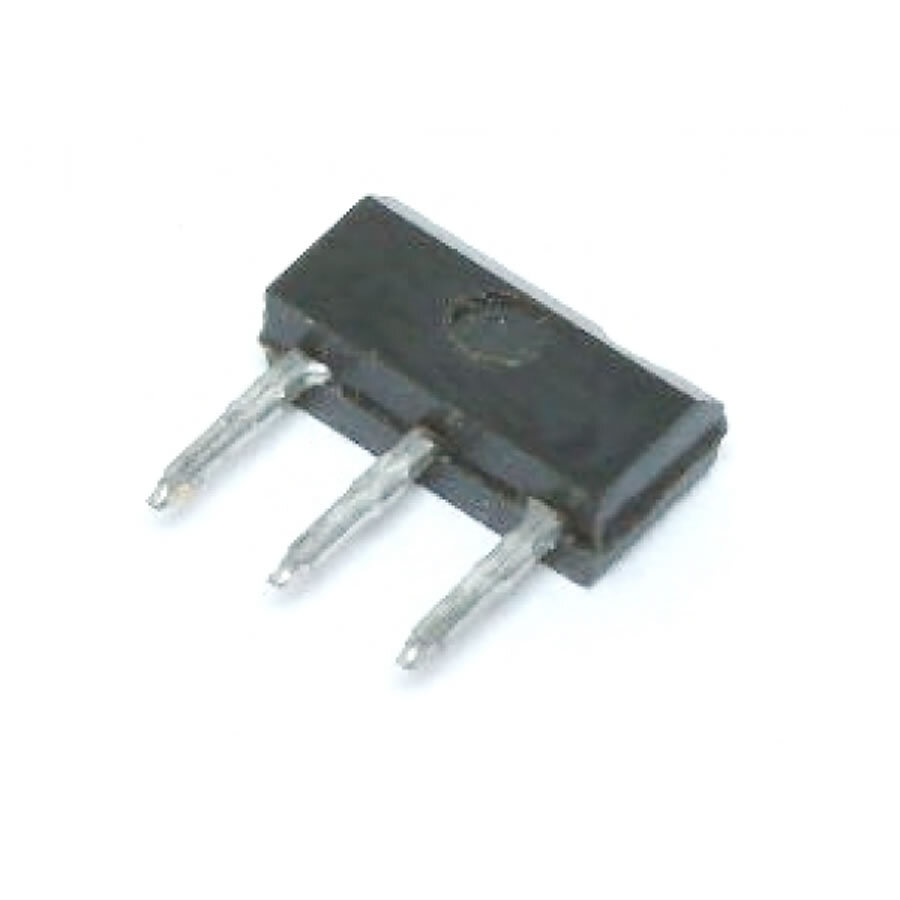

2SA1560 Transistor Silicon PNP CASE: SOT33 MAKE: Rohm Semiconductor
Product specifications
Type Transistor Silicon PNP
Case SOT33
Manufacturer Rohm Semiconductor
Vbr CEO 32
Max. PD (W) 600m
C(ob) (F) 20p
hfe 82
Ic Max. (A) 1.0
Polarity PNP
Trans. Freq (Hz) Min. 150M
@VCE (test) (V) 3.0
@Ic (A) 100m
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 170 °C
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SKU 769775
