2SA1576A

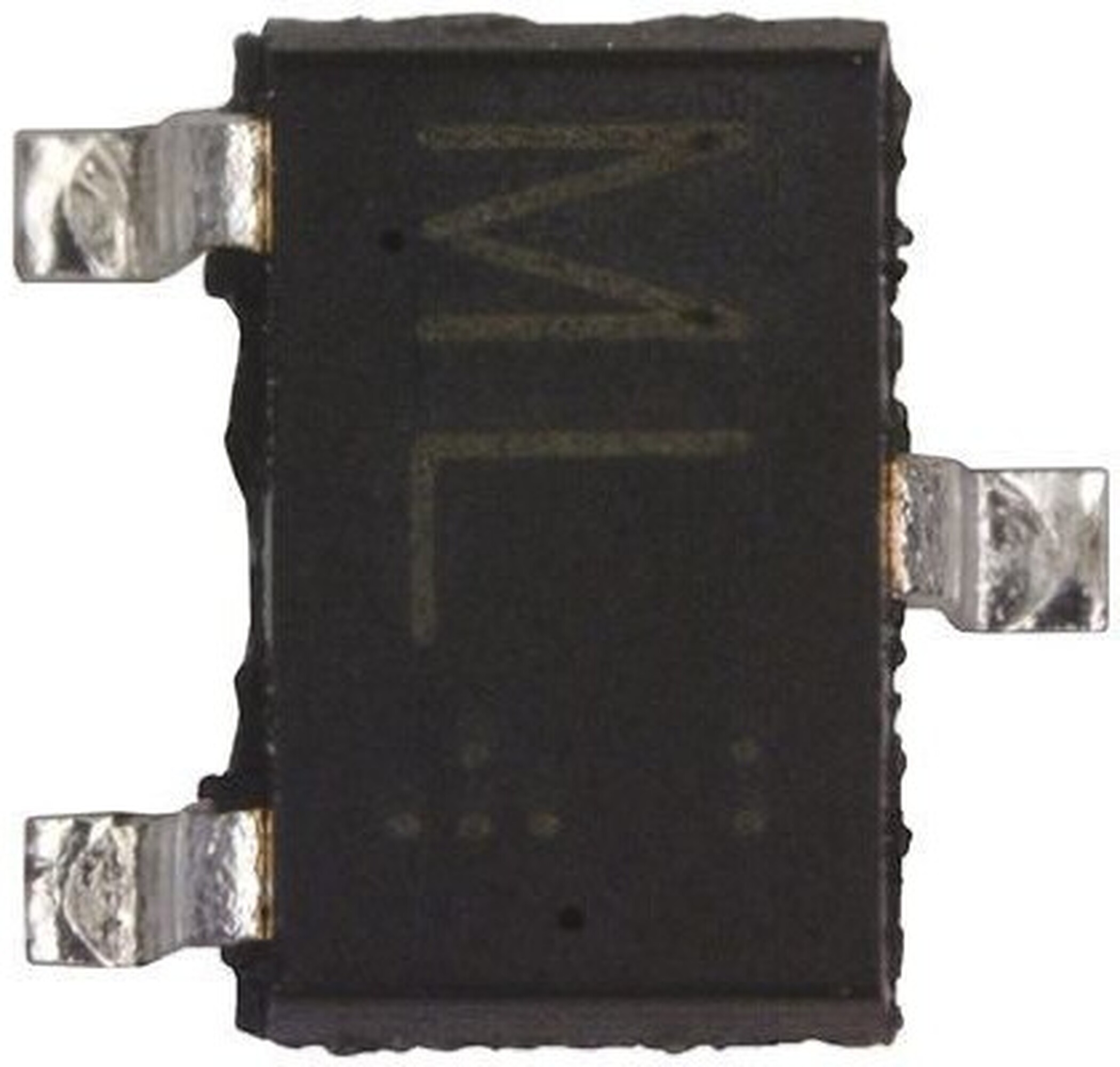

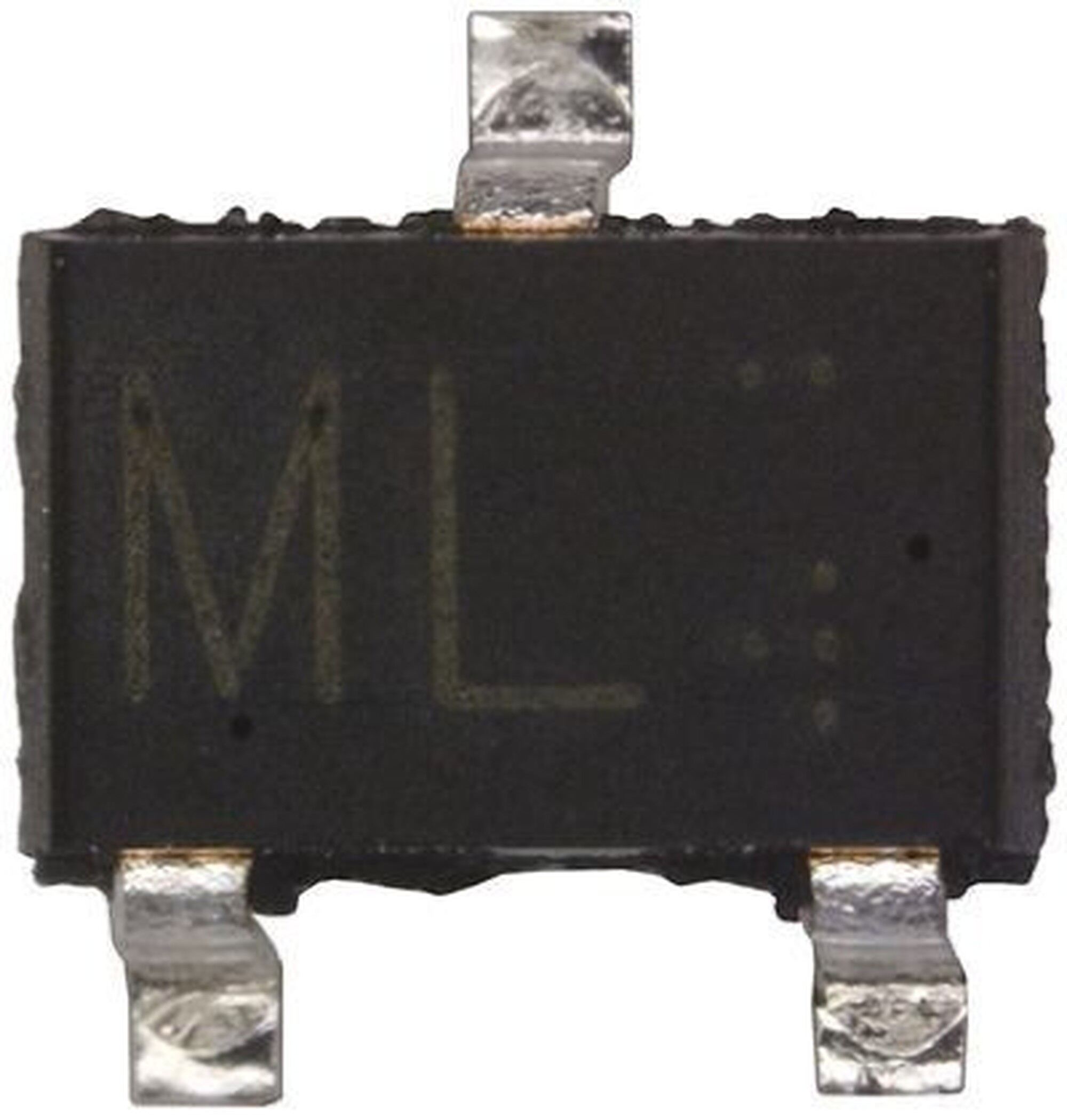

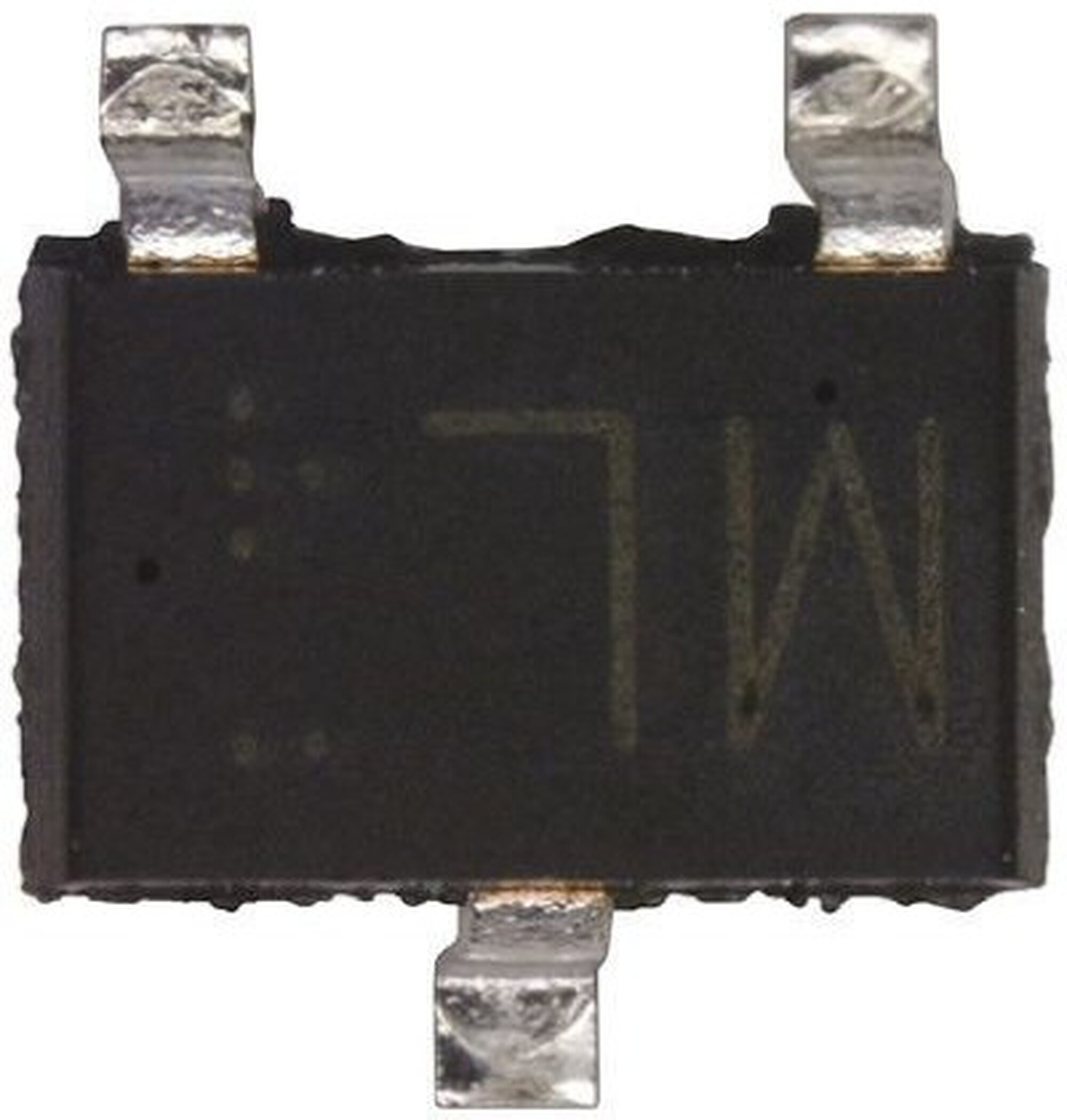

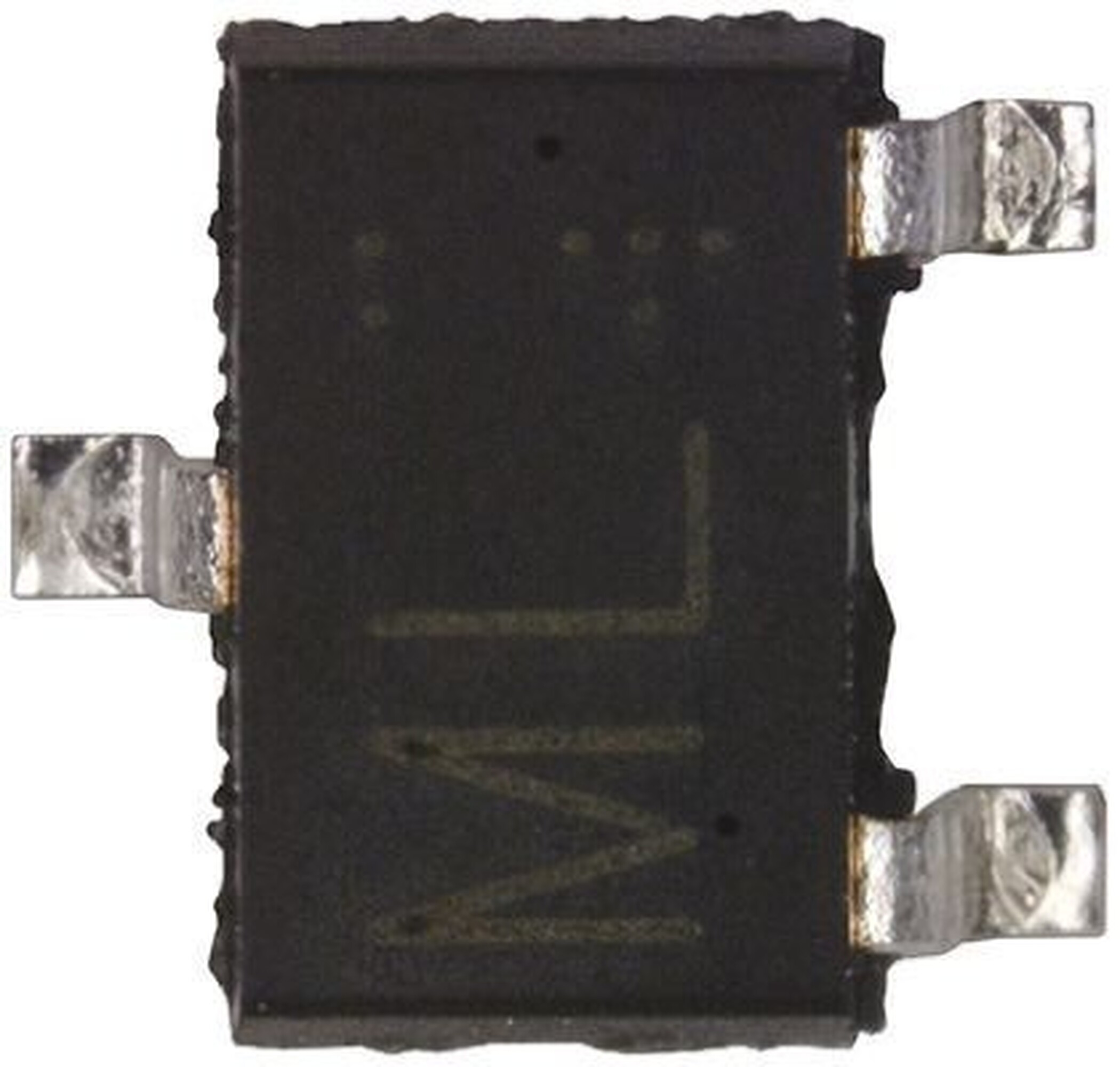

View detailed images (4)

2SA1576A

SKU: 2SA1576A
2SA1576A Transistor Silicon PNP CASE: UMT3 MAKE: Generic
Datasheet
2SA1576A Datasheet
Product specifications
Type Transistor Silicon PNP
Case UMT3
Manufacturer ROHM
Polarity PNP
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.15 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 4 pF
Transition Frequency (ft): 140 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SMD Transistor Code FQ_FR_FS
SKU 769767
