2SA1577-R
View detailed images (4)

2SA1577-R

SKU: 2SA1577-R

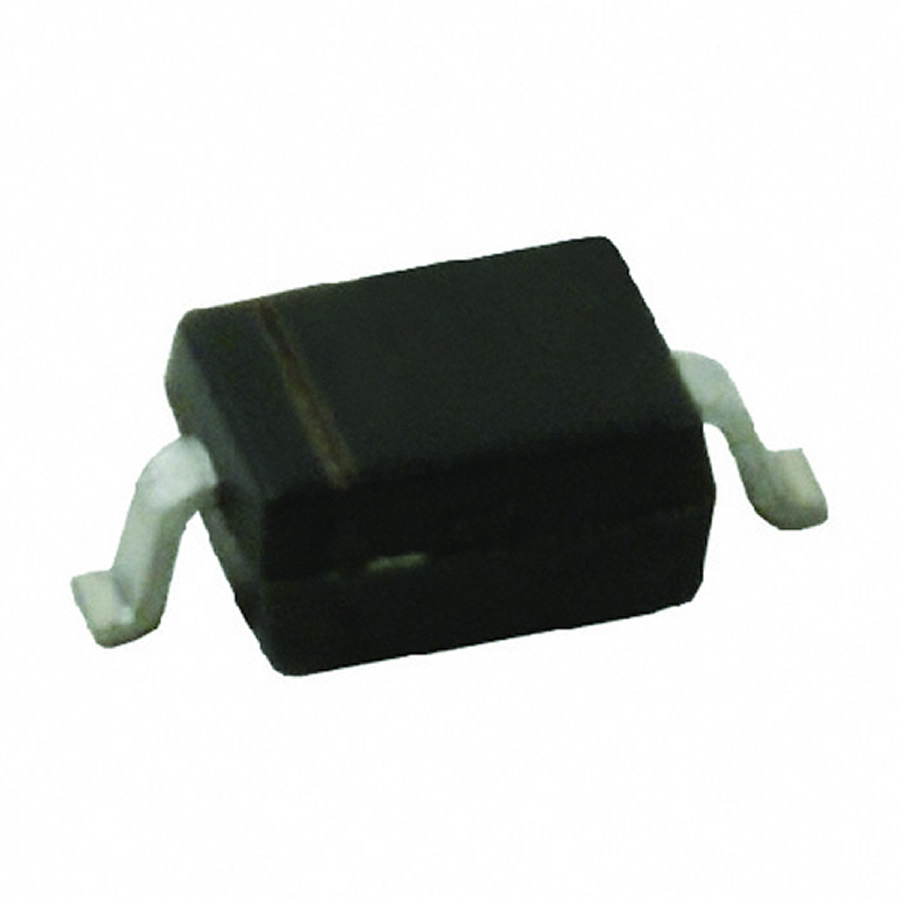

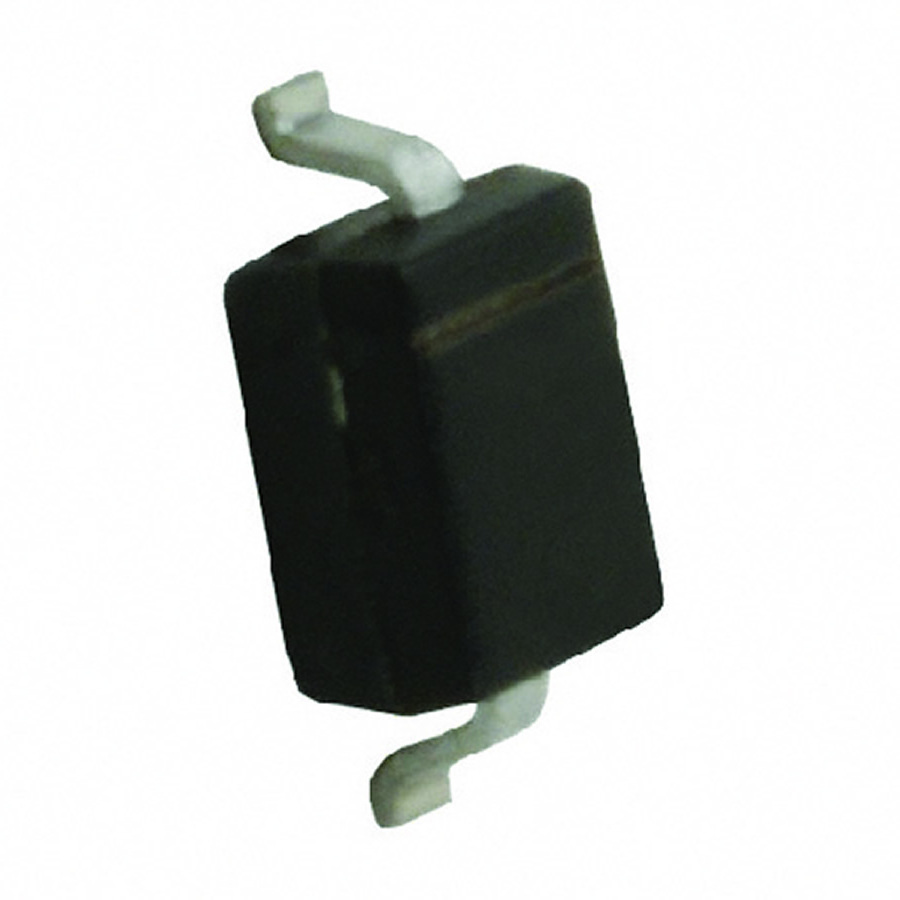

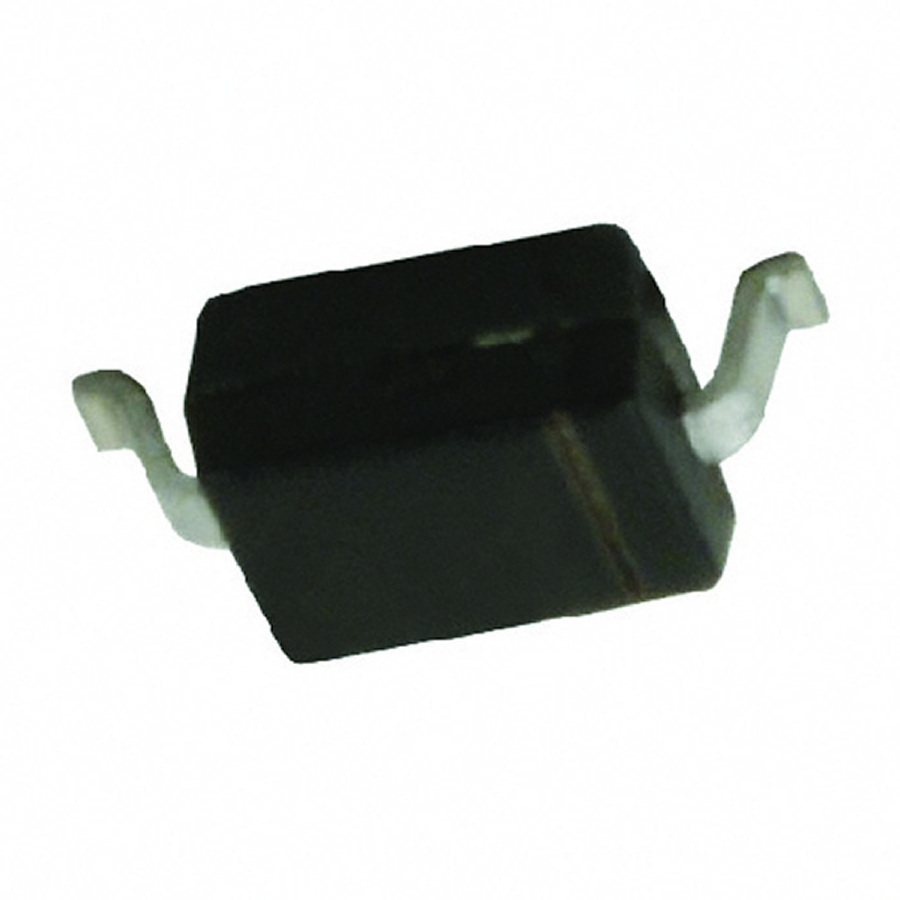

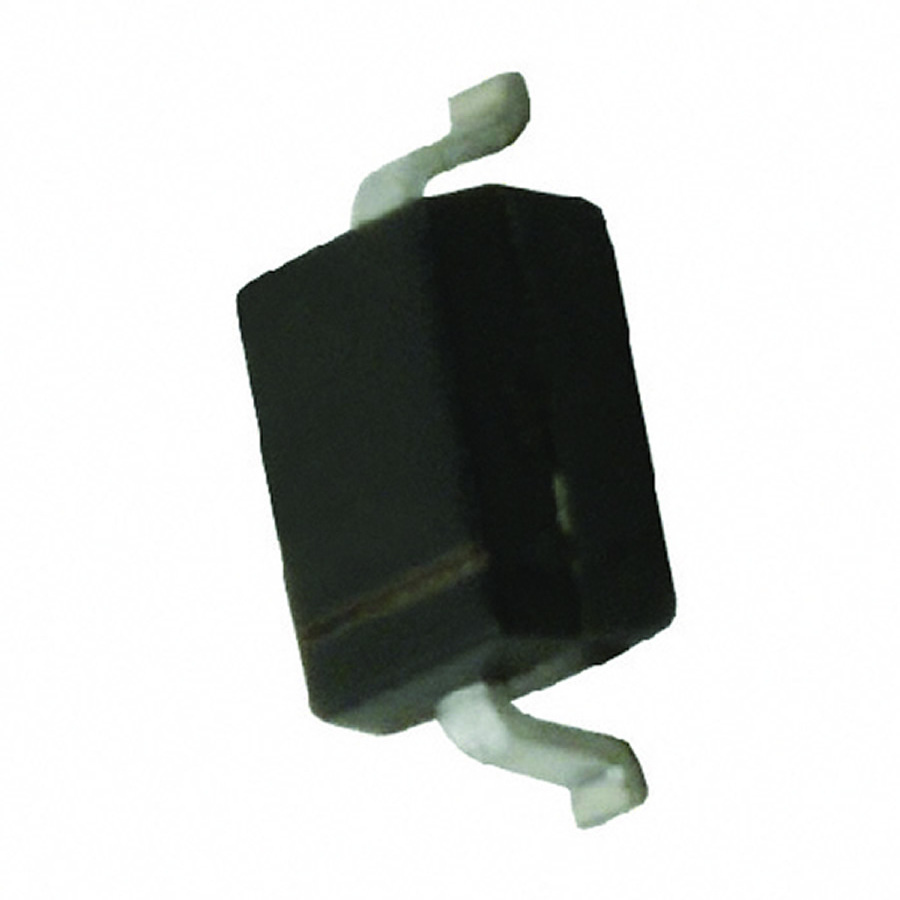

2SA1577-R Transistor Silicon PNP CASE: SOD323 MAKE: Renesas
Product specifications
Type Transistor Silicon PNP
Case SOD323
Manufacturer Renesas
Polarity PNP
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 32 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 7 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 180
SMD Transistor Code HR
SKU 1401716
