Home / Actives / Transistor / 2SA1615Z
2SA1615Z

2SA1615Z

SKU: 2SA1615Z

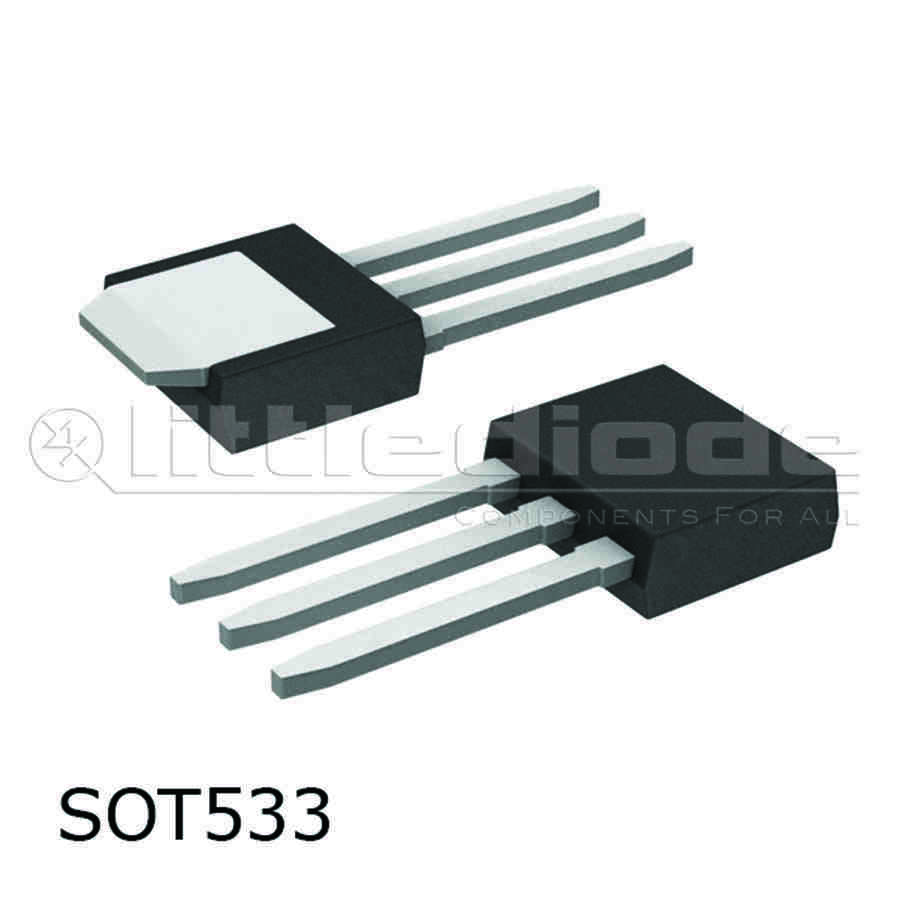

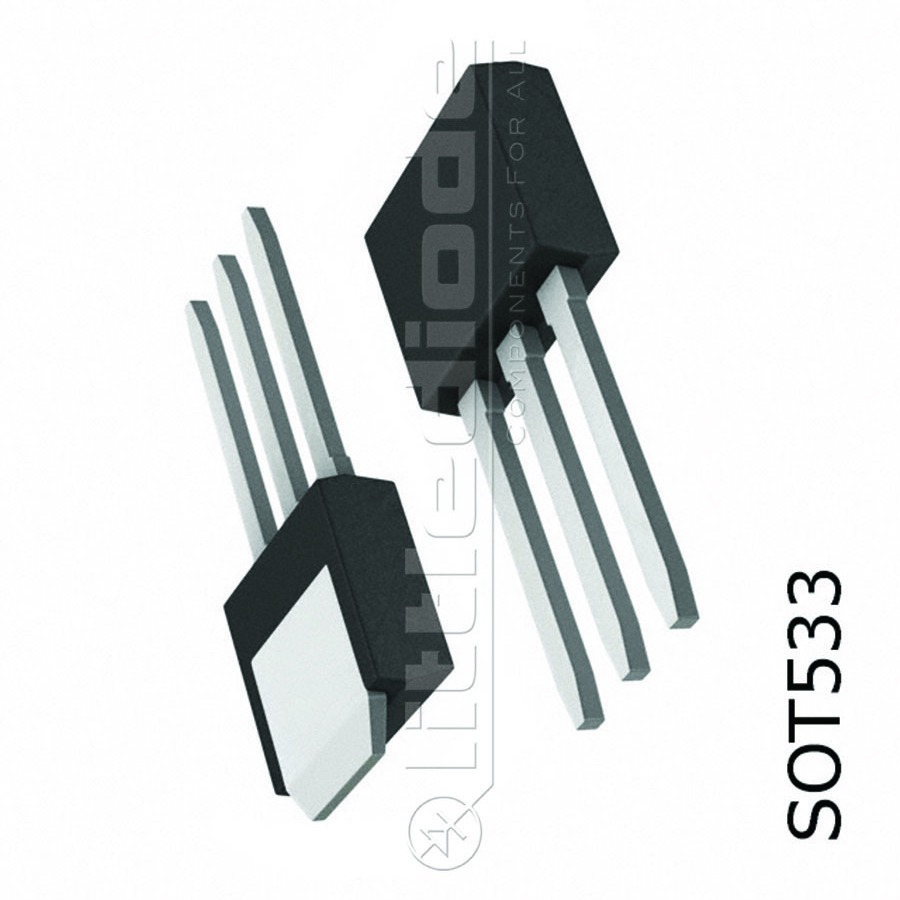

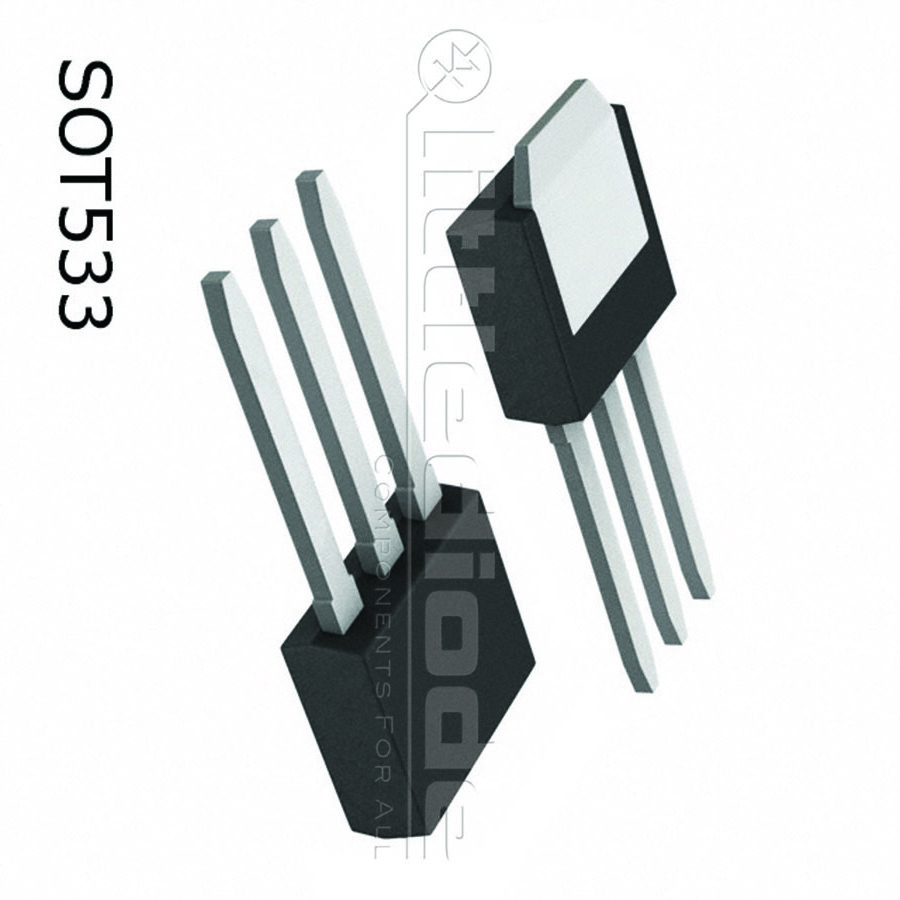

2SA1615Z Transistor CASE: SOT533 MAKE: NEC
Datasheet
2SA1615Z Datasheet
Product specifications
Type Transistor
Case SOT533
Manufacturer NEC
Vbr CBO 30
Vbr CEO 20
Max. PD (W) 1.0
t(f) Max. (S) 60n
Max. hFE 600
Min hFE 200
Ic Max. (A) 10
@Ic (test) (A) 500m
Icbo Max. @Vcb Max. (A) 1.0u
Tr Max. (s) 80n
Trans. Freq (Hz) Min. 120M
Oper. Temp (°C) Max. 140
@VCE (V) 2.0
Pinout Equivalence Number 4-104
Surface Mounted Yes/No NO
SKU 343069
