2SA1687
View detailed images (12)

2SA1687

SKU: 2SA1687

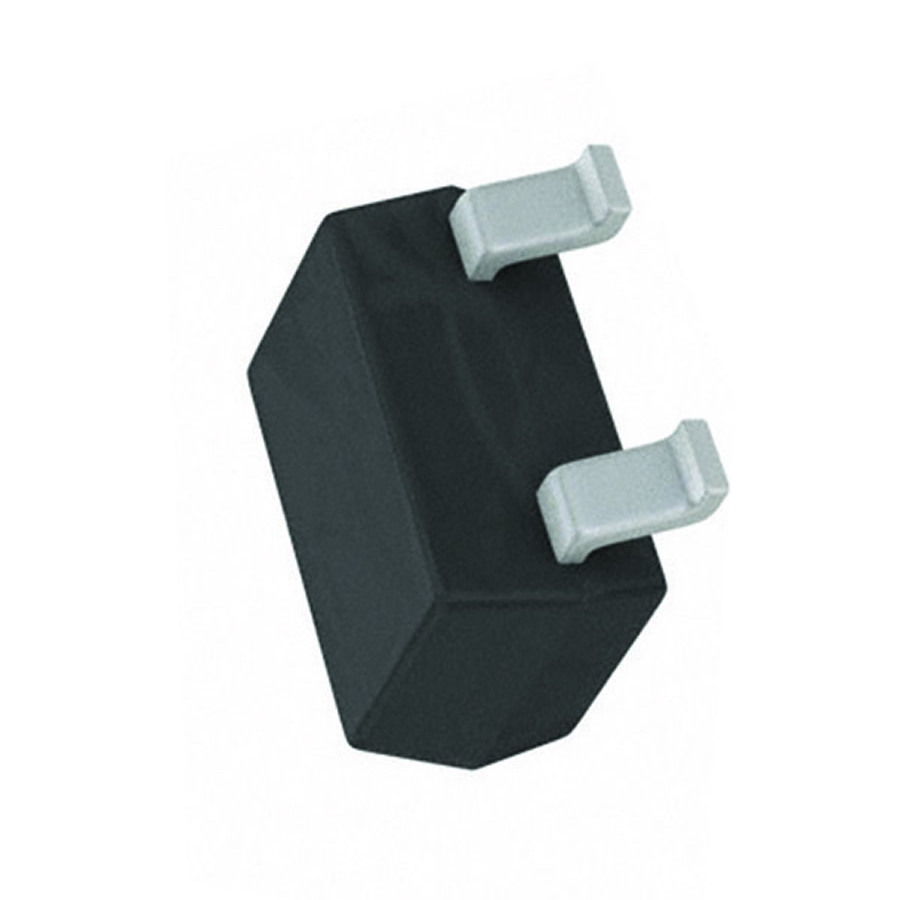

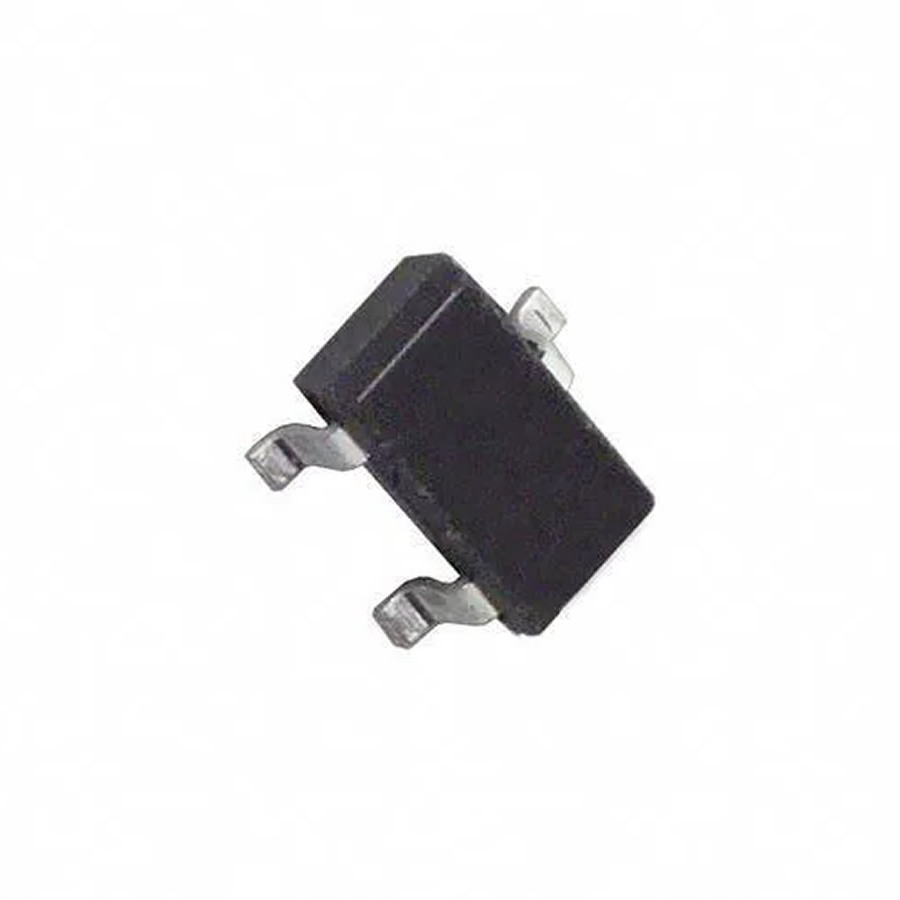

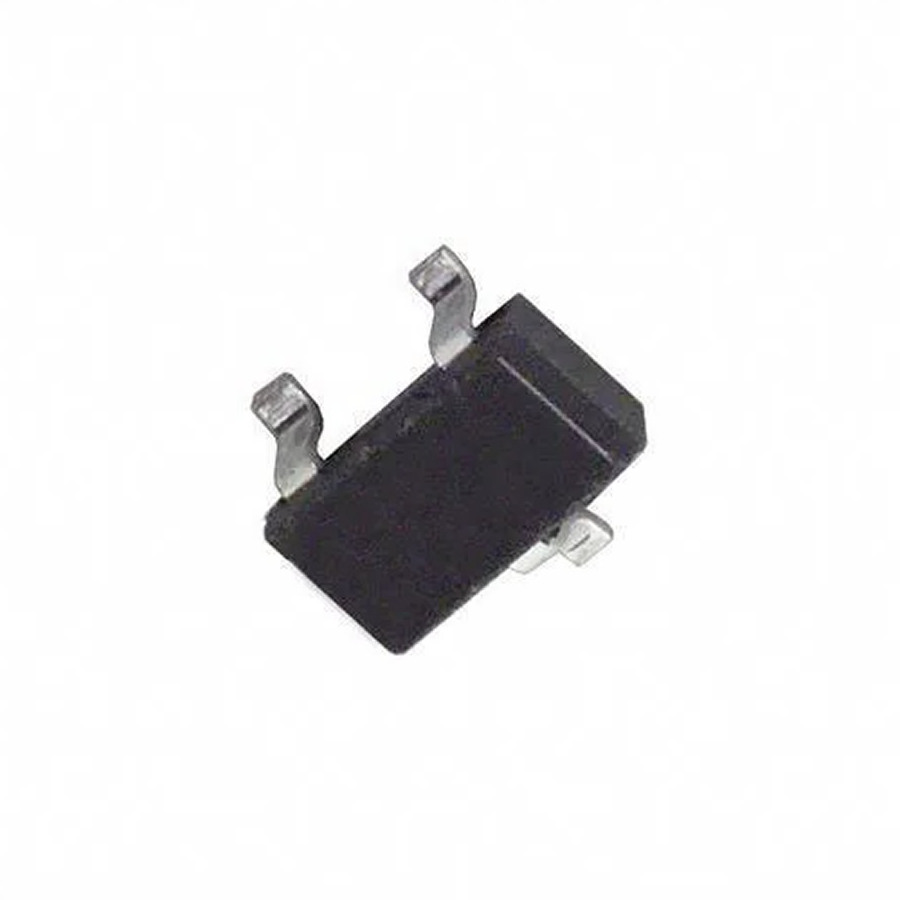

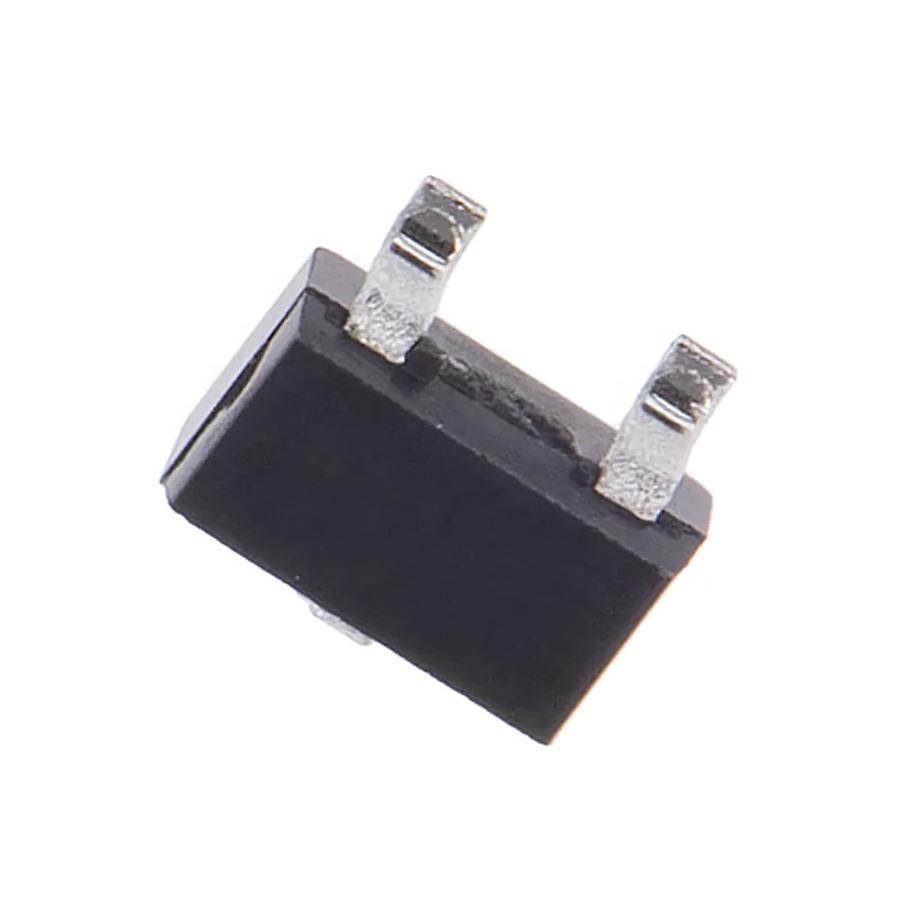

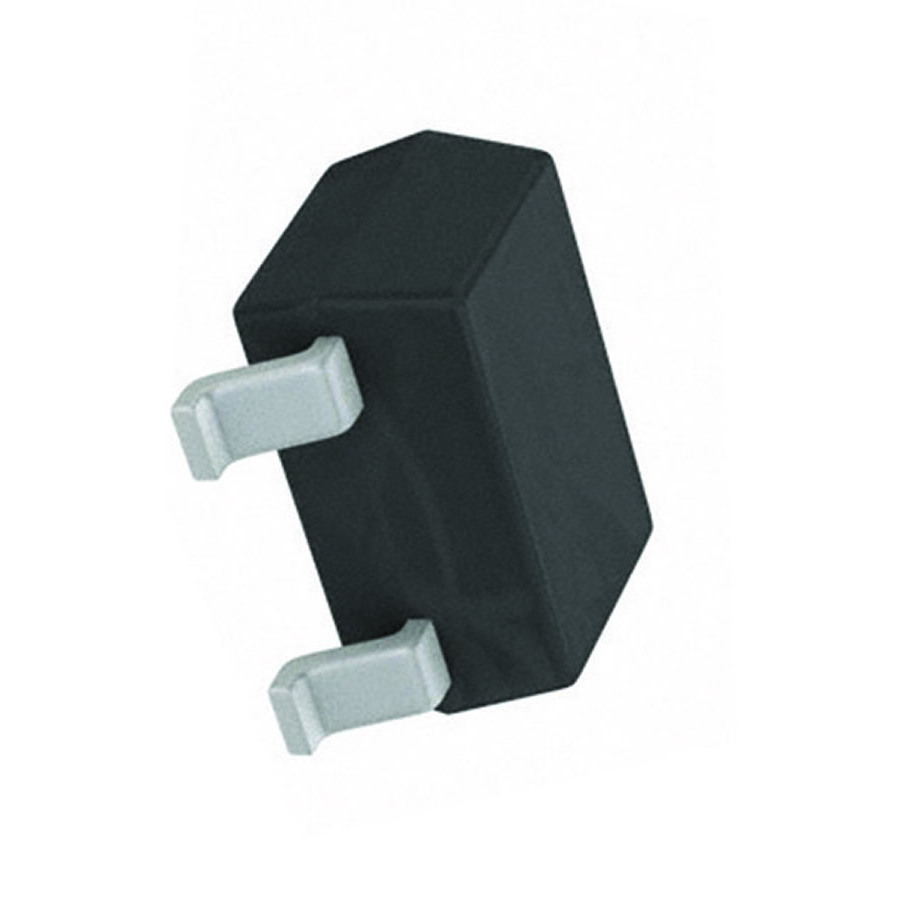

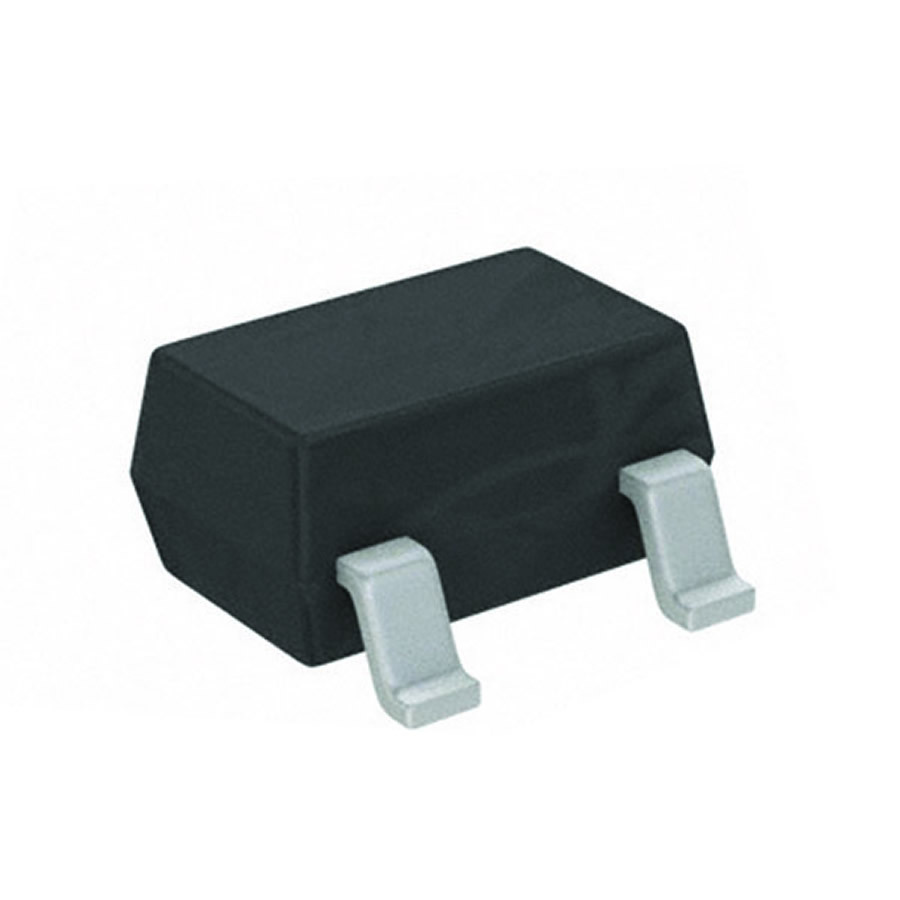

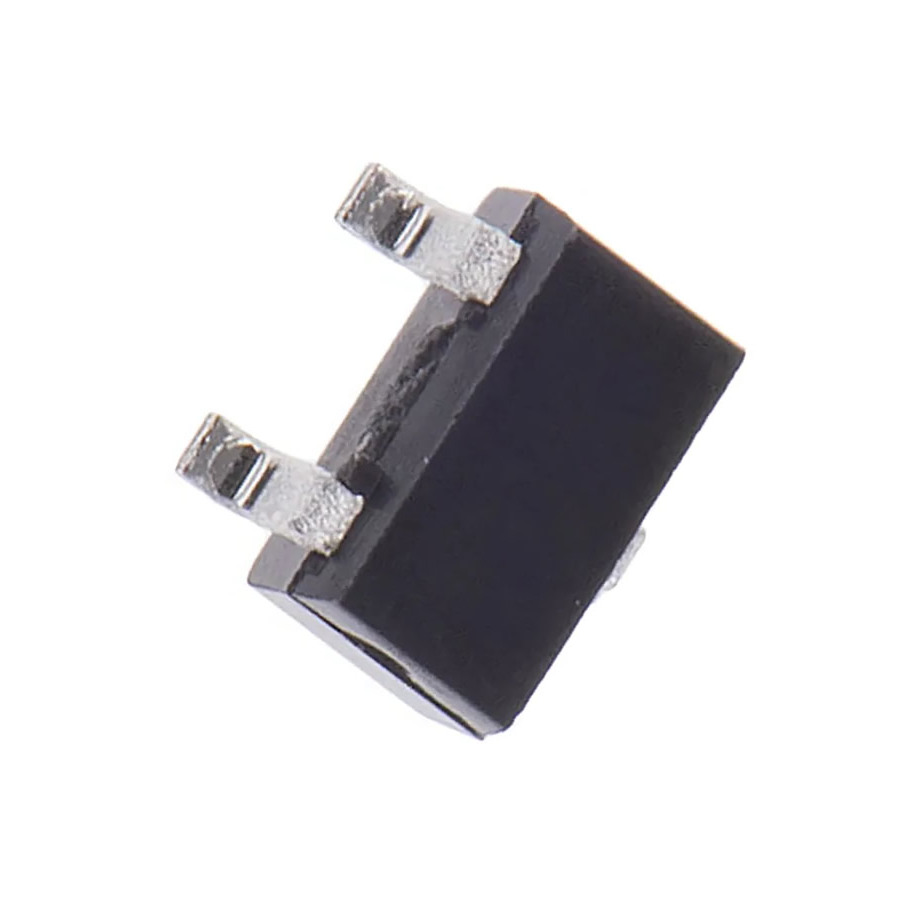

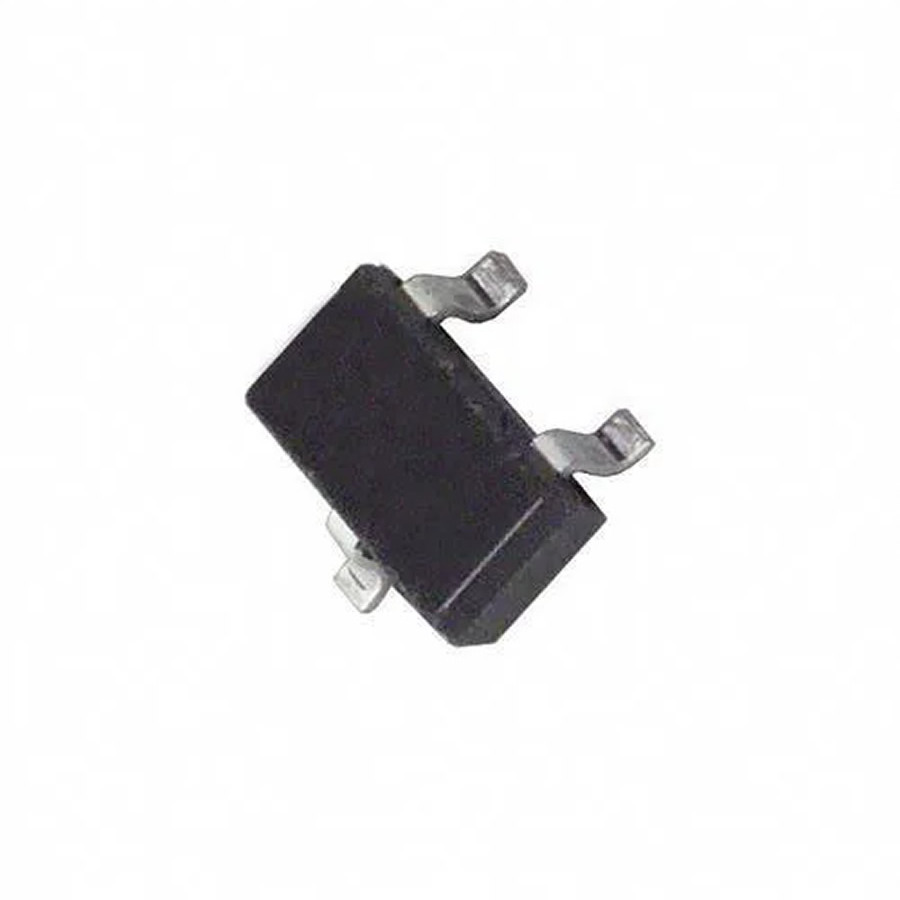

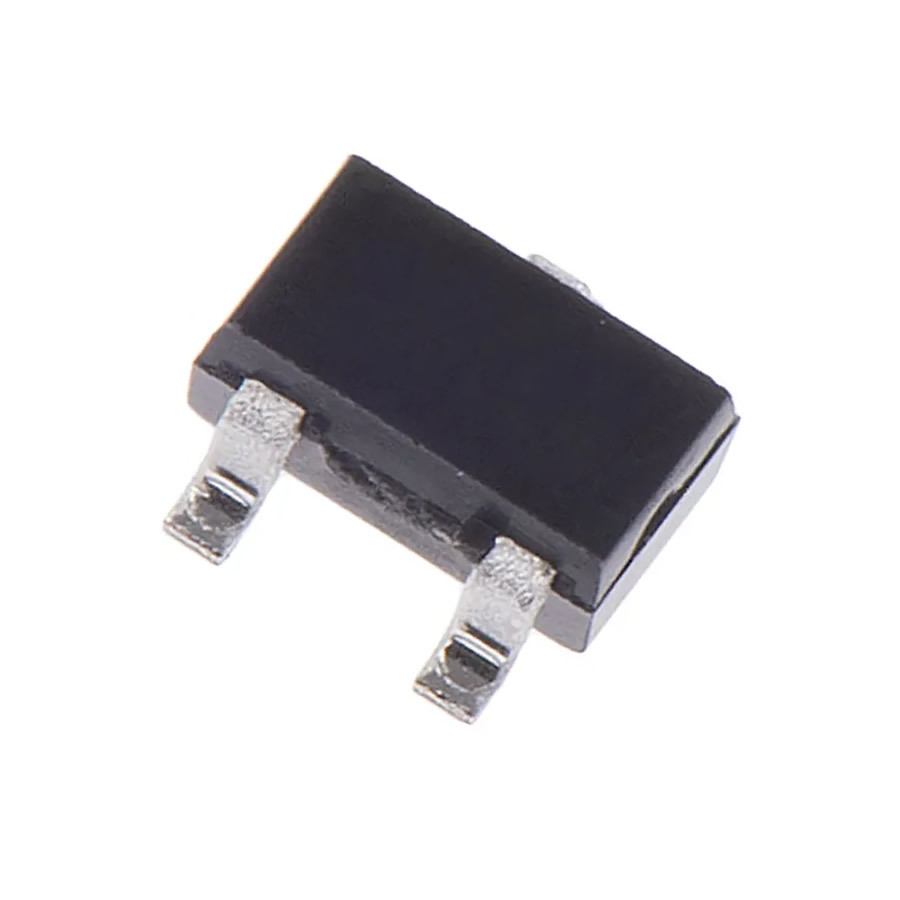

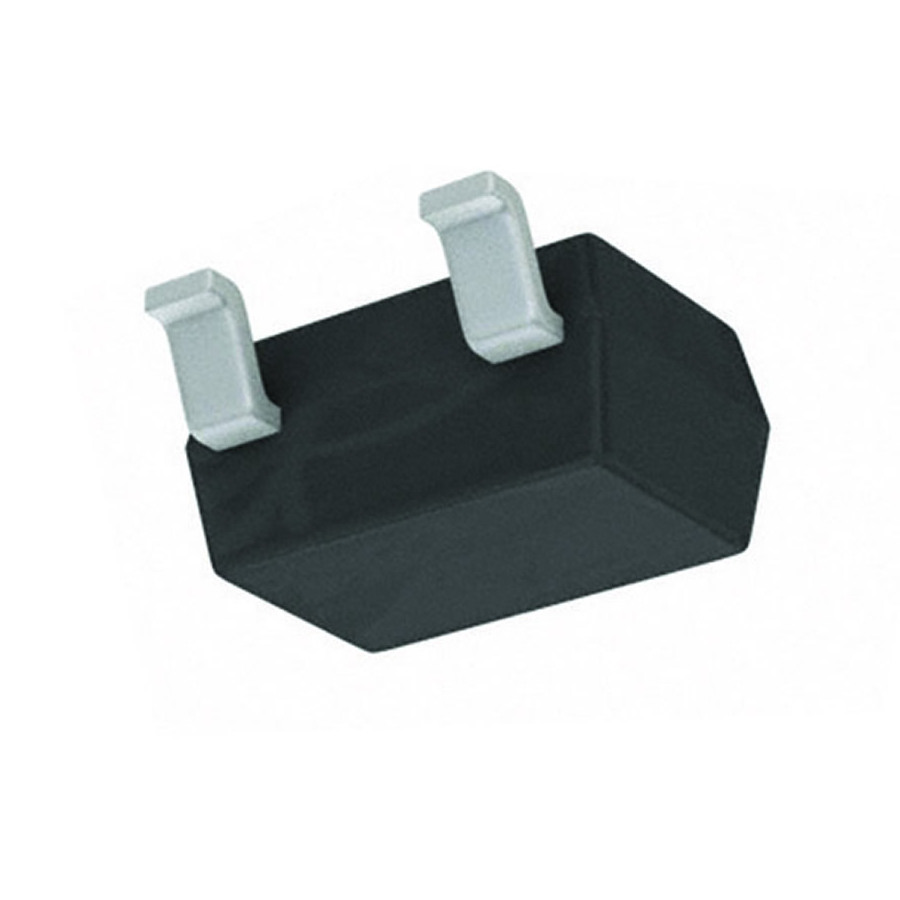

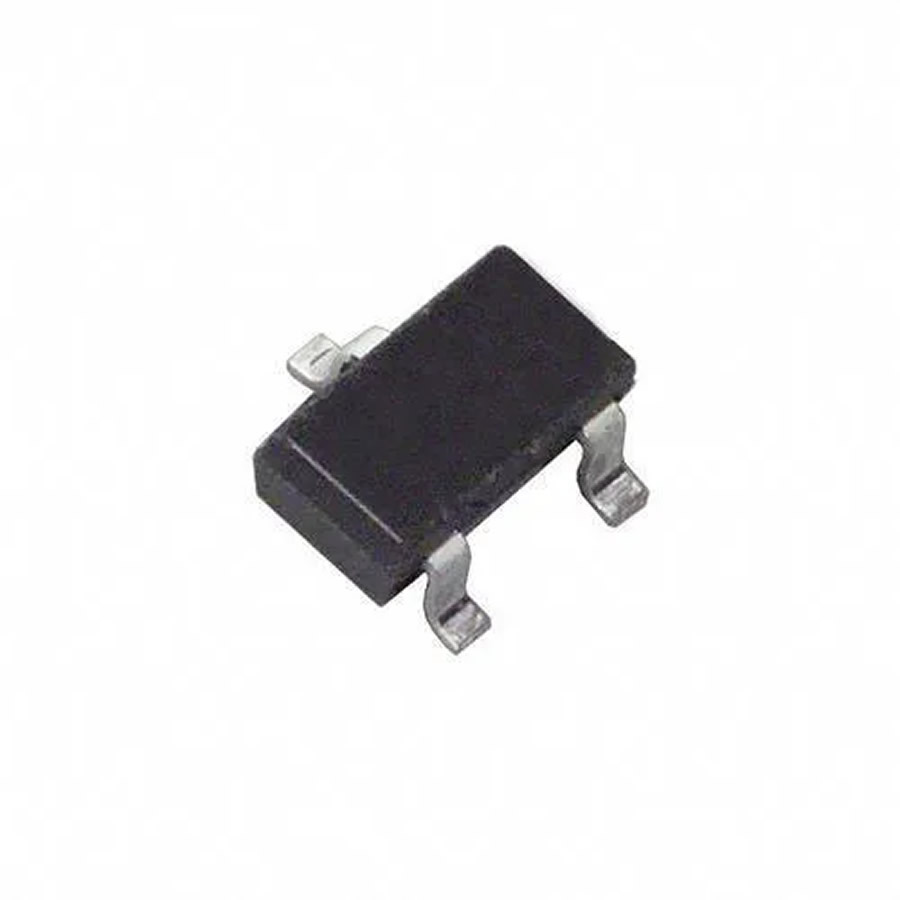

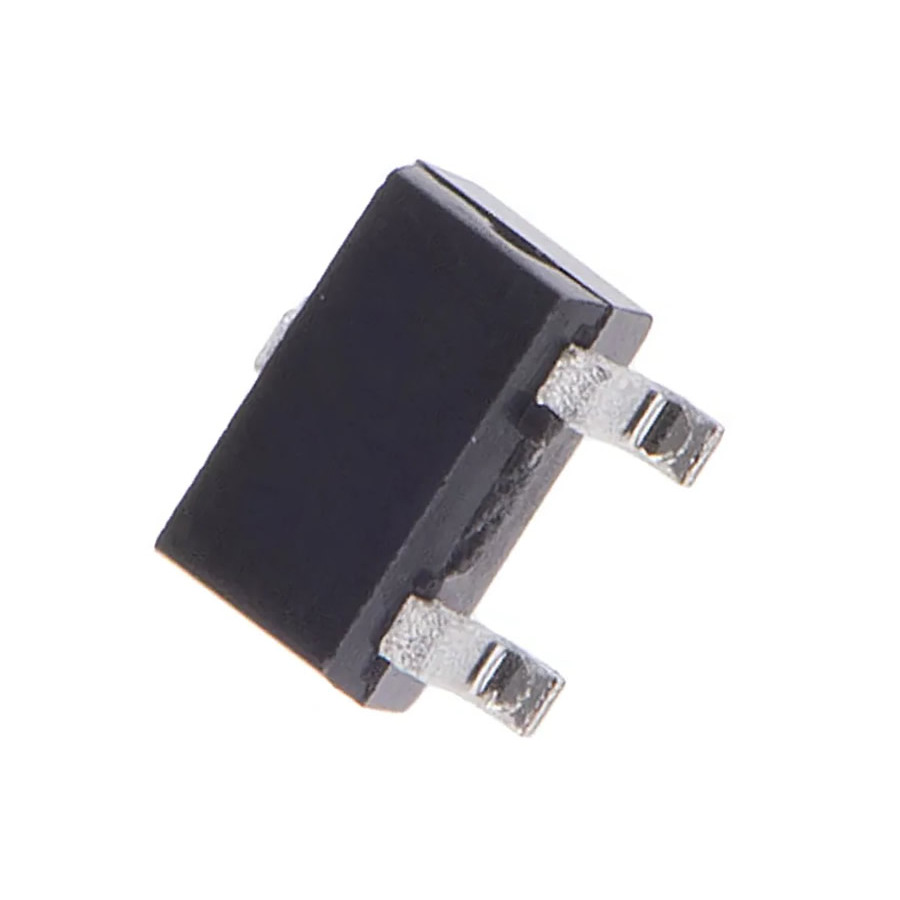

2SA1687 Transistor Silicon PNP CASE: SOT323 MAKE: Sanyo Semiconductor
Datasheet
2SA1687 Datasheet
Product specifications
Type Transistor Silicon PNP
Case SOT323
Manufacturer Sanyo Semiconductor
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 150m
C(ob) (F) 3.5p
hfe 135
Ic Max. (A) 150m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 130M
@VCE (test) (V) 6.0
Oper. Temp (°C) Max. 150
@Ic (A) 1.0m
Pinout Equivalence Number 3-15
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Emitter-Base Voltage |Veb| 8 V
Maximum Collector Current |Ic max| 0.15 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 300
SMD Transistor Code D5_D6_D7
SKU 343089
