2SA1704
View detailed images (4)

2SA1704

SKU: 2SA1704

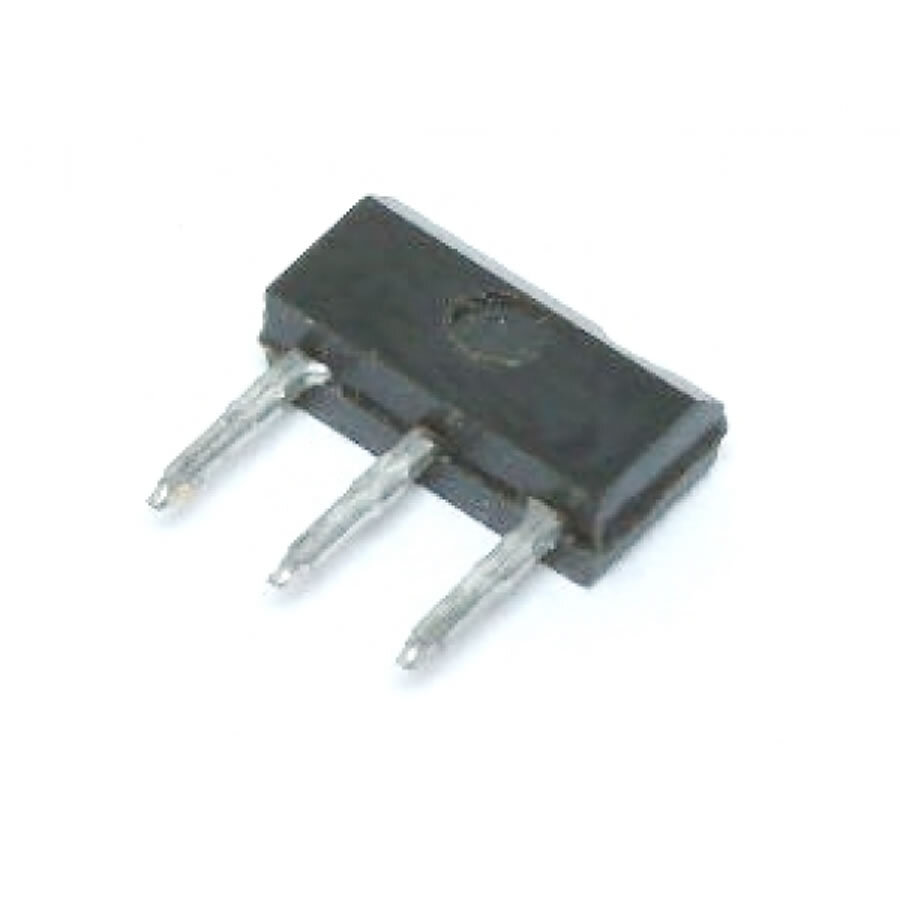

2SA1704 Transistor Silicon PNP CASE: SOT33 MAKE: Sanyo Semiconductor
Datasheet
2SA1704 Datasheet
Product specifications
Type Transistor Silicon PNP
Case SOT33
Manufacturer Sanyo Semiconductor
Vbr CBO 30
Vbr CEO 25
Max. PD (W) 1.0
t(f) Max. (S) 25n-
Max. hFE 400
Min hFE 100
Ic Max. (A) 2.5
@Ic (test) (A) 100m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 150M-
Oper. Temp (°C) Max. 150
@VCE (V) 2.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 1 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 2.5 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 160
SKU 343098
