2SA1745
View detailed images (12)

2SA1745

SKU: 2SA1745

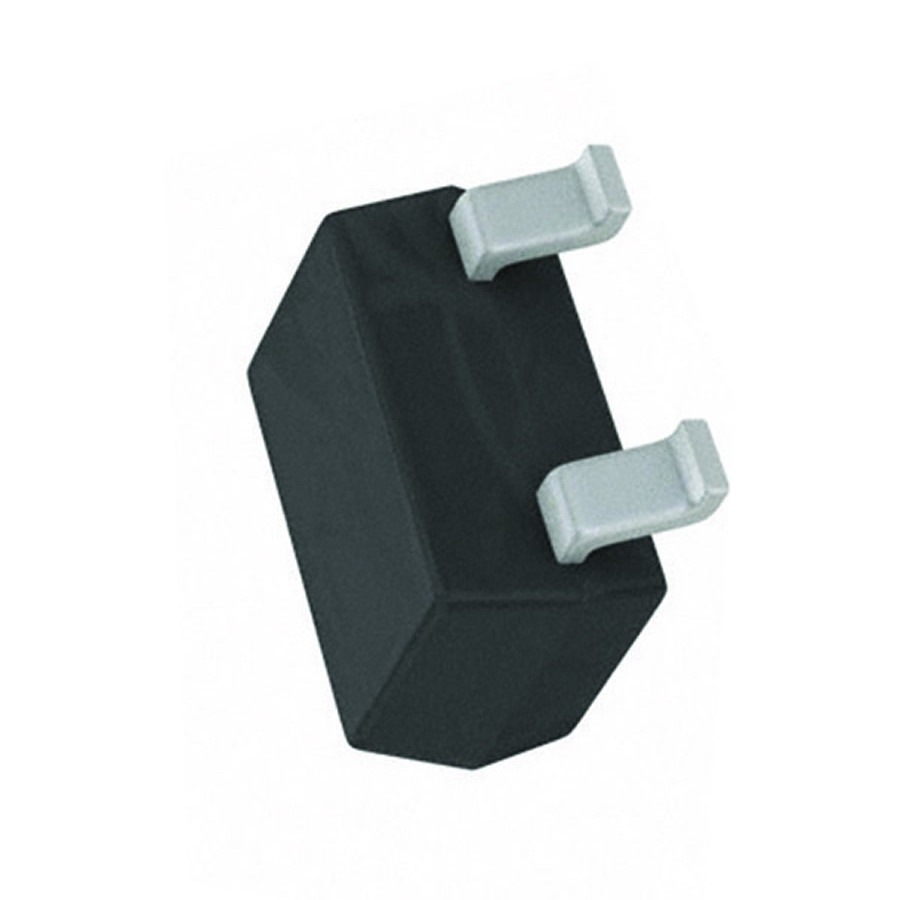

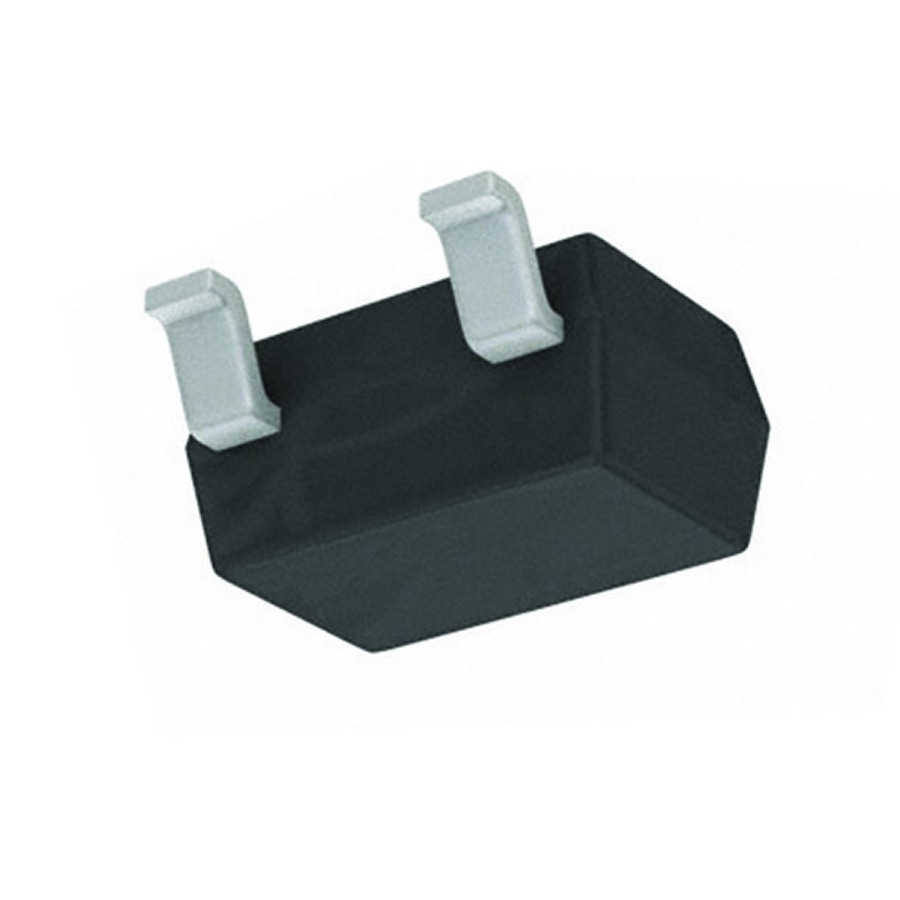

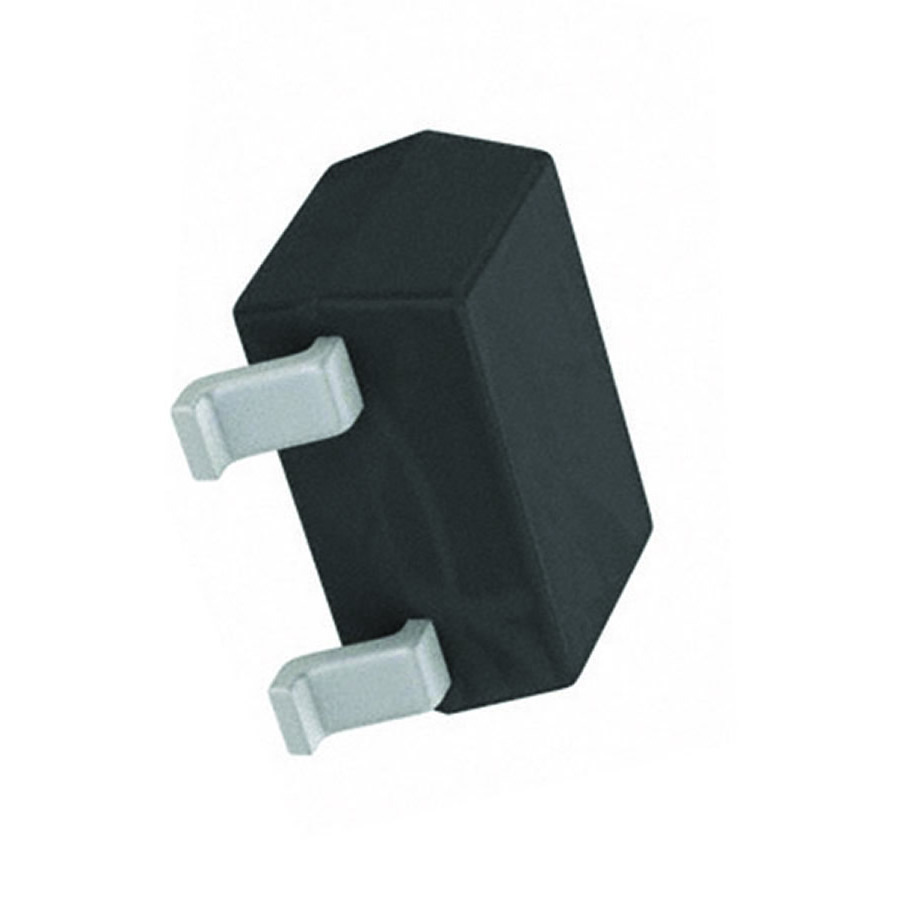

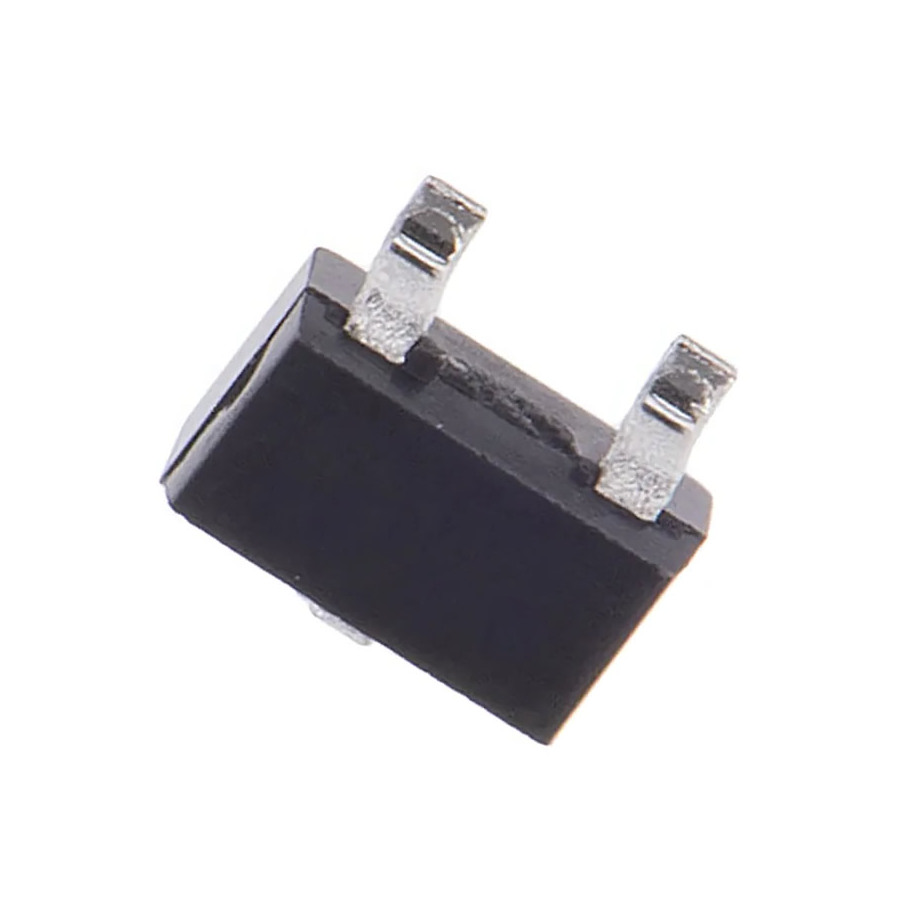

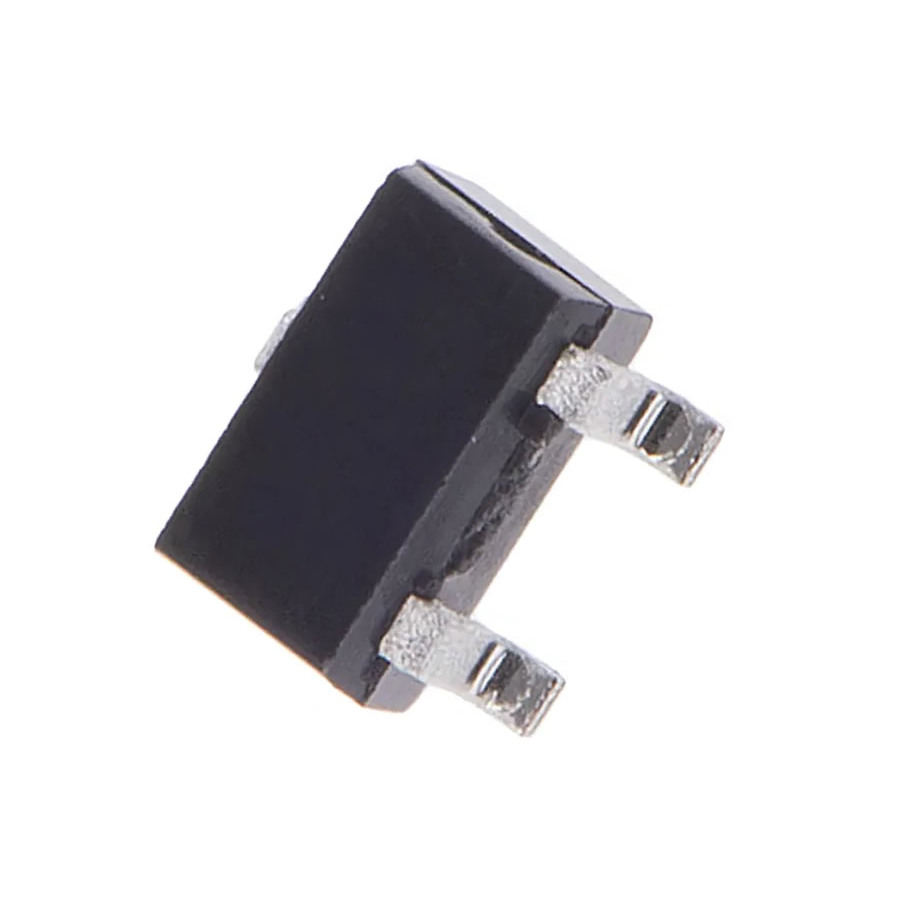

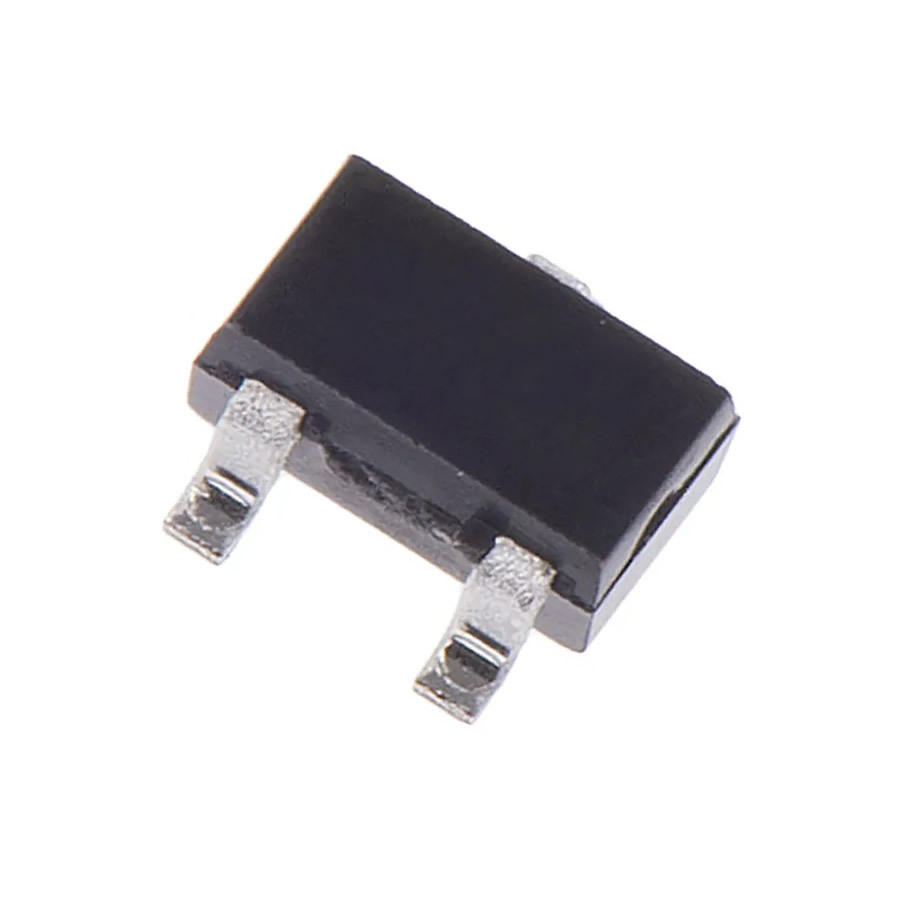

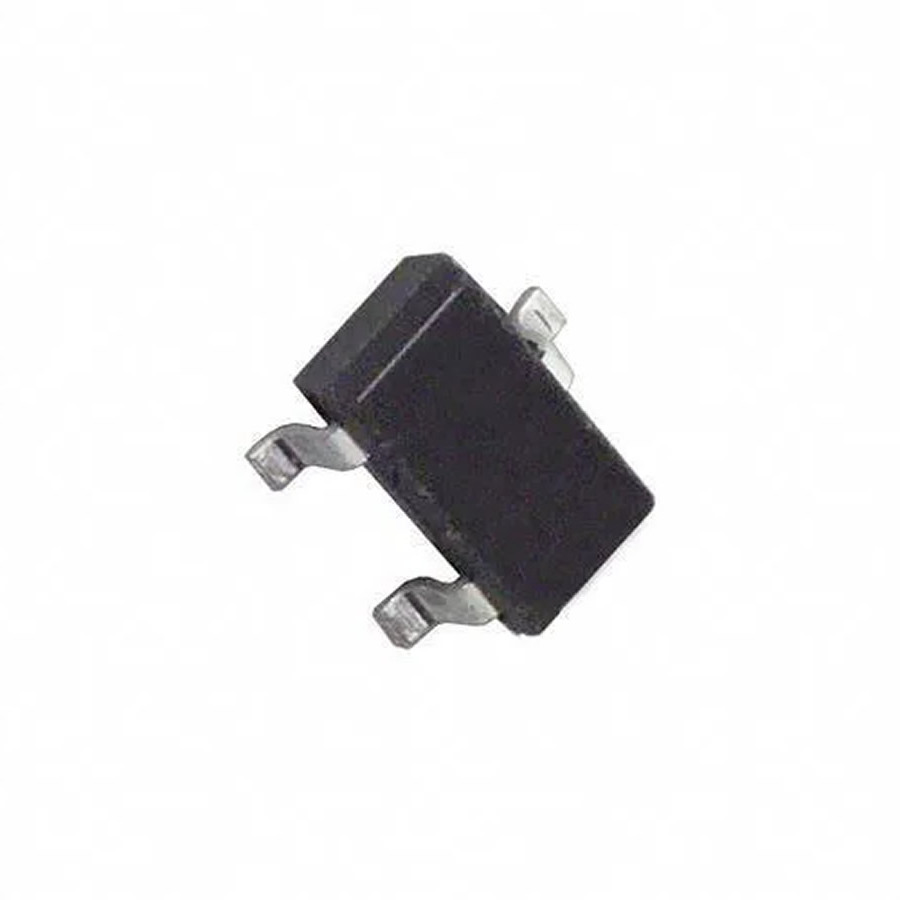

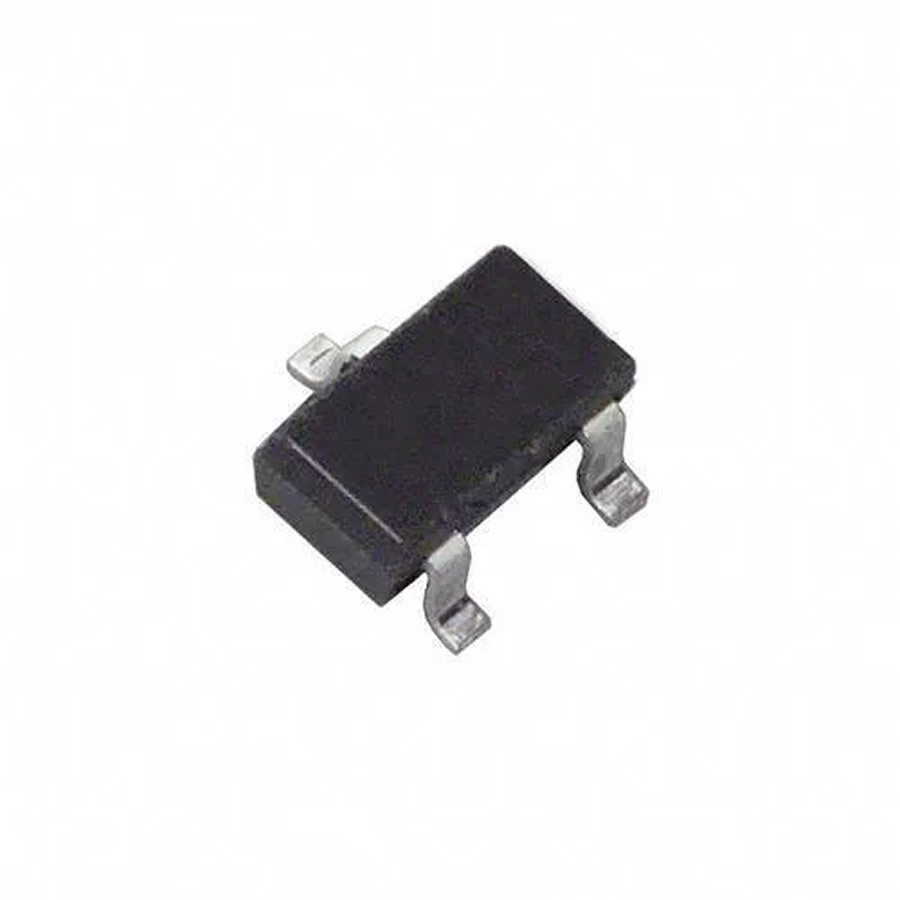

2SA1745 Transistor Silicon PNP CASE: SOT323 MAKE: Sanyo Semiconductor
Datasheet
2SA1745 Datasheet
Product specifications
Type Transistor Silicon PNP
Case SOT323
Manufacturer Sanyo Semiconductor
Vbr CBO 20
Vbr CEO 15
Max. PD (W) 150m
C(ob) (F) 6.5p
hfe 135
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 300M
@VCE (test) (V) 2.0
Oper. Temp (°C) Max. 150
@Ic (A) 10m
Pinout Equivalence Number 3-15
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.9 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 12 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 400 MHz
Forward Current Transfer Ratio (hFE), MIN 180
SKU 343116
