2SA1763
View detailed images (12)

2SA1763

SKU: 2SA1763

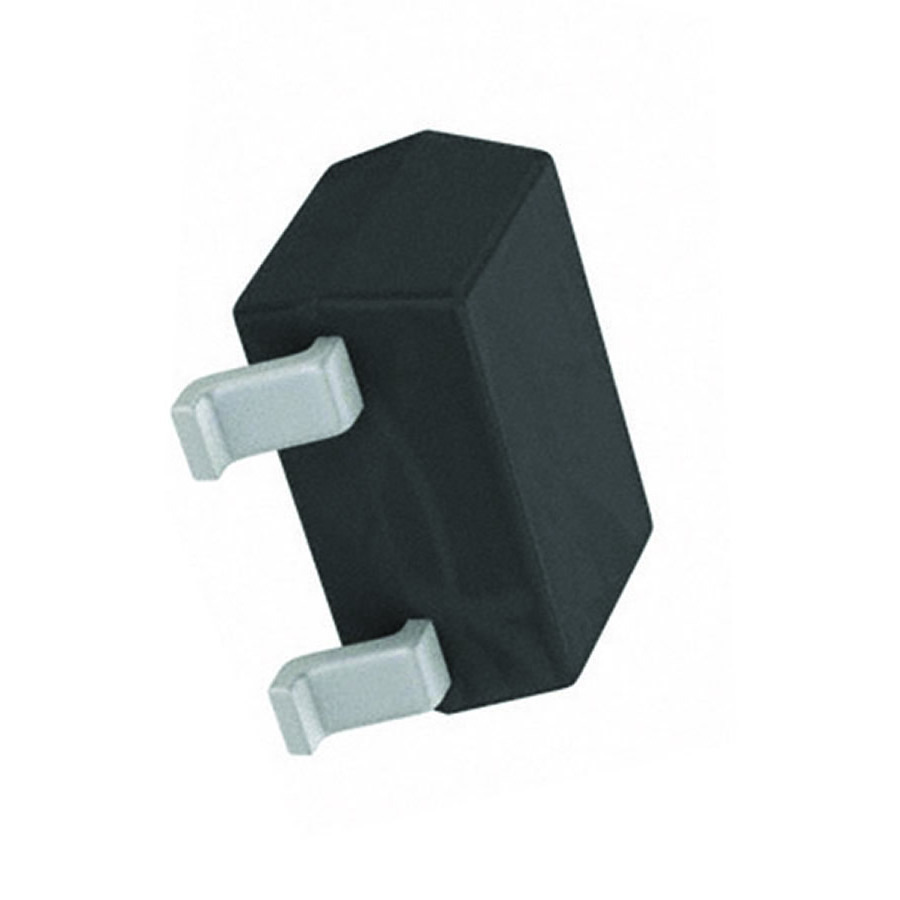

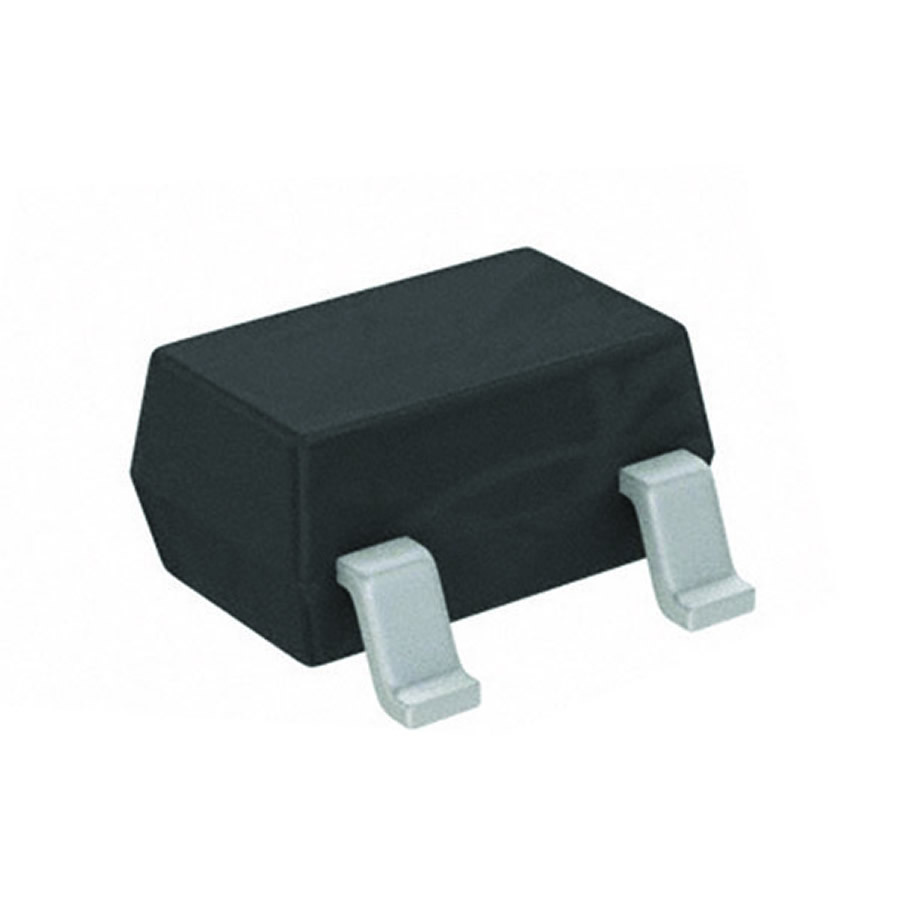

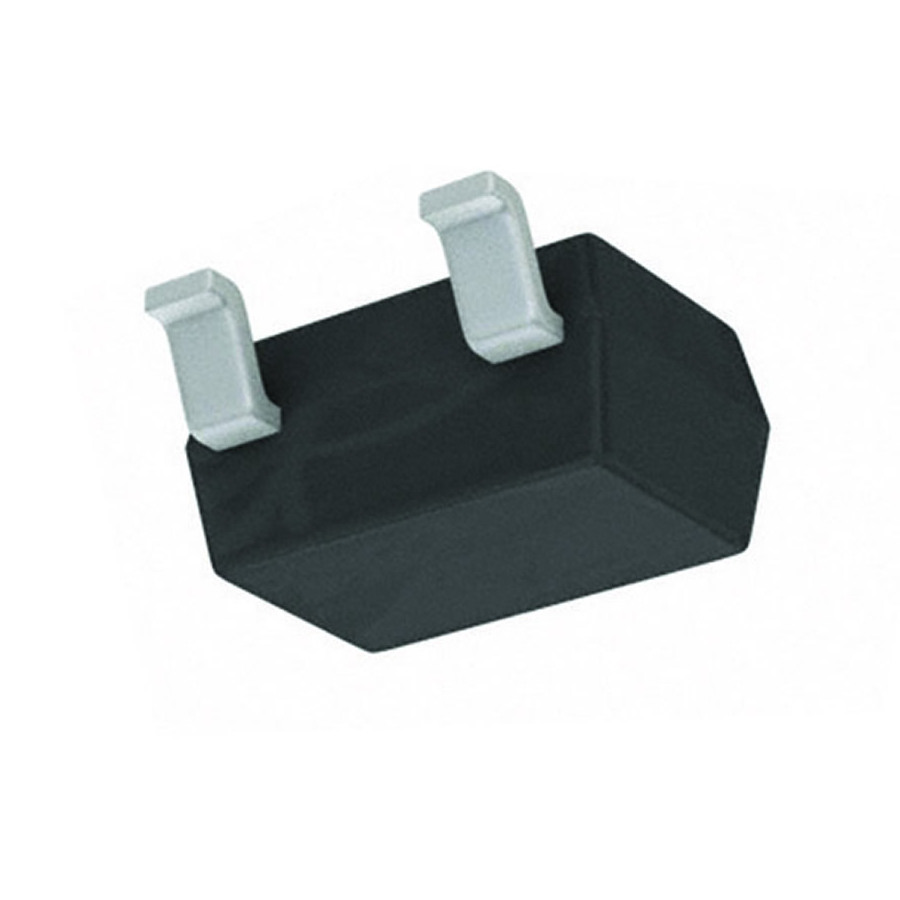

2SA1763 Transistor Silicon PNP CASE: SOT323 MAKE: Sanyo Semiconductor
Datasheet
2SA1763 Datasheet
Product specifications
Type Transistor Silicon PNP
Case SOT323
Manufacturer Sanyo Semiconductor
Vbr CBO 15
Vbr CEO 15
Max. PD (W) 150m
C(ob) (F) 3.0p
hfe 50
Ic Max. (A) 200m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
t(stor) Max. (S) 21n-
Trans. Freq (Hz) Min. 450M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 150
@Ic (A) 10m
Pinout Equivalence Number 3-15
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 12 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 450 MHz
Forward Current Transfer Ratio (hFE), MIN 90
SMD Transistor Code FS
SKU 343125
