2SA1774
View detailed images (8)

2SA1774

SKU: 2SA1774

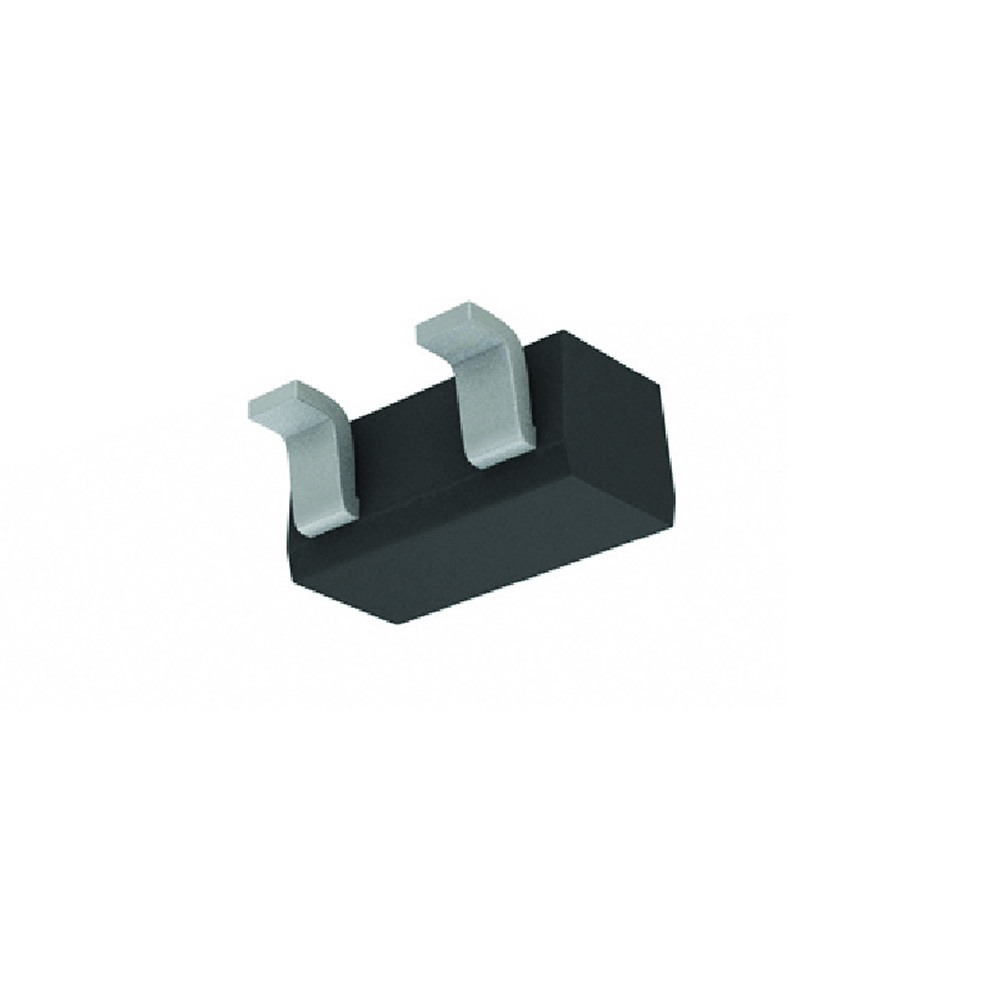

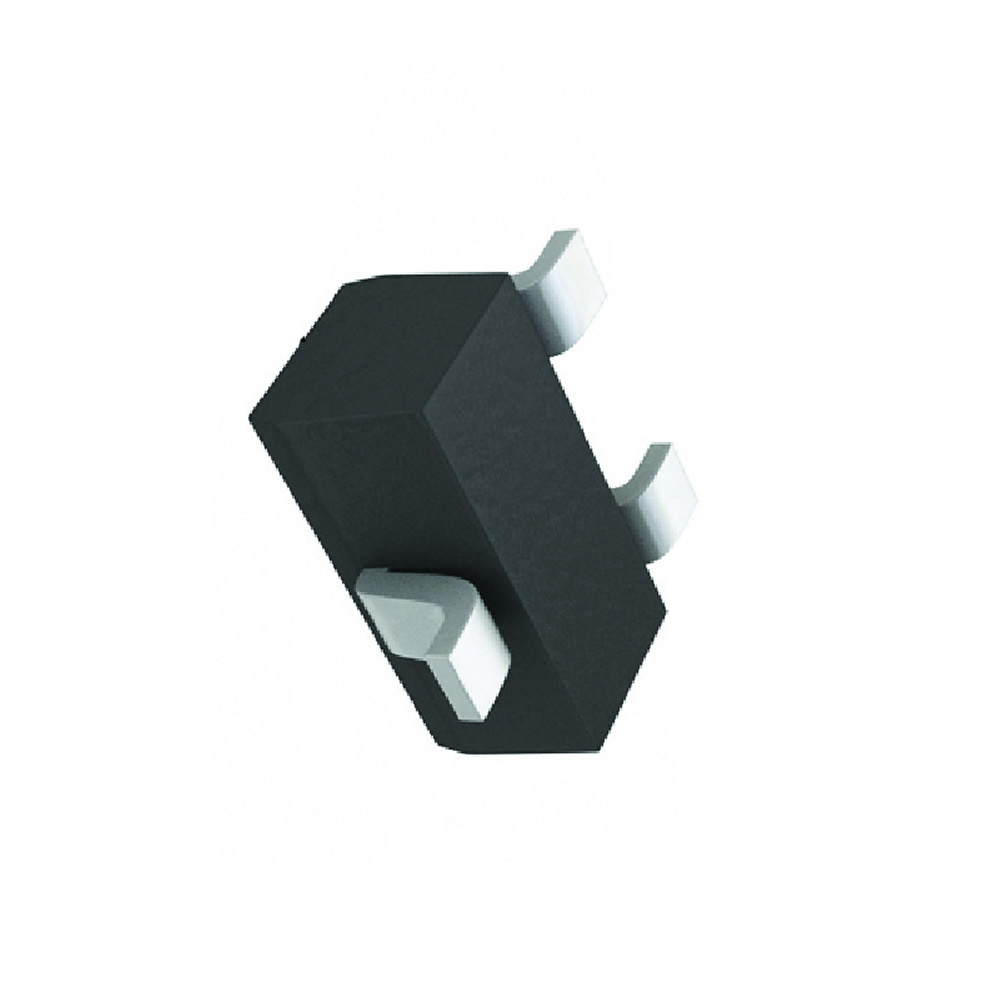

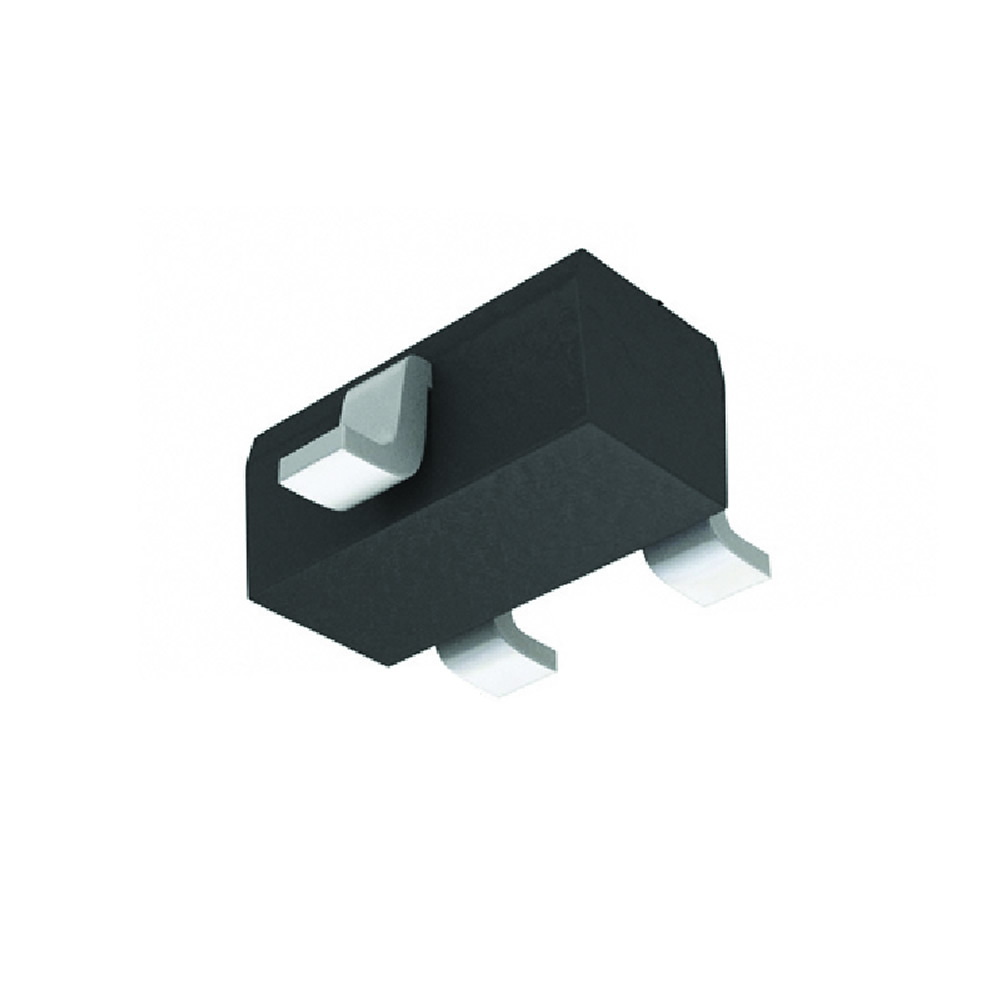

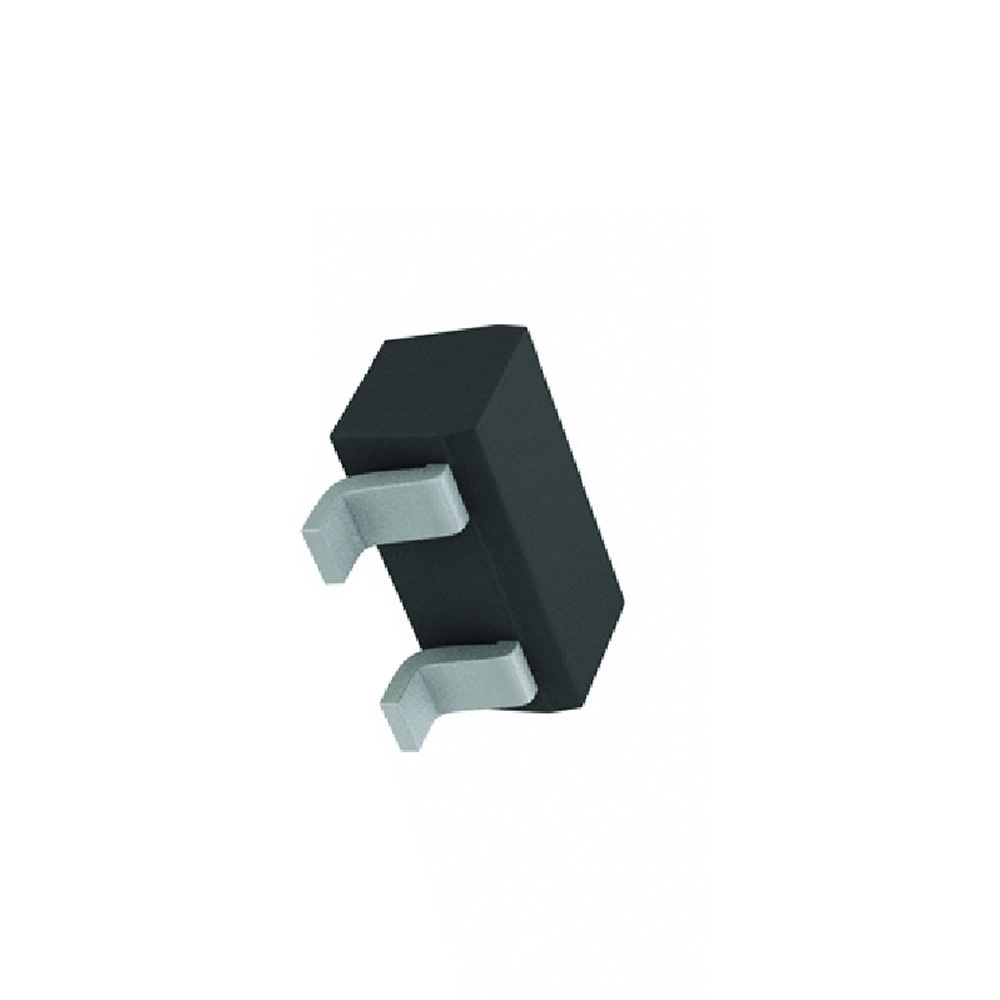

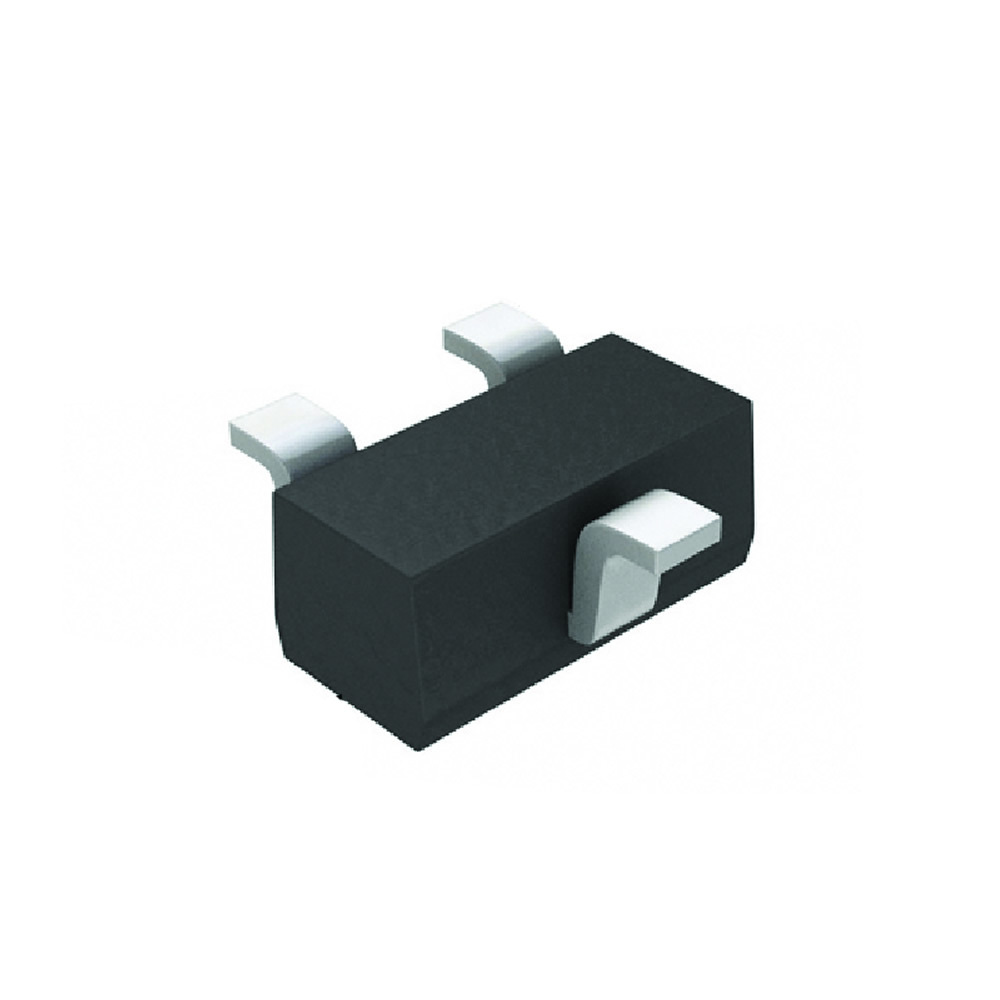

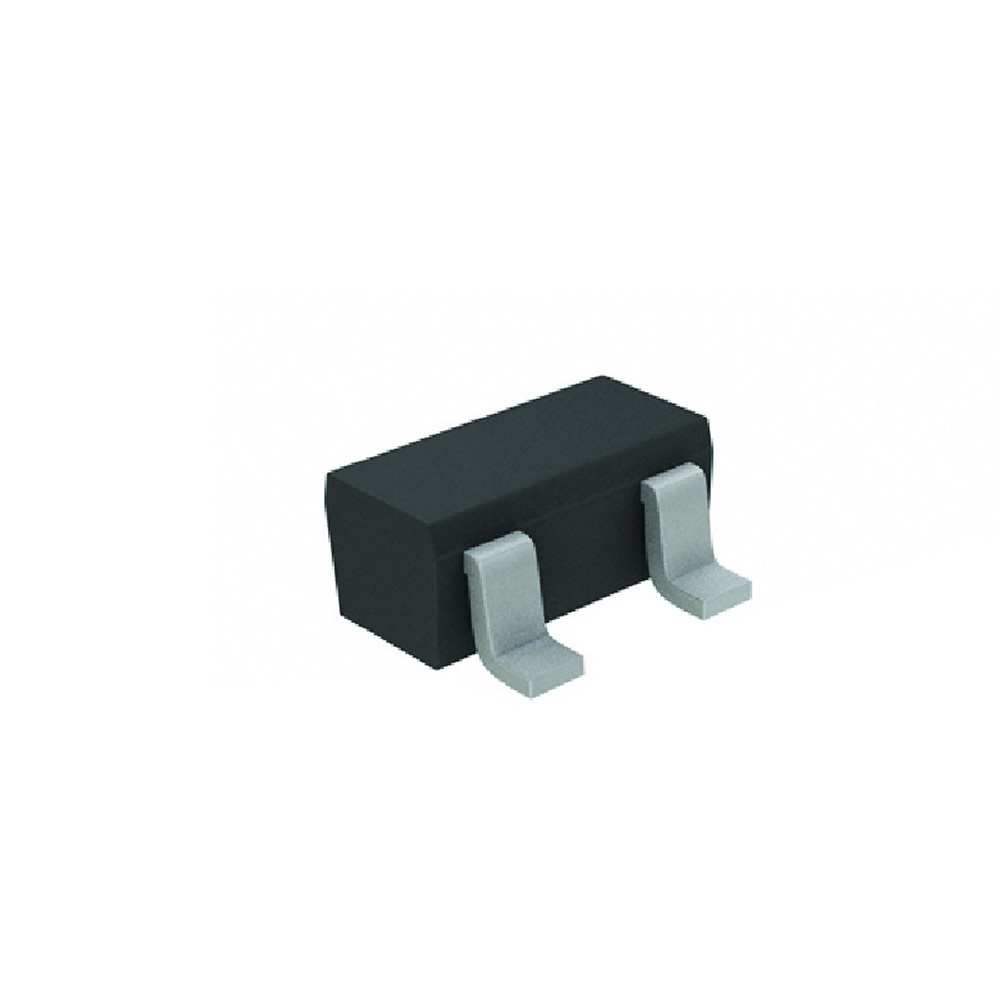

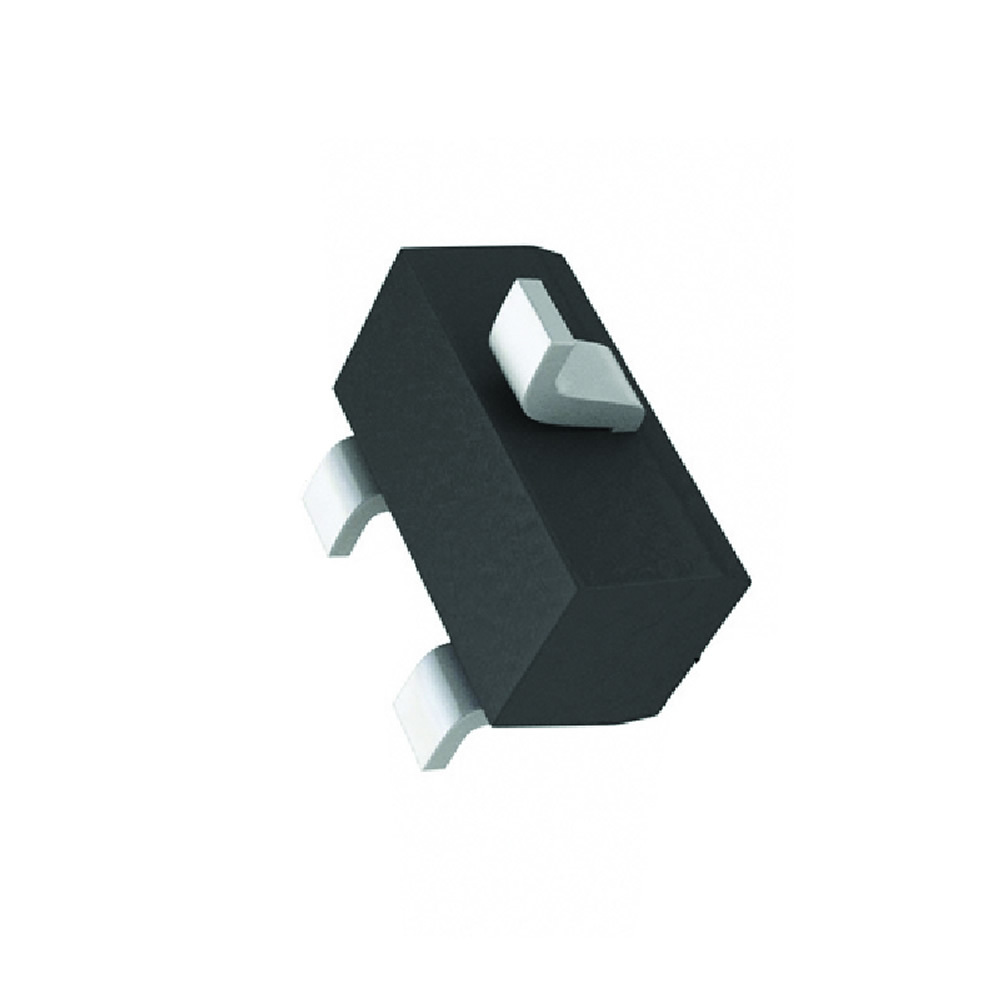

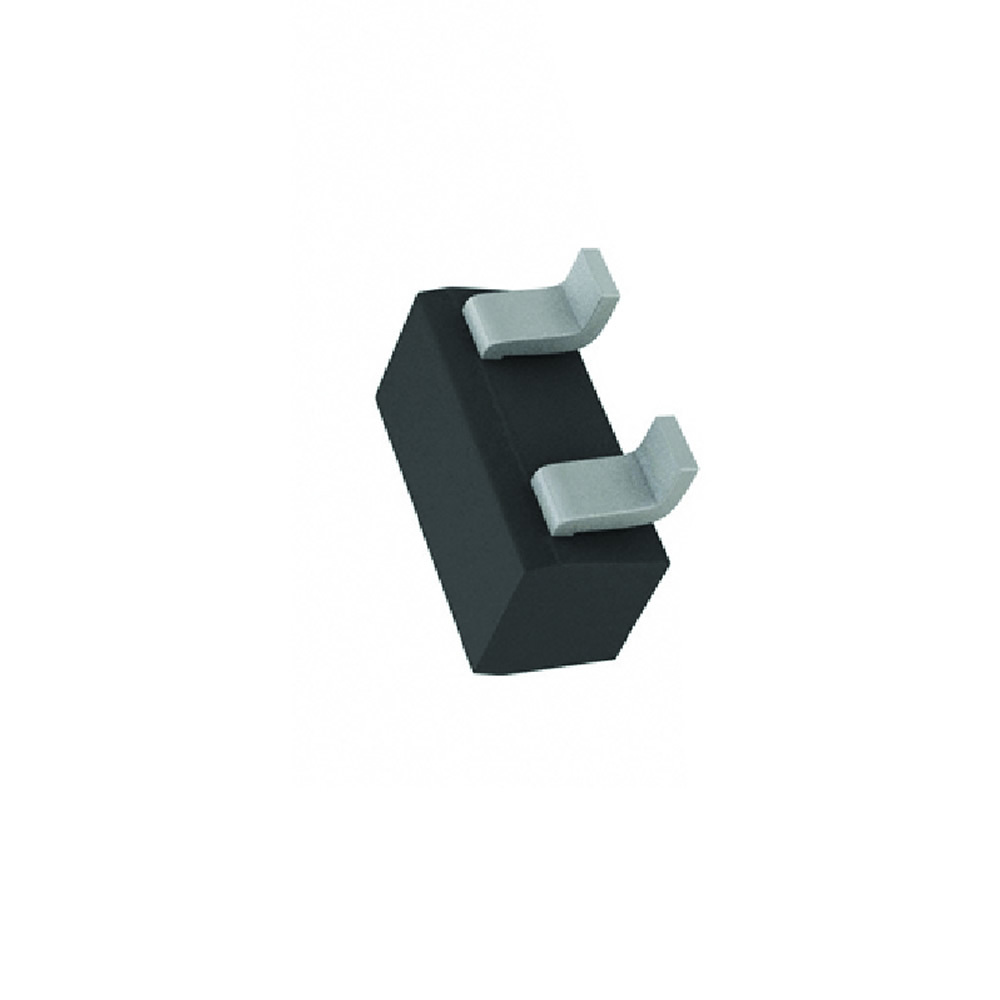

2SA1774 Transistor Silicon PNP CASE: SOT416 MAKE: ON Semiconductor
Datasheet
2SA1774 Datasheet
Product specifications
Type Transistor Silicon PNP
Case SOT416
Manufacturer ON Semiconductor
Vbr CEO 40
Max. PD (W) 150m
Ic Max. (A) 100m
Polarity PNP
Pinout Equivalence Number 3-12
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 3.5 pF
Transition Frequency (ft): 140 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SMD Transistor Code F9_FR
SKU 343135
