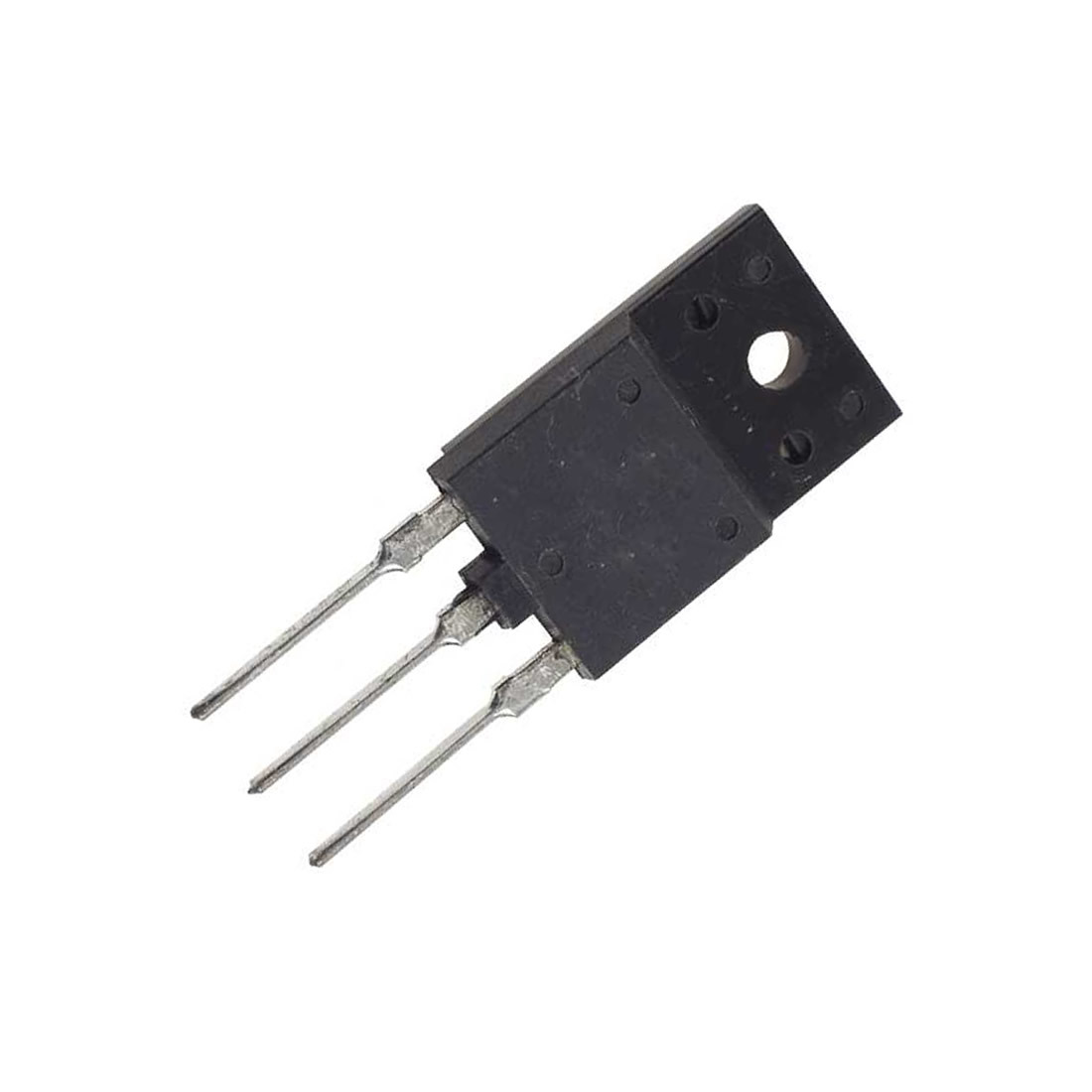

2SA1803R

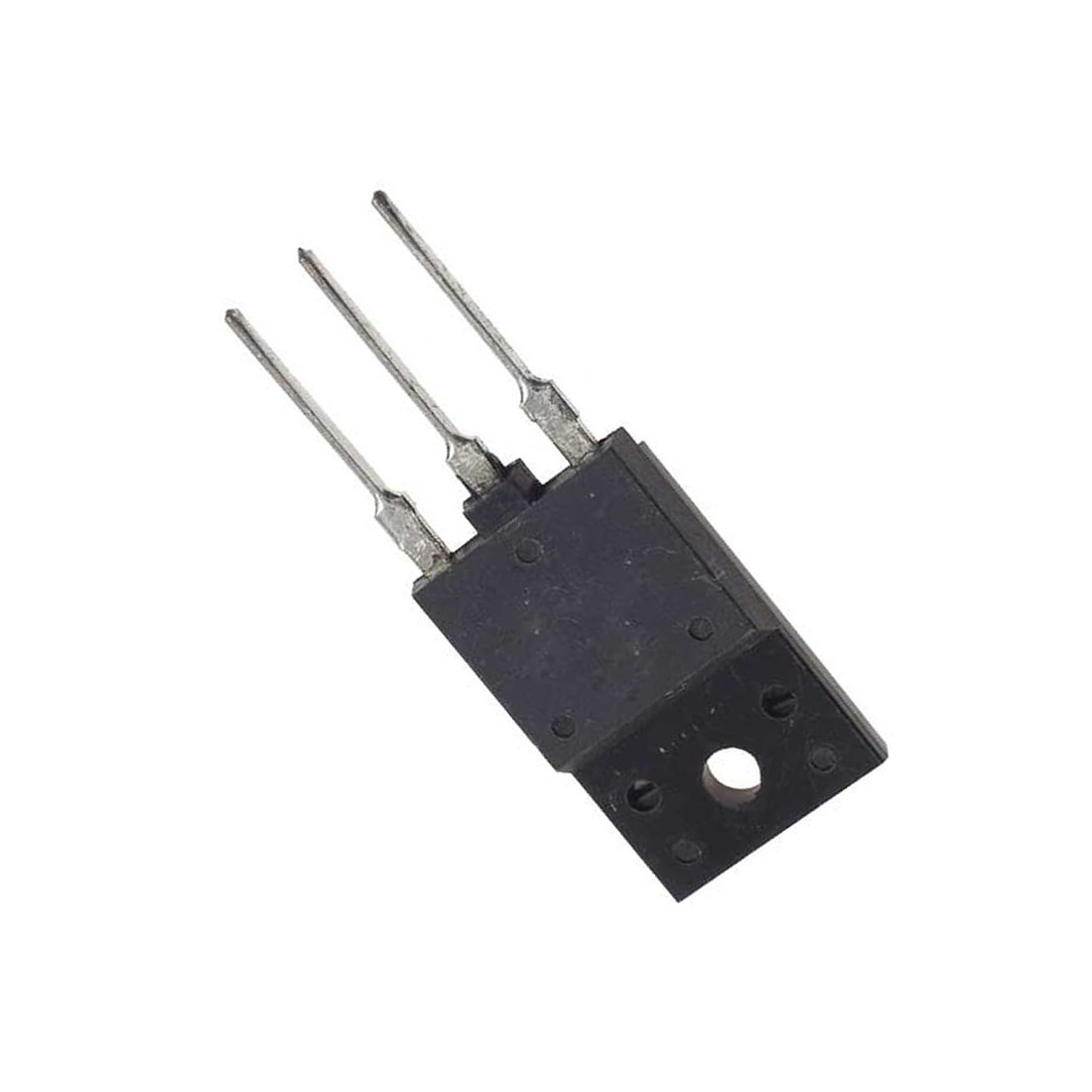

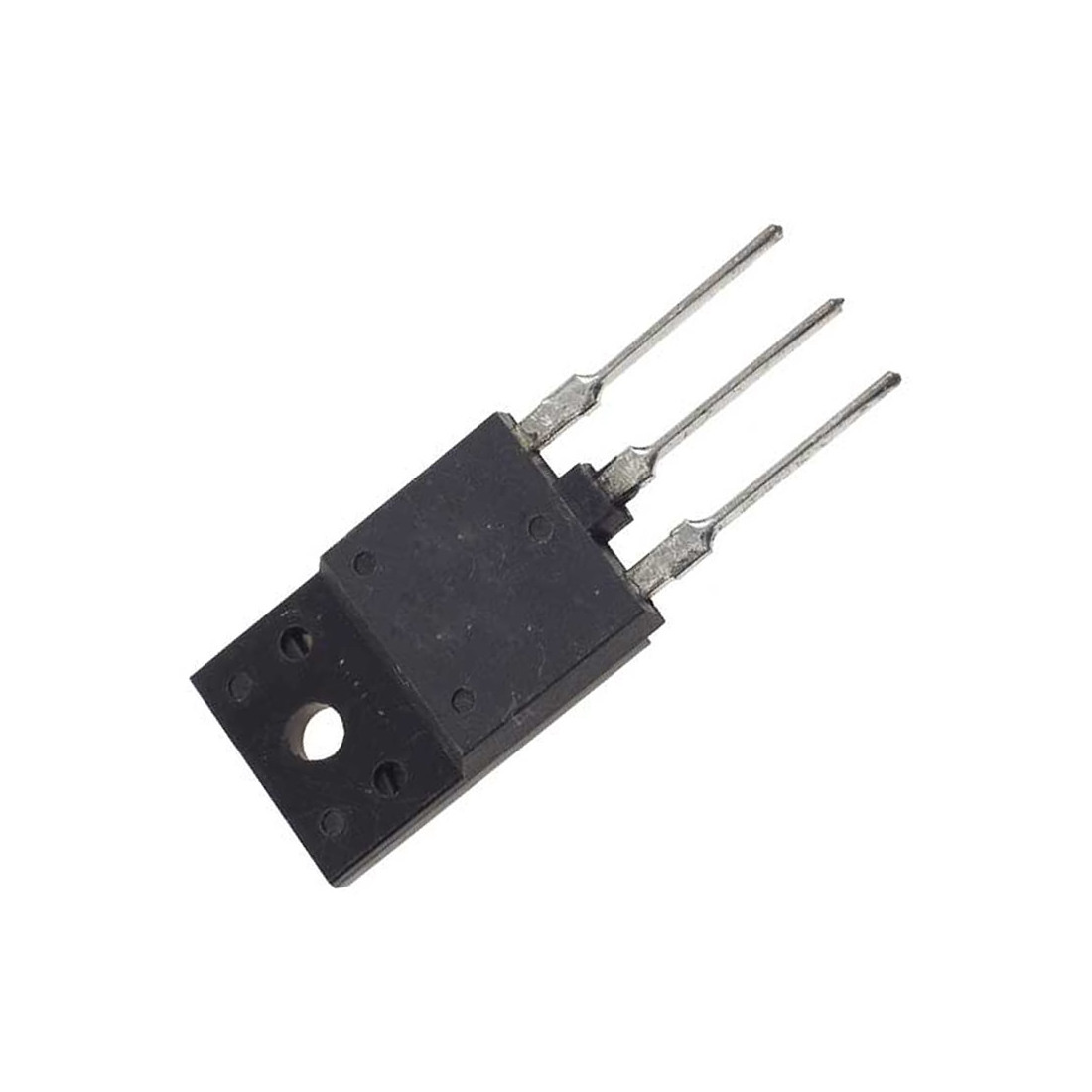

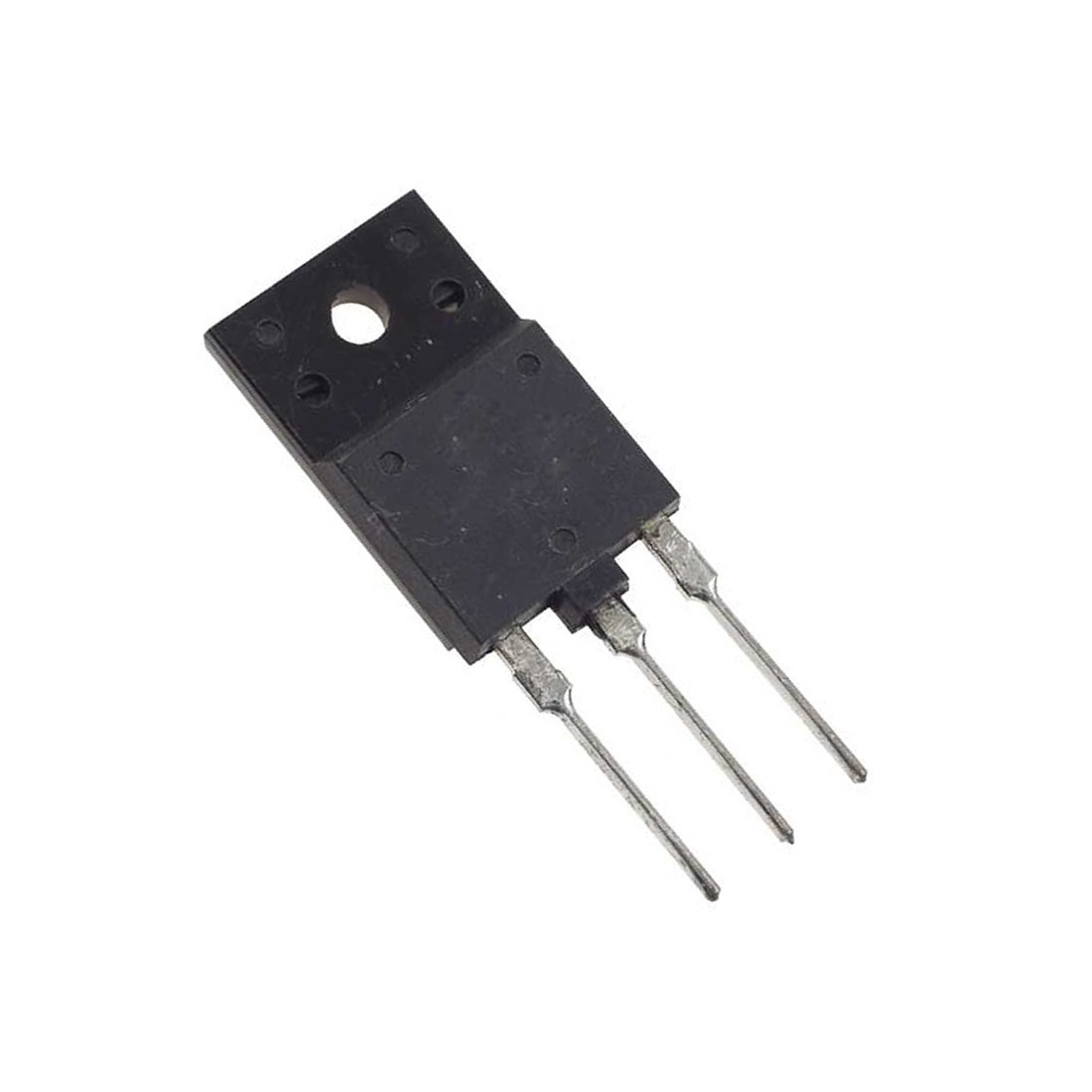

View detailed images (4)

2SA1803R

SKU: 2SA1803R
2SA1803R Transistor Silicon PNP CASE: TO247F MAKE: Toshiba
Product specifications
Type Transistor Silicon PNP
Case TO247F
Manufacturer Toshiba
Polarity PNP
Maximum Collector Power Dissipation (Pc) 55 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 6 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 290 pF
Transition Frequency (ft): 30 MHz
Forward Current Transfer Ratio (hFE), MIN 55
SKU 769421
