2SA235
View detailed images (4)

2SA235

SKU: 2SA235

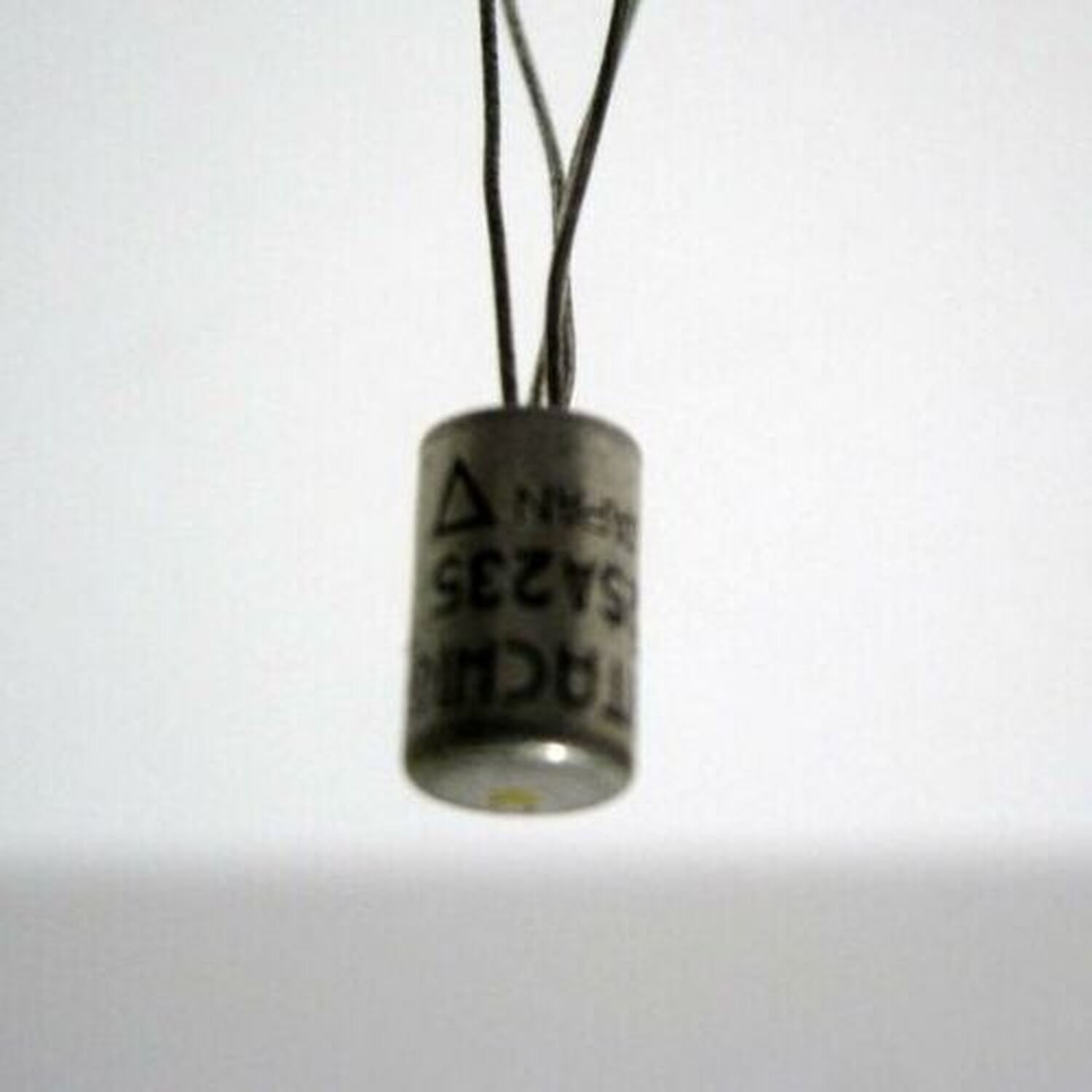

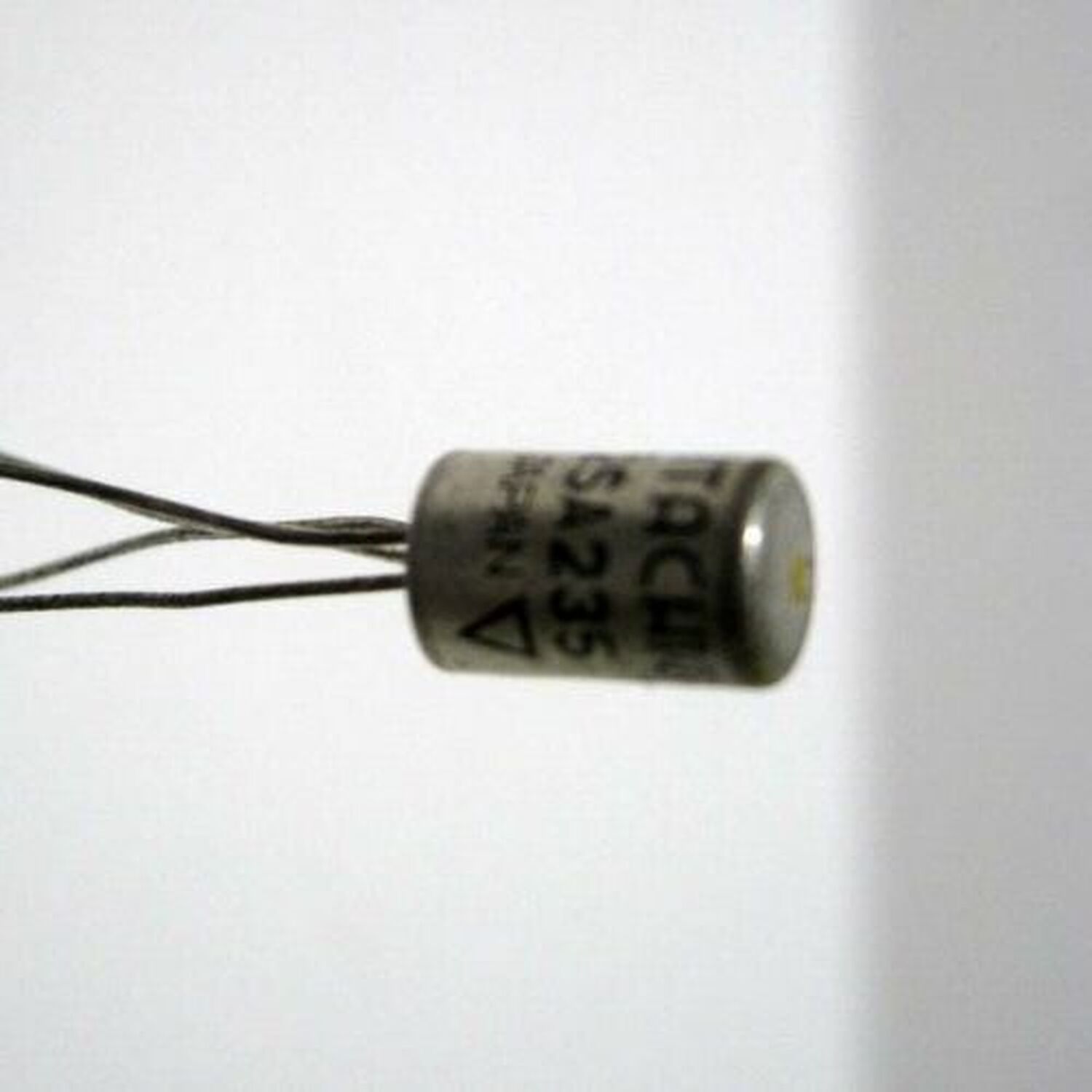

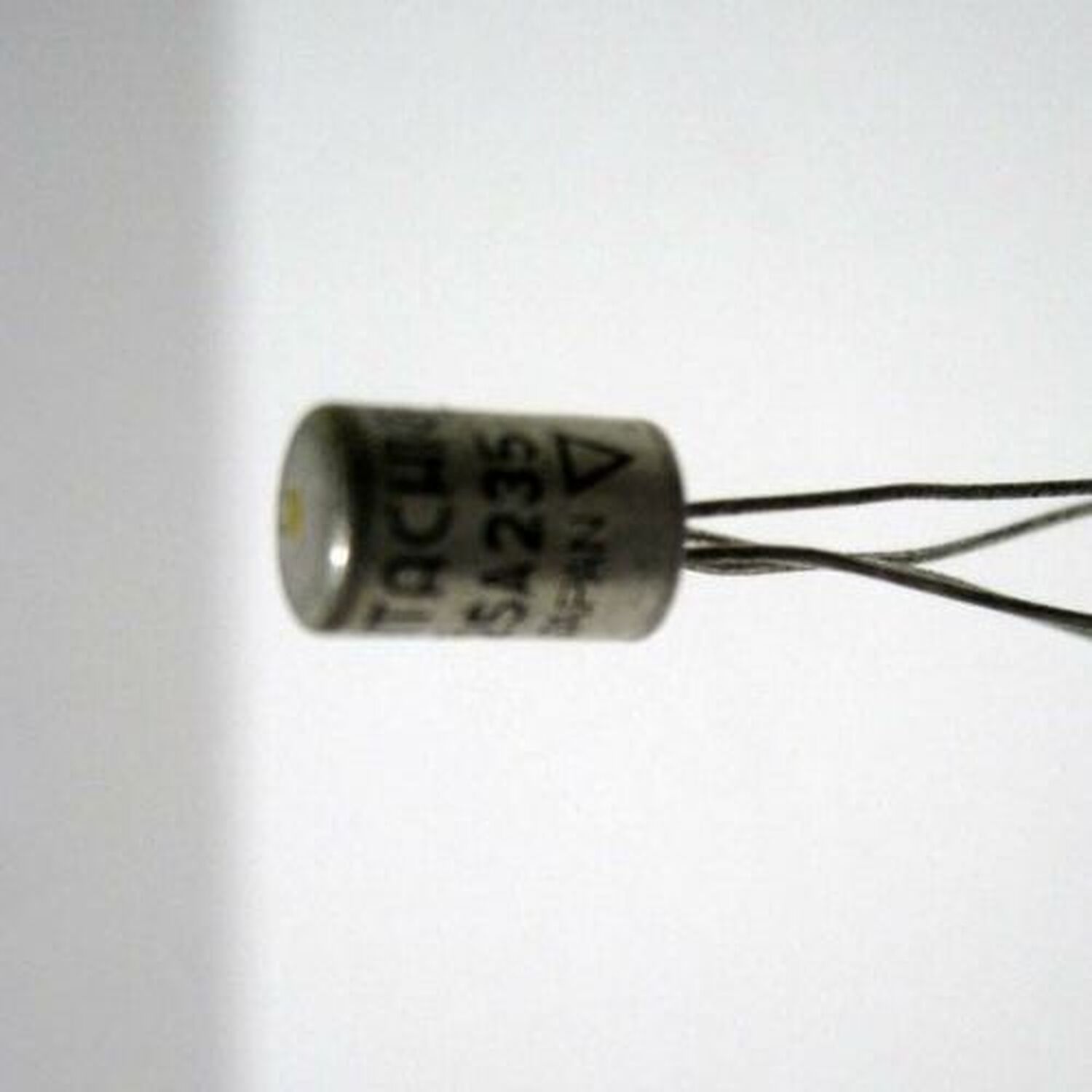

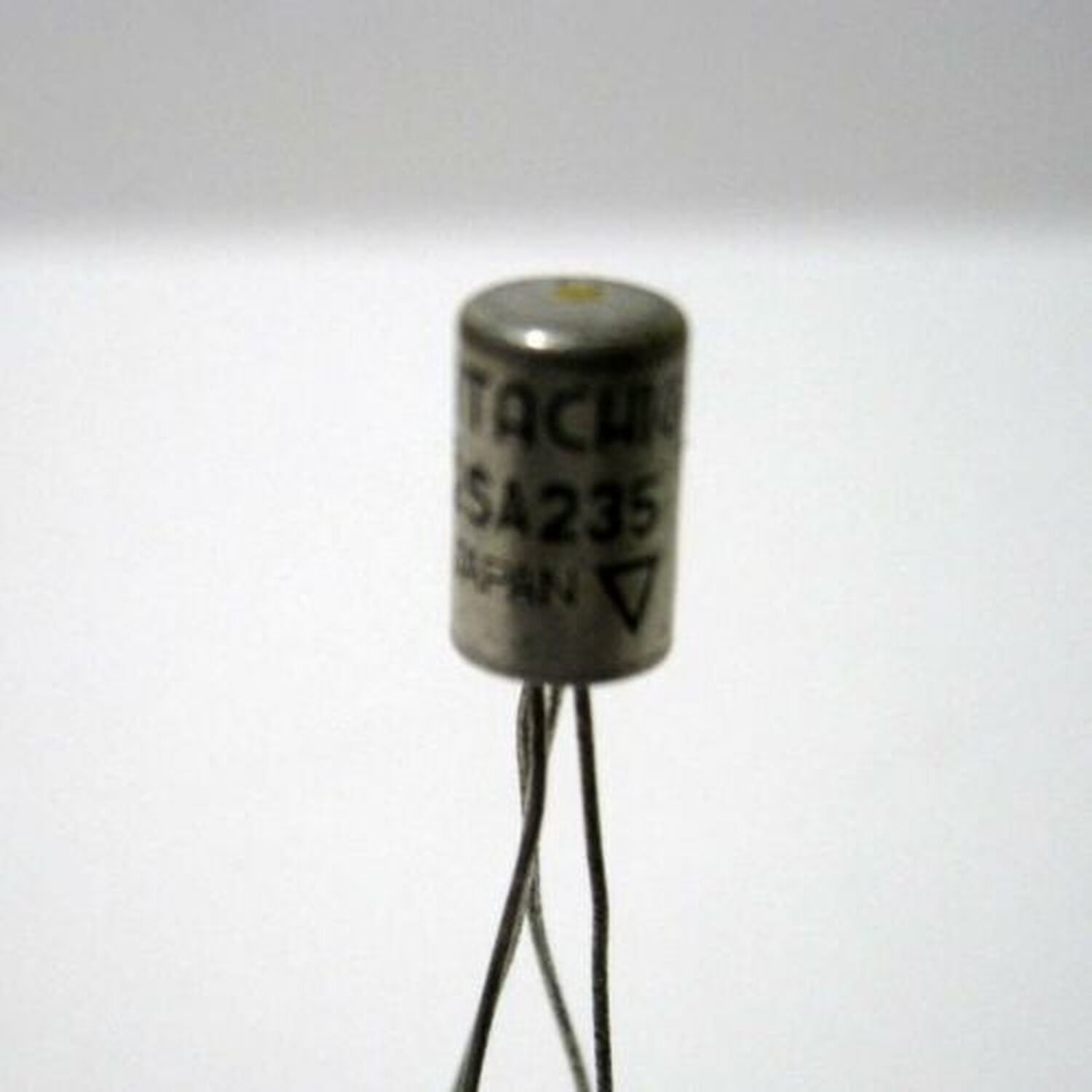

2SA235 Transistor Germanium PNP CASE: TO44-2 MAKE: Generic
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Germanium PNP
Case TO44-2
Manufacturer Generic
Vbr CBO 20
Max. PD (W) 80m
C(ob) (F) 2.1p
hfe 90
Ic Max. (A) 10m
Icbo Max. @Vcb Max. (A) 30u
Polarity PNP
Trans. Freq (Hz) Min. 135M
@VCE (test) (V) 6.0
@Ic (A) 1.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.08 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Emitter-Base Voltage |Veb| 1 V
Maximum Collector Current |Ic max| 0.01 A
Max. Operating Junction Temperature (Tj) 75 °C
Collector Capacitance (Cc) 3 pF
Transition Frequency (ft): 65 MHz
Forward Current Transfer Ratio (hFE), MIN 90
SKU 394723
