2SA296
View detailed images (13)

2SA296

SKU: 2SA296

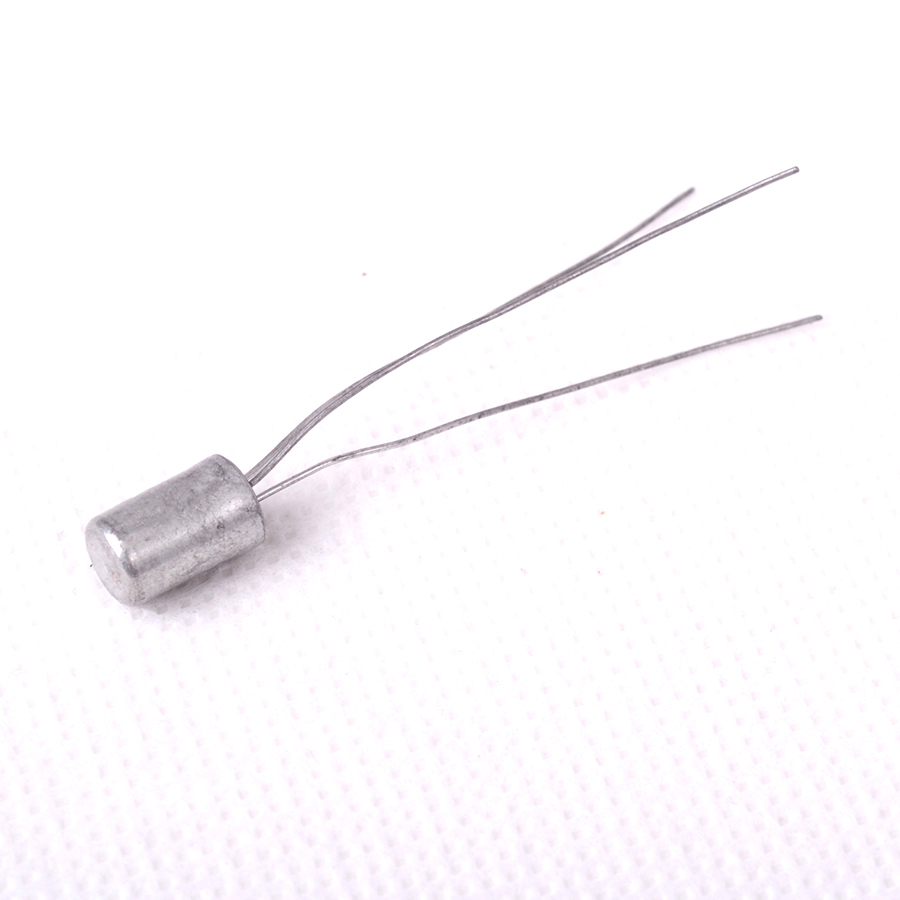

2SA296 Transistor Germanium PNP CASE: TO1 MAKE: Japan Radio Co - JRC
Product specifications
Type Transistor Germanium PNP
Case TO1
Manufacturer Japan Radio Co - JRC
Vbr CBO 15
Max. PD (W) 80m
C(ob) (F) 13p
hfe 45
Ic Max. (A) 15m
Icbo Max. @Vcb Max. (A) 5.0u
Polarity PNP
Trans. Freq (Hz) Min. 5.0M
@VCE (test) (V) 6.0
Oper. Temp (°C) Max. 100
@Ic (A) 1.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.08 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 12 V
Maximum Collector Current |Ic max| 0.015 A
Max. Operating Junction Temperature (Tj) 85 °C
Collector Capacitance (Cc) 15 pF
Transition Frequency (ft): 2 MHz
Forward Current Transfer Ratio (hFE), MIN 45
SKU 768997
