2SA683
View detailed images (12)

2SA683

SKU: 2SA683

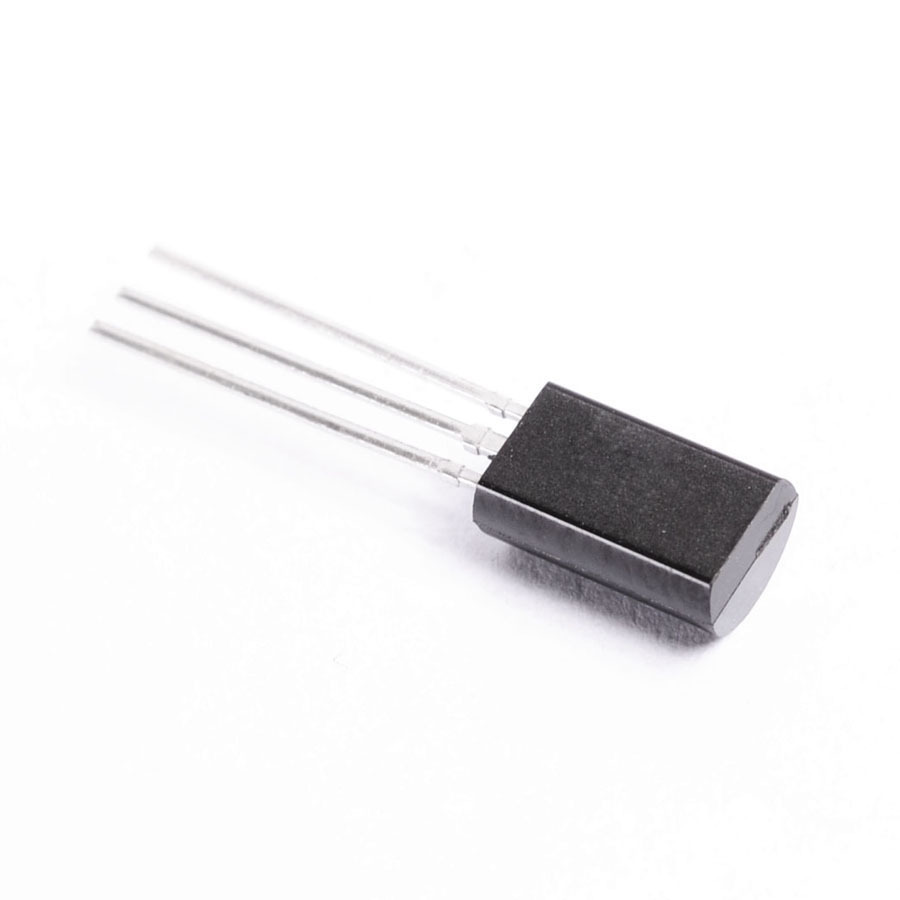

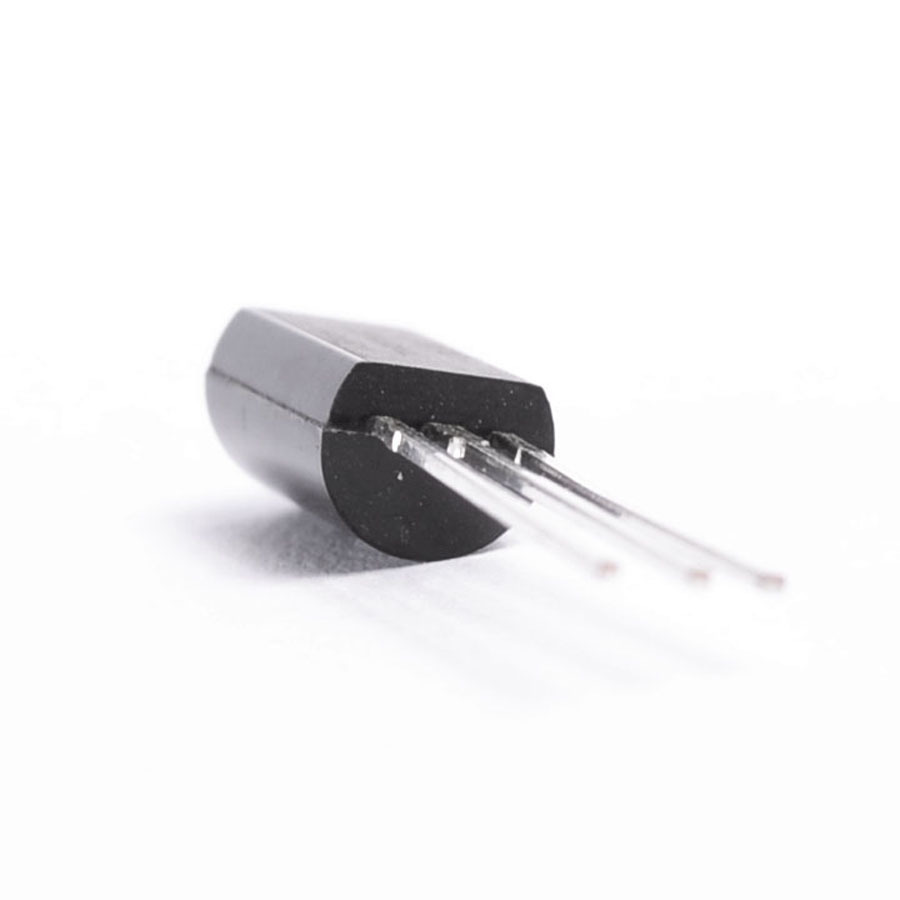

2SA683 Transistor Silicon PNP CASE: TO92L MAKE: Panasonic
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 6 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SA683 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO92L
Manufacturer Panasonic
Vbr CBO 30
Vbr CEO 25
Max. PD (W) 750m
Derate (Amb) (W/°C) 6.8m
Max. hFE 340
Min hFE 60
Ic Max. (A) 1.5
@Ic (test) (A) 500m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 200M
Oper. Temp (°C) Max. 140
@VCE (V) 10
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.75 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 1.5 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 30 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 60
SKU 80551
