2SA71
View detailed images (4)

2SA71

SKU: 2SA71

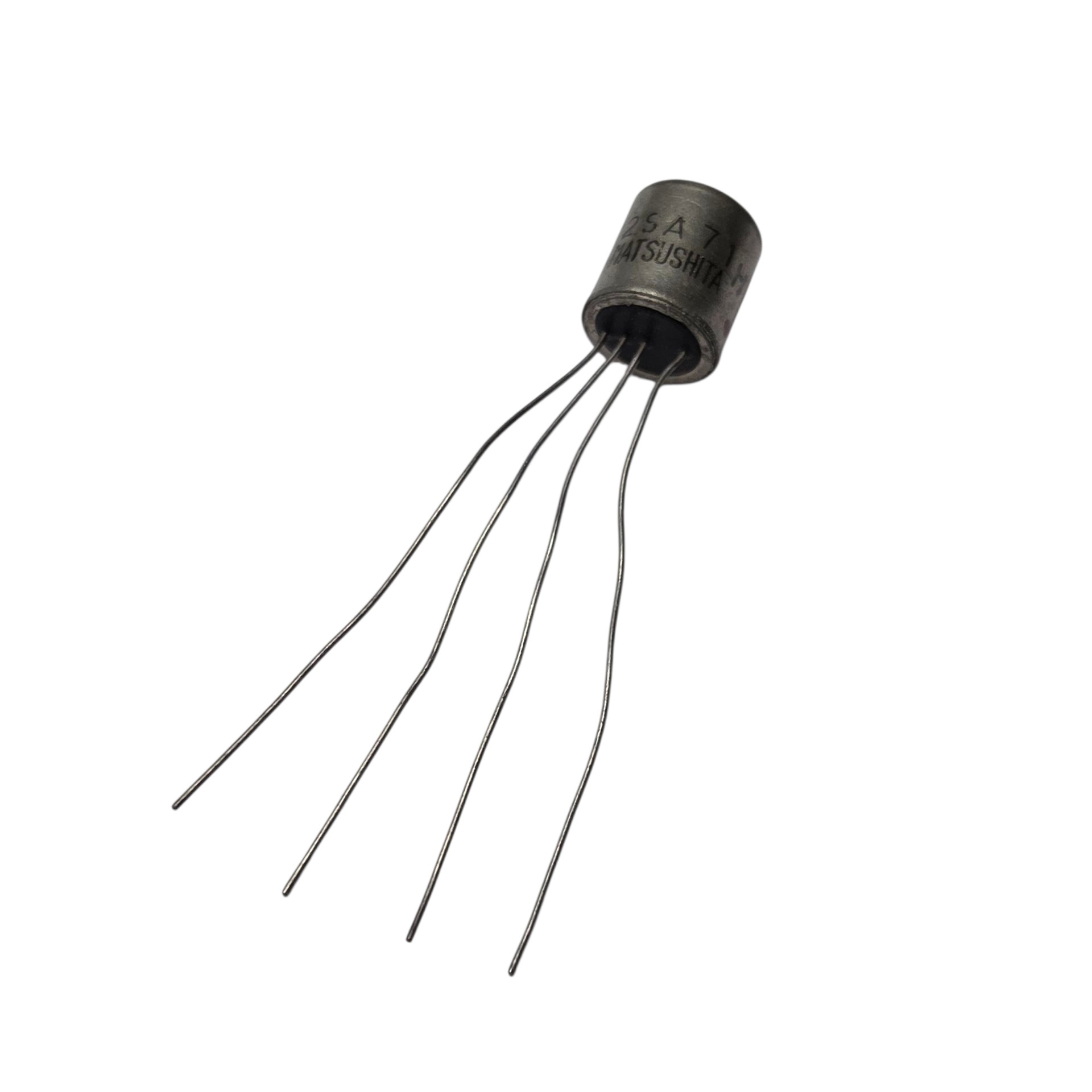

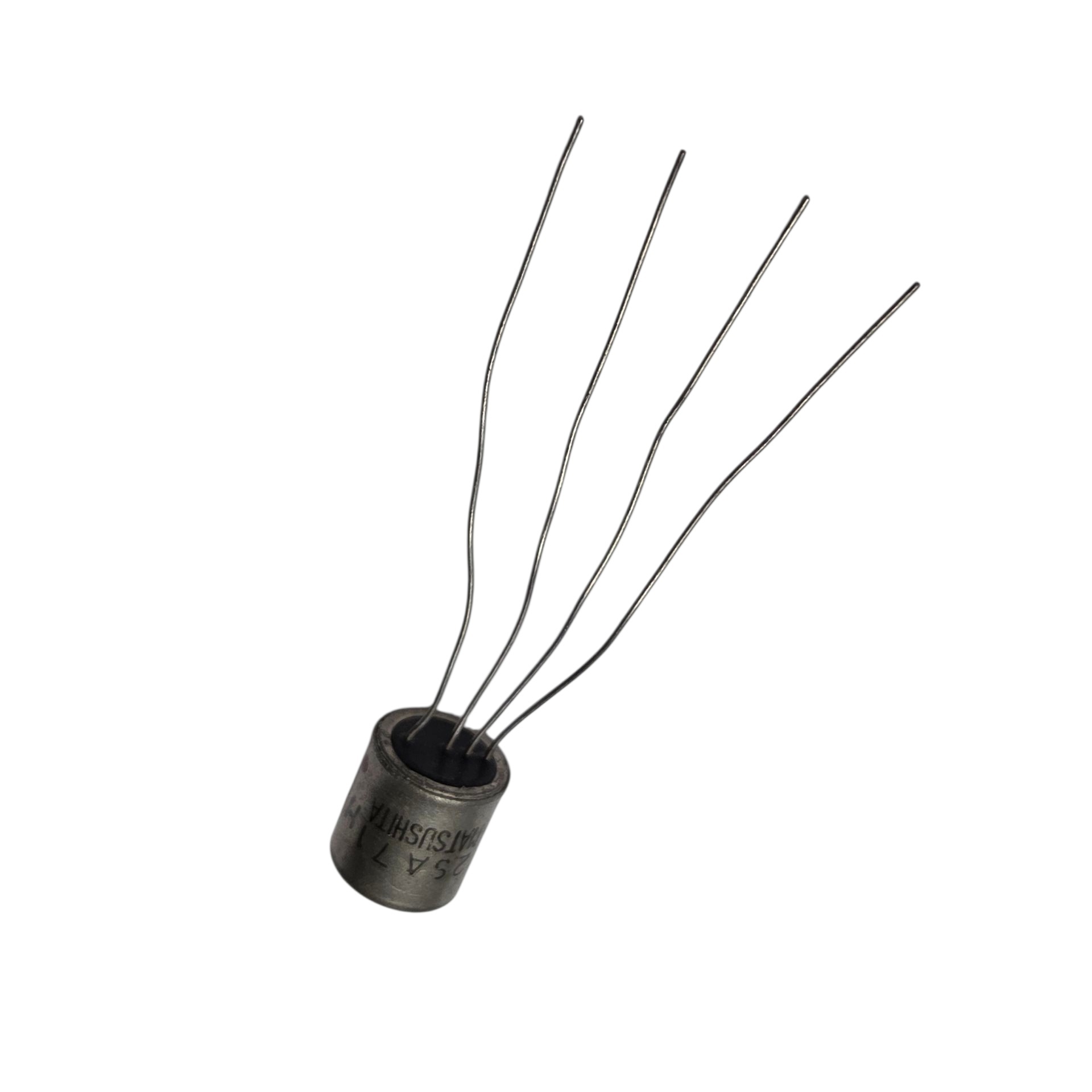

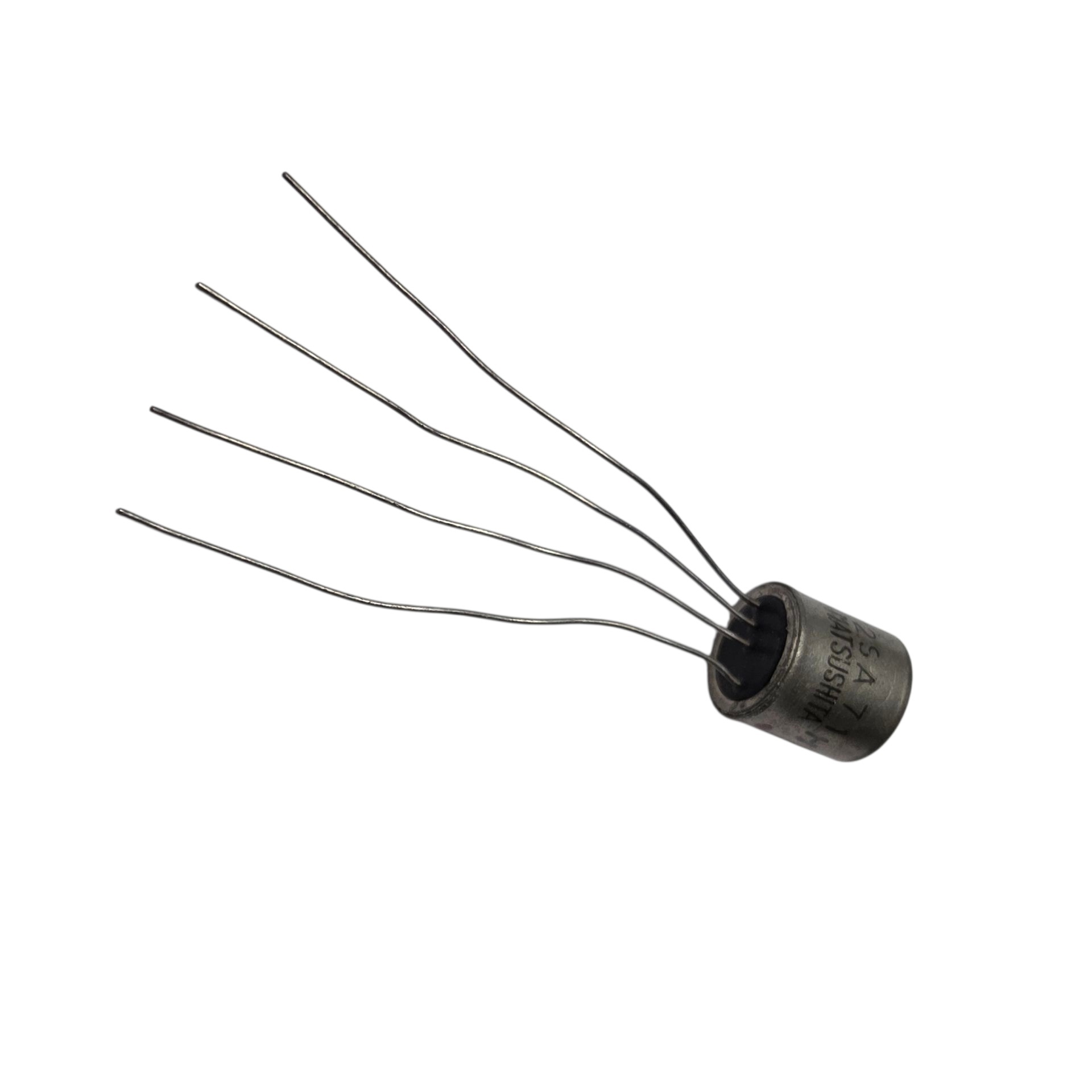

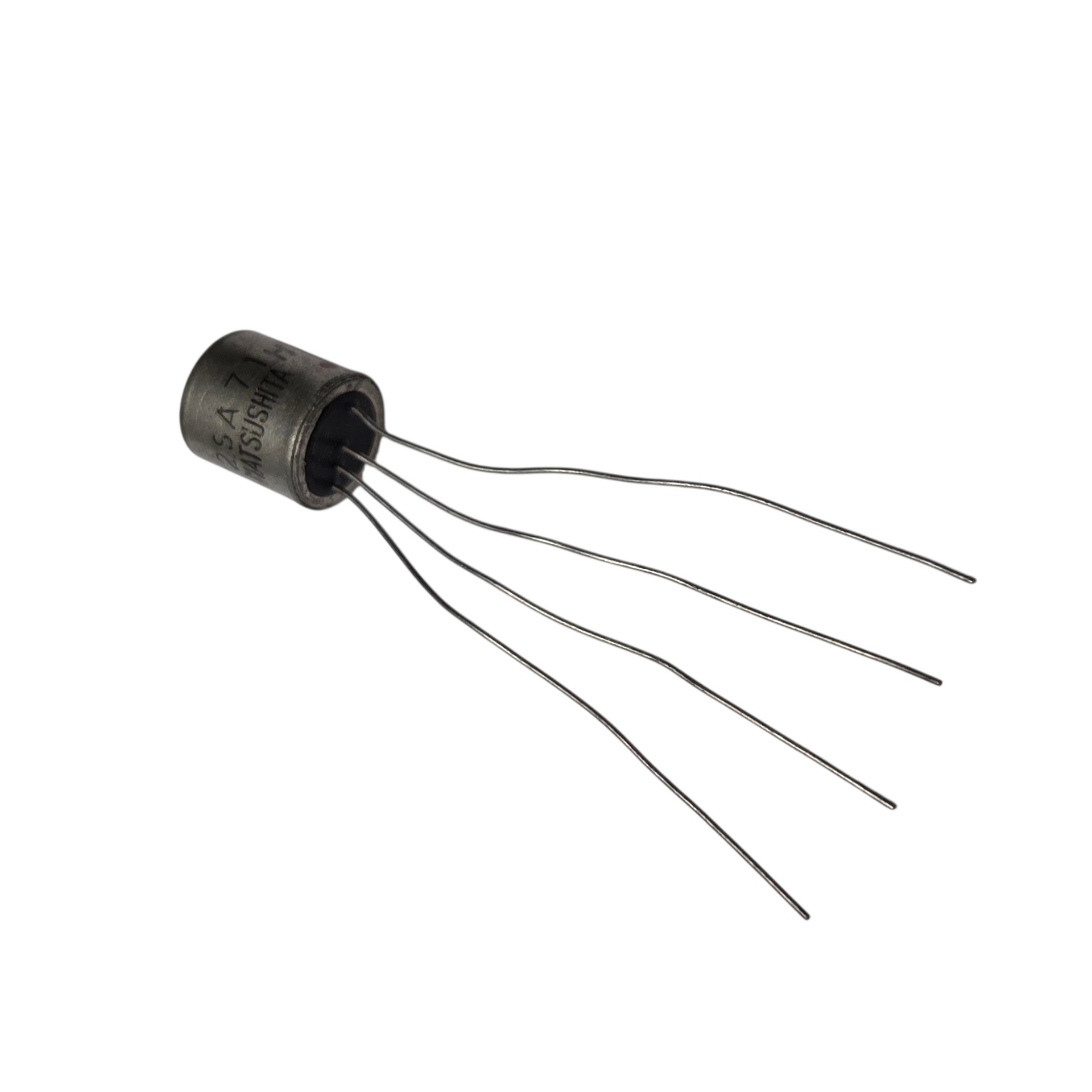

2SA71 Transistor Germanium PNP CASE: TO45 MAKE: Panasonic
Product specifications
Type Transistor Germanium PNP
Case TO45
Manufacturer Panasonic
Vbr CBO 20
Max. PD (W) 100m
C(ob) (F) 2.5p
Derate (Amb) (W/°C) 2.0m
hfe 150
Ic Max. (A) 10m
Icbo Max. @Vcb Max. (A) 13u
Polarity PNP
Trans. Freq (Hz) Min. 100M
@VCE (test) (V) 6.0i
Oper. Temp (°C) Max. 75
@Ic (A) 1.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.1 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Emitter-Base Voltage |Veb| 1 V
Maximum Collector Current |Ic max| 0.01 A
Max. Operating Junction Temperature (Tj) 75 °C
Collector Capacitance (Cc) 5 pF
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 150
SKU 394767
