2SA750
View detailed images (12)

2SA750

SKU: 2SA750

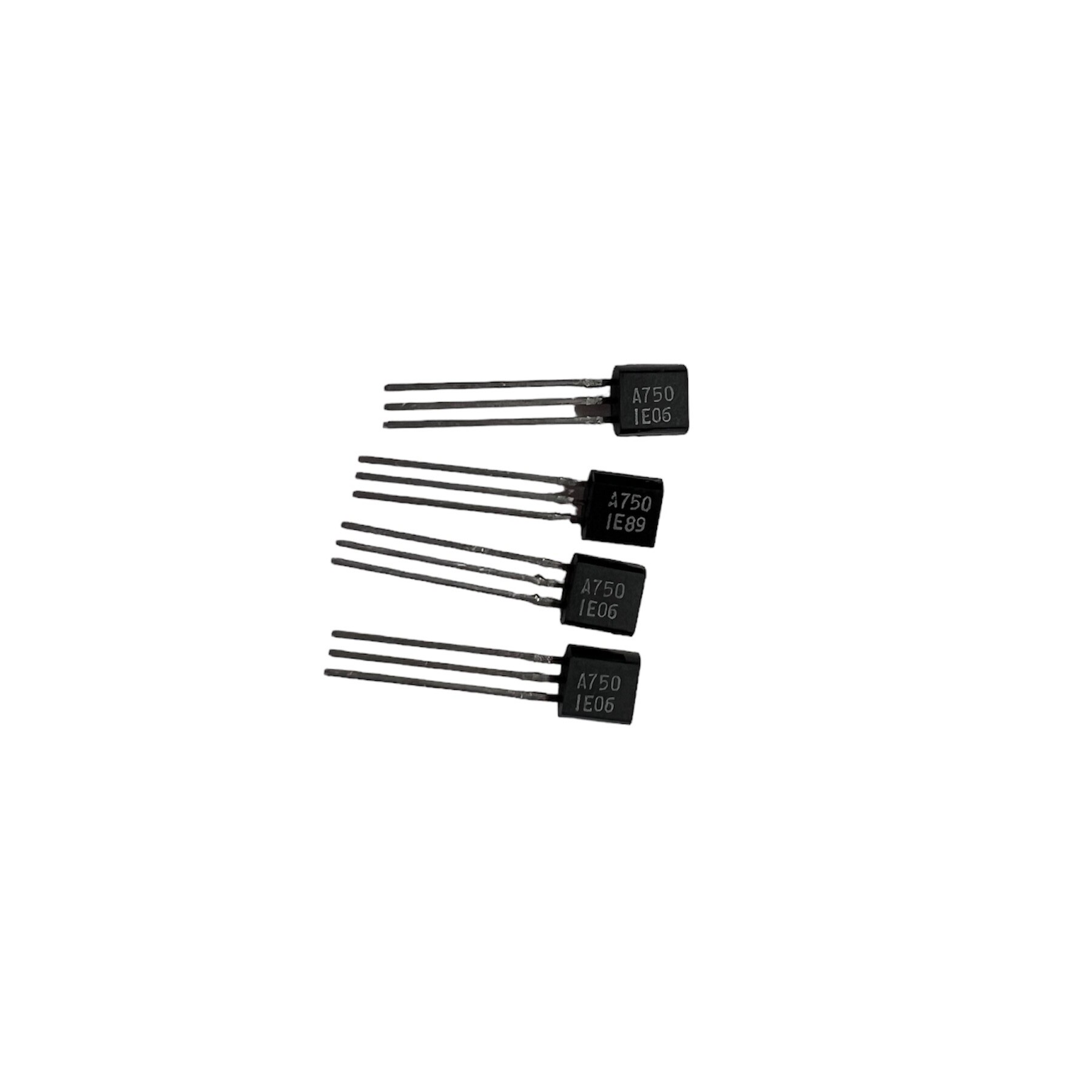

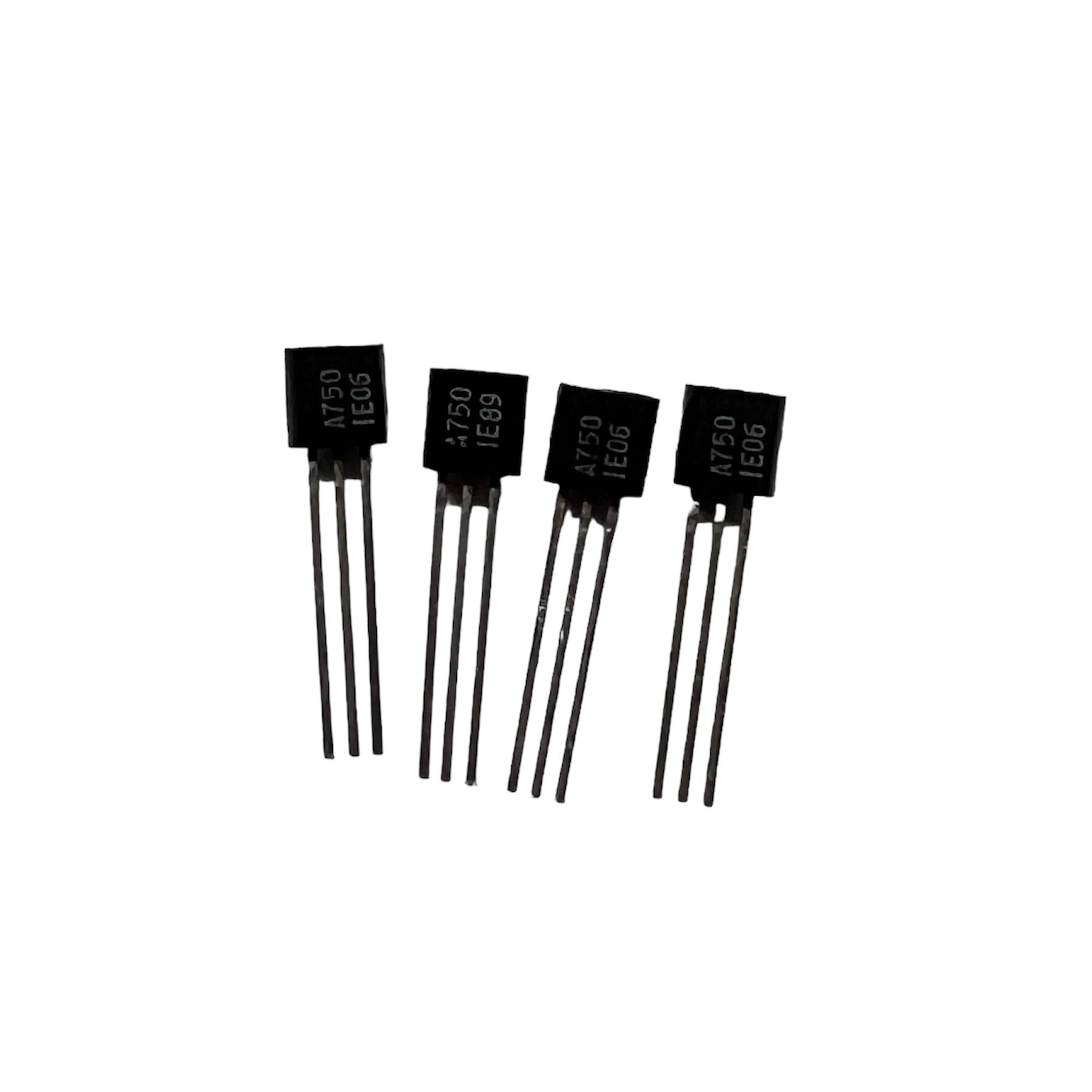

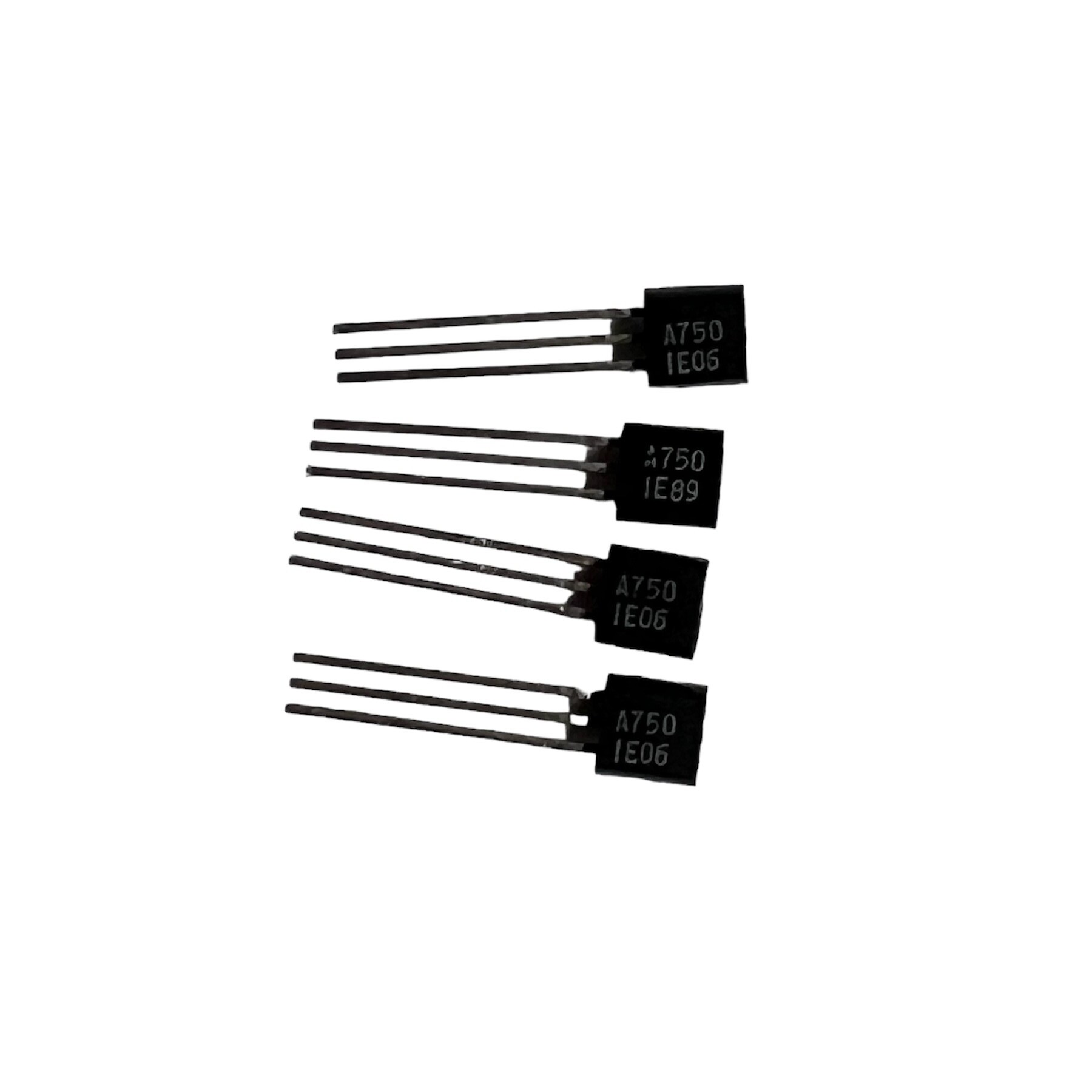

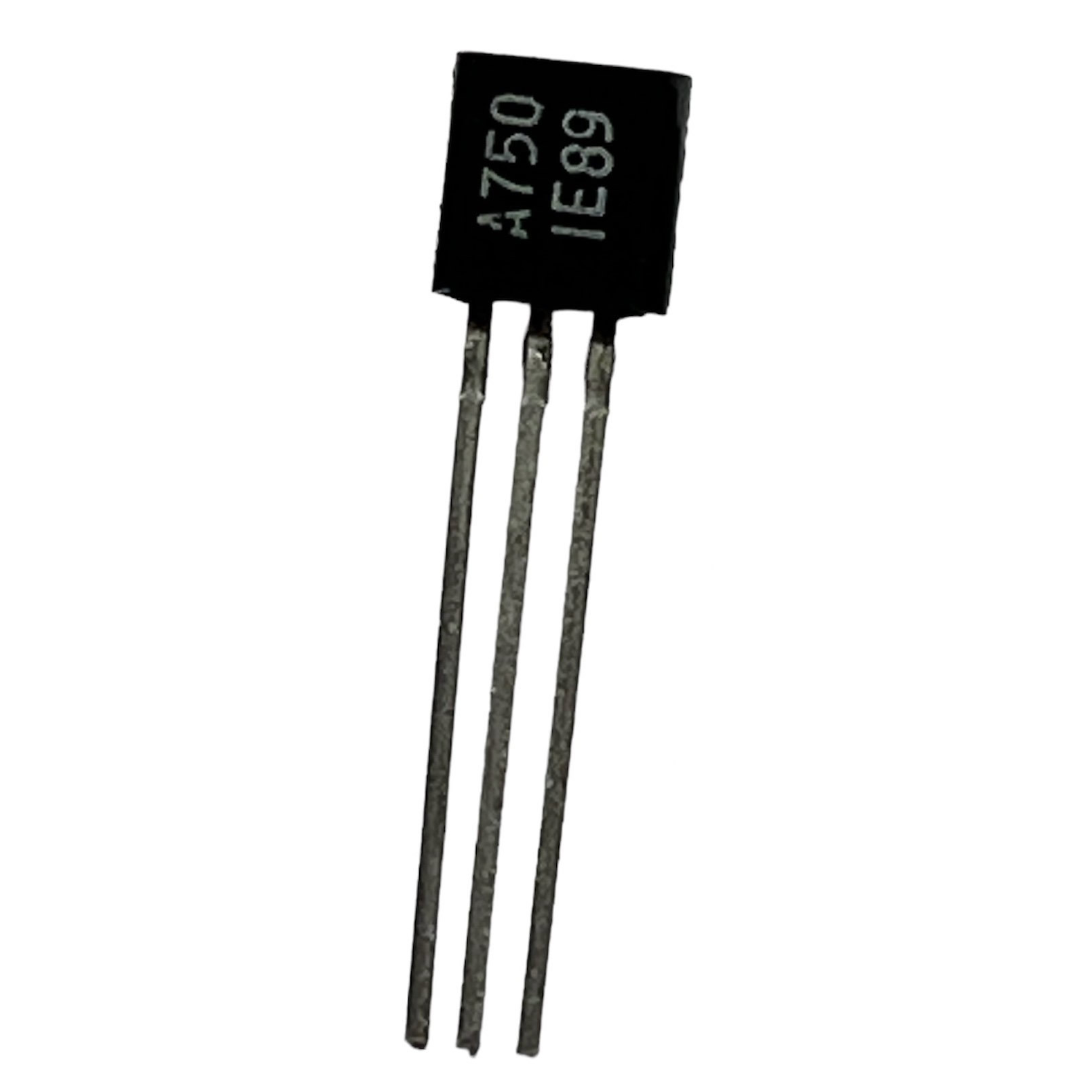

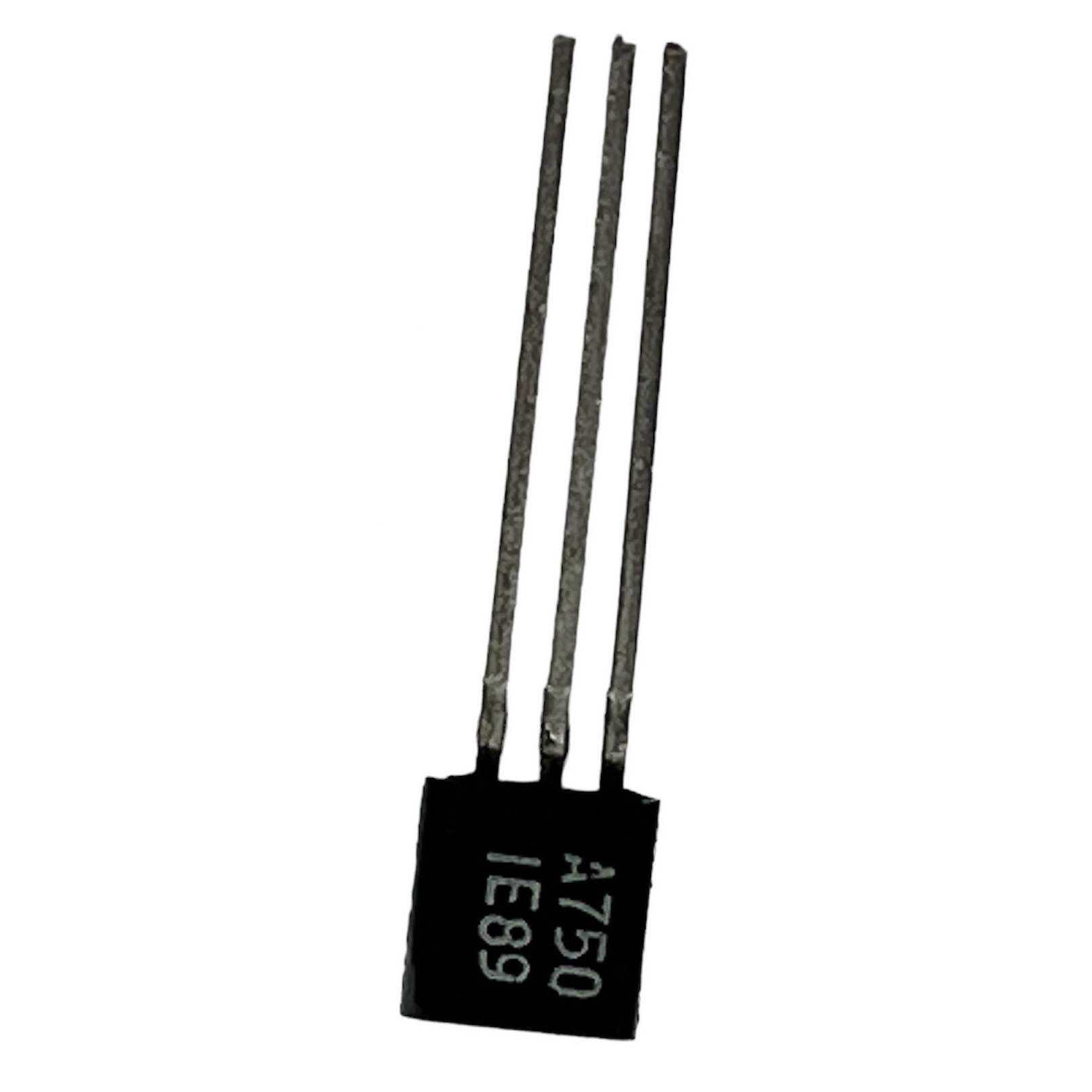

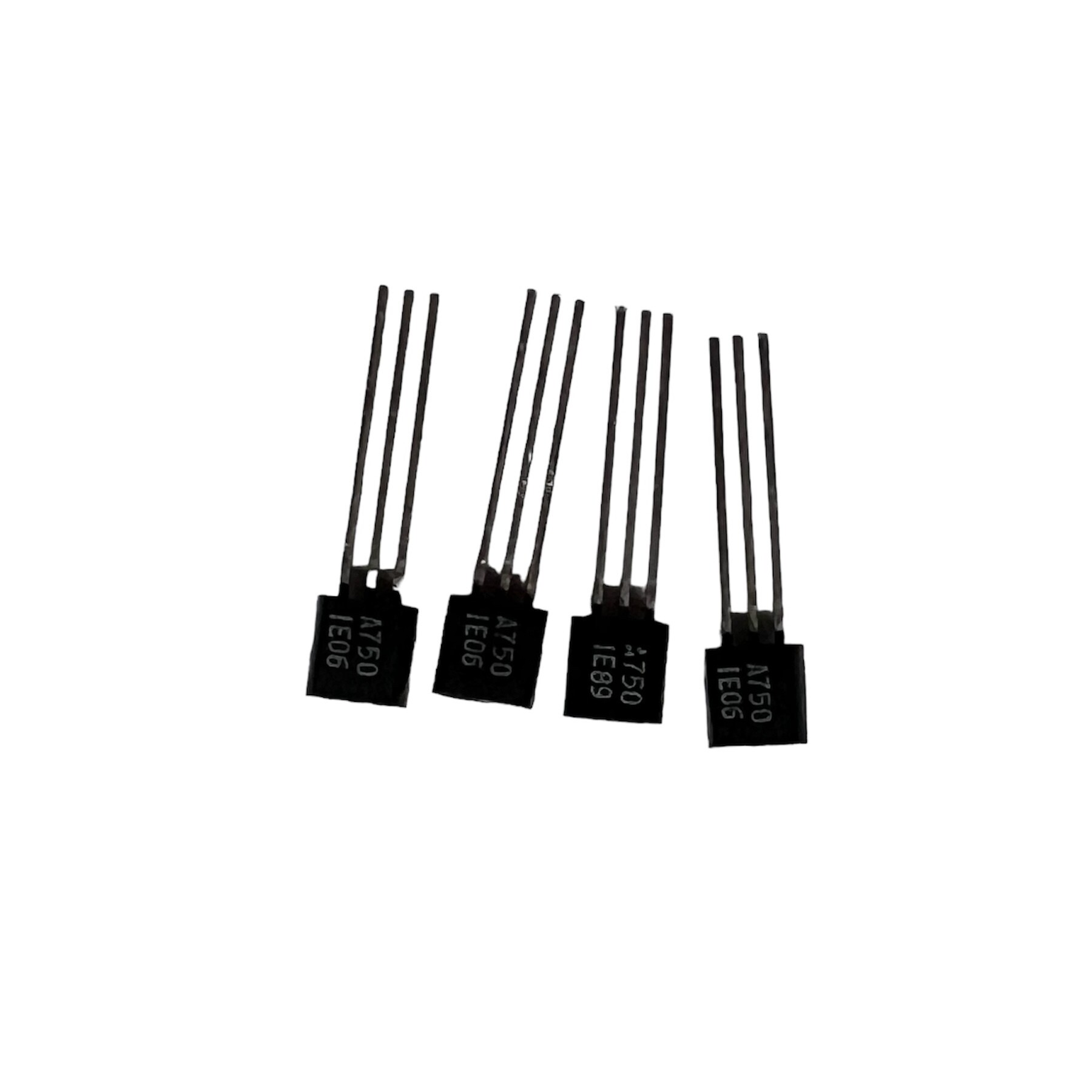

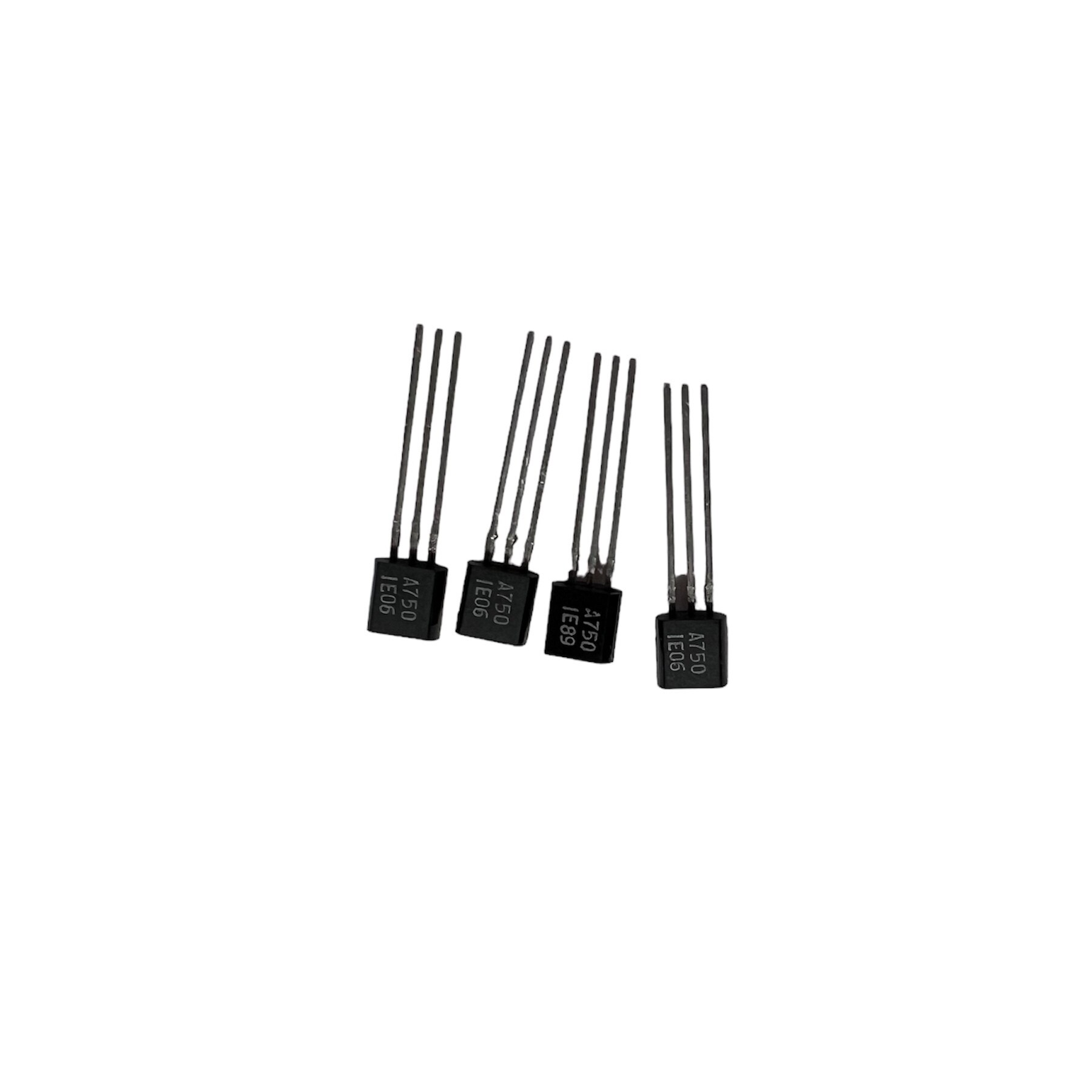

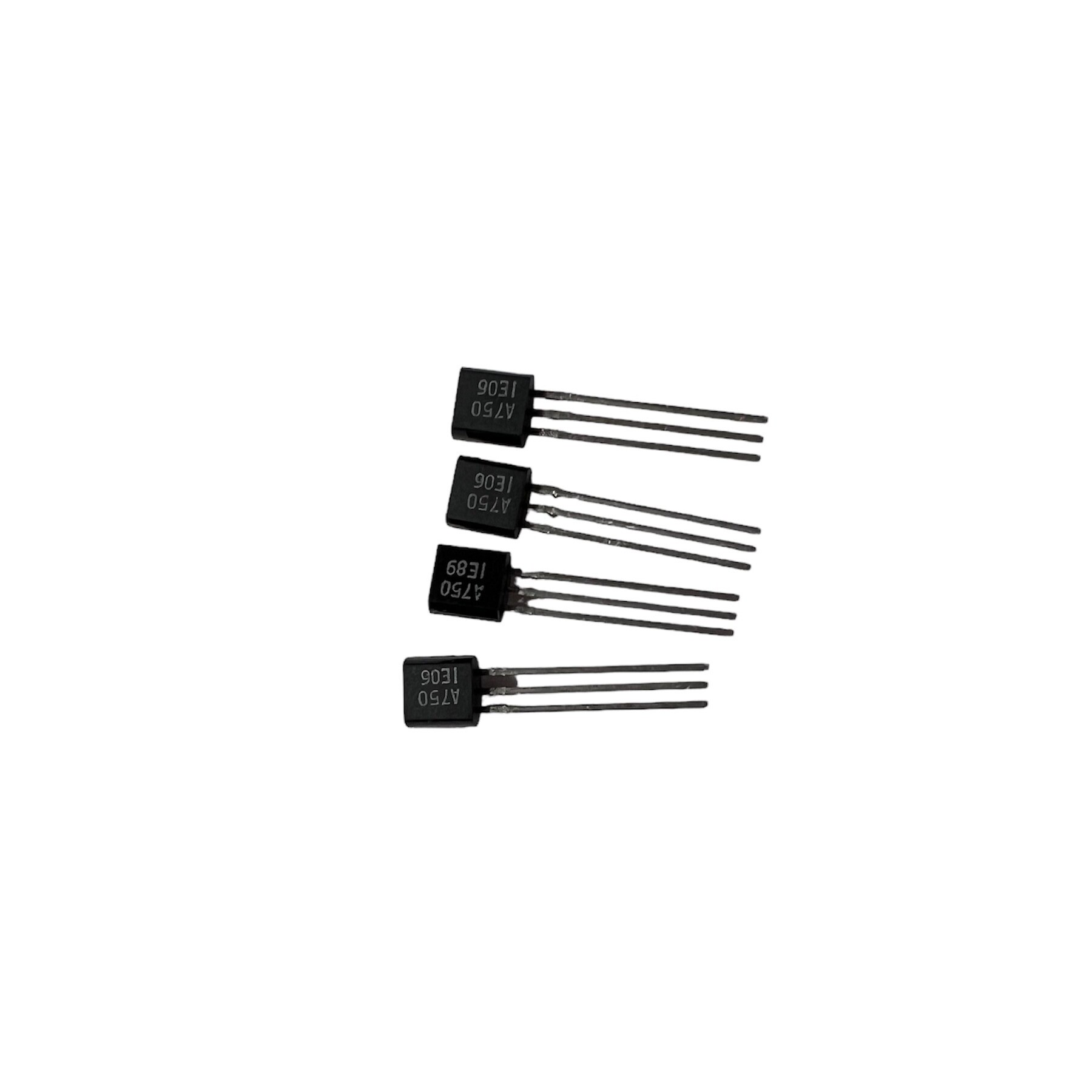

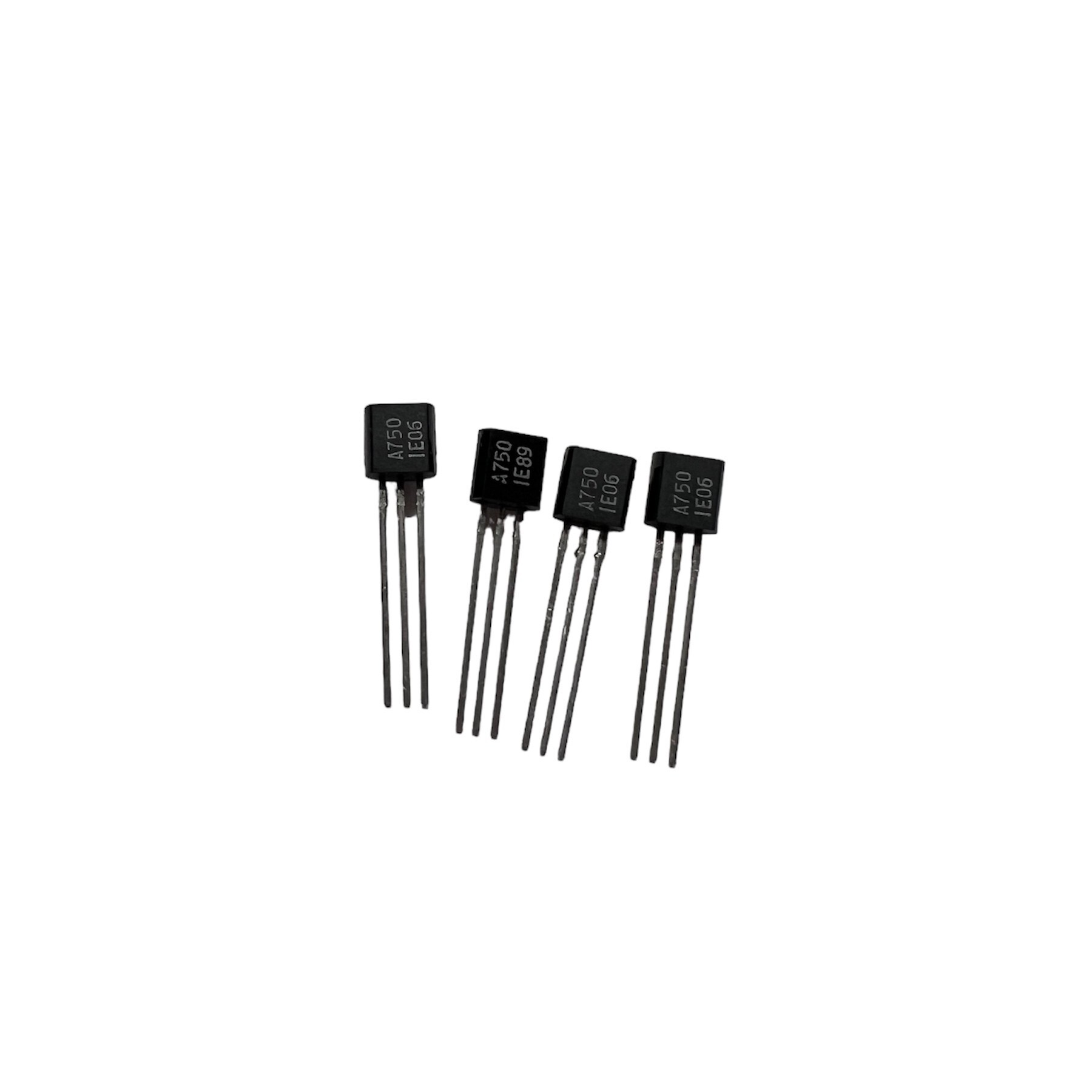

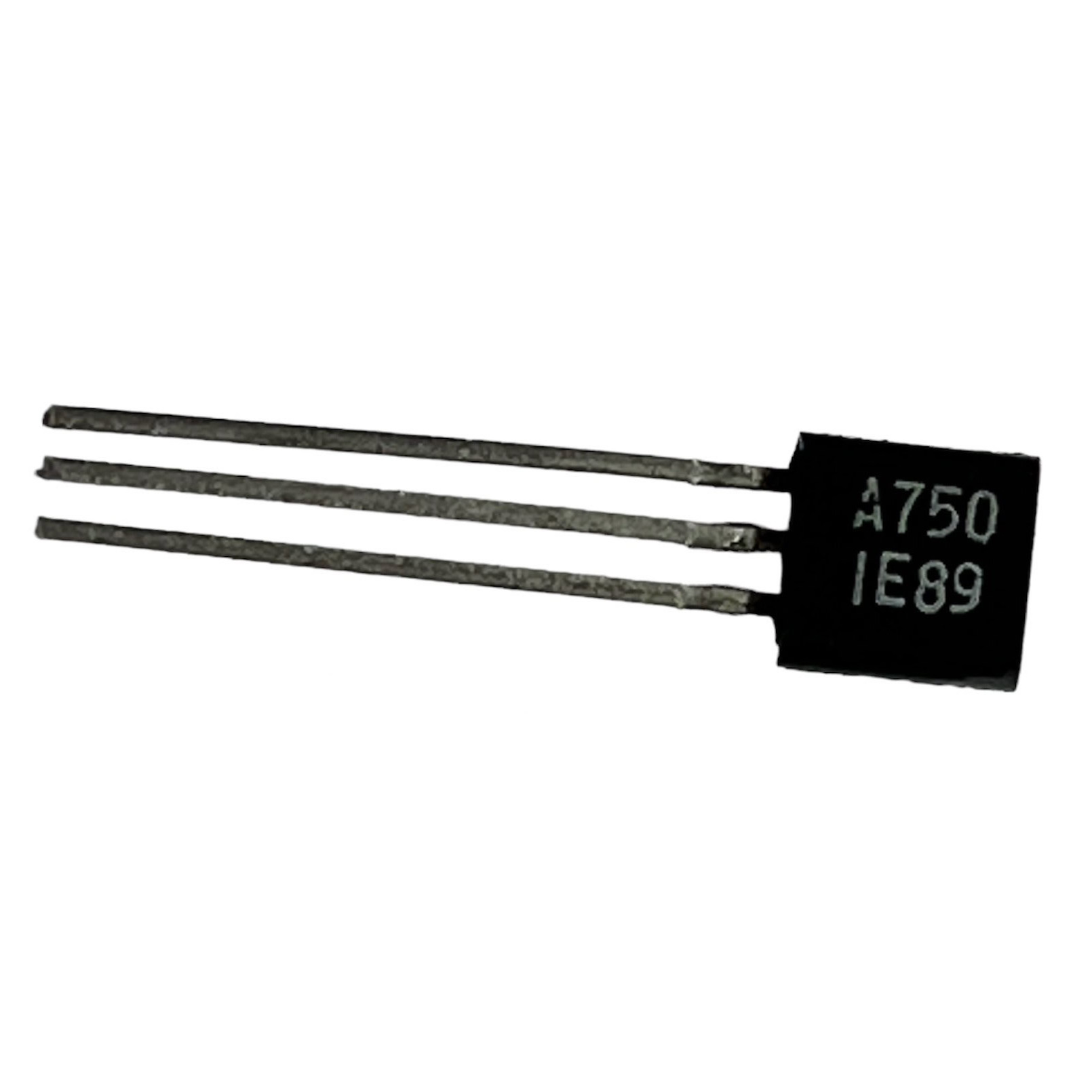

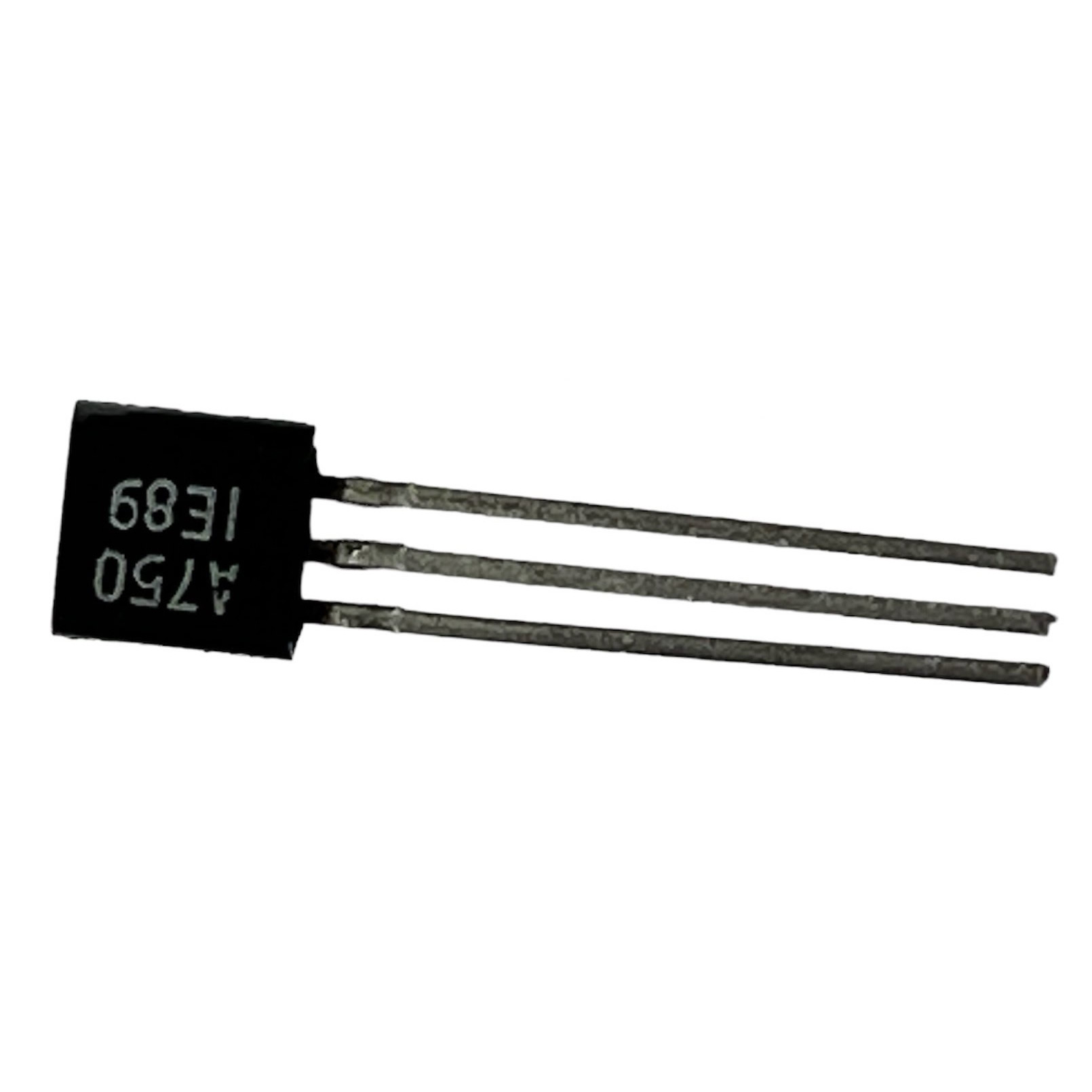

2SA750 Transistor Silicon PNP CASE: TO92 MAKE: Microsemi Corporation
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT for International Orders)

£5.75 Inc. VAT (£4.79 Ex. VAT for International Orders)
Qty
  • 39 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case TO92
Manufacturer Microsemi Corporation
Vbr CBO 50
Vbr CEO 50
Max. PD (W) 250m
C(ob) (F) 6.5p
Derate (Amb) (W/°C) 2.5m
hfe 450
Ic Max. (A) 50m
Icbo Max. @Vcb Max. (A) 50n
Polarity PNP
Trans. Freq (Hz) Min. 100M
@VCE (test) (V) 3.0
Oper. Temp (°C) Max. 125
@Ic (A) 1.0m
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 12 pF
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 225
SKU 85346
