2SA798

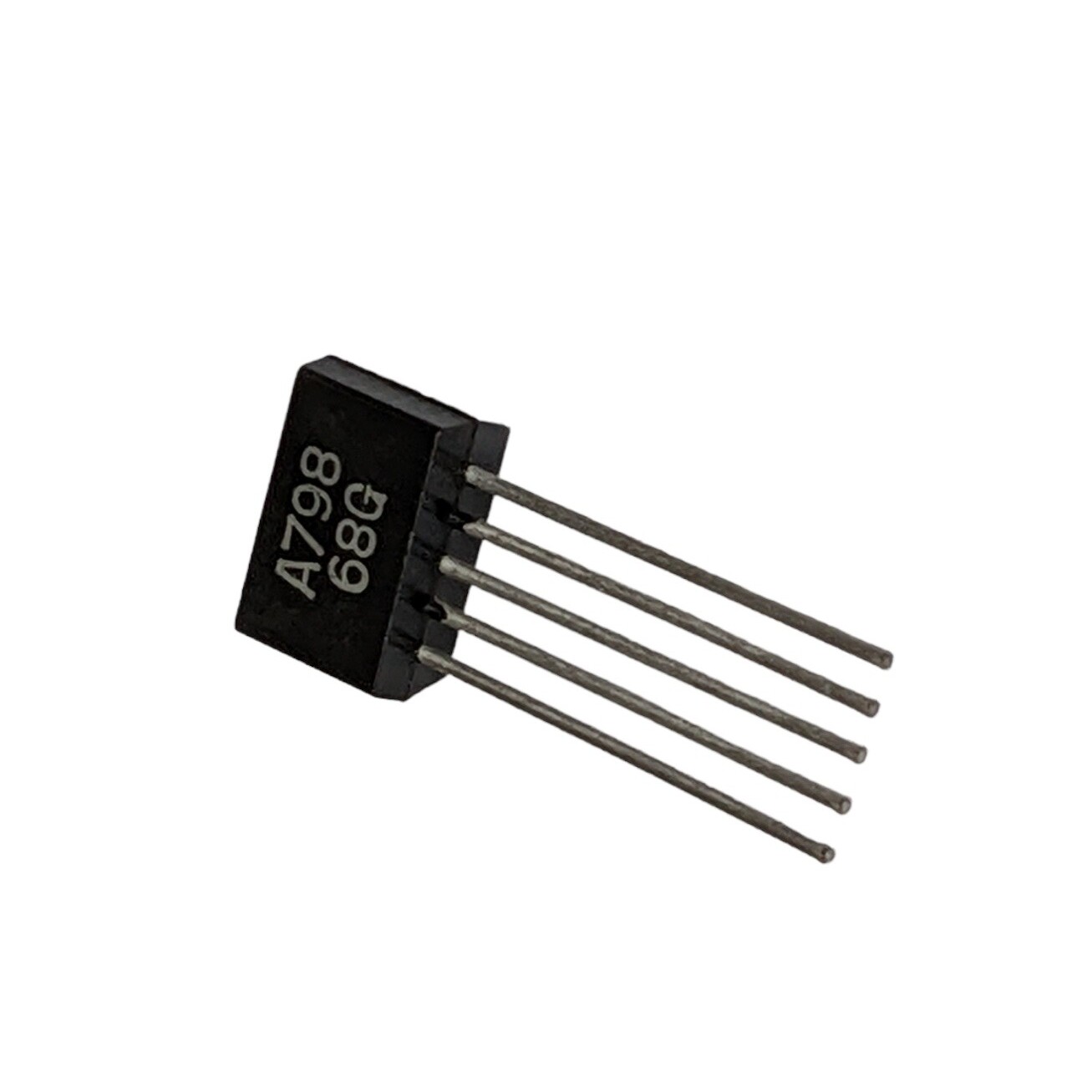

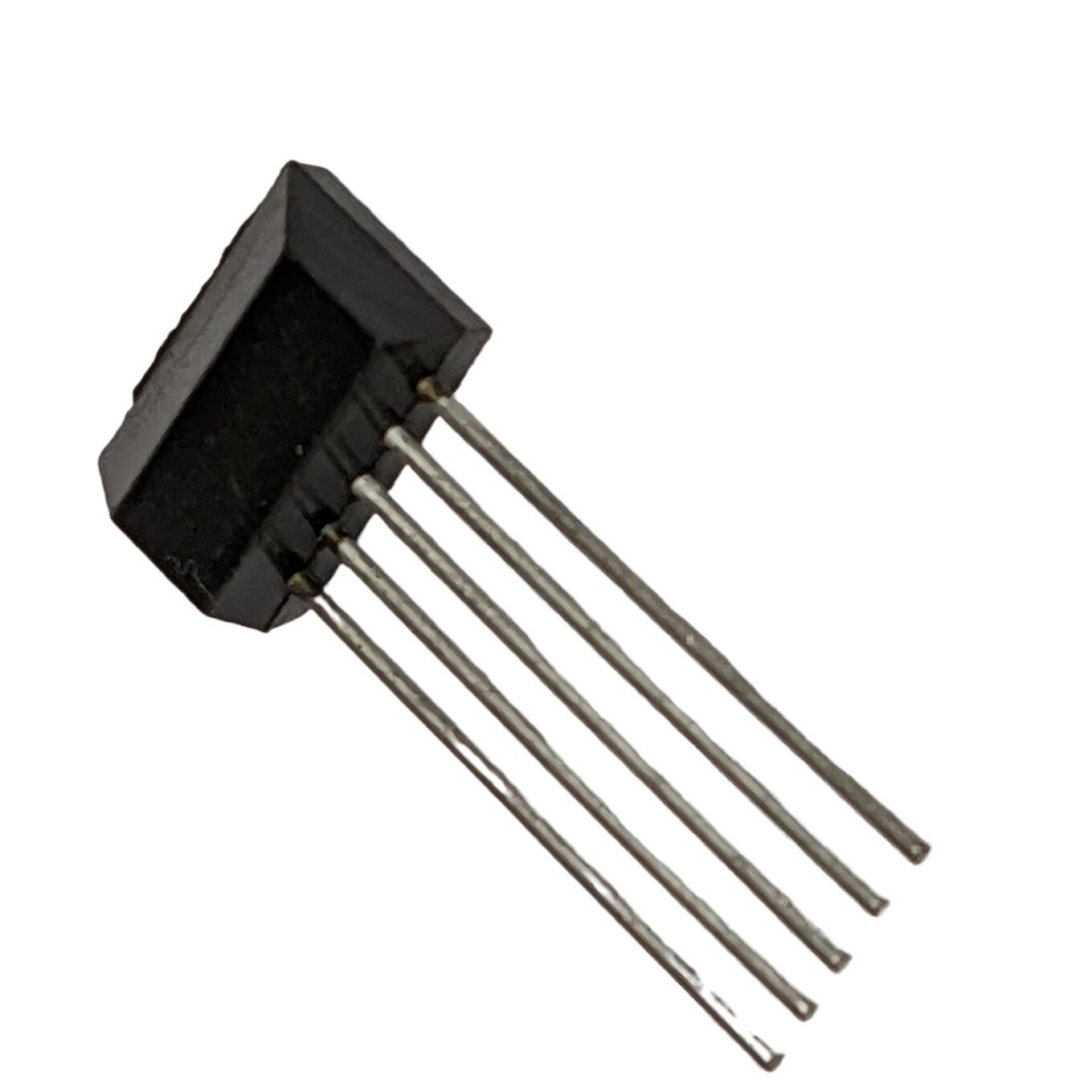

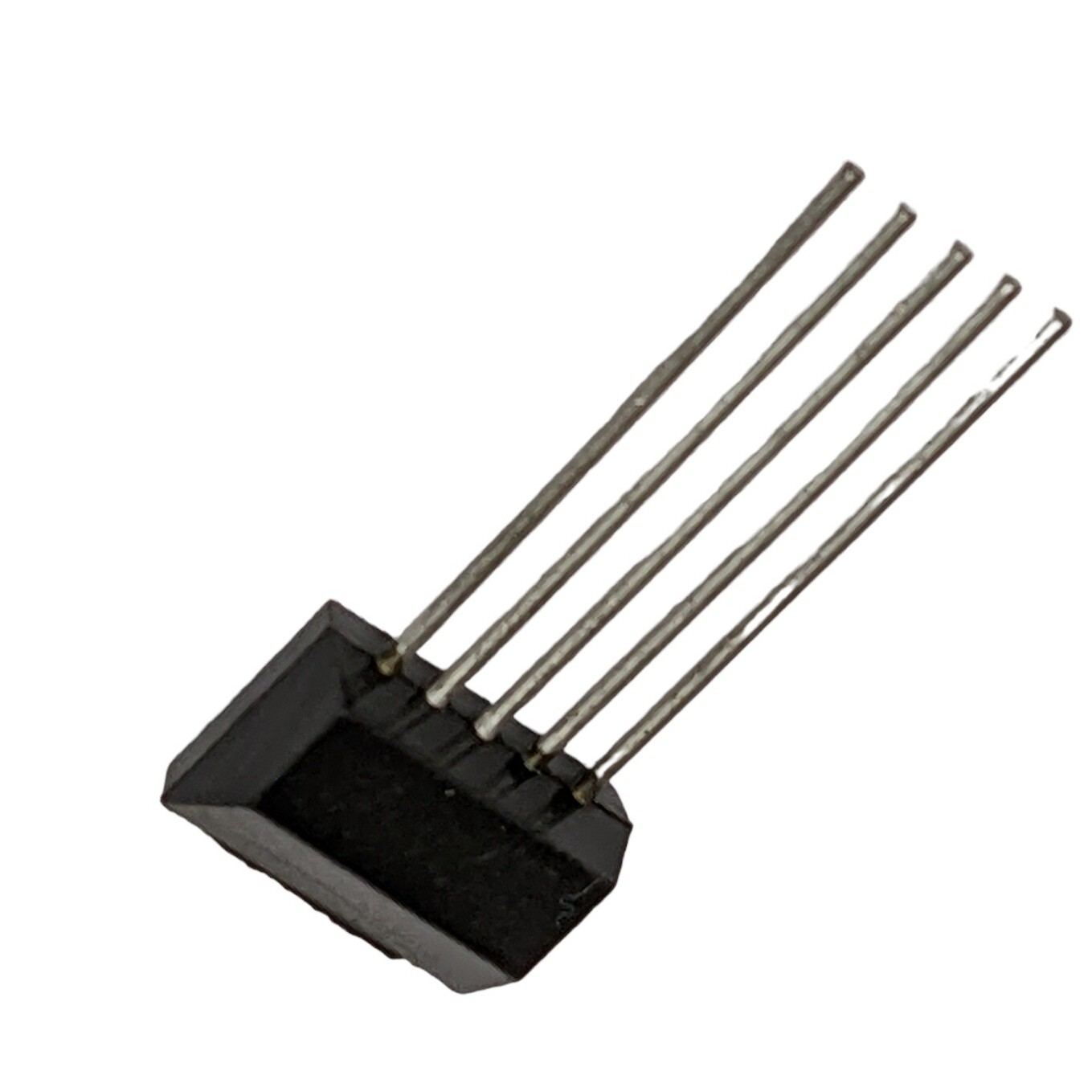

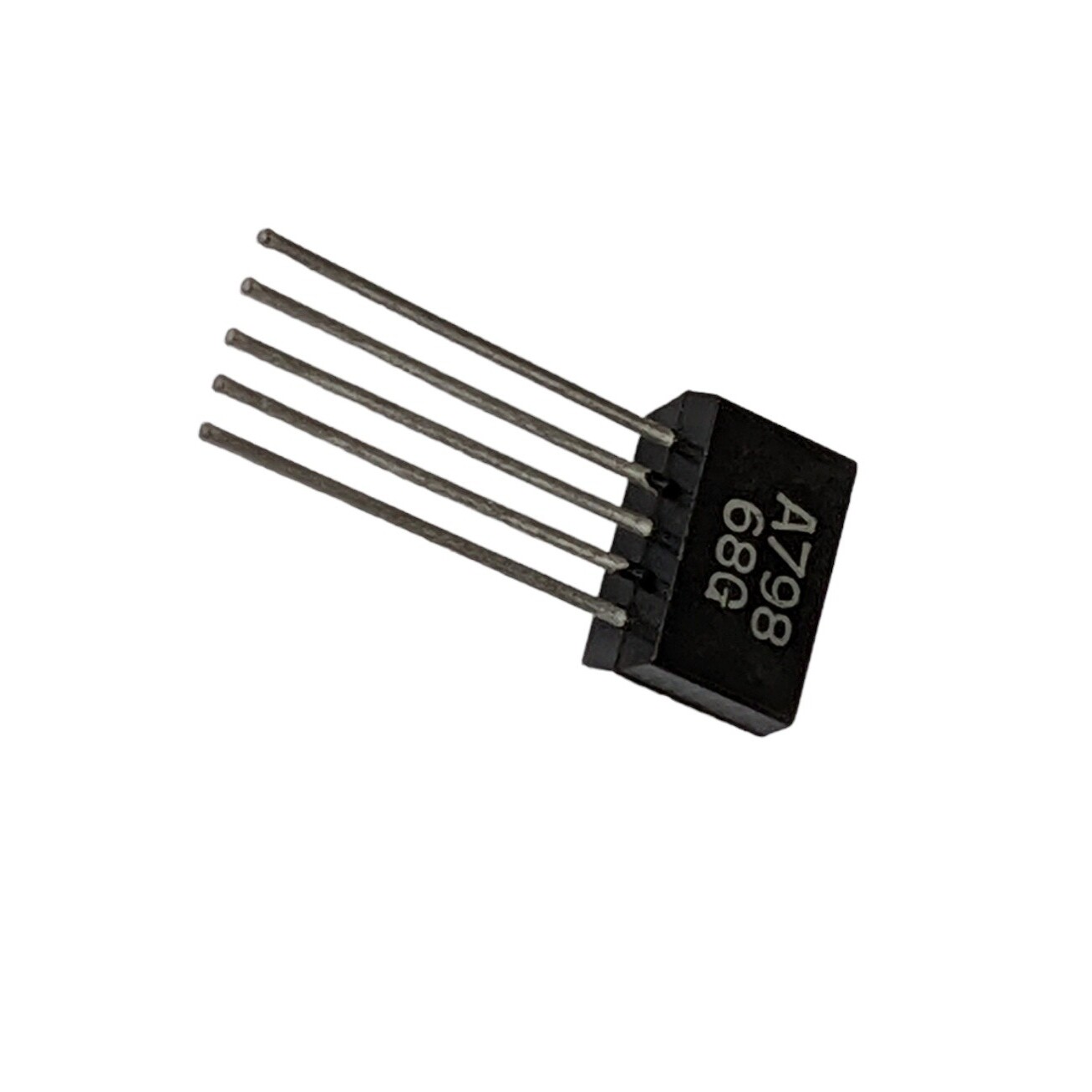

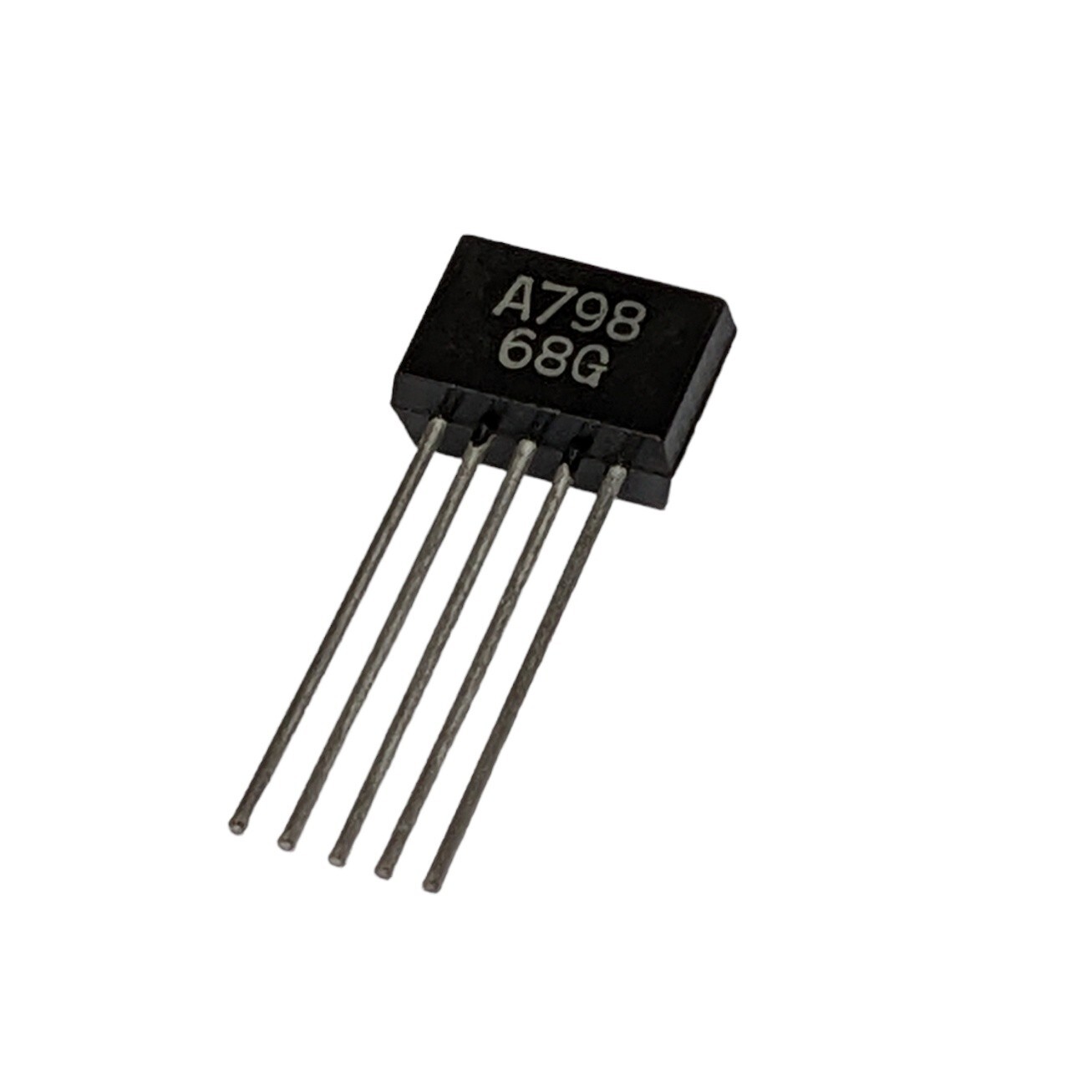

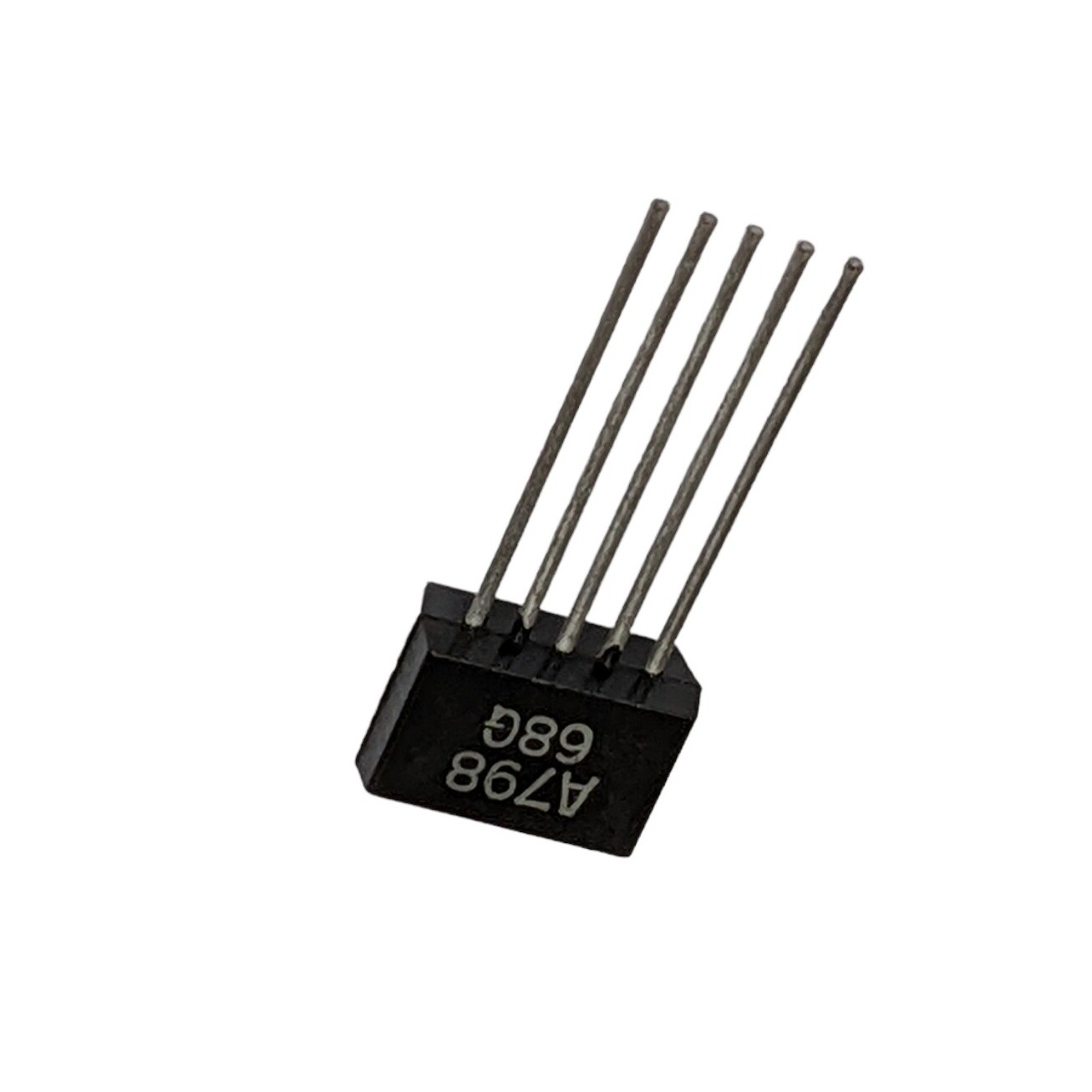

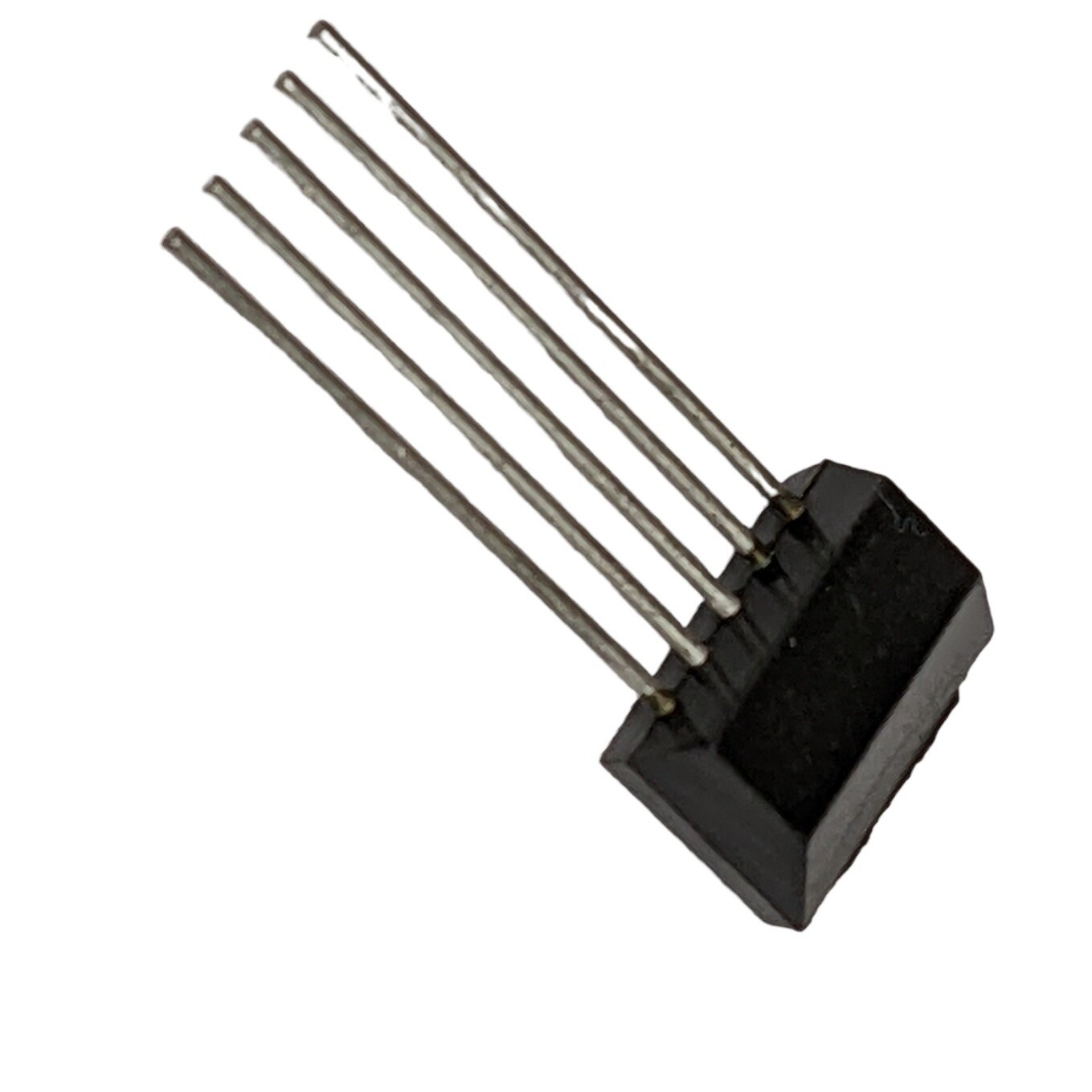

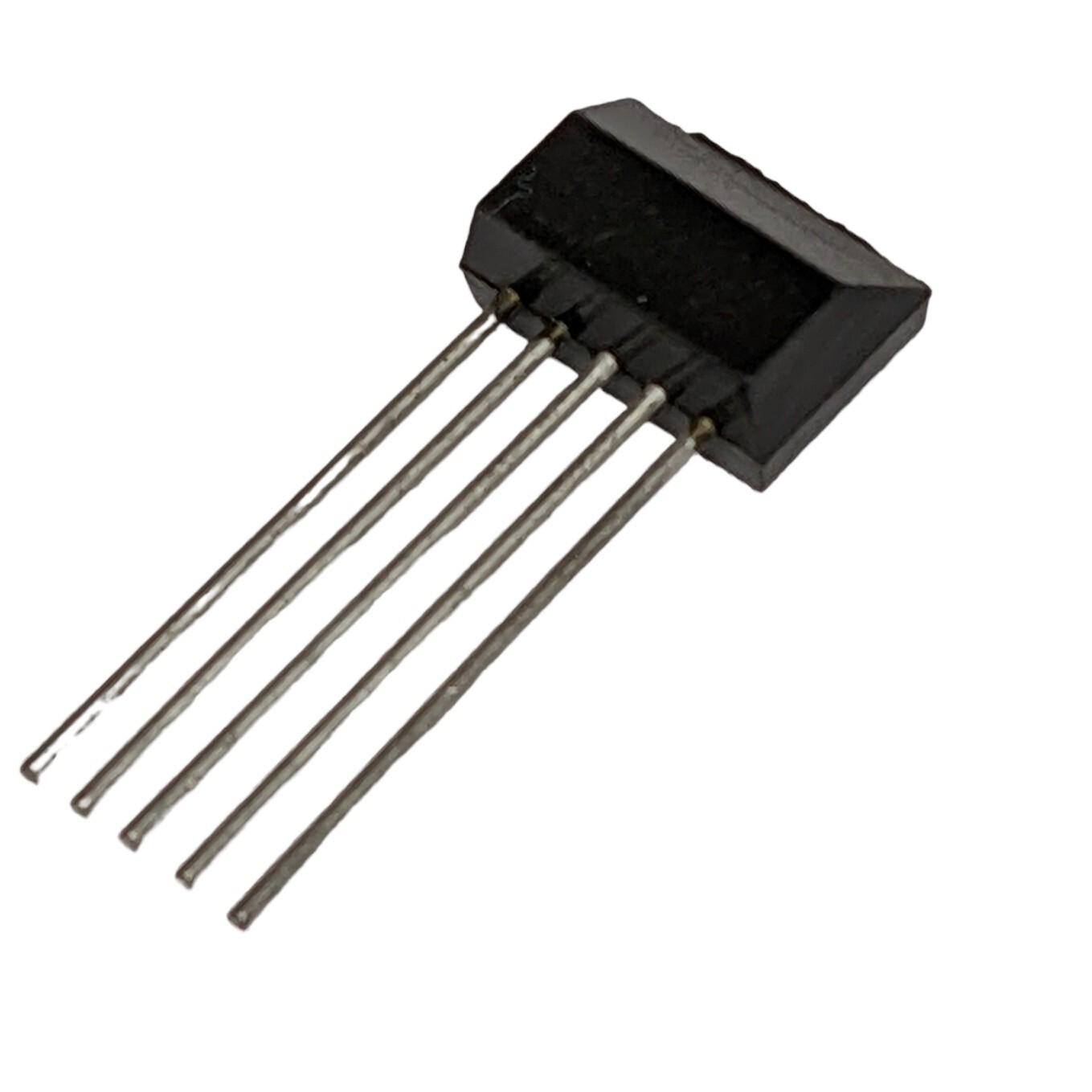

View detailed images (8)

2SA798

SKU: 2SA798
2SA798 Semiconductor
Price: £21.99
+ VAT 20% for UK purchases
£21.99
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
Datasheet
2SA798 Datasheet
Product specifications
Case SIP5
Type Semiconductor
Manufacturer Mitsubishi
Mat. Silicon Logic
Polarity PNP
PD Max. (W) 400m
Vceo Max. 50.0
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.4 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 250
SKU 391463
