2SA964
View detailed images (5)

2SA964

SKU: 2SA964

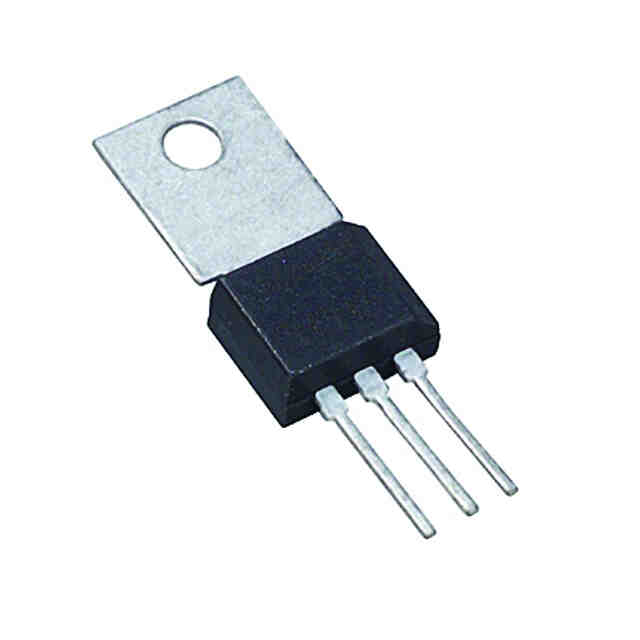

2SA964 Transistor Silicon PNP CASE: SOT128 MAKE: NEC
Price:
£11.99 Inc. VAT (£9.99 Ex. VAT)
£11.99 Inc. VAT (£9.99 Ex. VAT)
Qty
  • 6 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Equivalent 2SA964A
Type Transistor Silicon PNP
Case SOT128
Manufacturer NEC
Vbr CEO 200
Max. PD (W) 1.5
Max. hFE 400
Min hFE 60
Ic Max. (A) 200m
@Ic (test) (A) 10m
Polarity PNP
@VCE (V) -10
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 10 W
Maximum Collector-Base Voltage |Vcb| 200 V
Maximum Collector-Emitter Voltage |Vce| 200 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 30 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 180
SKU 556264
