2SB1056
View detailed images (12)

2SB1056

SKU: 2SB1056

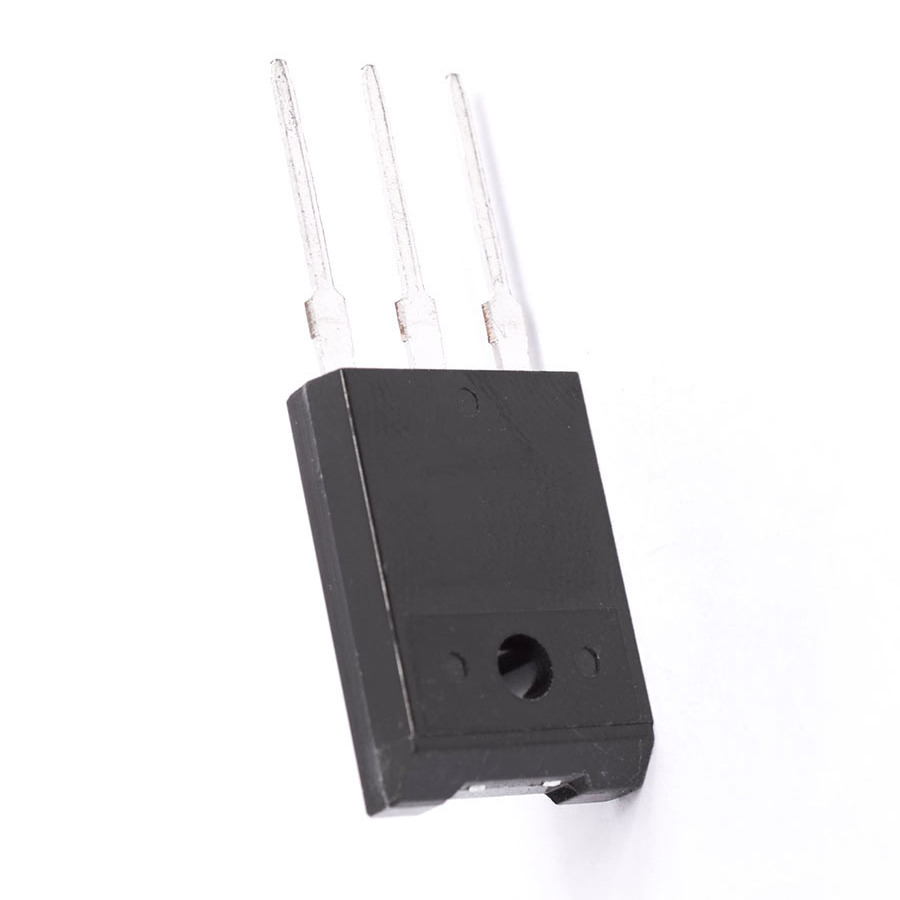

2SB1056 Transistor Silicon PNP CASE: SOT199 MAKE: Panasonic
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 15 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SB1056 Datasheet
Product specifications
Type Transistor Silicon PNP
Case SOT199
Manufacturer Panasonic
Vbr CBO 140
Vbr CEO 140
Max. PD (W) 80
Derate (Amb) (W/°C) 640m
Max. hFE 200
Min hFE 40
Ic Max. (A) 7.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 50u
Polarity PNP
Trans. Freq (Hz) Min. 20M
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 80 W
Maximum Collector-Base Voltage |Vcb| 140 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 7 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 120
SKU 80788
