2SB1398
View detailed images (4)

2SB1398

SKU: 2SB1398

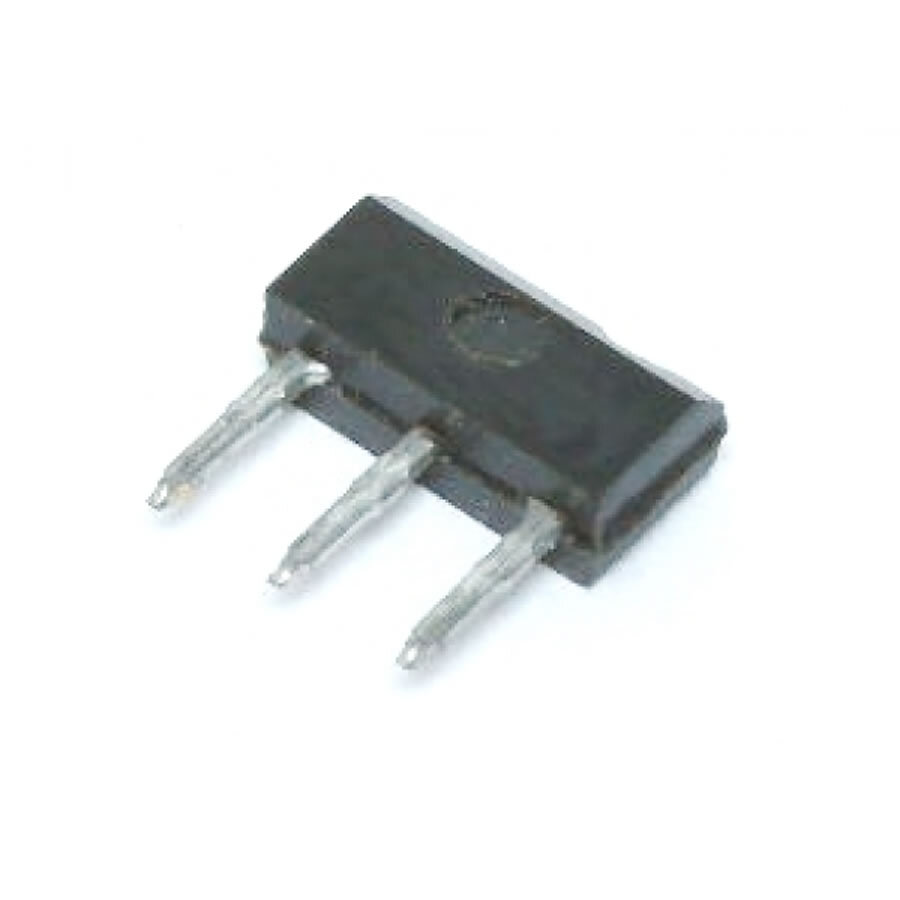

2SB1398 Transistor Silicon PNP CASE: SOT33 MAKE: Matsushita Electronics
Datasheet
2SB1398 Datasheet
Product specifications
Type Transistor Silicon PNP
Case SOT33
Manufacturer Matsushita Electronics
Vbr CBO 30
Vbr CEO 25
Max. PD (W) 1.0
Derate (Amb) (W/°C) 8.0m
Max. hFE 205
Min hFE 90
Ic Max. (A) 5.0
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 120M-
Oper. Temp (°C) Max. 150
@VCE (V) 2.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 1 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 185 °C
Transition Frequency (ft): 60 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SKU 343499
