2SB1450
View detailed images (12)

2SB1450

SKU: 2SB1450

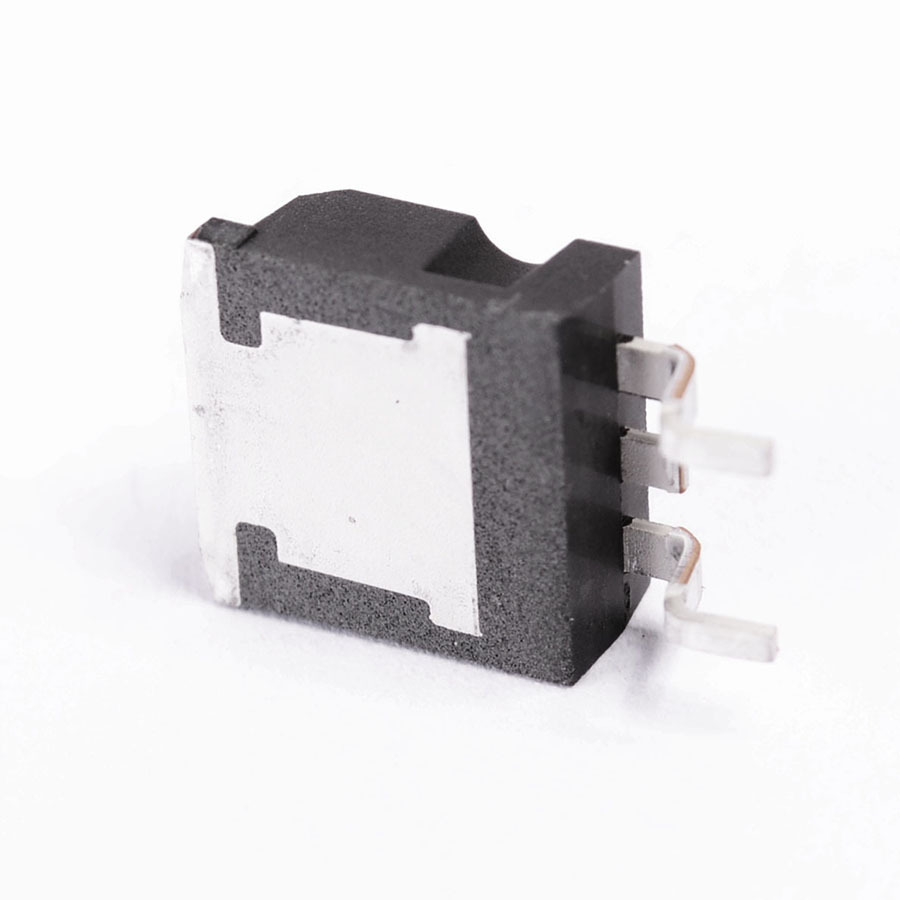

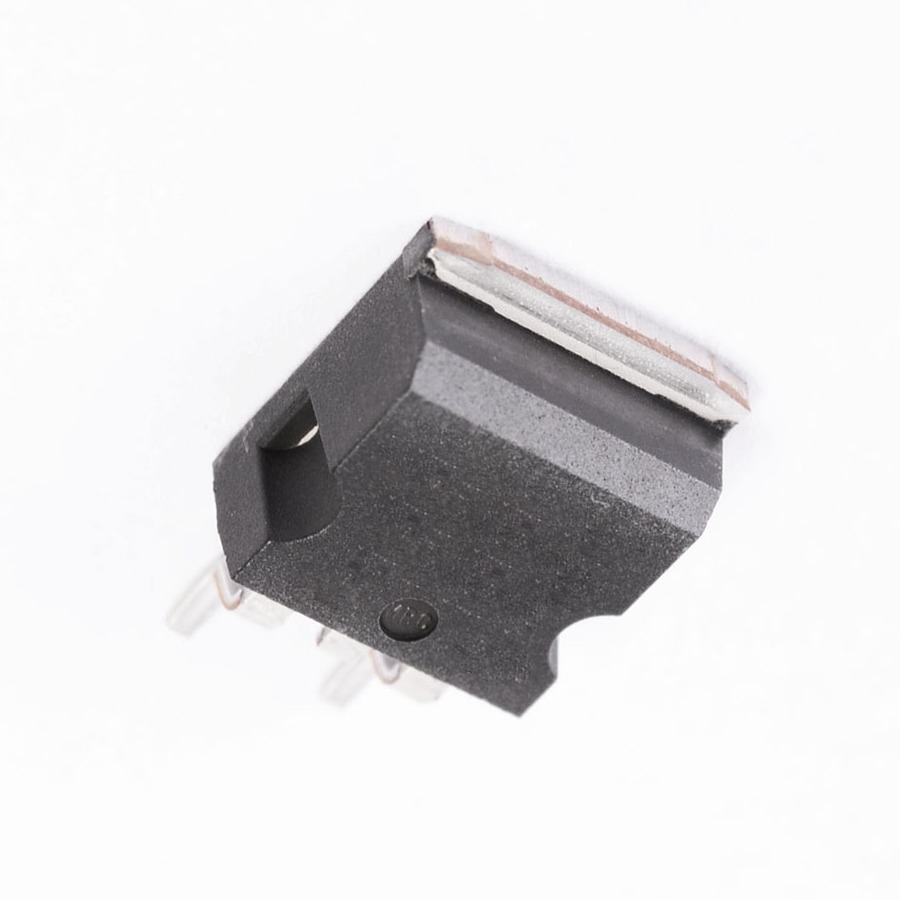

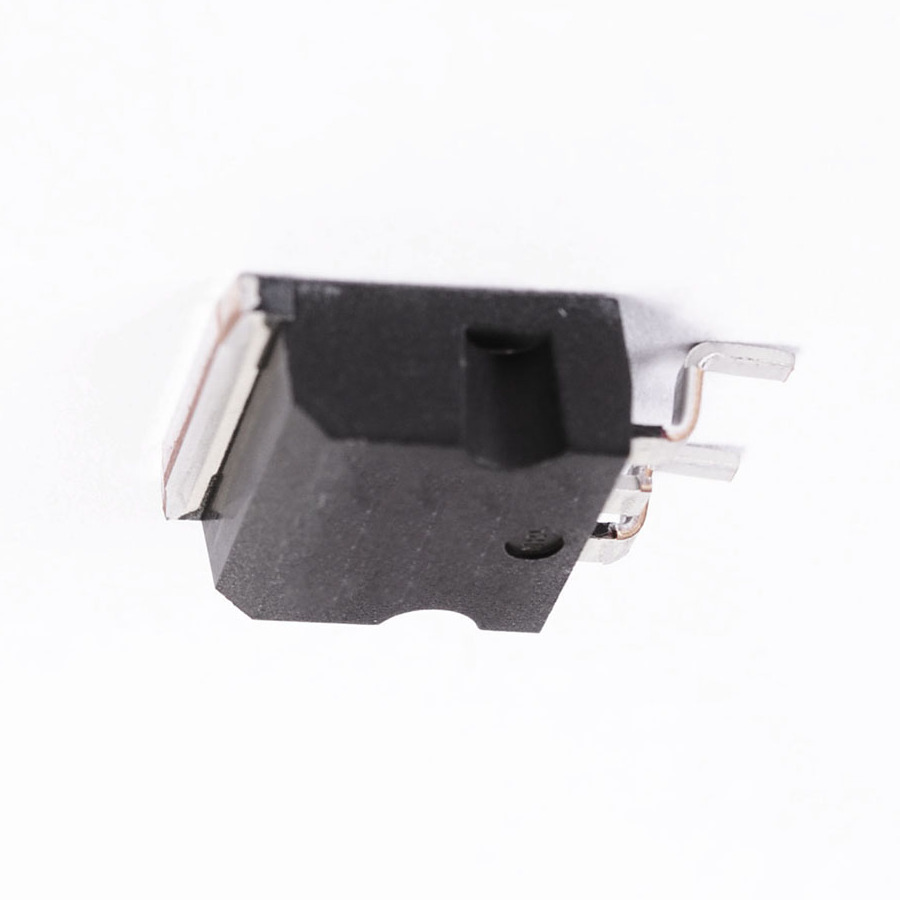

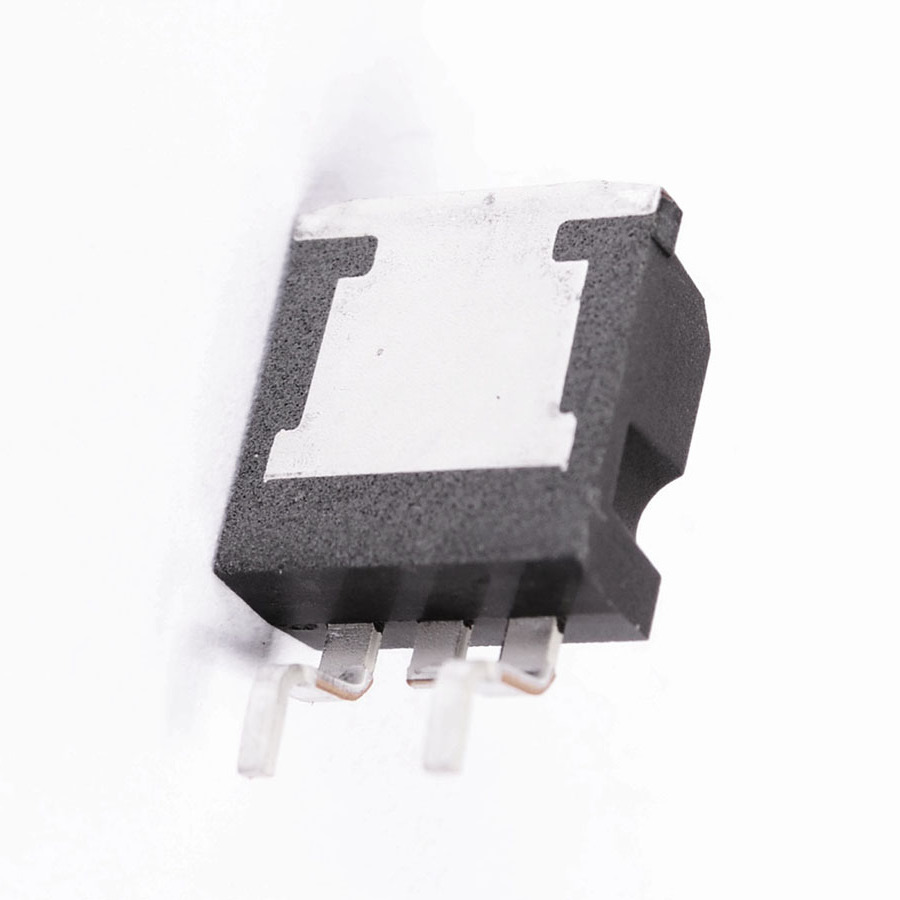

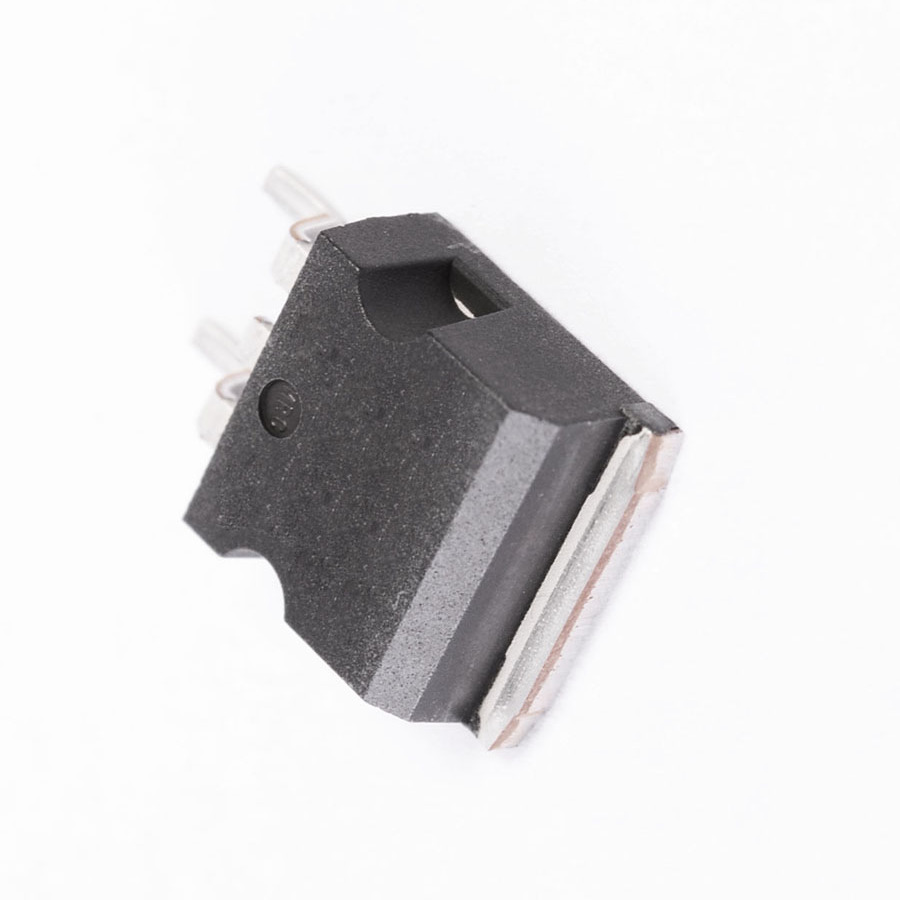

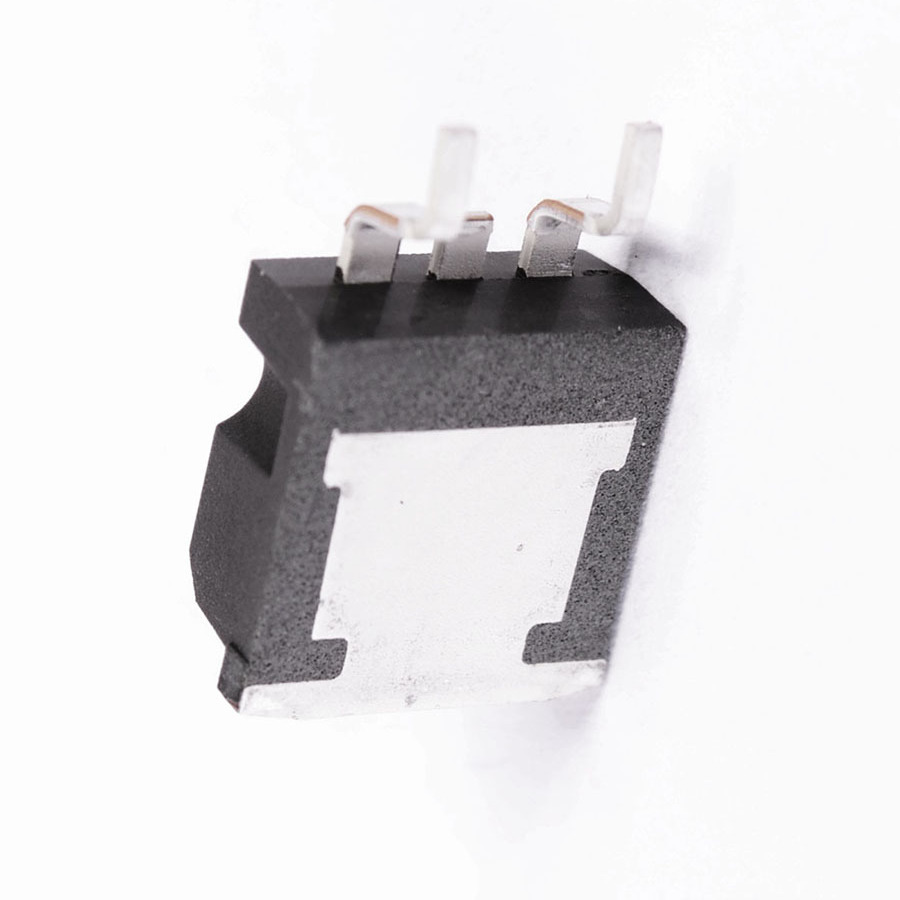

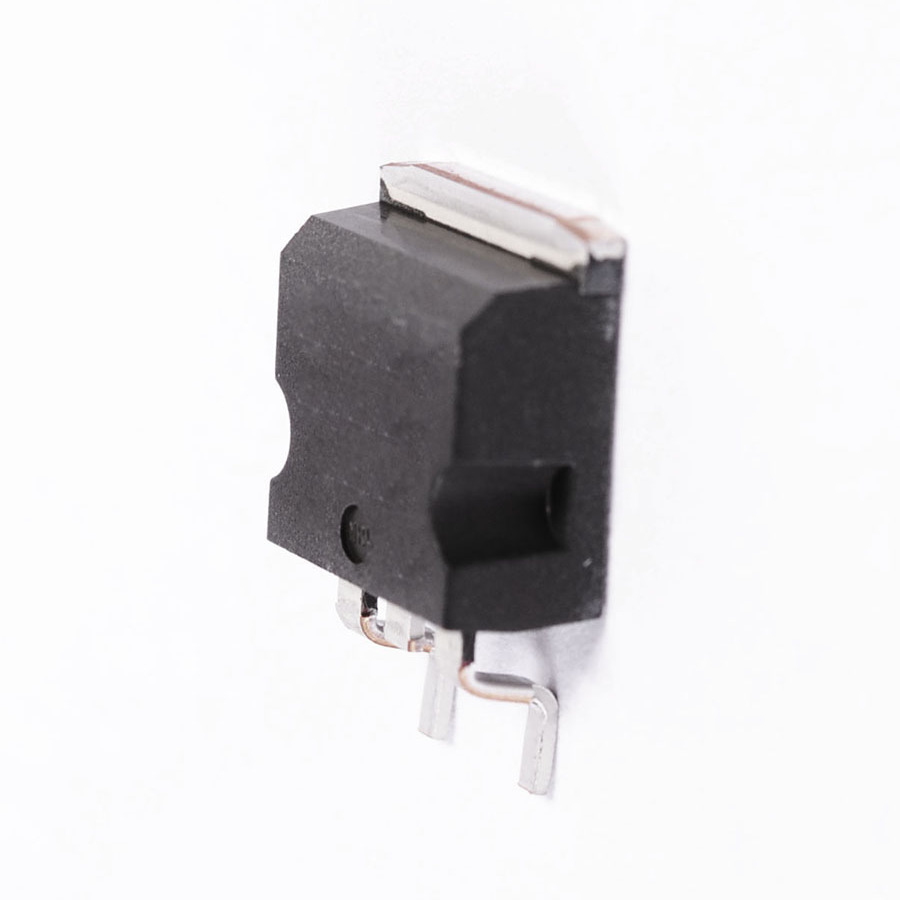

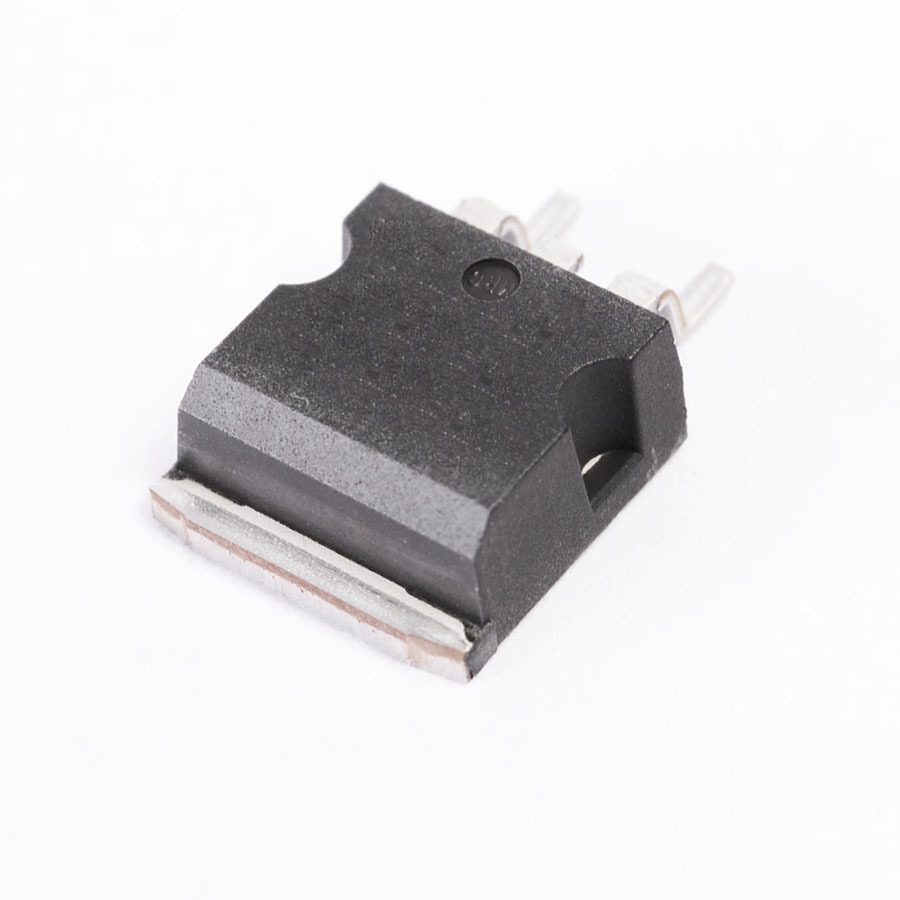

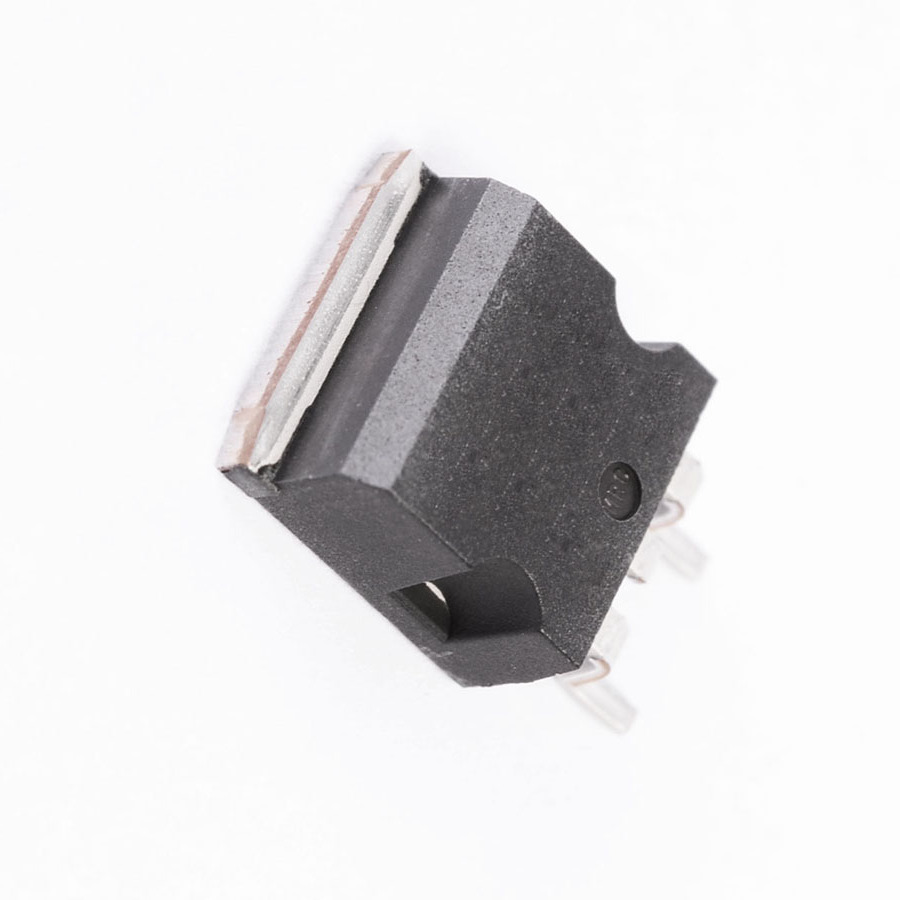

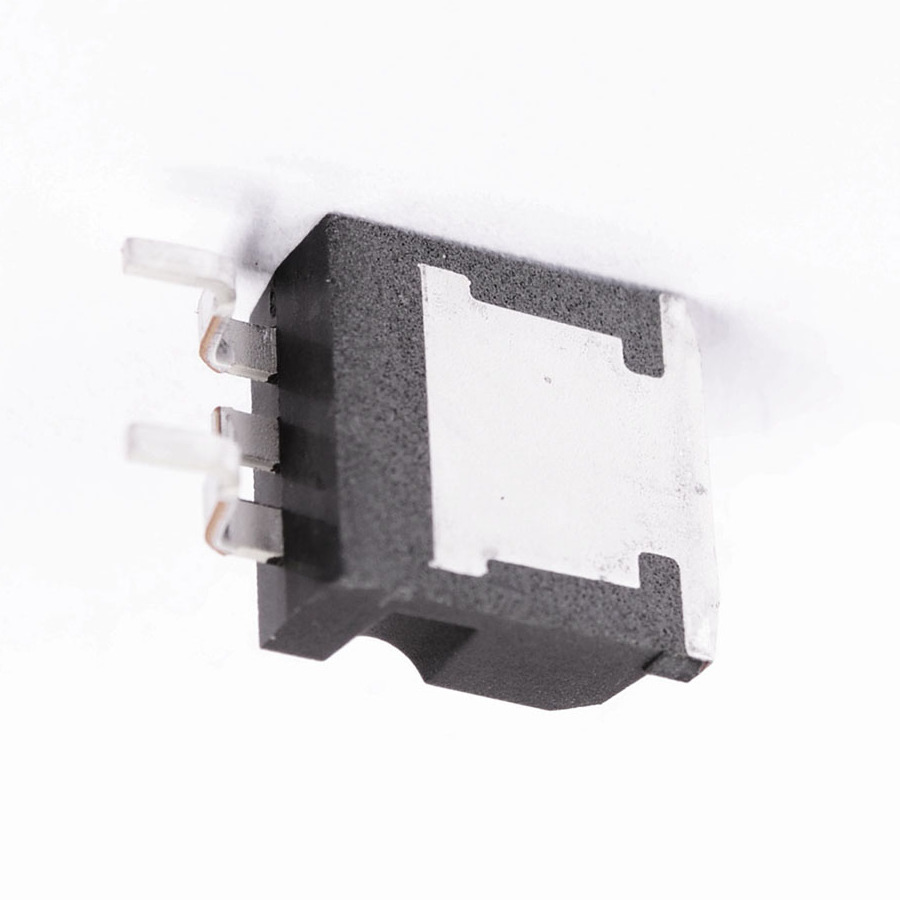

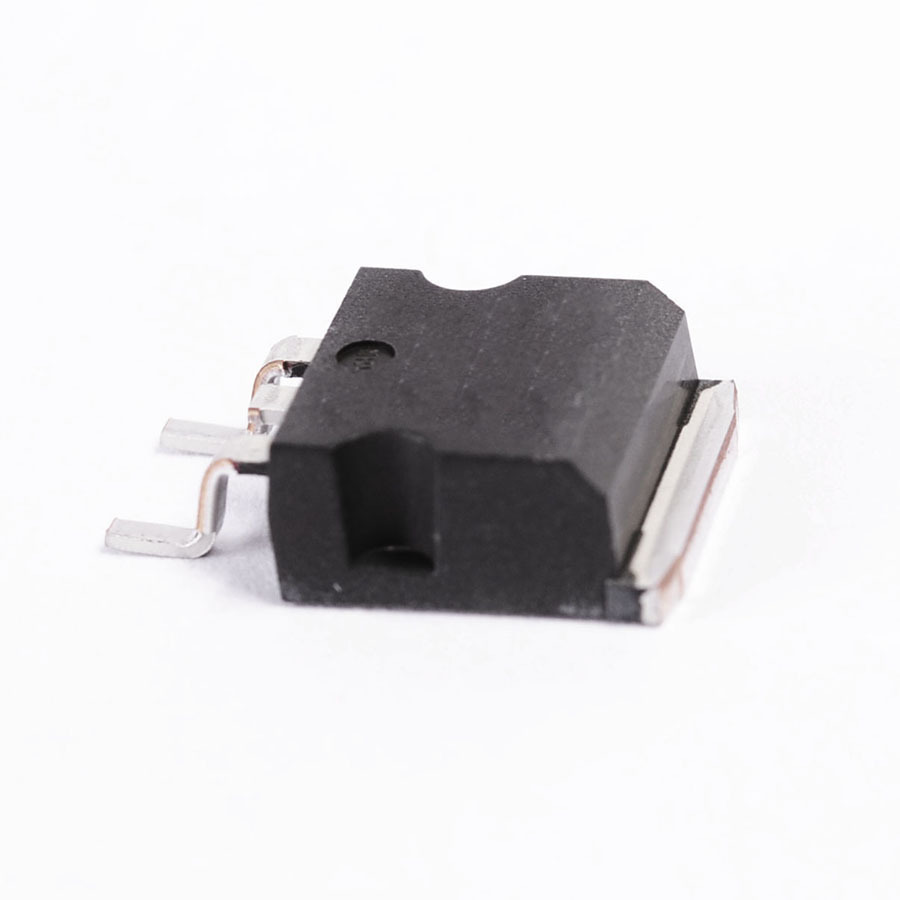

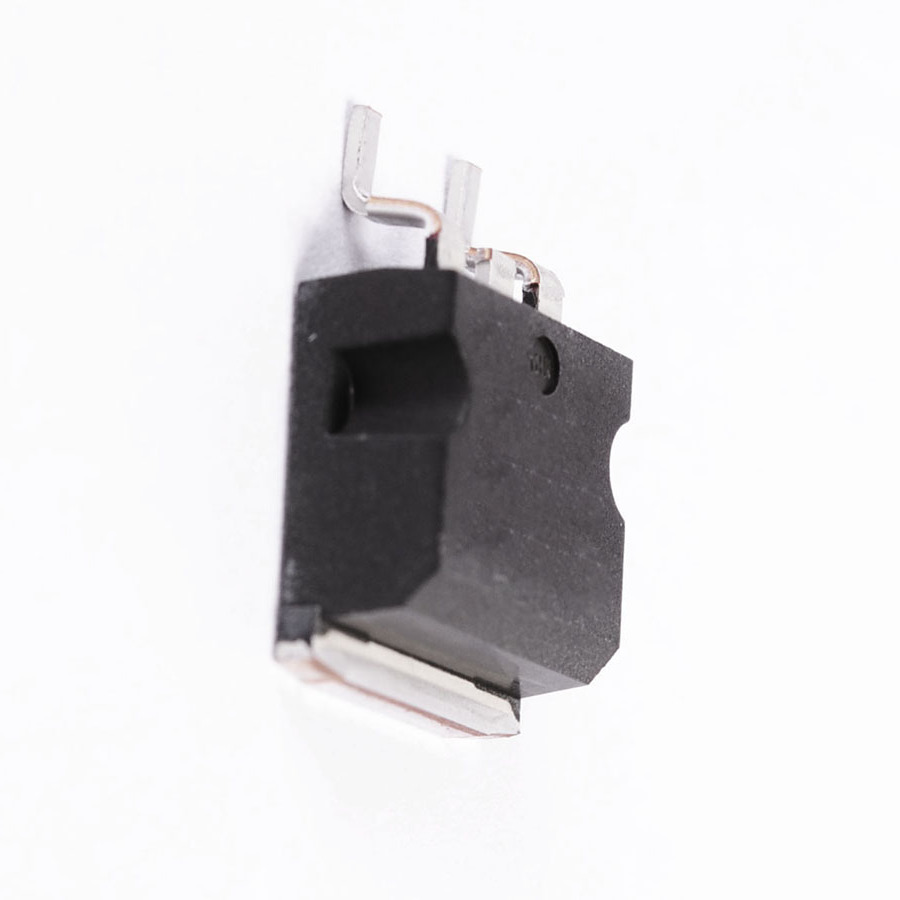

2SB1450 Transistor Silicon PNP CASE: TO263 MAKE: Sanyo Semiconductor
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
2SB1450 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO263
Manufacturer Sanyo Semiconductor
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 40
t(f) Max. (S) 700n-
Max. hFE 280
Min hFE 70
Ic Max. (A) 7.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 100u
Polarity PNP
Tr Max. (s) 200n-
Trans. Freq (Hz) Min. 10M
Oper. Temp (°C) Max. 150
@VCE (V) 2.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 40 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 12 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 5 MHz
Forward Current Transfer Ratio (hFE), MIN 240
SKU 343532
